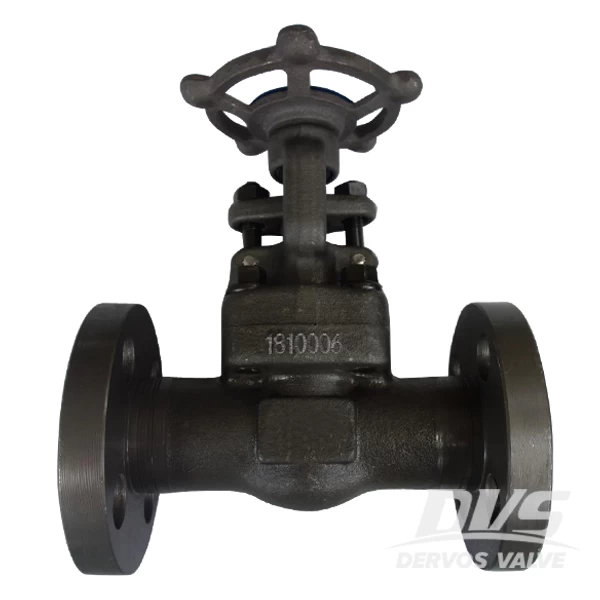

API602 Gate Valve Bolt Bonnet Outside Screw Yoke Solid Wedge Full Pore Integral Raised Face Flange Connection A105N Body Trim 13Cr 150LB 300LB 1/2 inch 3/4 inch A182 F6a Seat/Wedge /Stem, 304+Graphite/Gasket
Quick Detail
|
Type
|
GateValve
|
|
Size
|
0.5 inch
|
|
Design Pressure
|
CL300
|
|
Construction
|
BB, OS&Y
|
|
ConnectionType
|
RF
|
|
OperationType
|
Handwheel
|
|

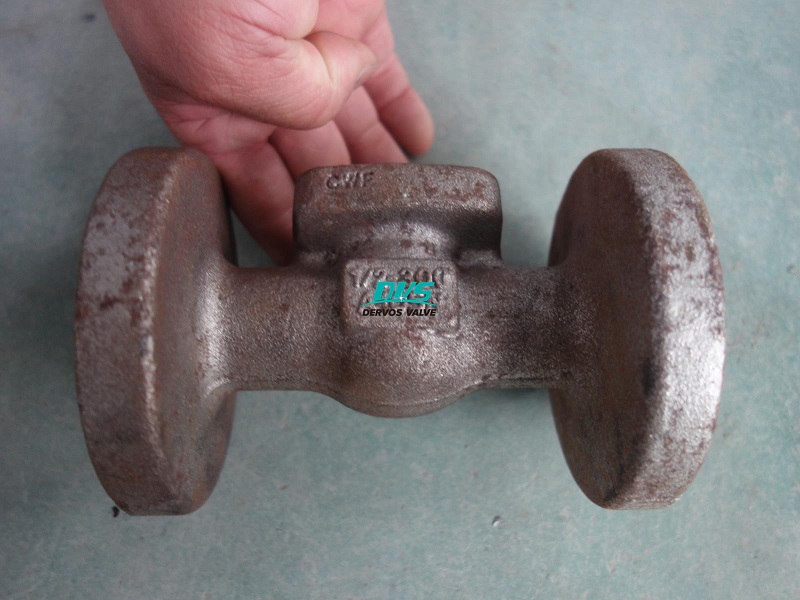

Body Material
|
A105N
|
|
WedgeMaterial
|
F6a
|
|
Stem Material
|
F6a
|
|
Seat Material
|
F6a
|
|
Design Code
|
API 602
|
|

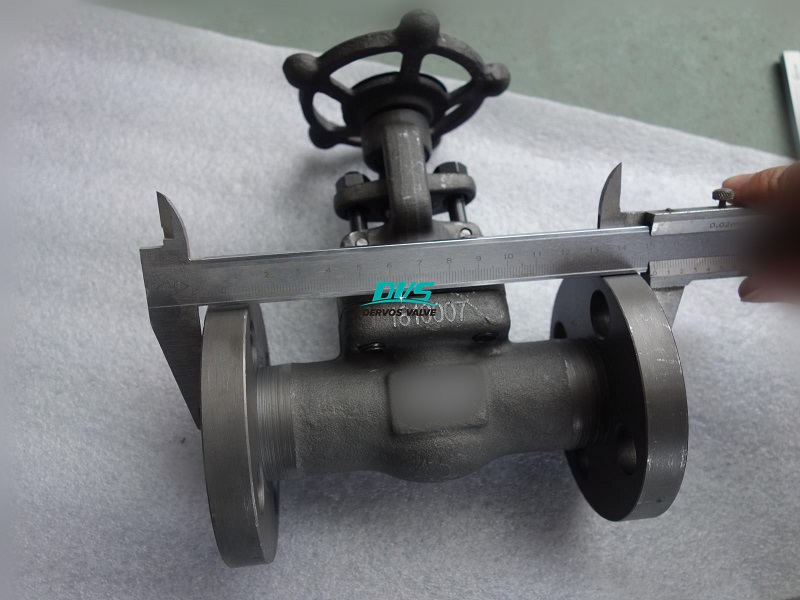

Face to Face Dimension
|
ASME B16.10
|
|

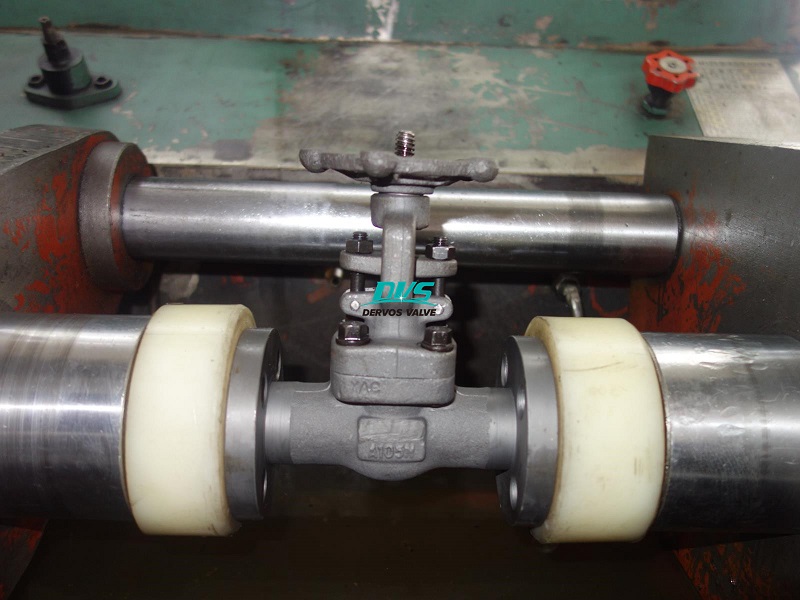

Test and Inspect
|
API 598
|
|
Pressure & Temp
|
ASME B16.34
|
|
Medium
|
Water, Oil and Gas
|
|
Origin
|
China
|
