Integrated Cleanroom Corner Panel Systems For Pharmaceutical

The integrated cleanroom corner panel system completely eliminates the various corner joints between the wall panel systems of clean room partitions, which ensures the flatness and smoothness of the wall panels and avoids the impact of joint cracking and leakage on the clean environment. Avoiding dust accumulation, which is more conducive to cleaning and process sterilization.



Integrated Cleanroom Corner Panel Systems For Pharmaceutical


Product Introduction:

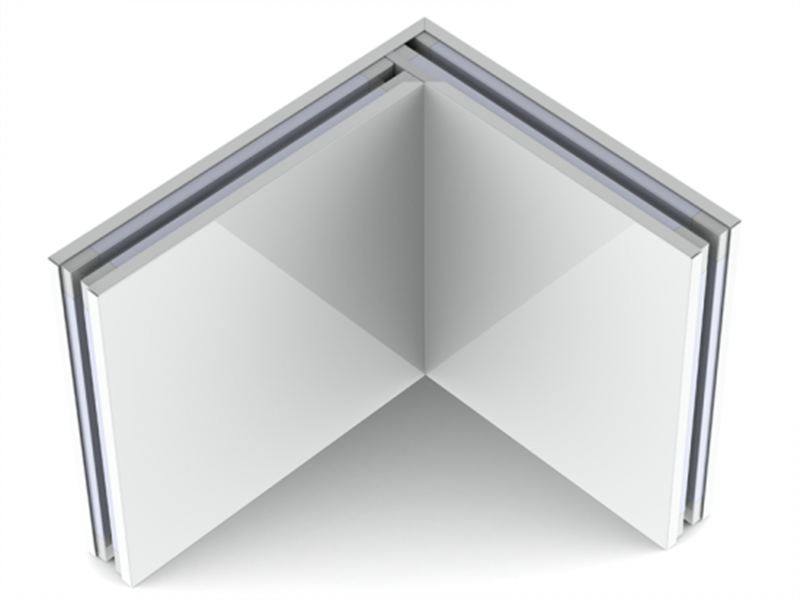

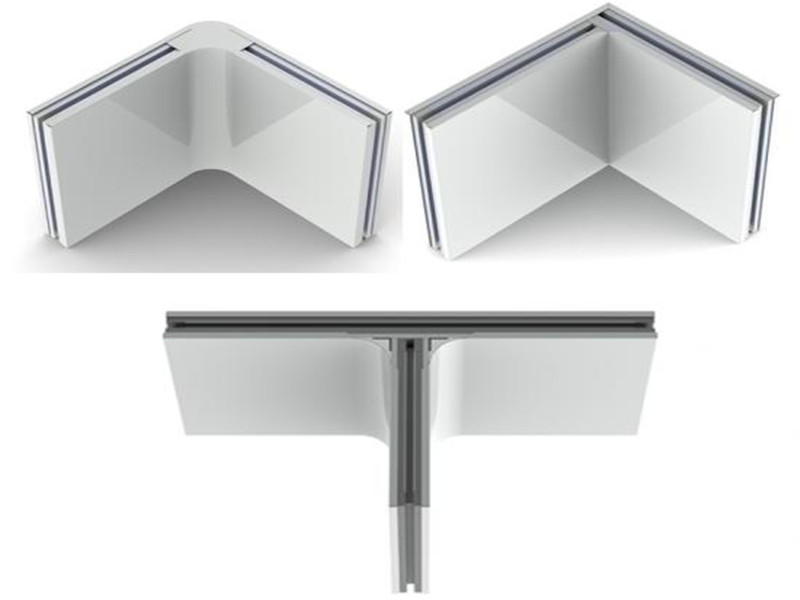

Wiskind Integrated Cleanroom Corner Systems is divided into three types, which are integrated One Piece Cleanroom Circular Corner system, One Piece Cleanroom L-shaped Corner system, One Piece Cleanroom T-shaped Corner system, factory prefabrication, direct stitching on site, reducing the use of aluminum profiles, make the clean room more beautiful, more conducive to cleaning and process sterilization.


Product Description:

Product Name

Integrated Cleanroom Corner Panel Systems For Pharmaceutical

Width

Width on both sides and no more than 1180 mm (Suggested equilateral 250 * 250 mm)

Max Length

6000mm

Wall Thickness

50mm

Steel Facer Thickness

0.4-0.8mm

Outer Plate Material

PPGI, Al-mg-Mn Alloy steel, SS steel, Ti-Zn steel, VCM

Coating

PE, PVDF, HDP

Core Material

rock wool

Frame Thickness

0.6mm

Application

Pharmaceutical Clean Room, Electronic Clean Room, Food Clean Room, etc.


Product Advantages:

1.The Integrated Cleanroom Corner Systems completely eliminates various corner joints between wall panels, factory prefabrication, on-site splicing, and module installation is convenient and quick.

2.Nearly the ultimate guarantee of smooth and smooth siding, avoiding joint cracking, dust and leakage affect the clean environment, more conducive to cleaning and process sterilization.

3.Clean room partition wall system core material diversified, there are rock wool, PU, EPS, paper honeycomb, aluminum honeycomb and so on. According to different environments, fireproof, heat preservation, noise reduction, moisture proof, etc., choose different core materials, meet your different clean room requirements.

4.The cleanroom sandwich panel coating and material are selected according to the working environment. The modular cleanroom sandwich wall panel can directly open the hole and reserve the line pipe to improve the installation efficiency.

5.Widely used in clean rooms such as pharmaceuticals, electronics, and food industry.
