Specification:
|
Power
|
2.2kW-75kW
|
|
Elevator speed
|
0.250m/s-4.000m/s
|
|
Number of supported landings
|
48 landings
|
|
Leveling precision
|
2mm
|
|
Cabinet size
|
62*26*106
|
|
Wiring method
|
Modular wiring board
|
|
Communication method
|
Innovative high-speed MODBUS, enhanced CAN communication
|
|
Voltage level
|
220V-240V（ 2.2kW-30kW ）
|
|
380V-440V（ 2.2kW-75 kW ）
|
|
Adapted traction machine
|
Support synchronous and asynchronous traction machines
|
|
Control method
|
High performance closed loop vector control for open loop low speed operation
|
|
Online mode
|
Single ladder operation, two direct parallel, 3-8 elevators group control
|
|
Applicable elevator type
|
Passenger elevators, freight elevators, hospital elevators, residential elevators, sightseeing elevators, villa elevators, etc.
|
|
Extension port
|
Support mobile phone debugging serial port upgrade software, IoT monitoring
|
|
Installation method
|
Install on the floor/wall hanging
|
Feature:
● The hardware resources are fully integrated, the structure is simple, the volume is smaller, and the control cabinet is lighter;
● Modular structure, saving workers wiring time, easy to assemble, repair and replace;
● The internal interface board is designed for on-site installation, and the hoistway cable and the accompanying cable are directly connected to each other, avoiding trouble and wiring errors;
● Built-in overvoltage protection module, the input power supply is cut off in time when the local zero line is disconnected, and other modules of the system will not be damaged due to overvoltage;
● Built-in brake power supply board, direct output DC to control the brake. Control efficiency is improved. No high frequency clutter, the brake generates less heat and the brake noise is lower;
● The built-in DC24V switching power supply can directly supply power to the LOP, control panel board and other peripheral boards, and the rated output current can reach 5A;
● It can match elevator internet monitoring module. It supports community monitoring and remote monitoring

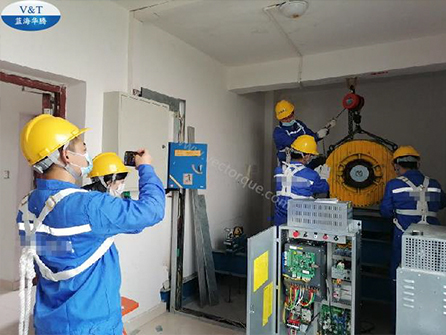

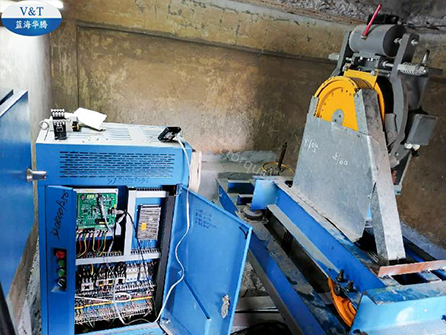

Applications:
