Integrated EV Auxiliary motor controller (4-in-1,3-in-1)

Long-term cooperation with many well-known vehicle manufacturers and system integrator

With more than ten years of technology accumulation and rich experience, we have thousands of successful industry applications; we can share our experience with partners;

We provide the customized product and customized design to achieve the best match between motor, motor controller and vehicle control system;

Enjoy high trust from customers and industry reputation.



  • Shipping PortShenzhen
  • Place of OriginChina
  • AvailabilityOEM/ODM, Minmum Order Request
  • PackageStandard Export Package Carton/Wood
  • TransportationExpress · Sea freight · Land freight · Air freight
  • Delivery Time14-30 working days for customized EV motor controller
  • Warranty24 Months
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

V6-H-4D5.5G & V6-H-4D5.5G ;

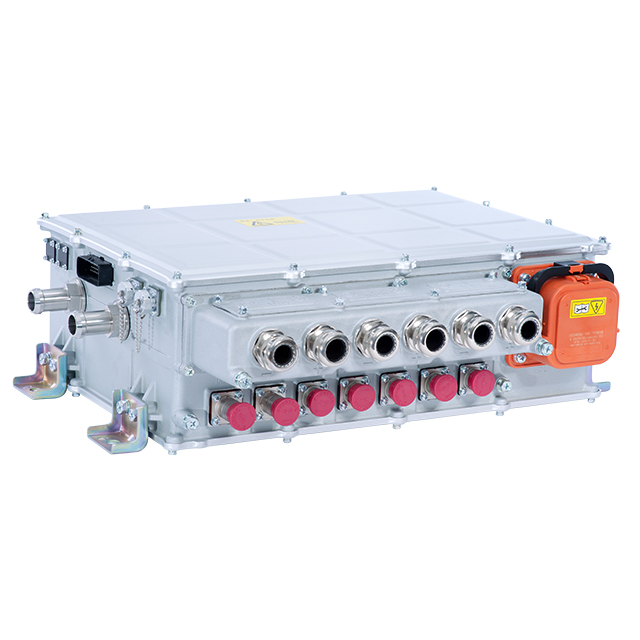

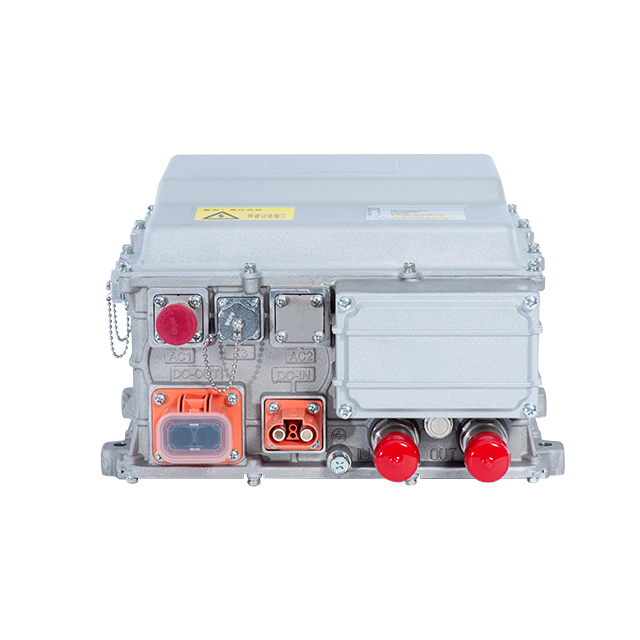

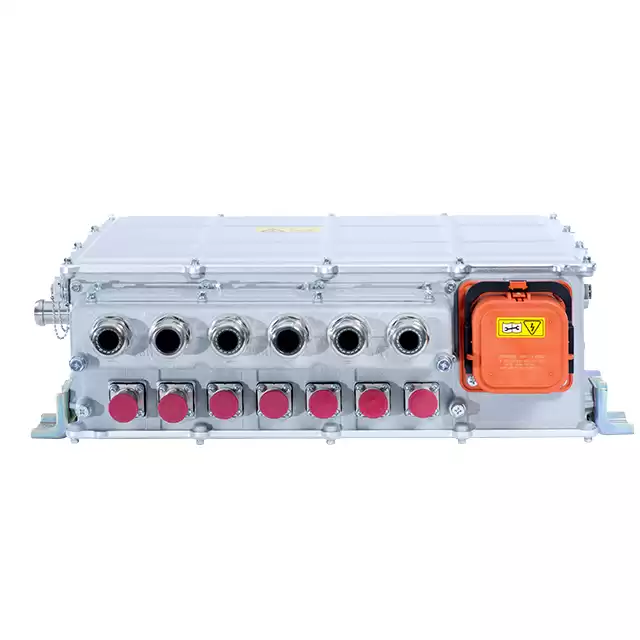

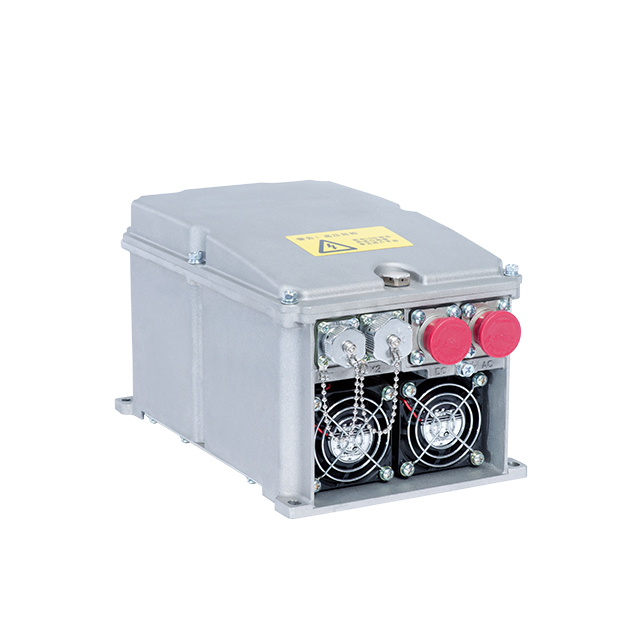

Three-in-one Auxiliary Controller (Oil pump + Gas pump + DC/DC)


Technical Parameter

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

Medium BusLarge BusLogistics Vehicle

Product type

V6-H-4D5.5G & V6-H-4D5.5G

Rated input voltage

DC 540V

Rated power

5.5kW & 5.5kW & 3kW

Input voltage range

DC 350V~750V

Rated output current

13A & 13A , DC 27.5V

Maximum output current

19.5A & 19.5A , DC 130A

Output frequency range

0~300Hz

Protection level

IP67

Cooling type

Water cooling

Outline dimension

333*308*159(mm)

Weight

13.5kg

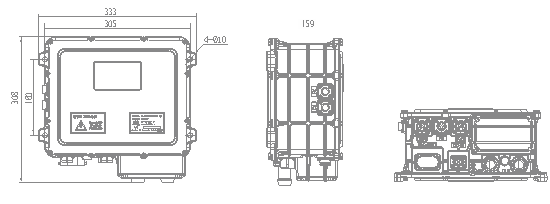

Outline dimension

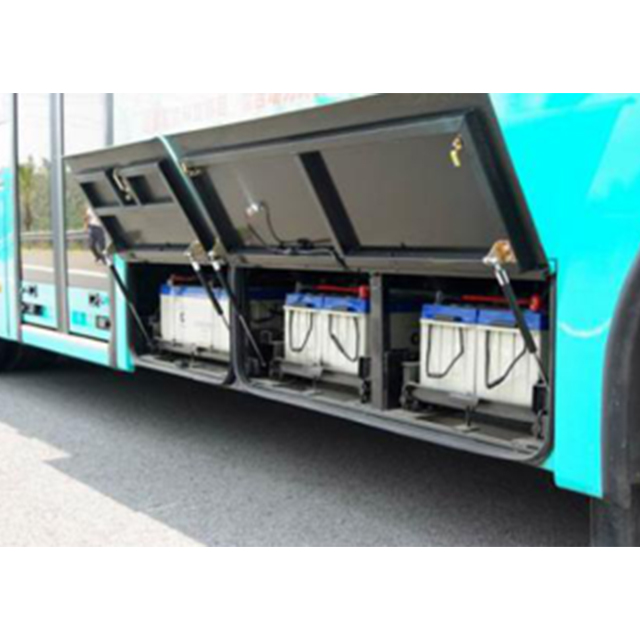

Application











Shenzhen V&T Technologies Co.,Ltd. is committed to R&D and manufacturing of integrated EV auxiliary motor controller. Please browse online now for more parameter information.


Product Tags New energy vehicle motor controller          custom Motor control          Electric Medium Bus motor controller
