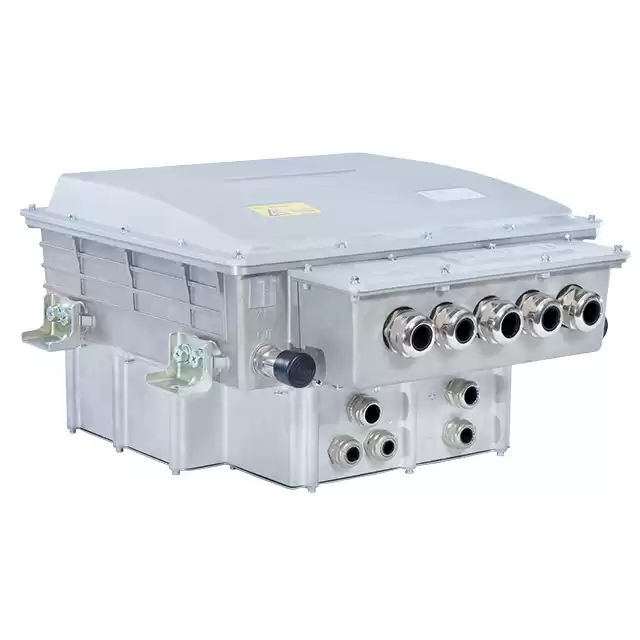

Integrated EV motor controller for electric vehicle(5-in-1,4-in-1)

Long-term Safe and Reliable Work

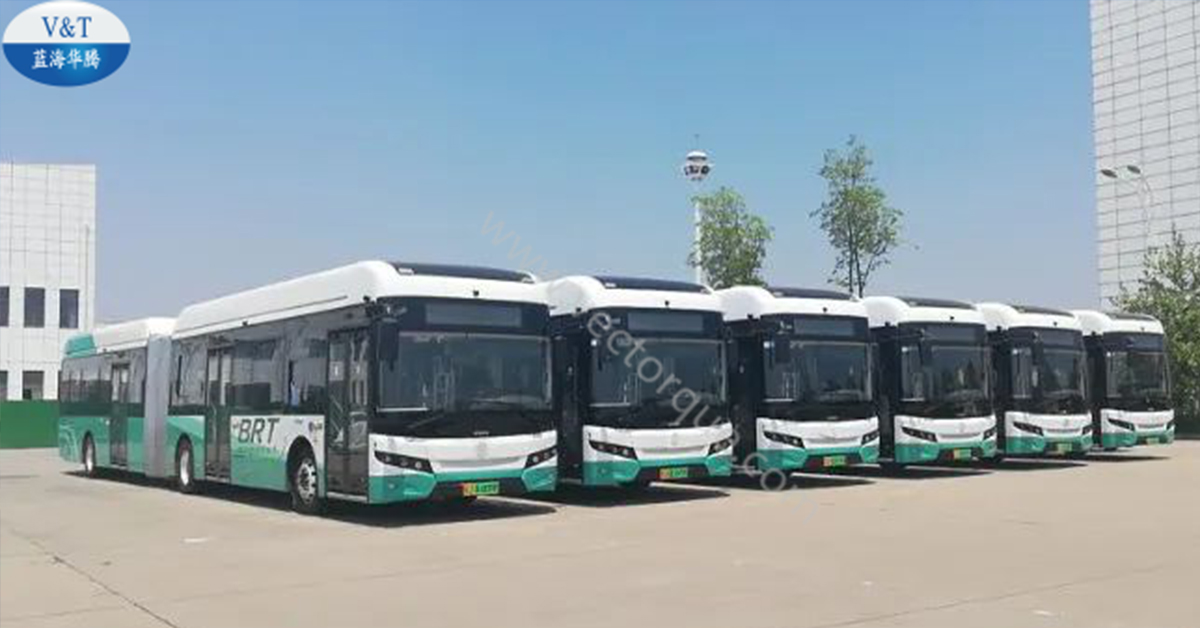

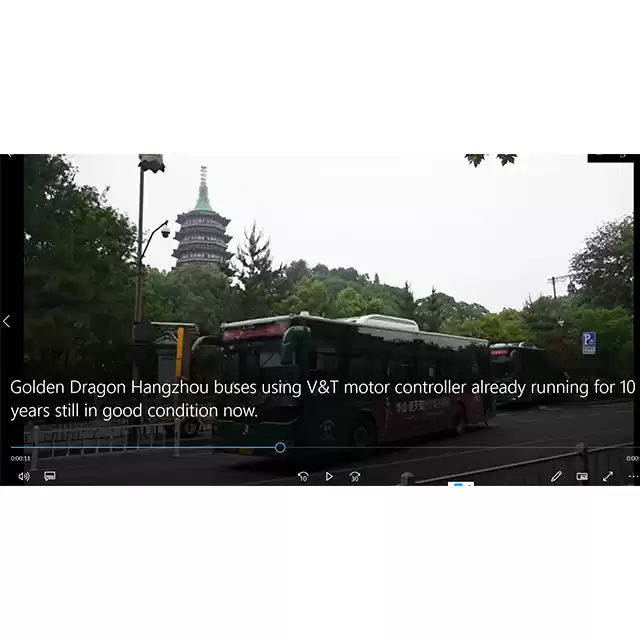

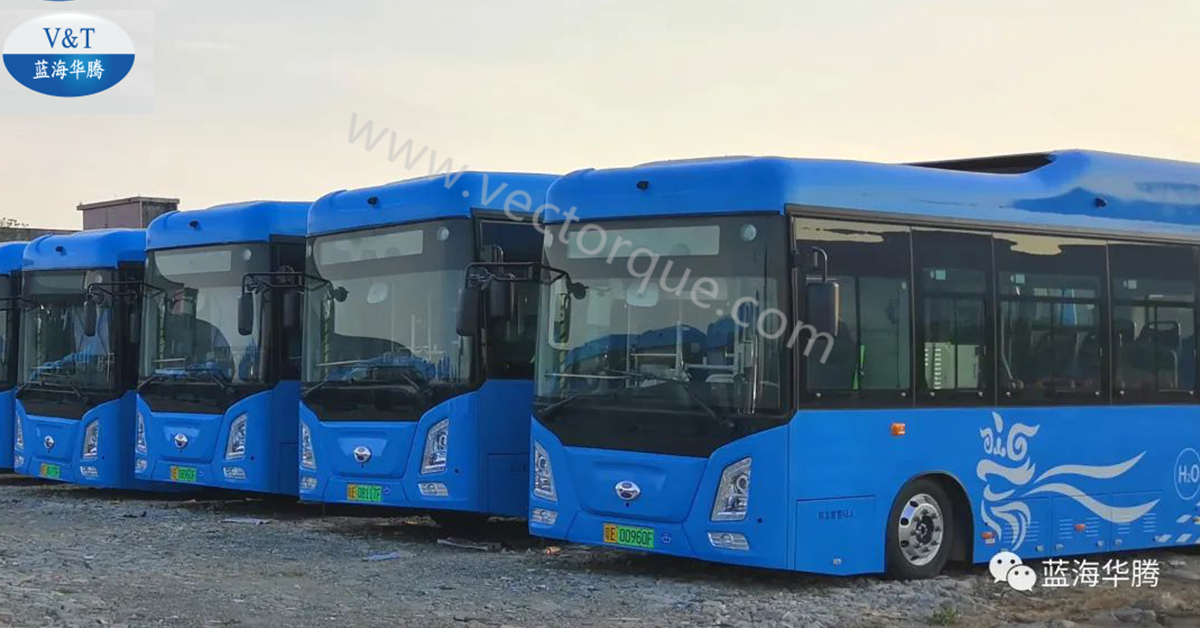

From 2009 to 2012, more than 6,000 MCU controllers of electric vehicle were running in nearly 20 cities including Hangzhou, Qingdao, Nanjing, Suzhou, Nantong, Xiamen, Haikou, Urumqi and Tianjin. The new energy bus worked safely and reliably for 6-8 years. The running mileage of each electric vehicle reaches 500,000 -700,000 kilometers.


  • Place of OriginChina
  • PackageStandard Export Package Carton/Wood
  • AvailabilityOEM/ODM, Minmum Order Request
  • TransportationExpress · Sea freight · Land freight · Air freight
  • Delivery Time14-30 working days for customized EV motor controller
  • Warranty24 Months
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • Shipping PortShenzhen
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

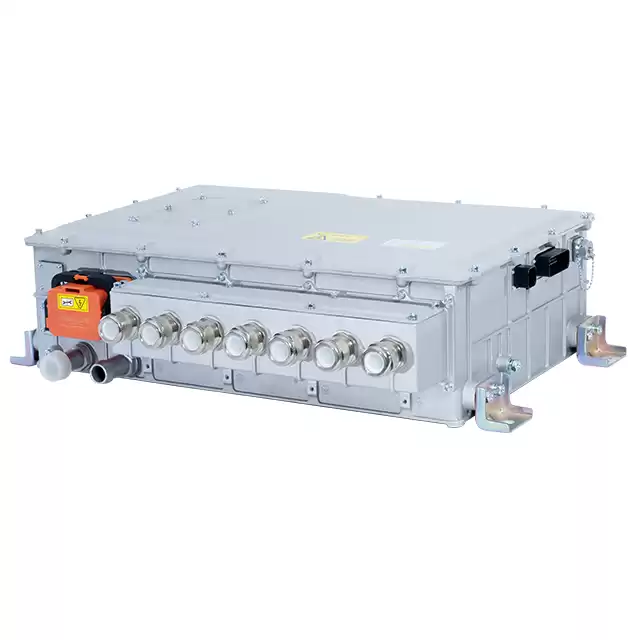

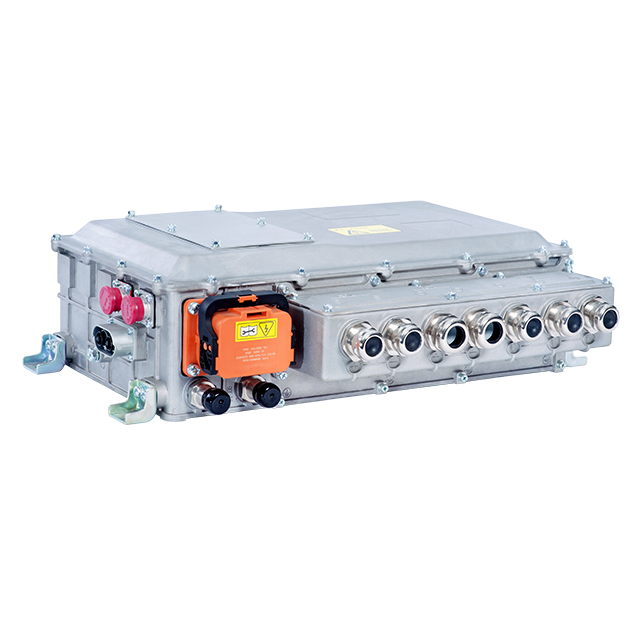

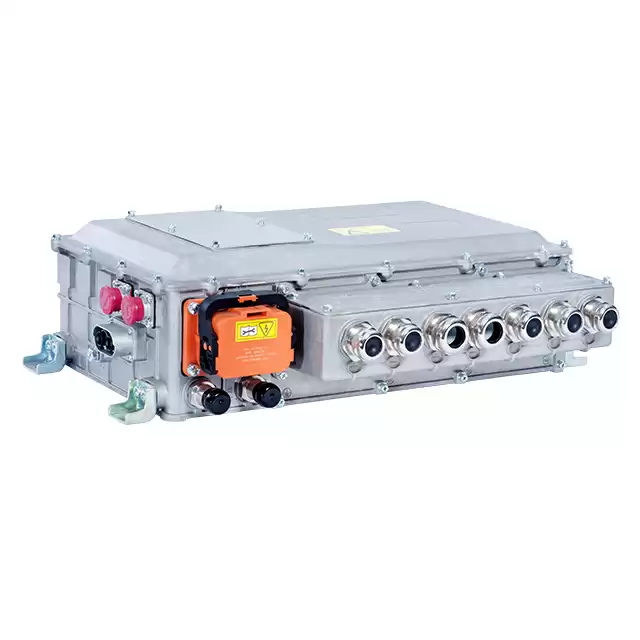

V6-H-4D160G

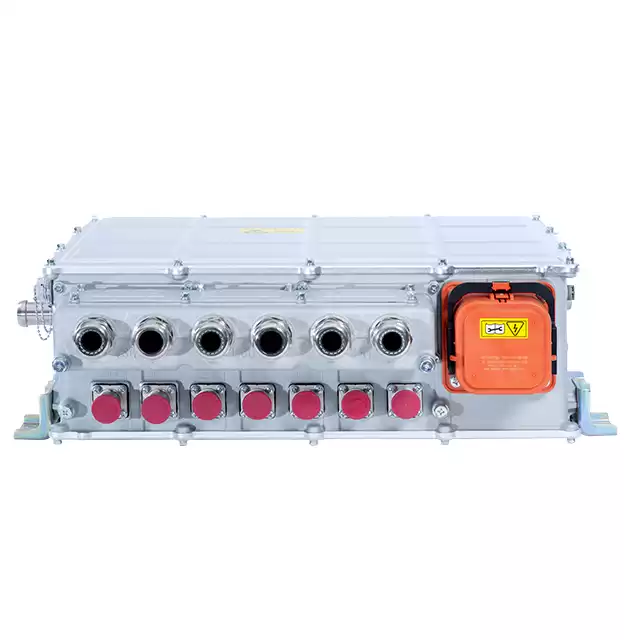

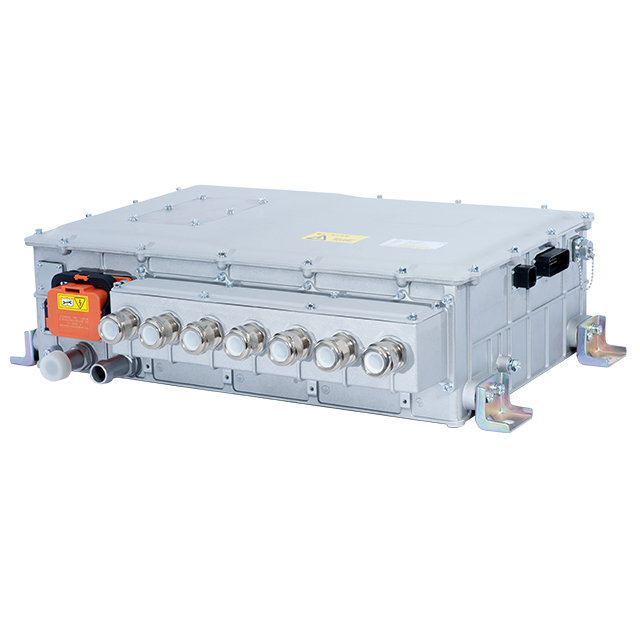

Five-in-one Integrated controller (Master drive ;+ Oil pump + Gas ;pump + DC/DC + Power distribution)


Technical Parameter

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

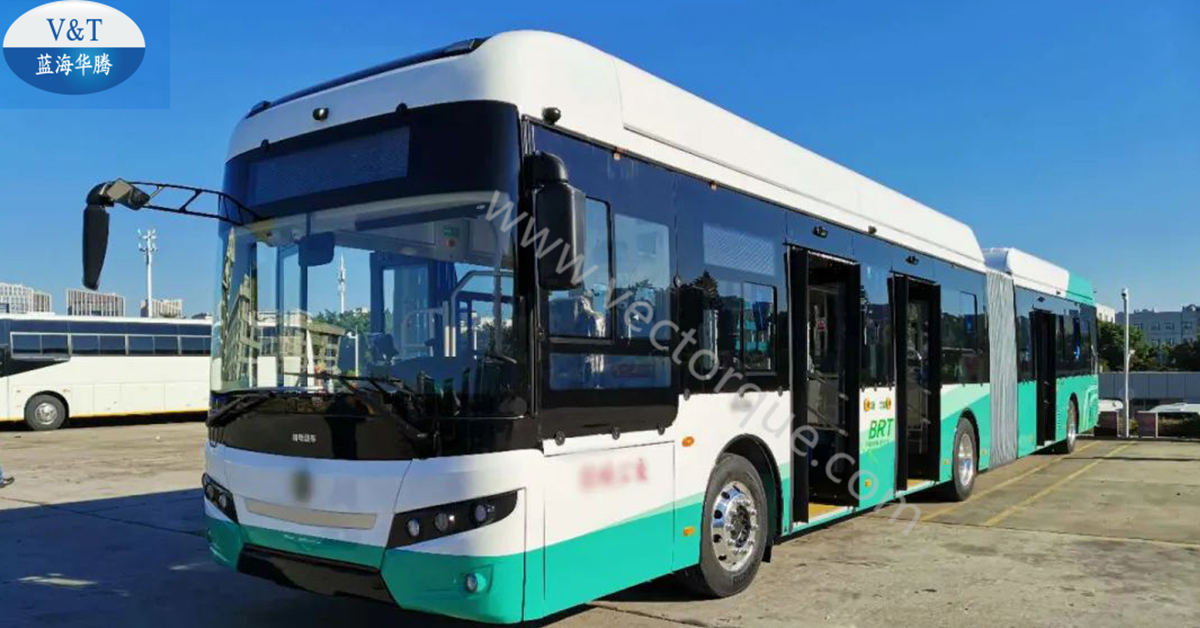

Medium BusLarge BusLogistics Vehicle

Product type

V6-H-4D160G

Rated input voltage

DC 540V

Rated power

160kW&5.5kW&5.5kW&3kW

Input voltage range

DC 350V~750V

Rated output current

253A&13A&13A&110A

Maximum output current

456A&19.5A&19.5A&130A

Output frequency range

0~1000Hz

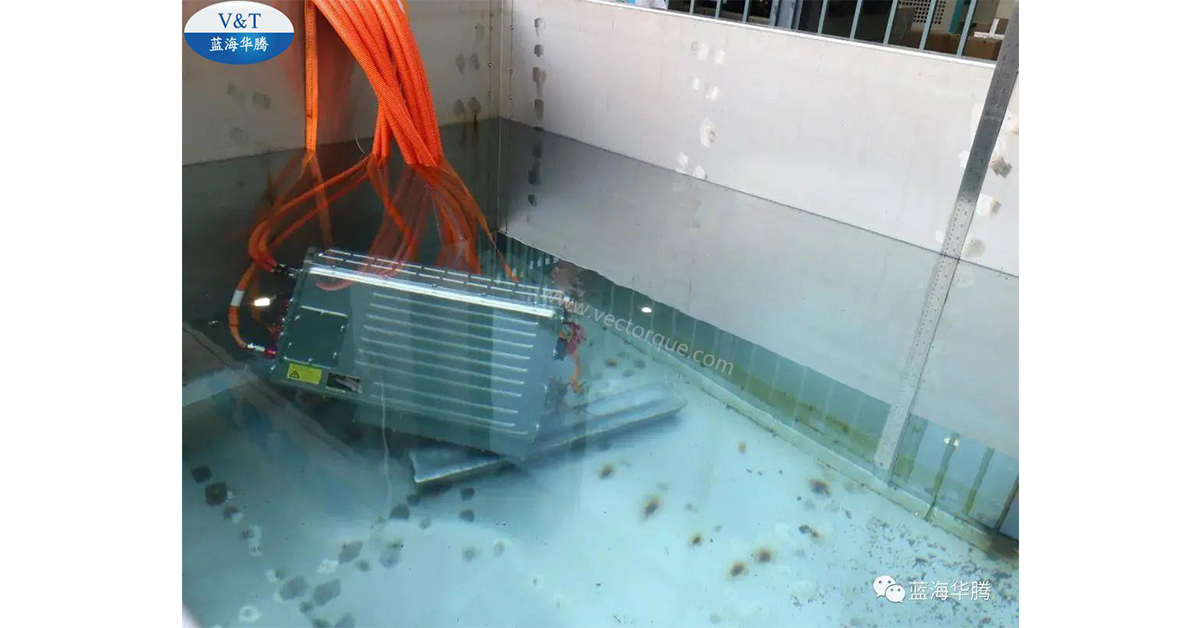

Protection level

IP67

Cooling type

Water cooling

Outline dimension

680*485*180(mm)

Weight

35kg

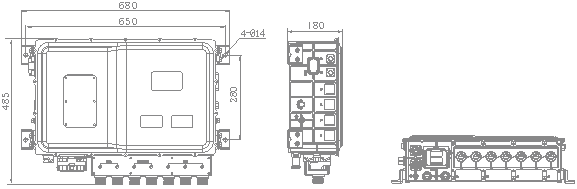

Outline dimension

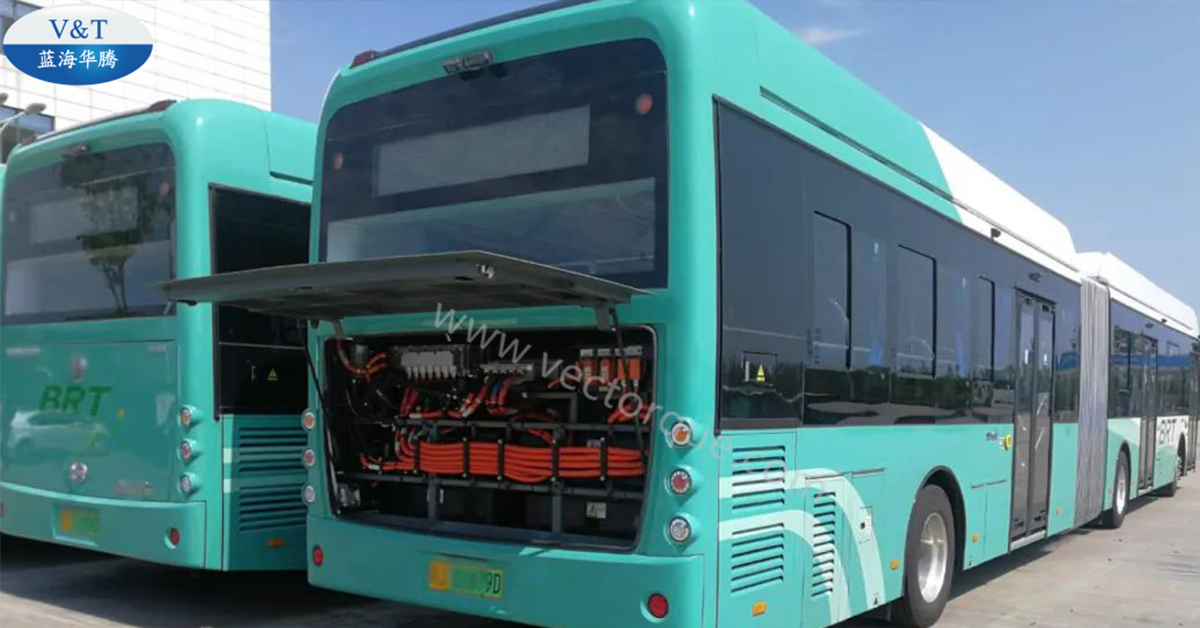

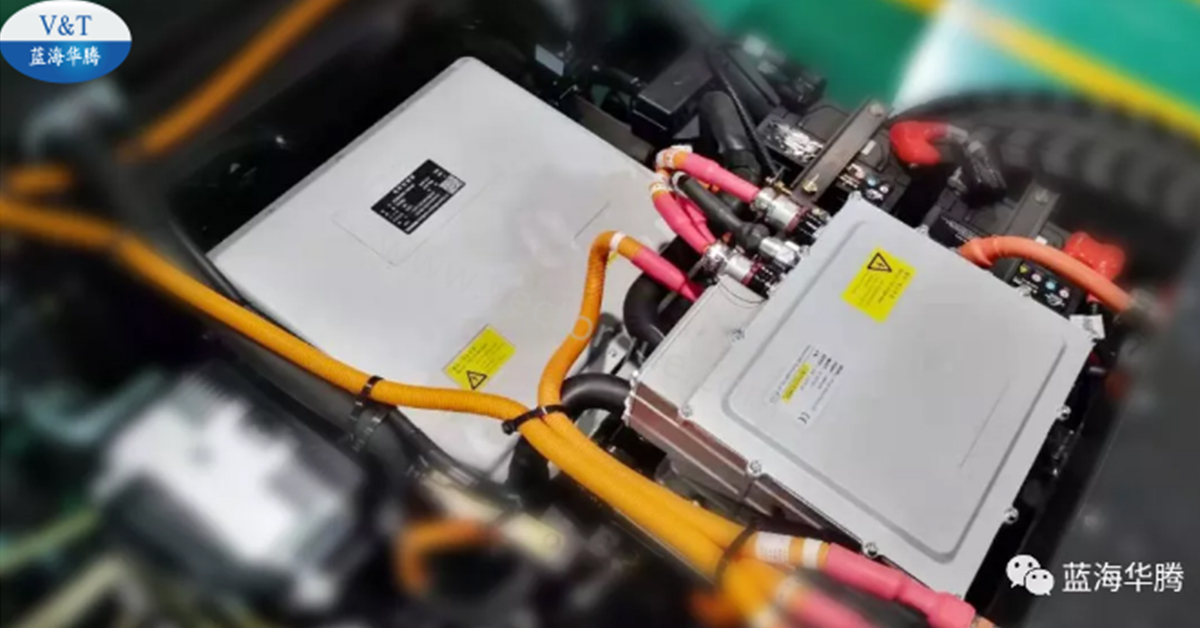

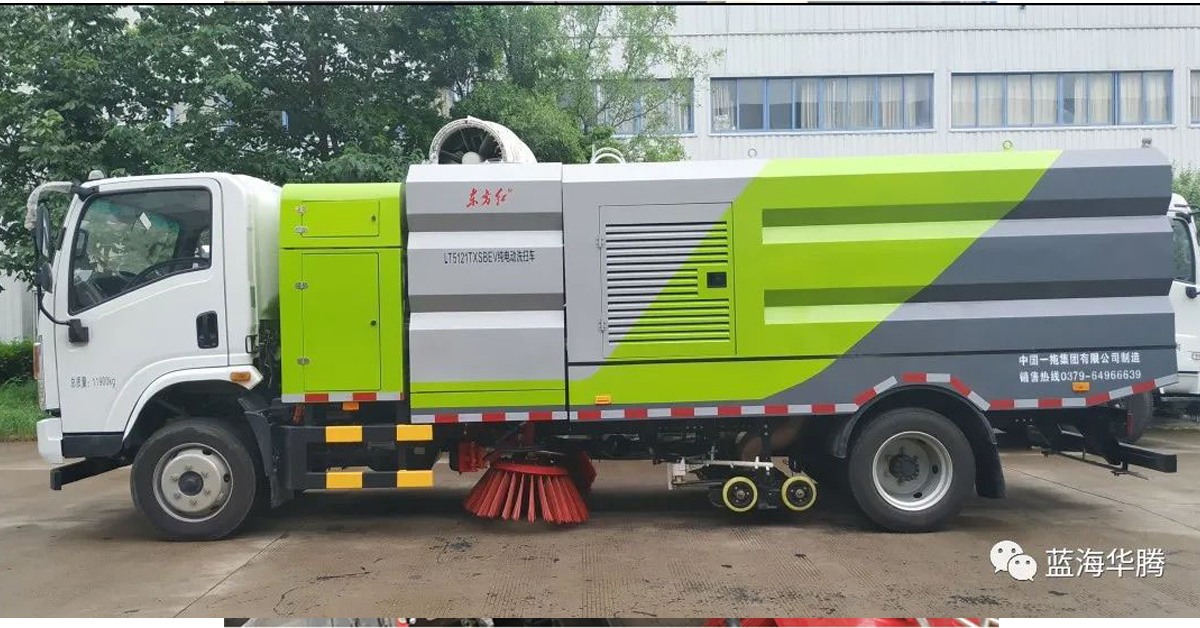

Application













Shenzhen V&T Technologies Co.,Ltd. is committed to R&D and manufacturing of integrated EV motor controller. Please browse online now for more parameter information.
