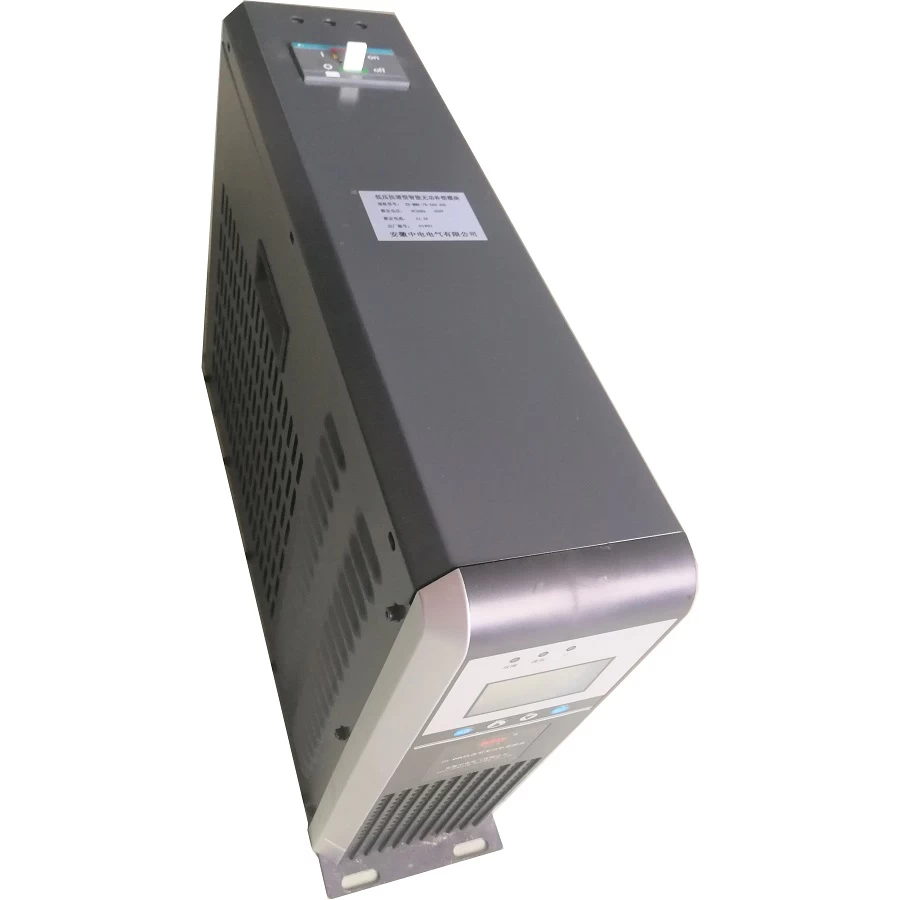

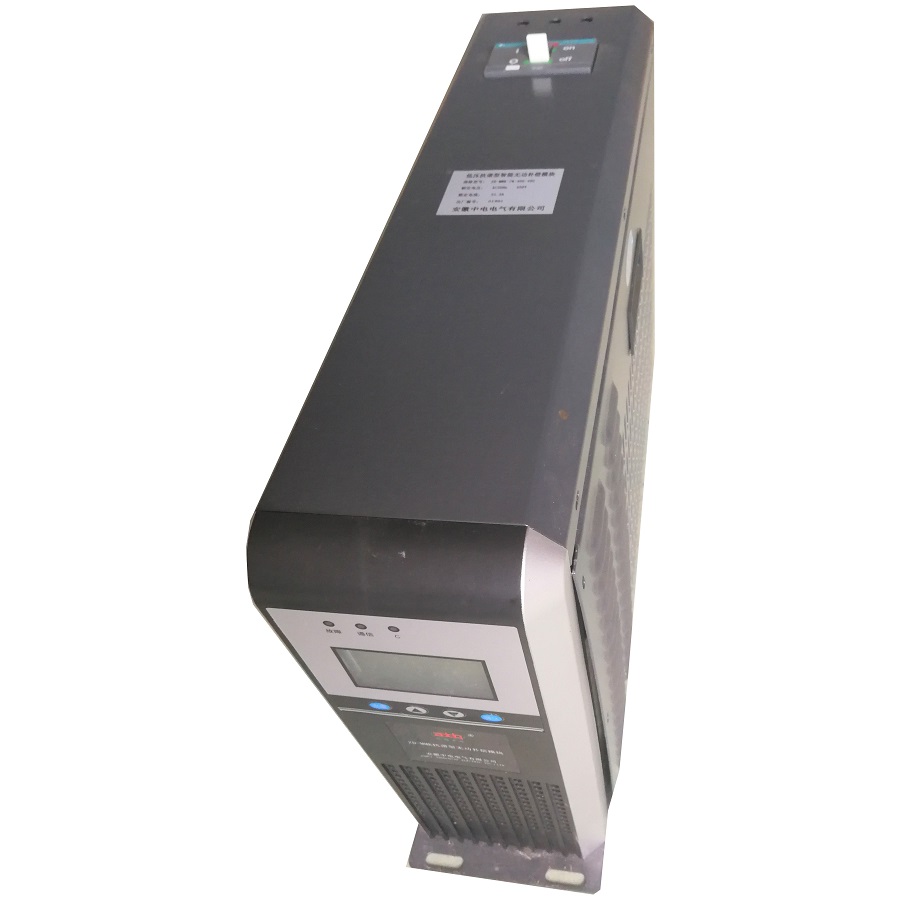

Integrated power capacitors

The integrated capacitor has good self-healing and high insulation resistance characteristics.

It is mainly to improve power factor of system, optimize quality of power grid.



OVERVIEW

Integrated capacitors consists of switch, low-voltage capacitor, reactor, controller and other protection unit.

The capacitor has good self-healing and high insulation resistance characteristics. It is mainly to improve power factor of system, optimize quality of power grid.


SPECIFICATION

Environment condition

Ambient temperature:

-35~65°C (-25~45°C )

Relative humidity

40°C,20-90%

Atmospheric pressure

79.5~106.0Kpa

Protection deviation

Voltage

0.5%

Current

0.5%

Temperature

 ±1°C

Time

 ±0.01s

Power condition

Rated voltage

~200V or ~440V

Allowable tolerance

±20%

Voltage waveform

<5%

Frequency

48.5~51.5Hz

Power dissipation

<0.5w (capacitor on)

<1w    (capacitor off)

Parameters

Deviation

The minimum capacity of 75%

Time of capacitor switch

10s

Capacity

one (20+20)kvar

more24pcs

Reliability parameters

Control accuracy

100%

Allowed number of switch

1 million times

Capacitor run time decay rate

0.1%/10000

Fault rate annual

0.10%

Measurement deviation

Voltage

0.5%(during 80%~120% of rated voltage)

Current

1.0%(during5%~20% of rated current)

0.5%(during20%~120% of rated current)

Power factor

±0.01


capacitor banks modular
TSC modular
Integrated power capacitors Capacitor modular


MODEL TABEL

Model

Type

Capacity

Height

Model

Type

Capacity

Height

ZD-0.45/5+5

Three phase

10(5+5)

230

ZD-0.25/10

Single phase

10(3.34*3)

230

ZD-0.45/5+10

Three phase

15(5+10)

230

ZD-0.25/15

Single phase

15(5*3)

230

ZD-0.45/10+10

Three phase

20(10+10)

230

ZD-0.25/18

Single phase

18(6*3)

230

ZD-0.45/15+15

Three phase

30(15+15)

250

ZD-0.25/20

Single phase

20(6.67*3)

250

ZD-0.45/10+20

Three phase

30(10+20)

250

ZD-0.25/25

Single phase

25(8.34*3)

300

ZD-0.45/20+20

Three phase

40(20+20)

250

ZD-0.25/30

Single phase

30(10*3)

320


BENEFITS

The modular capacitor banks come with:

  • Many standardized configurations with flexibility to fit customer needs
  • Factory tested and assembled reducing environmental project delays and enhanced quality
  • Available as a stand-alone unit or for integration into pre-existing substation
  • Easy to relocate - with availability of reinstallation training services
  • Future scalability at low costs
  • Integrated package for single point responsibility


APPLICATIONS
