Intel® 12th Generation Low-Power CPU Mini PC with TYPE-C Display Support
Product Introduction
The Intel® 12th Generation Low-Power CPU Mini PC benefit from the latest advancements in processing technology, featuring Intel's 12th generation low-power CPUs. Enjoy improved performance, energy efficiency, and multitasking capabilities. Designed to fit seamlessly into any environment, the Mini PC boasts a sleek and compact form factor, making it ideal for both home and office setups where space is at a premium. Harness the power of Intel's low-power CPU architecture, striking a balance between performance and energy efficiency. Enjoy a responsive computing experience while minimizing power consumption. Despite its compact size, the Mini PC offers expandable storage options, allowing you to customize and scale your storage capacity based on your needs.
Features

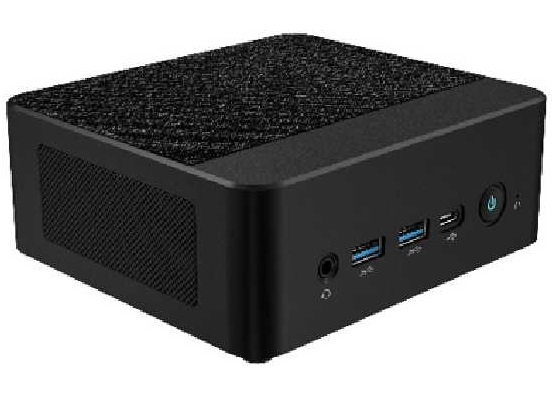

■ Compact size, beautiful and high-grade
■ Flexible configuration: optional i3 1215U/ I5 1235U/I7 12650H, memory, hard drive can be flexibly configured
■ 1 full-featured Type-C, 1 data Type-C
■ HDMI + DP + Type-C display
■ 4 USB3.0, 1 audio output jack
■ 1× 2.5G network port, optional WIFI
| Specification |
Optional Configurations |
| Chassis |
Plastic Chassis, Black |
|
| Front |
POWER/HDD indicator light，Power switch, Type-c (data), 2USB 3.0, AUDIO jack |
| Back |

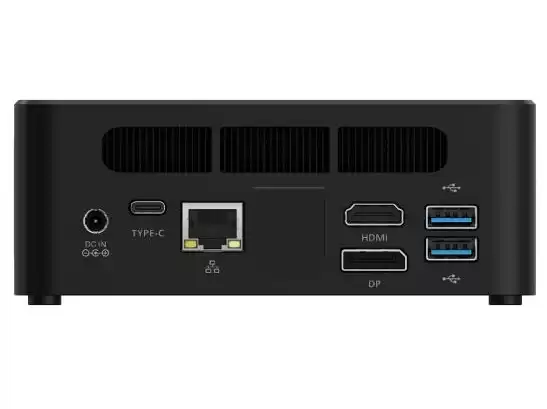

DC19V input, full-featured Type-C, 2.5G network port，HDMI，DP，2USB3.0 |
| Heat dissipation |
Intelligent Speed Control Ultra Silent Fan |
|
| Adaptive Main Board |
Dedicated motherboards |
|
| CPU/GPU |
Soldered on board Intel® Alder Lake /Raptor LakeU、P、H |
i3 1215U， i5 1235U, i7 12650H |
| Memory |
8G DDR4 |
16G/32G DDR4 |
| Storage |
256G NVME |
NVME SSD in all capacities |
| NIC |
Intel i225/i226 2.5G网口 |
WIFI |
WIFI5+BT4.2/WIFI6+BT5.2（可选项） |
| Soundcard |
ALC269Q audio |
|
| Size |
136mm *123mm * 51mm |
N.W/G.W |
0.5/1KG |
| Power supply |
19V adapter |
|
| System |
Win11 64 bit、Ubuntu 、CentOS etc. |
accreditation |
Support CCC/CE/ROHS etc. |
| Work and environment |
| Operating temperature |
0～60℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% Air humidity, non-condensing |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
