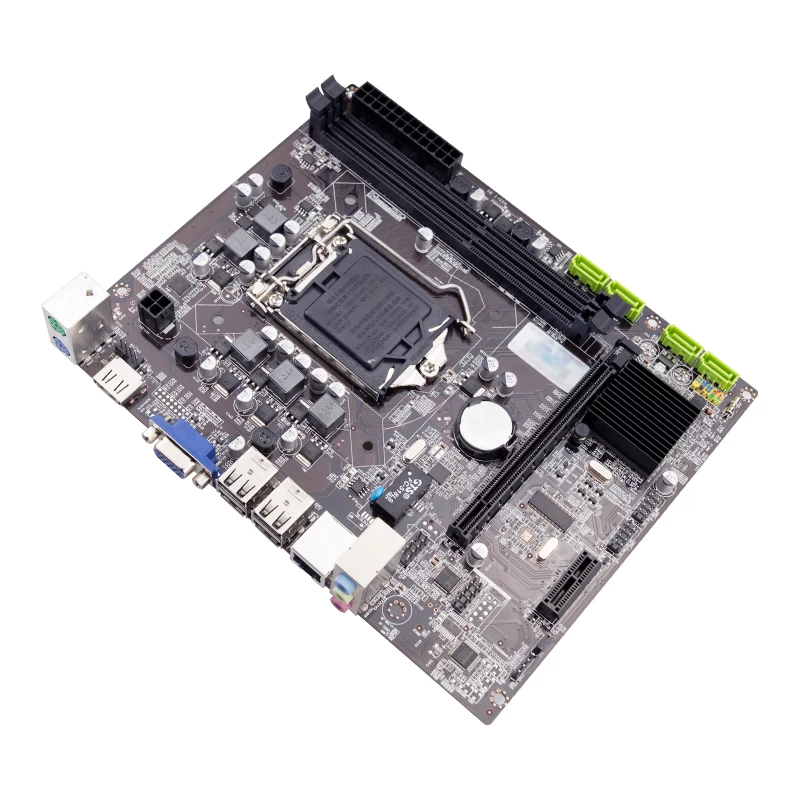

Intel H55 motherboard with LGA 1156 socket

  • Intel H55 chipset, LGA 1156 socket
  • Support Intel® Core™ i7 / i5 / i3 / Celeron Processors
  • Dual channel DDR3, up to 8GB, support 800/1066/1333/1600mhz
  • Integrated Intel graphic GPU with VGA, HDMI port


  • MemoryDual channel DDR3 up to 8GB
  • ChipsetIntel H55 Express chipset
  • CPU socketLGA1156

H55 motherboard

H55

ALL SOLID STATE BOARD
PRODUCT OF INGENUITY, H55 MOTHERBOARD

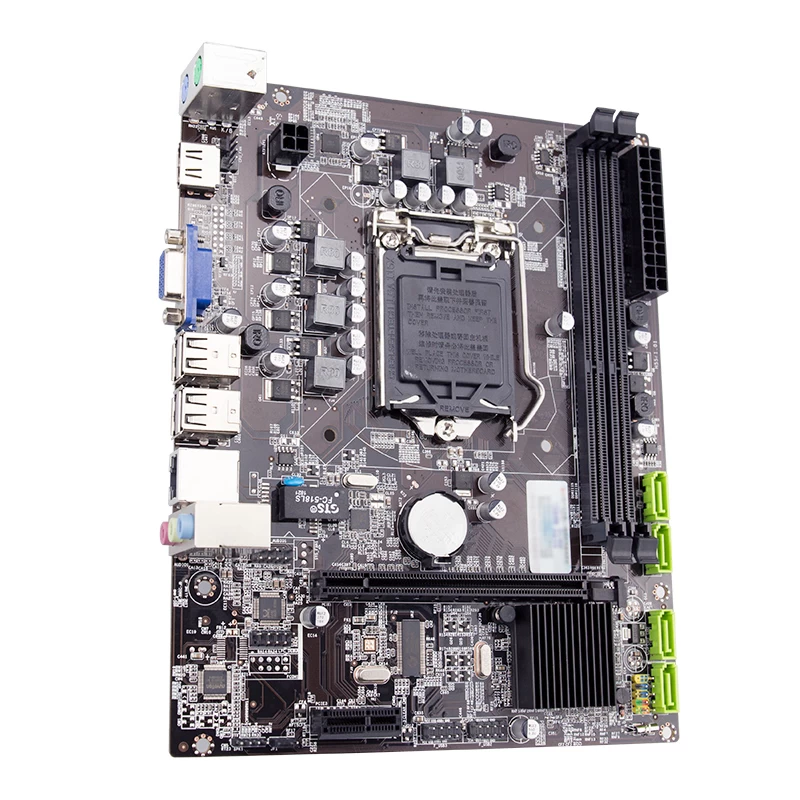

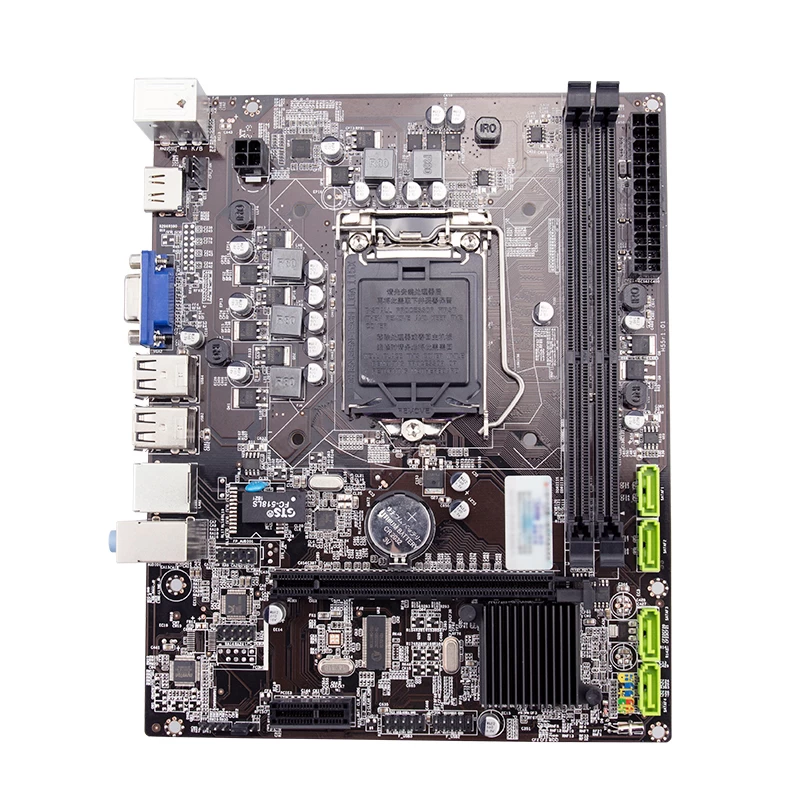

H55 LAYOUT
FLAGSHIP LEVEL LAYOUT EASY TO BUILD
Multiple interfaces, Strong Extensibility

FOCUS ON DETAILS, FOCUS ON QUALITY

Products of ingenuity, Best Quality, Trustworthy

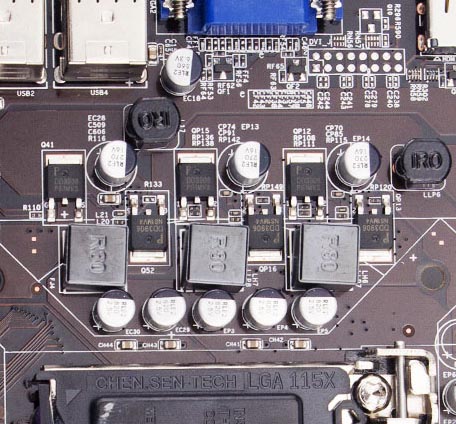

ALL SOLID CAPACITORS

More stable than ever,
Say "No" to half solid capacitors.
h55 motherboard
1156 motherboard

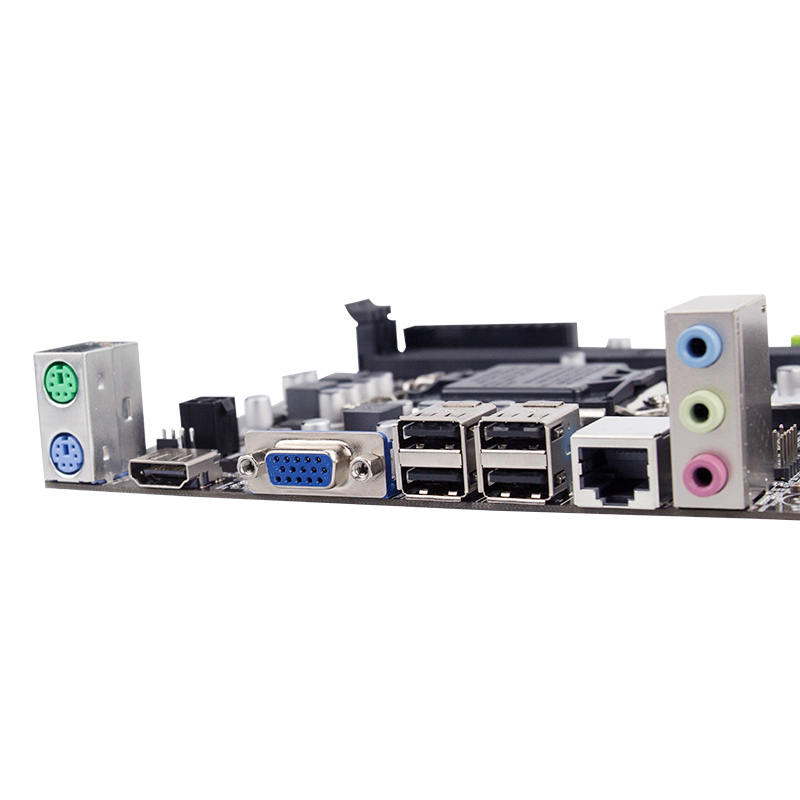

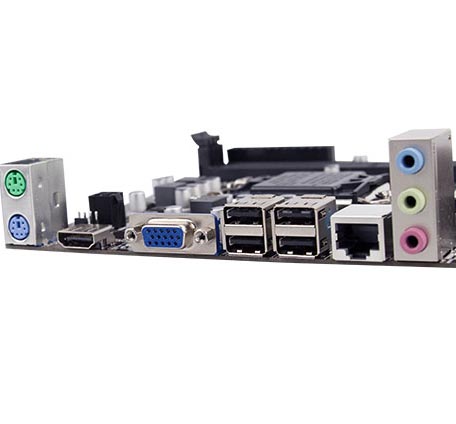

VGA + HDMI

High speed transmission
for high efficiency.

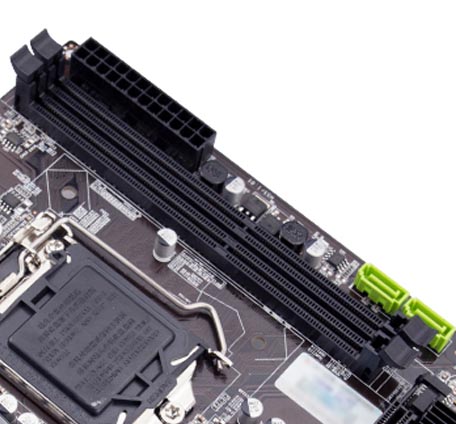

DIMM SLOTS

Dual channel DDR3 DIMM supported,
Like a two-lane highway.
lga 1156 motherboard
motherboard factory in china

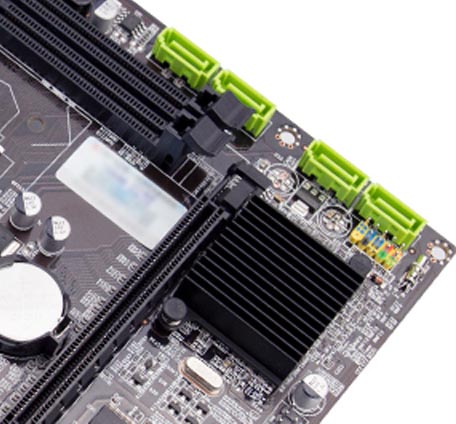

SATA2 3Gb/s

4 * SATA2 connectors onboard,
high speed boot your OS in an instant.

Support CPU model numbers:
µArch Code name Brand name Model (list) Frequency Cores/threads Max. memory speed
Nehalem (45nm) Lynnfield Core i5 i5-7xx 2.66–2.8 GHz 4/4 DDR3-1333
Core i7 i7-8xx 2.8–3.07 GHz 4/8
Xeon L34xx 1.86 GHz 4/4 or 4/8
X34xx 2.4–3.07 GHz
Westmere (32nm) Clarkdale Celeron G1xxx 2.26 GHz 2/2 DDR3-1066
Pentium G6xxx 2.80 GHz 2/2
Core i3 i3-5xx 2.93–3.33 GHz 2/4 DDR3-1333
Core i5 i5-6xx 3.2–3.6 GHz 2/4
Xeon L34xx 2.0–2.27 GHz 2/4 DDR3-1066

Product Name # of Cores Max Turbo Frequency Processor Base Frequency Cache Processor Graphics
Intel® Core™ i7-860S 4 3.46 GHz 2.53 GHz 8 MB Intel® Smart Cache
Intel® Core™ i7-870 4 3.60 GHz 2.93 GHz 8 MB Intel® Smart Cache
Intel® Core™ i7-860 4 3.46 GHz 2.80 GHz 8 MB Intel® Smart Cache
Intel® Core™ i5-750 4 3.20 GHz 2.66 GHz 8 MB Intel® Smart Cache
Intel® Core™ i5-750S 4 3.20 GHz 2.40 GHz 8 MB Intel® Smart Cache
Intel® Core™ i5-760 4 3.33 GHz 2.80 GHz 8 MB Intel® Smart Cache
Intel® Core™ i7-870S 4 3.60 GHz 2.66 GHz 8 MB Intel® Smart Cache
Intel® Core™ i7-875K 4 3.60 GHz 2.93 GHz 8 MB Intel® Smart Cache
Intel® Core™ i7-880 4 3.73 GHz 3.06 GHz 8 MB Intel® Smart Cache
Intel® Xeon® X3430 4 2.80 GHz 2.40 GHz 8 MB Intel® Smart Cache
Intel® Xeon® X3440 4 2.93 GHz 2.53 GHz 8 MB Intel® Smart Cache
Intel® Xeon® X3450 4 3.20 GHz 2.66 GHz 8 MB Intel® Smart Cache
Intel® Xeon® L3426 4 3.20 GHz 1.86 GHz 8 MB Intel® Smart Cache
Intel® Xeon® X3460 4 3.46 GHz 2.80 GHz 8 MB Intel® Smart Cache
Intel® Xeon® X3470 4 3.60 GHz 2.93 GHz 8 MB Intel® Smart Cache
Intel® Xeon® X3480 4 3.73 GHz 3.06 GHz 8 MB Intel® Smart Cache
Intel® Core™ i5-660 2 3.60 GHz 3.33 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i5-661 2 3.60 GHz 3.33 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i5-670 2 3.73 GHz 3.46 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i3-540 2 3.06 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i5-650 2 3.46 GHz 3.20 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i3-530 2 2.93 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i5-680 2 3.86 GHz 3.60 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i3-550 2 3.20 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i5-655K 2 3.46 GHz 3.20 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Core™ i3-560 2 3.33 GHz 4 MB Intel® Smart Cache Intel® HD Graphics for Previous Generation Intel® Processors
Intel® Pentium® G6950 2 2.80 GHz 3 MB Intel® Smart Cache
Intel® Pentium® G6960 2 2.93 GHz 3 MB Intel® Smart Cache
Intel® Pentium® G6951 2 2.80 GHz 3 MB Intel® Smart Cache
Intel® Xeon® Processor L3406 2 2.53 GHz 2.26 GHz 4 MB Intel® Smart Cache
