Intelligent AdBlue® production plant with high efficiency

The AdBlue® intelligent production machine we developed, covers an area of 1.0 square meters roughly, and it can be more than to 5 times the efficiency of urea liquid to dissolve by its special production process effectively improve urea particle dissolution rate.

Facebook Twitter Pinterest LinkedIn 分享

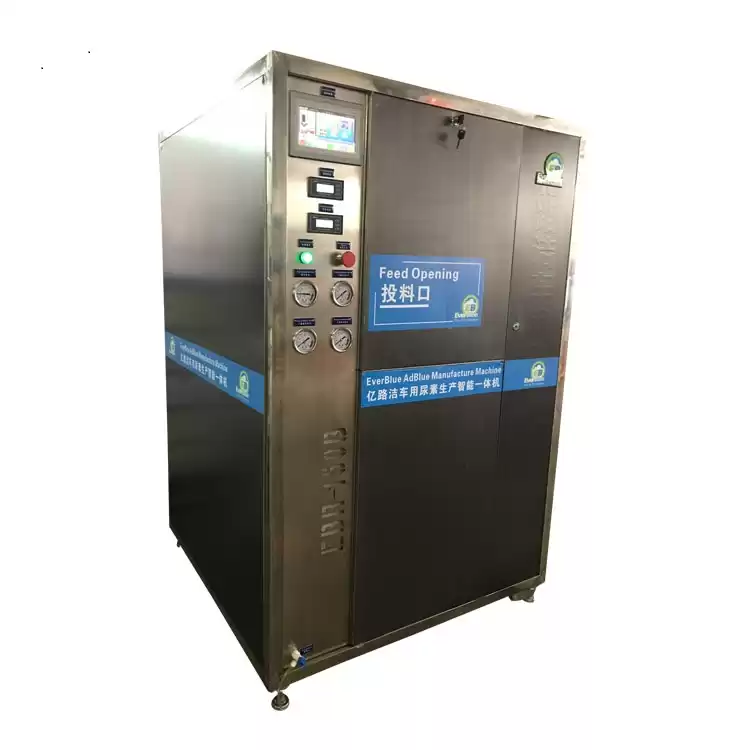

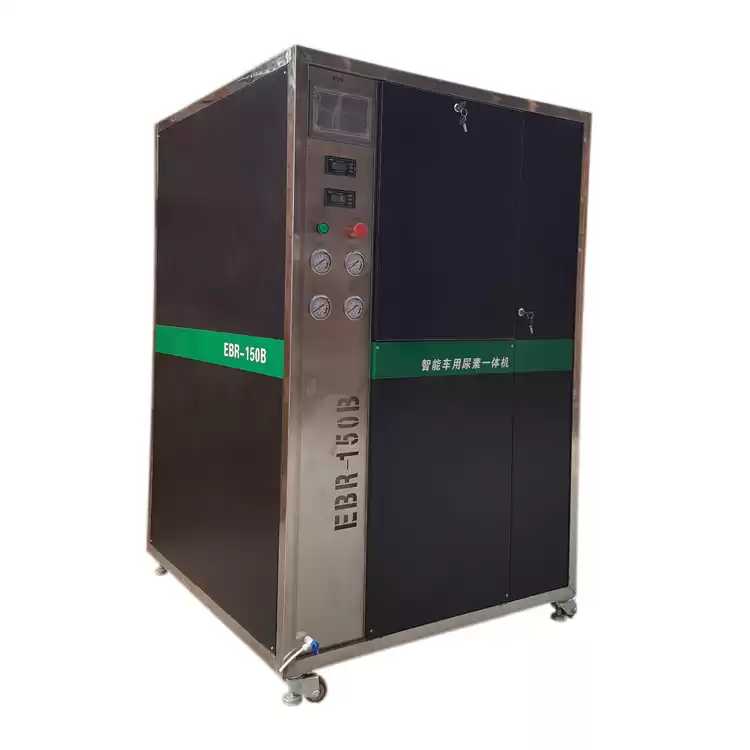

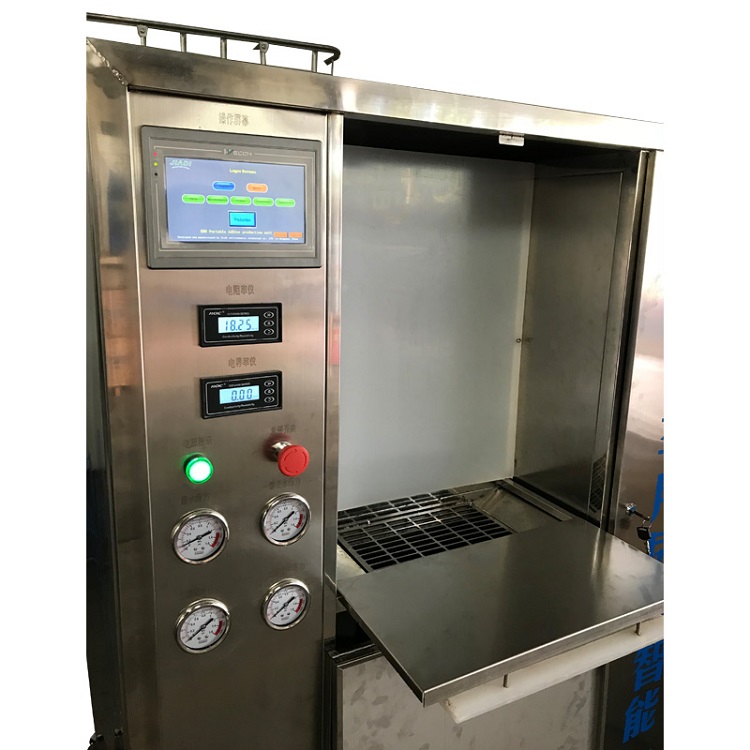

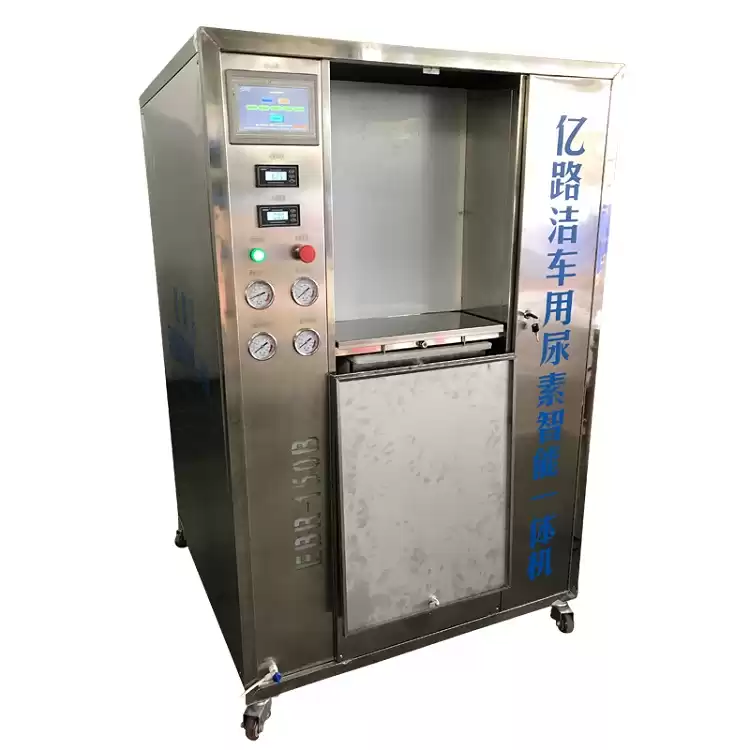

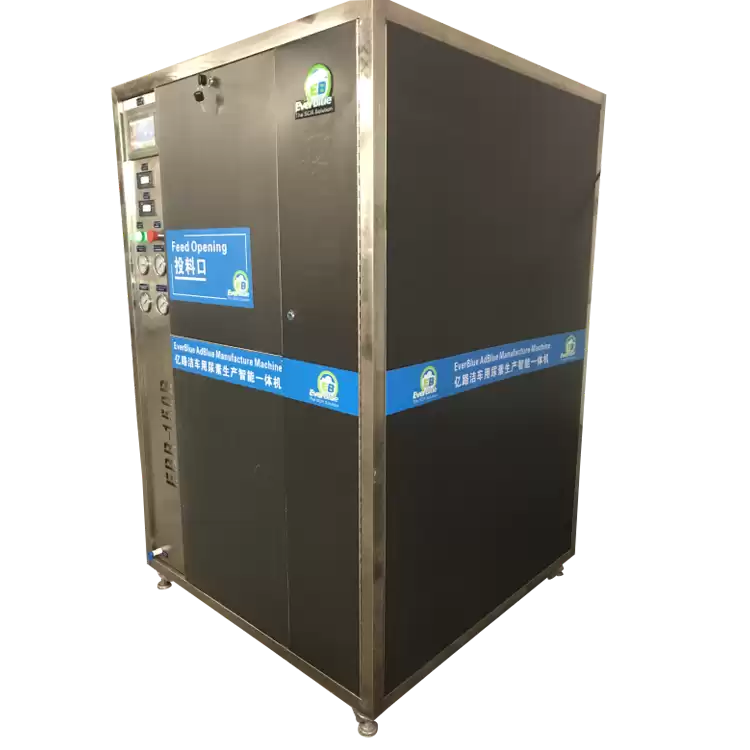

Item : AdBlue® Production Machine

Model Number :
  EBR-150B
Dimension :
  1100(L)x1100(W)x1500(H)mm
Capacity (at 25 ℃):
  600KG/hour
Material:
  304SS,FRB,PP,PVC
Weight:
  400kg
Power:
  2600W
Required power(1000kg Adblue®):
  750W
Voltage:
  220V
Fragile filter specifications:
  3x5.0μ(20inch)PP filter, 5x0.22μ(10inch)filter,RO,exchange resin
Certification:
  ISO9001-2015
Water supply requirements:
  0.6T/H, 0.2MPa
Purified water quality control:
  Resistivity greater than 15MΩ / cm
Wastewater discharge:
  0.4T/Hour
Weighing accuracy:
  0.3%
Control panel:
  PLC touch screen and remote control
Installation requirements:
  Ground level, no dirt on site, 4 wheels at bottom of unit, removable



  • Our AdBlue® production machine has been developed to the fifth generation , it can remote monitoring operation, even in the mobile phone (support Android and iOS system) , with automatic operation program production . It will automatically backwashing and regeneration when the product is unqualified and saves the manpower cost greatly.



Operation flowchart of AdBlue® Production Machine

High quality EverBlue AdBlue Production Machine operation flowchart


Intelligent AdBlue production plant with small size

Simple operation AdBlue production facility with big capacity

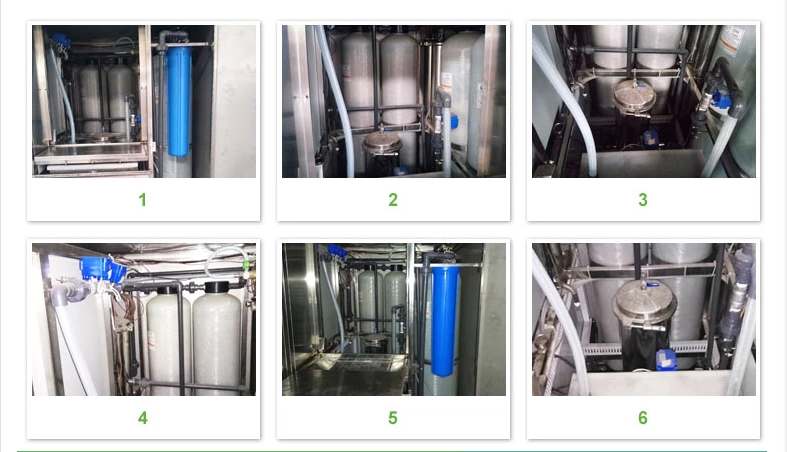

Internal structure details for high quality adblue manufacturing plant
