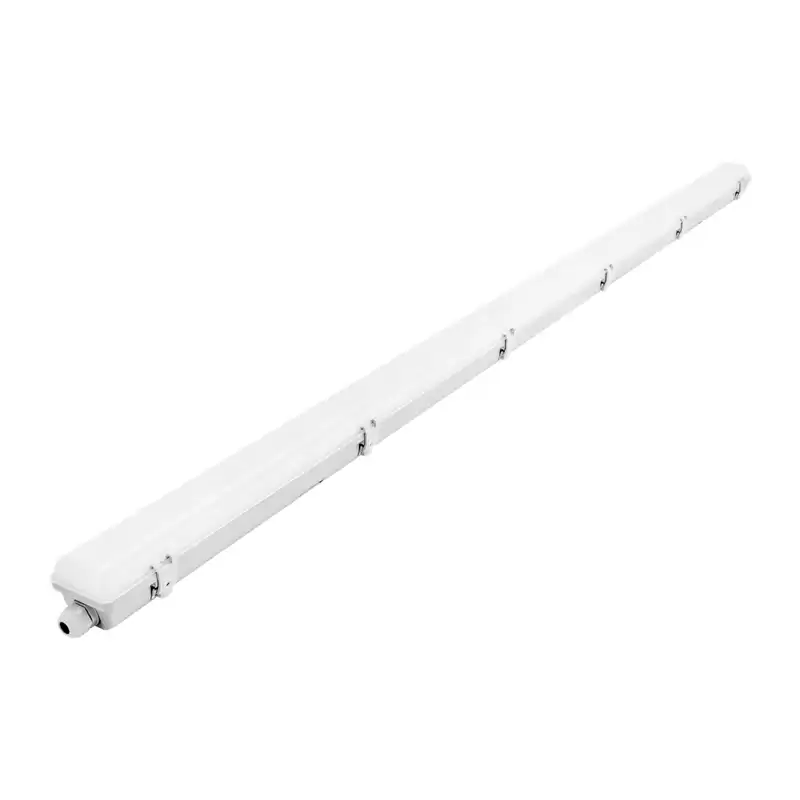

Intelligent LED tri proof light 80W

Morstar 4 Tube LED vapor tight is used for indoor and outdoor applications. If you are looking for reliable lighting fixtures for environments exposed to moisture, dirt and other elements, you need to consider our products



Description

480 Smart series smart LED tri proof light 80W have powerful light sources, which are more energy-efficient than traditional high-intensity discharge lamps or metal halide lamps. Durable, toughened glass housing and lens with high-impact diffuser. Facility designed specifically for production areas, parking lots, and any other application conditions that must deal with harsh conditions. By adopting LED vapor tight fixtures in buildings, thousands of dollars can be saved every year.

Using the MorLink Bluetooth APP control system, through the built-in UL dual-channel intelligent drive and Tuya technology Bluetooth controller, the perfect switching of CCT lamps from 3000K to 5000K can be realized. In addition, it also has functions such as timing, sensing, group control, and 0-10V stepless dimming.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.


FEATURES:

*  Ultraviolet polycarbonate shell, frosted lens and reinforced bLumen efficiency up to 135lm/w

* High-quality high-power LED chip and UL dual-channel driver

* Double-row optimized design to improve LED quality thermal resistance and heat dissipation

* CCT dimmable 3000-5000K can be switched flexibly, providing multiple options for increasing visual perception

* IP65 protection level prevents the entry of dust, solid particles and low-pressure jets of directional water to ensure the quality of light


BLUETOOTH MESH NETWORKED CONTROL:

• Apps available in IOS and Android Stores
• Easy to configure lighting fixtures
• Easy to configure lighting fixtures and Scheduling
• Zone configurations and Scene management

• High end trimming


RECOMMENDED USE:
• Industrial facilities & Food processing facilities
• Parking structures & Public areas

• Walkways & Car washes


Main Order:MA-HVP481A-80W-F-CCT-S-B

FAMILY WATTAGE DIFFUSER TYPE CCT Control Model OPTIONS
MA-HVP482A=
LED Vapor tight Light
Smart Series
80W
F=Frosted Diffuser
C=Clear aDiffuser
30K=3000K
40K=4000K
50K=5000K
CCT=CCT Adjustable
N=Normal
S=Smart
Blank
B=Battery Backup
M=Motion Sersor

PS=PIR Sensor



DIMENSION DRAWING:


DIMENSION CHART:
dimension drawing of LED vapor tight
MODEL L (INCH)  W (INCH) H (INCH)
80w (8FT) 94.0  4.3 3.56


SPECIFICATION

ITEM SPECIFICATION DETAILS
GENERAL
PERFORMANCE
Power Consumption 80W
Equivalent Wattage 4 Tube Fluorescent Fixture
Lumens Delivered 10,800 lm
Efficacy 135lm/W
CRI >80
Color Temperature 3000K / 4000K / 5000K/CCT Adjustable
L70 Lumen maintenance 70,000 hours
ELECTRICAL Power Factor >0.9
Input Voltage 120-277V
Dimming 0-10v Dimming / motion & daylight sensor options.
 Bluetooth Wireless compliant options.
Surge Protection Surge protection: 4KV line-line, 6KV line-earth
PHYSICAL Mounting Chain and “S” hook(Standard),Surface Mount,
Rod Mount Kit,Cable Mount Kit (optional)
Operating Temperature -30°F to 130°F
Humidity 10% to 90%
QUALIFICATION Qualifications ETL / DLC® Premium V5.1
Material Usage RoHS compliant; no mercury
Environment Suitable for use in indoor, outdoor, wet, and cold locations
Warranty 7 Years warranty


LUMINOUS INTENSITY DISTRIBUTION CURVE:

MA-HVP482A-80W

LED vapor tight light wiregram



WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 104°F.


FAQ:

1. How can smart lamps save money?

A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.


2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.


3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.


4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
