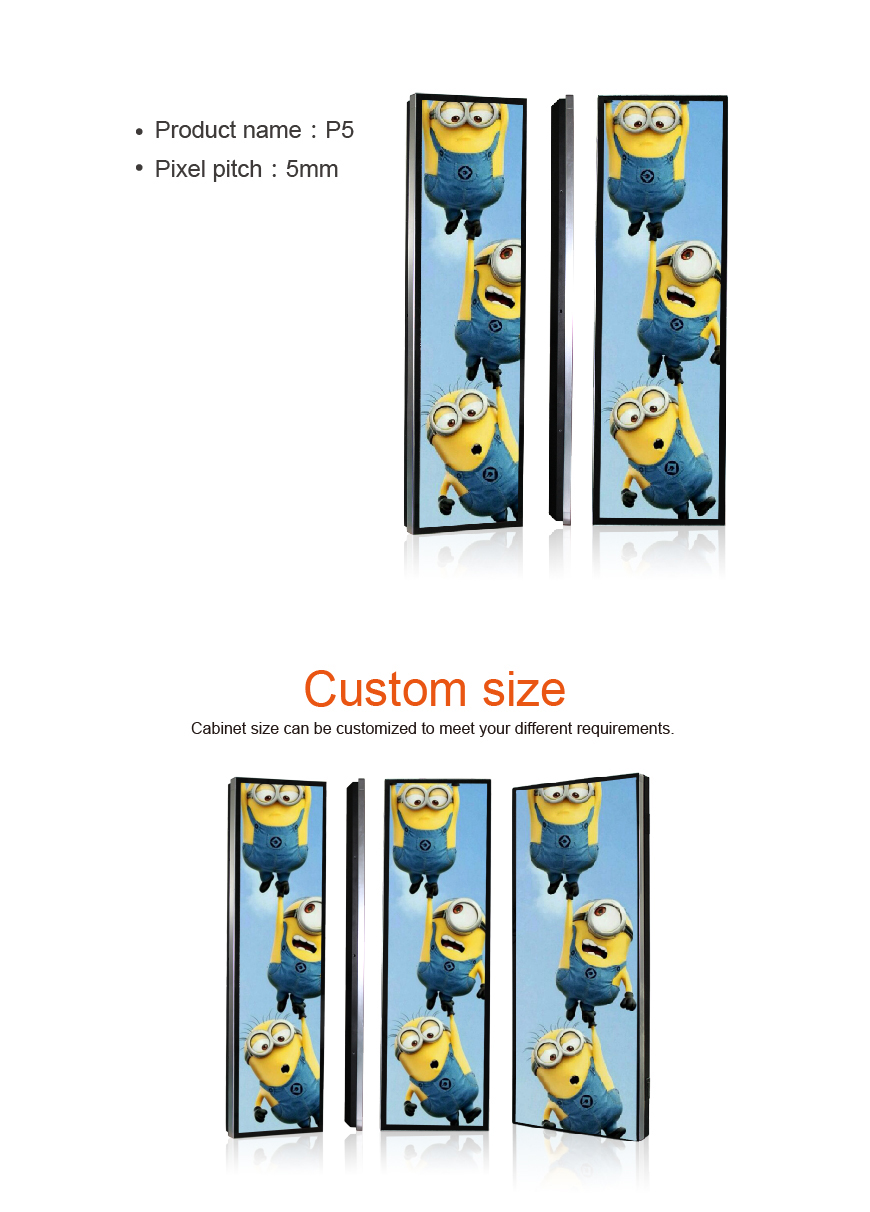

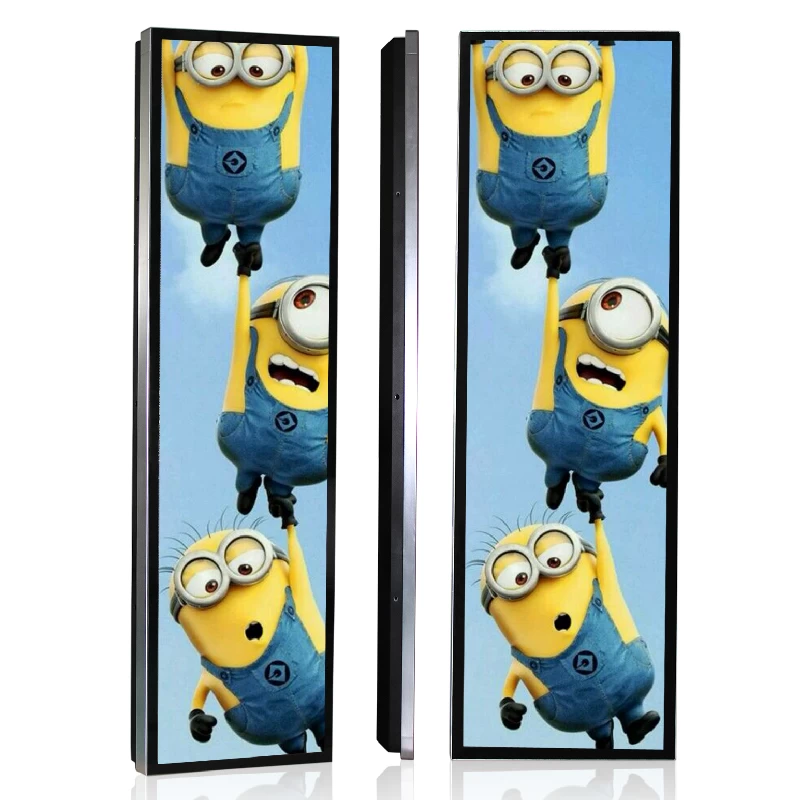

Intelligent Monitoring Automatic Lighting on/off P5 Gas Station Advertising Display
Main function of P5 outdoor good heat dissipation led screen:
1、Broadcast video/test/images timely, remote monitor/control.
2、GPS snyc play, all screens can play some content at the same time.
3、Automatic power on/off.
4、Smart sensor for smoking, temperature, humidity, brightness, automatic alarm
SPECS
Pixel Pitch
|
5mm
|
LED Package
|
SMD2727
|
Pixel Density
|
40,000 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 5000cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
320x160mm
|
Cabinet Size
|
960x960mm
|
Cabinet Material
|
Iron/ Aluminum
|
Viewing Distance
|
5-100M
|
Drive Mode
|
1/8 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
