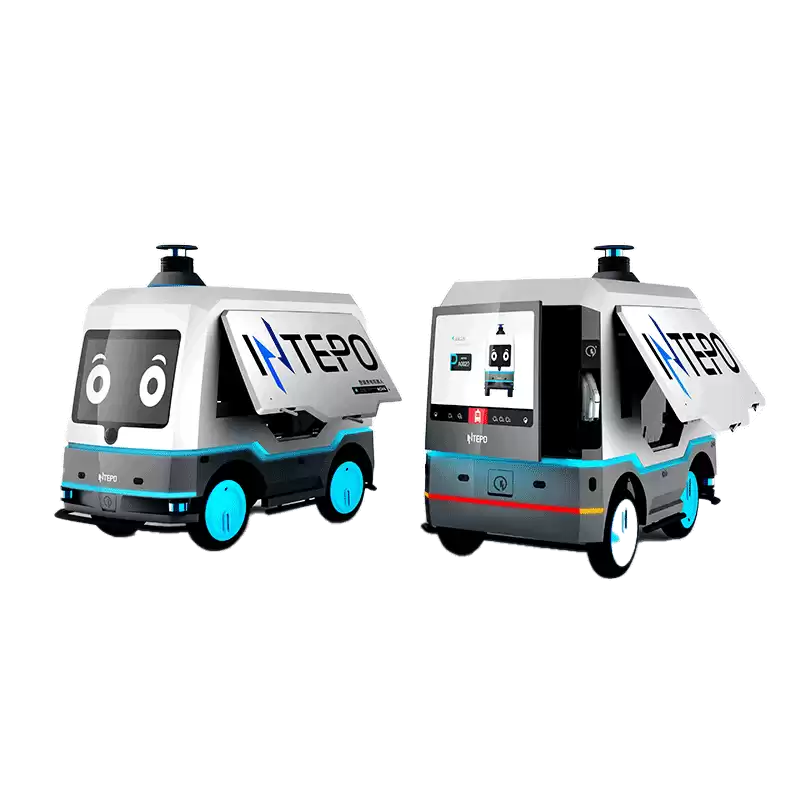

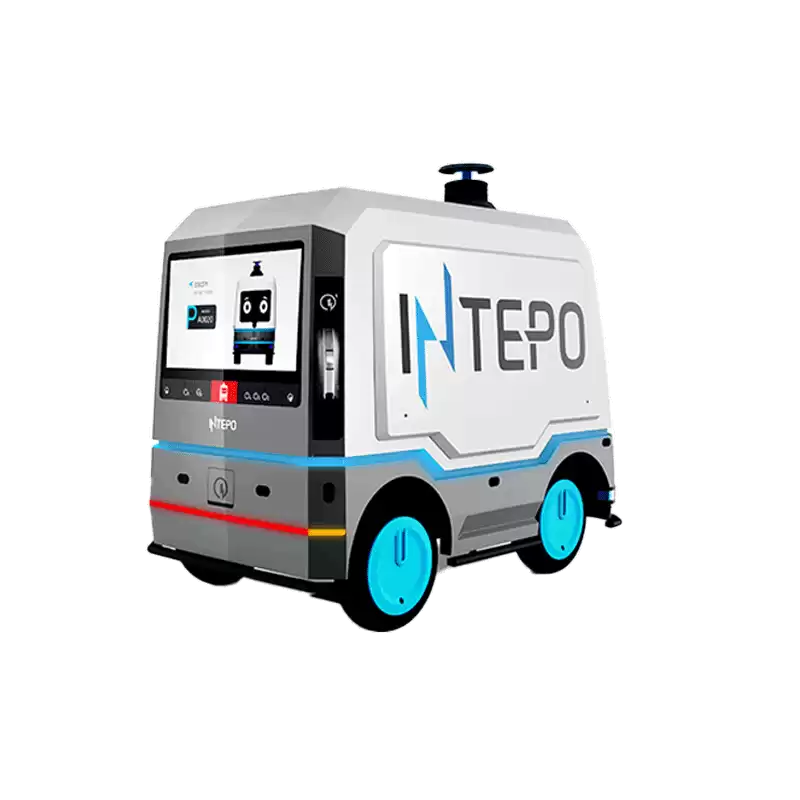

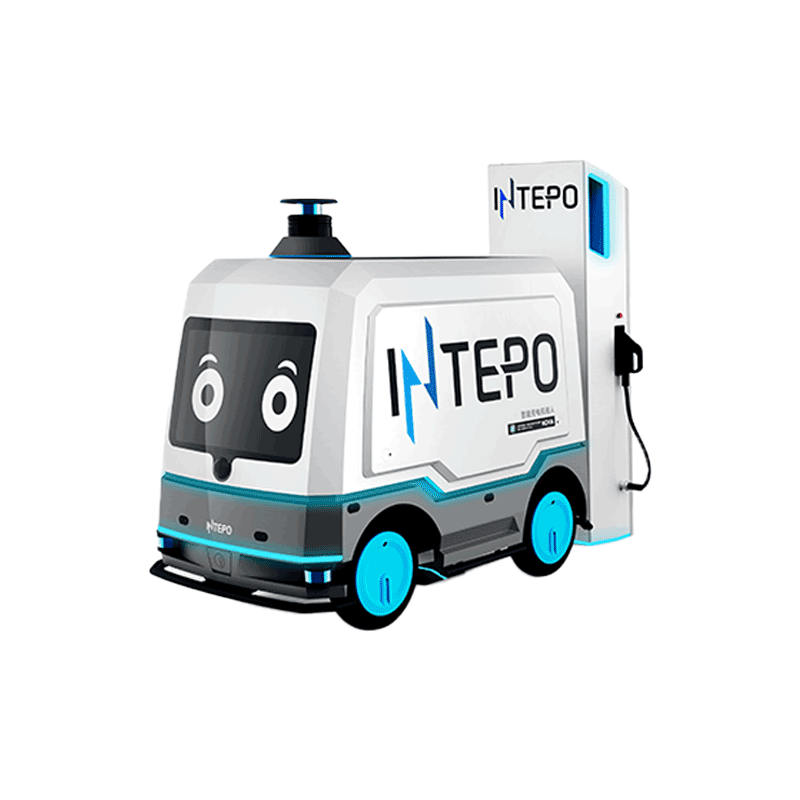

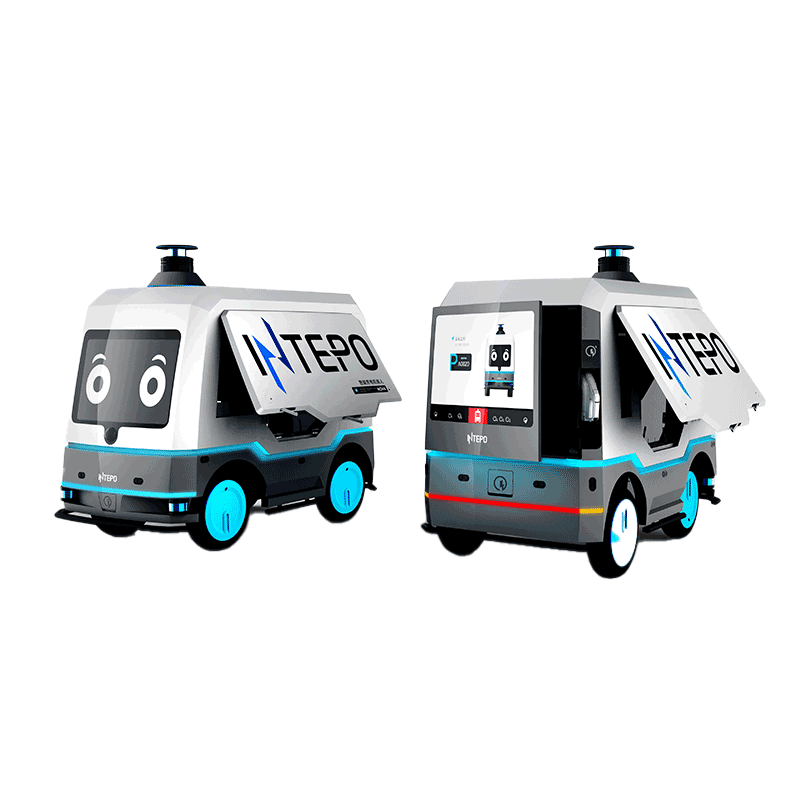

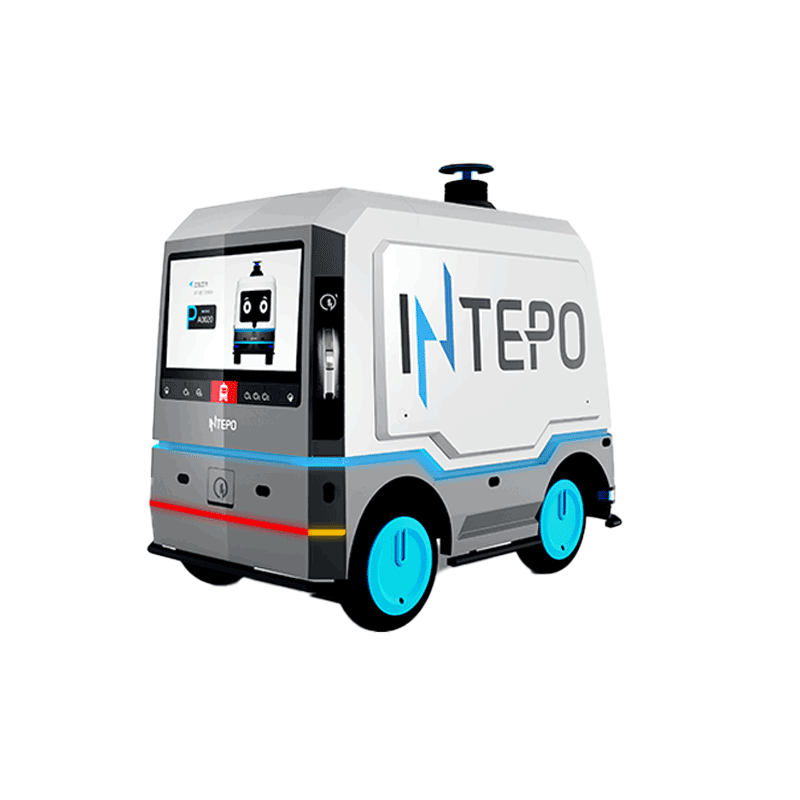

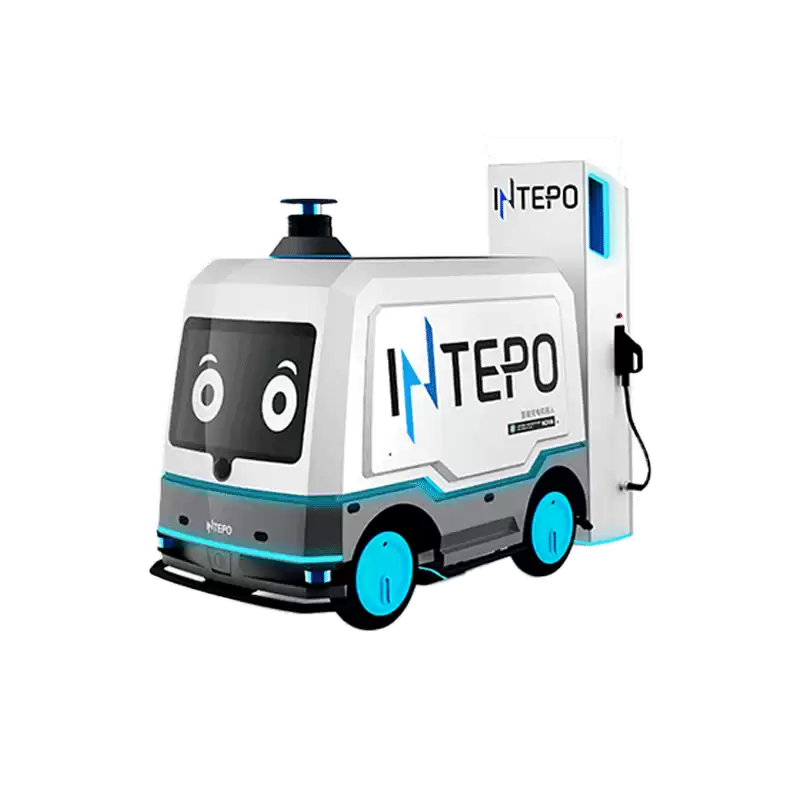

INTEPO Charging Robot R30

The INTEPO Charging Robot R30 is an innovative storage and charging system designed for intelligent electric vehicle (EV) charging. Equipped with advanced sensing and navigation technology, it offers precise, autonomous charging capabilities. Featuring a 30 kWh battery, the R30 ensures efficient energy utilization, supporting flexible deployment in commercial and residential environments, while promoting eco-friendly and cost-effective charging solutions.









  • R30 Charging Robot Features
  • #
    One-Click Summon
    Users can summon the R30 via app for quick, autonomous navigation to charging spots.
  • #
    Safe Mobility

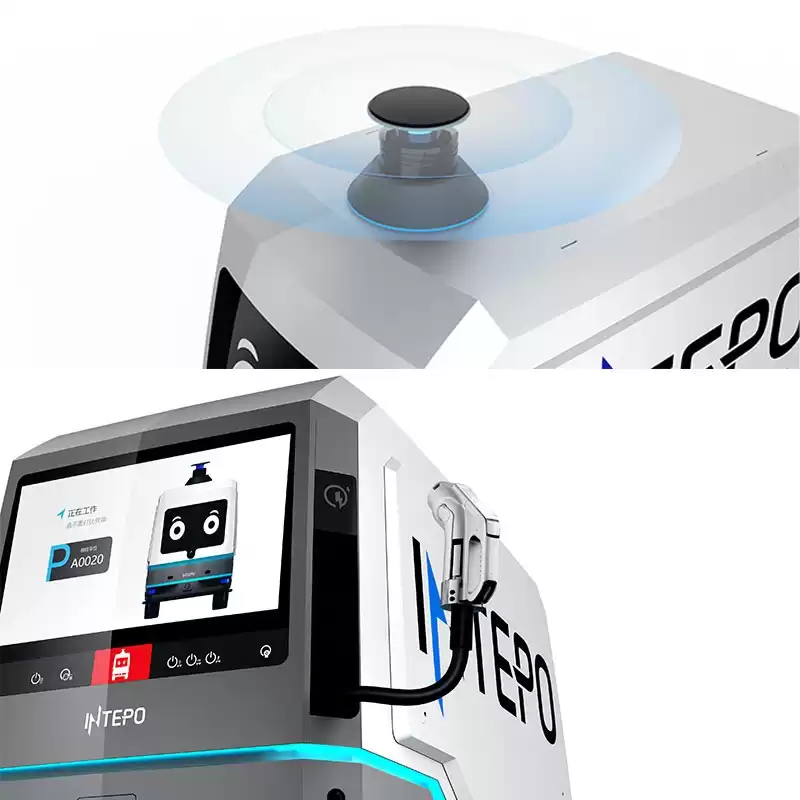

    Equipped with multiple sensors for 360-degree obstacle detection and intelligent avoidance, ensuring safe navigation.
  • #
    Rapid Charging
    Features a vehicle-grade energy storage system, providing a 10-minute charge for a 70 km range, reducing range anxiety.
  • #
    Customizable Operations
    Built on a microservices architecture, offering a flexible management platform for mobile energy operators.















  • Specifications





Basic Specifications Storage-Charging System 30 kW / 30 kWh
Software Platform AIoT Solar Storage-Charging Management Platform
Vehicle Mobility Remote Control / Autonomous Driving
Cameras 2
LiDAR Sensors 3
Millimeter-Wave Radar 1
Ultrasonic Probes 10
Safety Features Ultrasonic detection, obstacle emergency stop
Display Screen 27-inch touch screens for front and rear
Communication Methods 4G / 5G / Wi-Fi
Ingress Protection Rating IP54
Noise Level ≤65 dB (at 25°C)
Operating Temperature -20°C to 45°C
Dimensions 1980*1080*1750 mm
Weight 980 kg
Storage-Charging Unit Battery Capacity 31 kWh
Maximum Output Power 30 kW
Output Voltage Range 200~750 VDC
Output Current Range 0~55 A
Efficiency > 95%
Recharge Voltage Range 450~657 VDC
Charging Output Interface GB/T standard
Recharge Input Interface GB/T standard
Charging Cable Length 7 m (customizable)
Driving Unit Drive Type Rear-Wheel Drive
Braking System Four-Wheel Hydraulic Braking, Parking System
Steering Type Front-wheel Ackerman Steering System
Speed 0 - 5 km/h
Maximum Climbing Angle 20%
Obstacle Climbing Ability ≤60 mm (obstacle height)
Trench Crossing Ability ≤80 mm (ditch width)
Water Wading Depth ≤100 mm (water depth)
Minimum Turning Radius 3 m
Ingress Protection Rating IP67 (core components)















  • Application Scenarios
