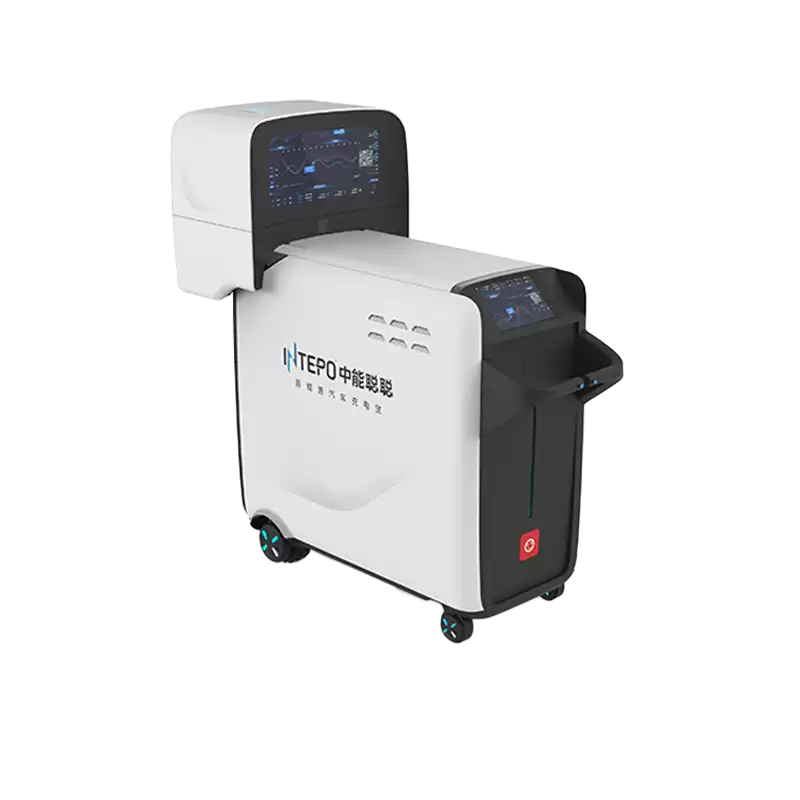

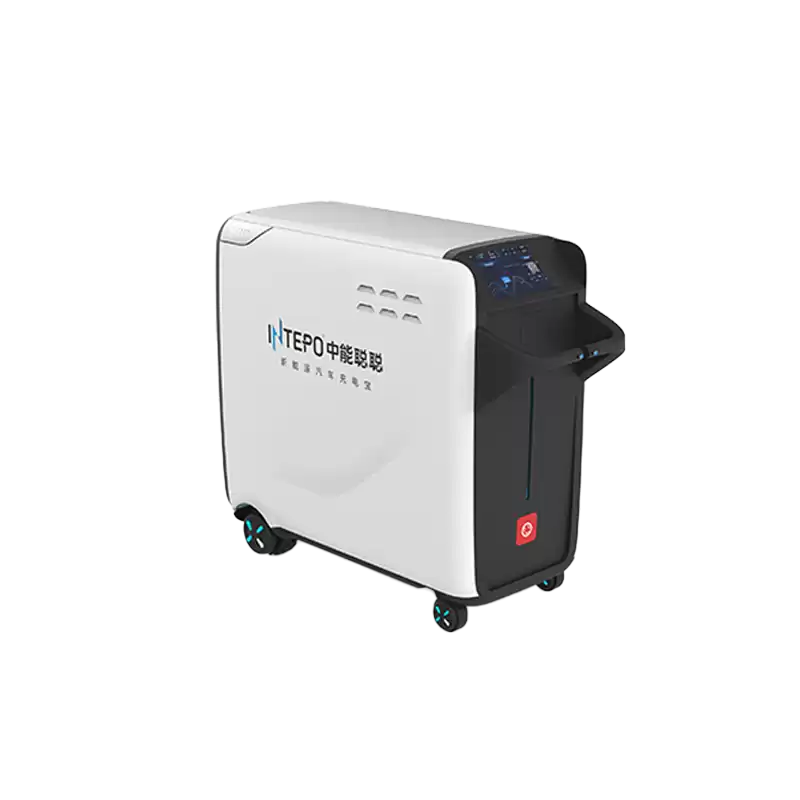

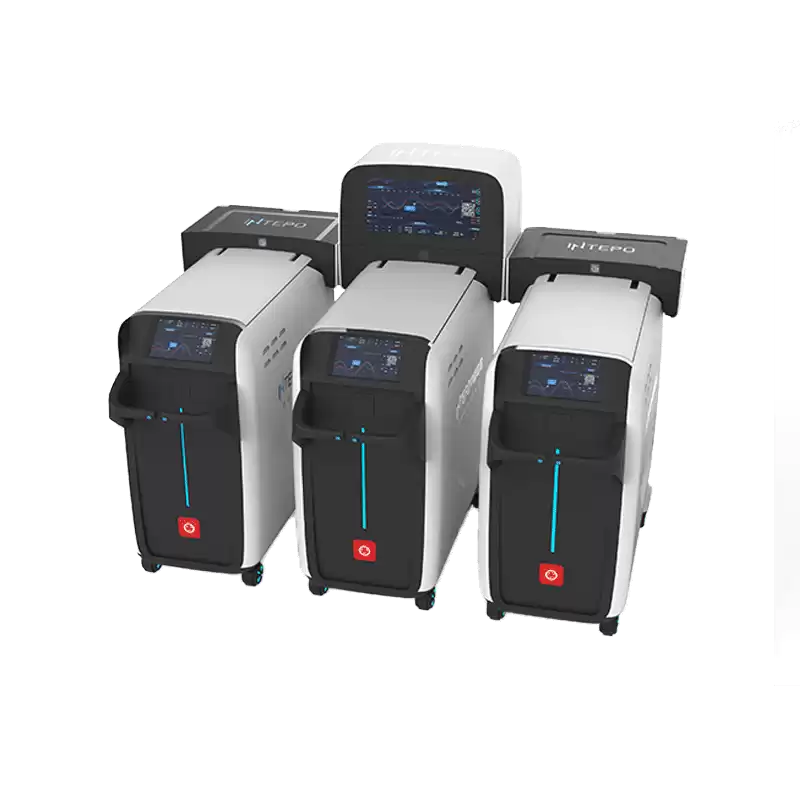

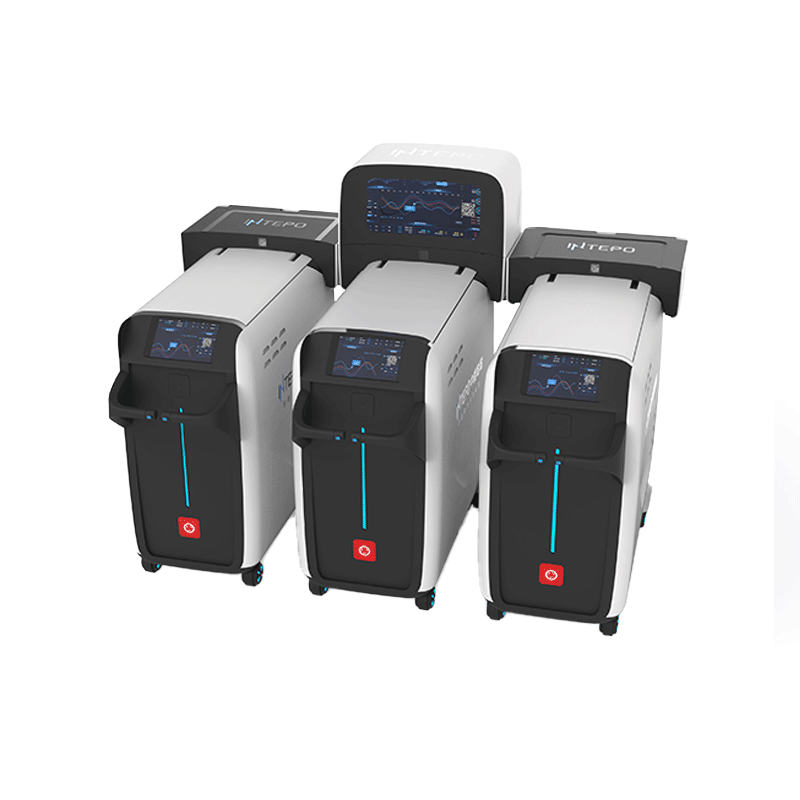

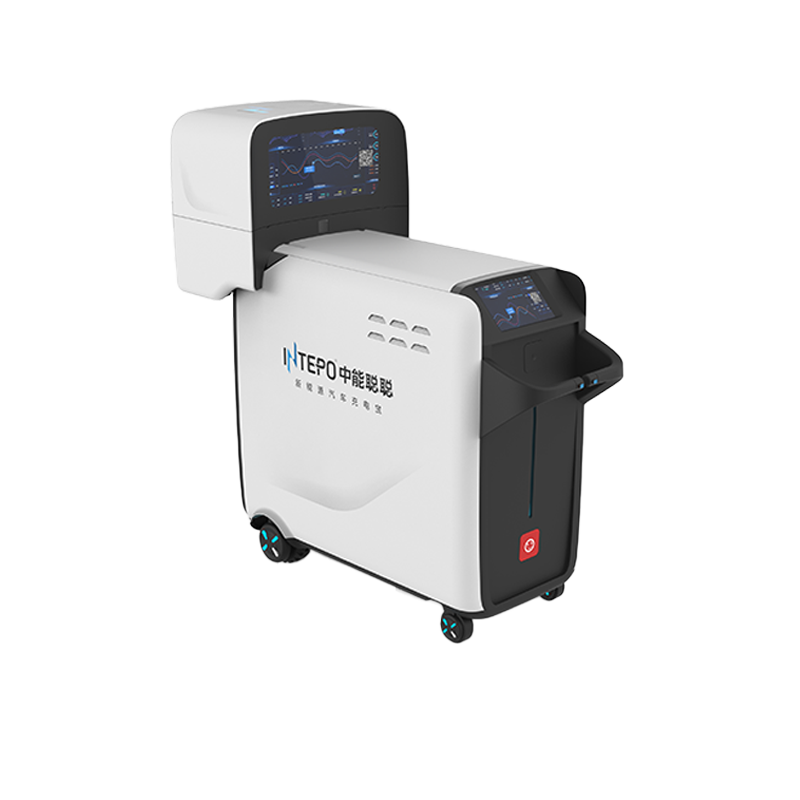

INTEPO Mobile Shared Charging Robot X60

The Mobile Shared Charging Robot X60 is an innovative self-service solution for efficient New Energy Vehicle (NEV) charging. Featuring a smart energy management system and compact, portable design, it supports flexible deployment across diverse locations. Ideal for NEV owners, it delivers reliable, convenient charging for urban centers, commercial areas, and residential complexes.

Facebook Twitter Pinterest LinkedIn 分享







  • X60 Mobile Shared Charging Robot Features
  • # High Practicality

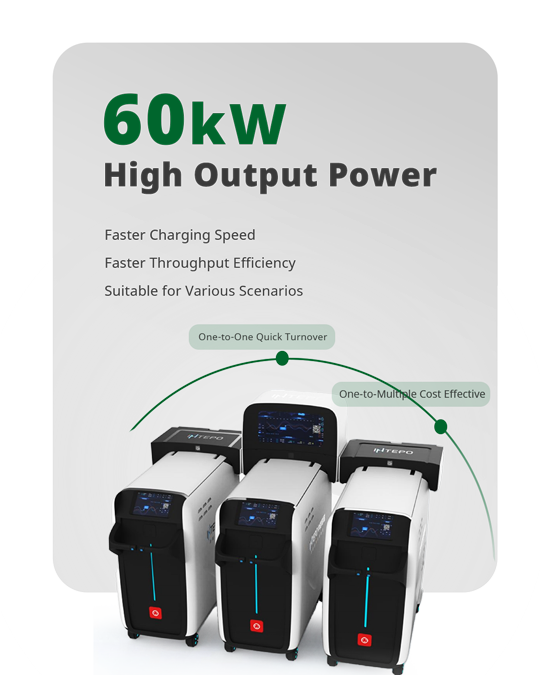

    Assistive drive chassis for flexible mobility, compact design for tight spaces, and 60 kW output power for fast charging, turning every parking spot into a charging point.
  • # High Safety

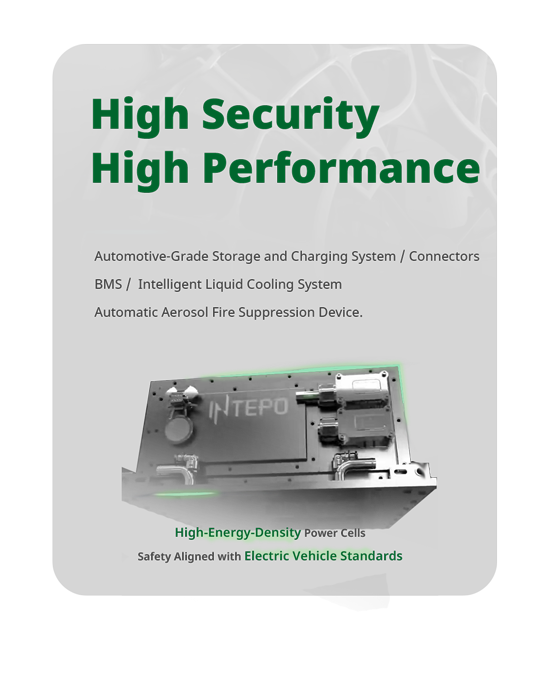

    Equipped with an automotive-grade energy storage system, intelligent liquid-cooling system, and an automatic aerosol fire suppression device, ensuring reliable and safe operation.

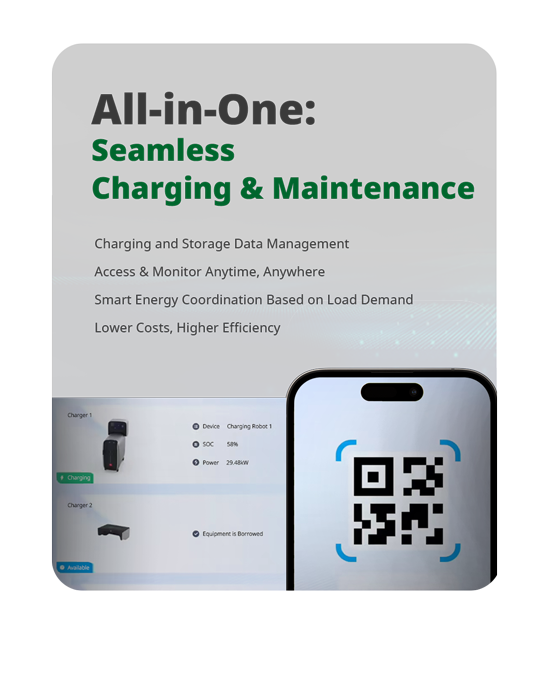

  • # Smart Operation and Maintenance
    Comprehensive data management for storage and charging, efficient energy dispatch, and real-time visualization for enhanced operational insights.





















  • Specifications



Basic Specifications Dimensions (L x W x H) 1350*680*1300mm
Vehicle Weight 950 kg
Ingress Protection Rating IP54
Moving Method Assistive Traction
System Platform Mobile Storage-Charging Integrated
Management Platform
Storage-Charging Unit Battery Capacity 60 kWh
Max Charging Power 60 kW
Max Recharge Power 30 kW
Recharge Method Smart Recharge Island Charging
Output Voltage Range 200 - 750 VDC
Output Current Range 0 - 150 A
Recharge Voltage Range 470 - 689 V
Cable Length 5 m
Safety Standards Storage-Charging Sys Standards GB/T18487.1, GB/T18487.2, GB/T27930
Battery Safety Standards GB/T38031
Charging Cable Standards GB/T20234.1, GB/T20234.3
Charging Interface Standards GB/T20234.1, GB/T20234.3
Vehicle Chassis Drive Type Front-Wheel Drive
Braking System Electromagnetic Lock Brake
Steering Type Differential Steering
Speed 0 - 3 km/h















  • Application Scenarios
  • #

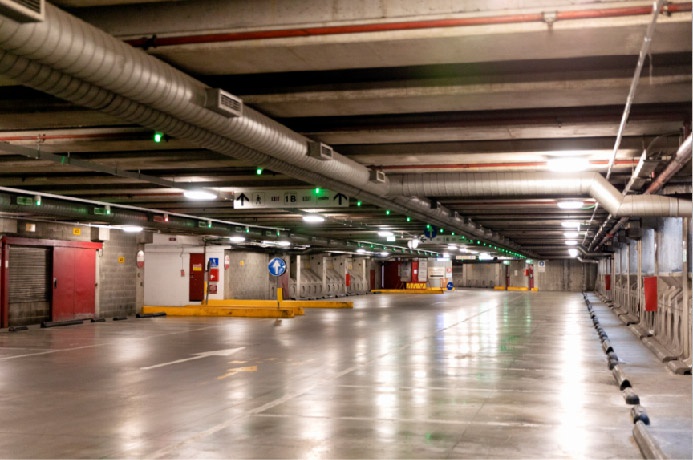

    Commercial Parking Lots
    The flexible product combinations and deployment options significantly boost parking space utilization in public lots and cater to electric vehicle charging needs.
  • #

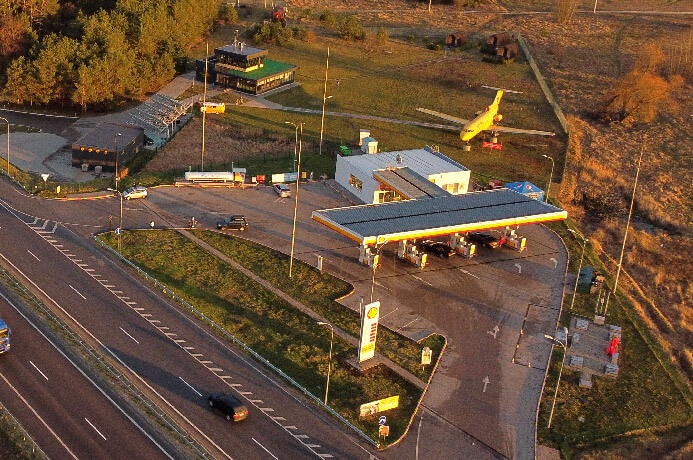

    Highway Service Areas
    During peak periods such as holidays, the scientific layout helps alleviate "charging congestion," improving charging operation efficiency and user experience in service areas.
  • #
    Residential Communities
    The fixed and mobile multi-combination charging model addresses parking space constraints and power capacity issues in residential communities, providing electric vehicle owners with safer, smarter, and more convenient charging services within the community.
