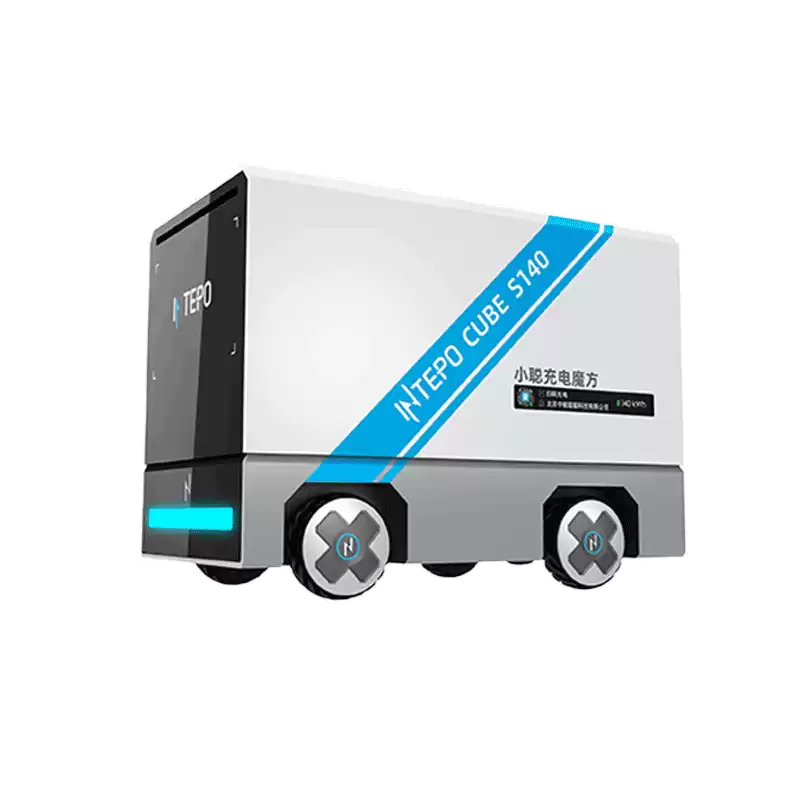

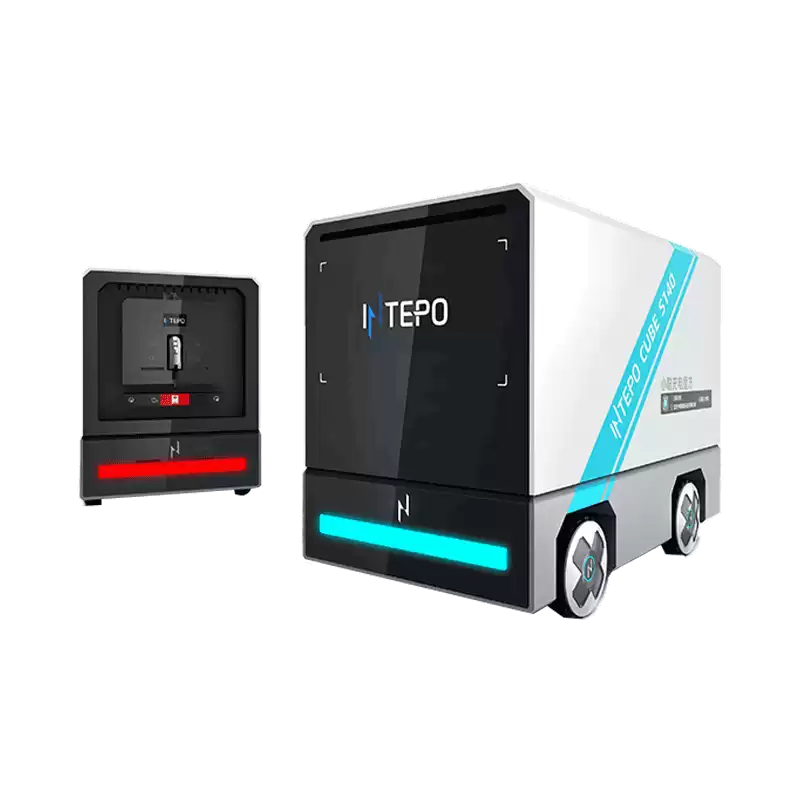

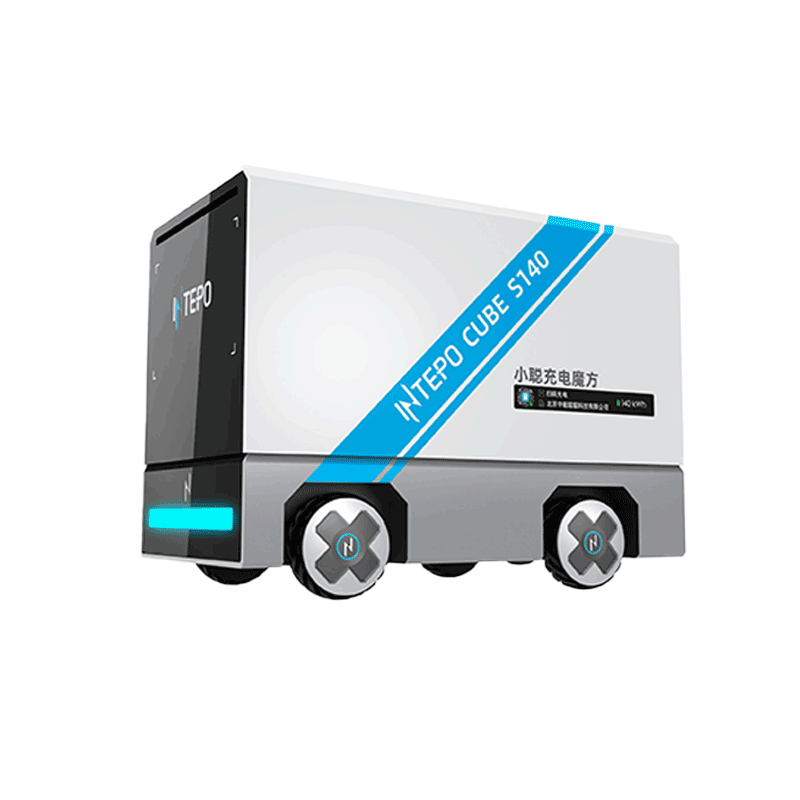

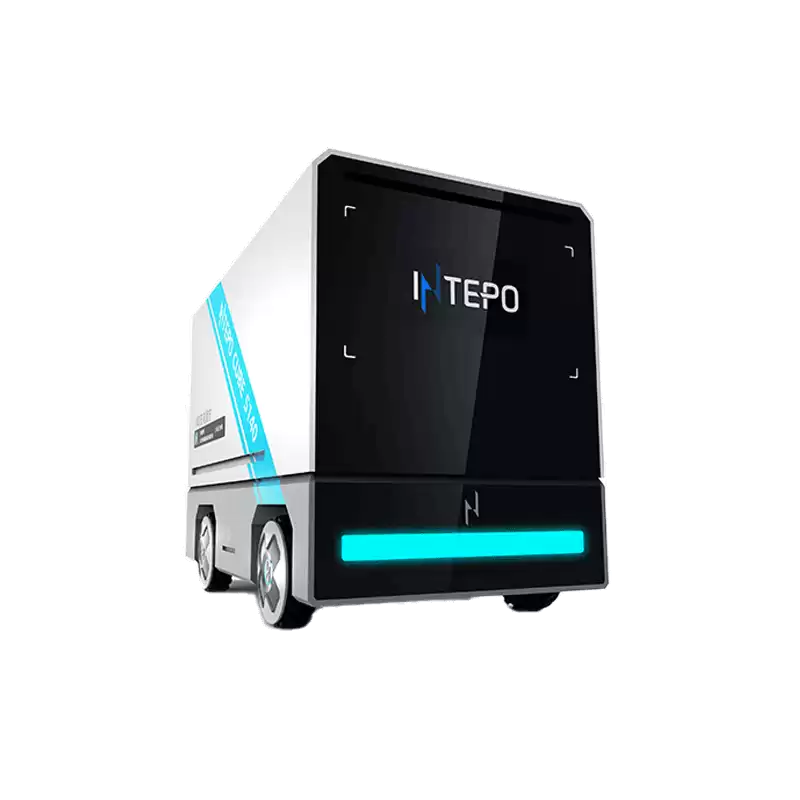

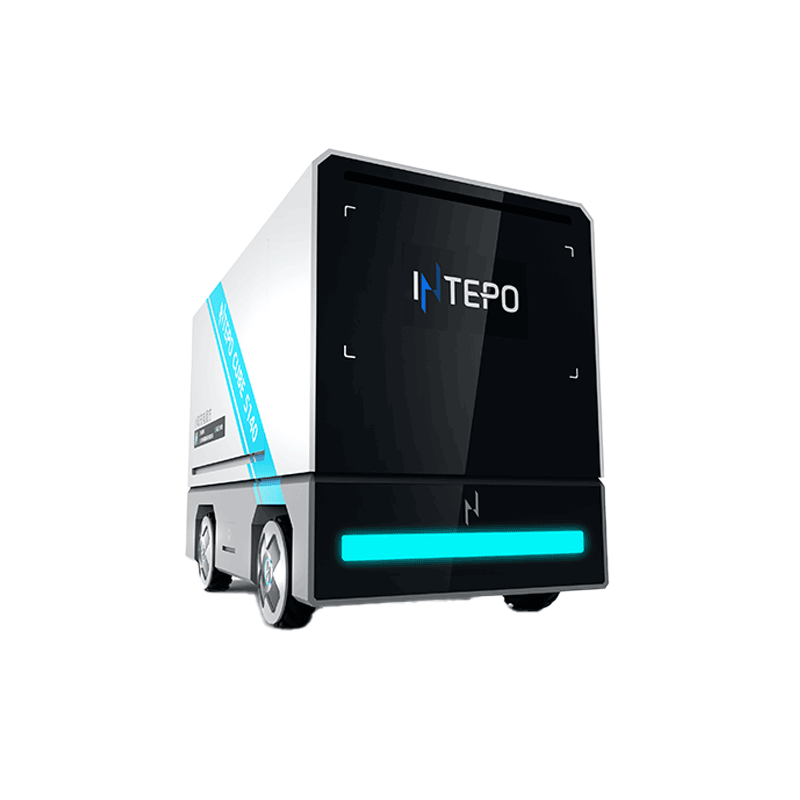

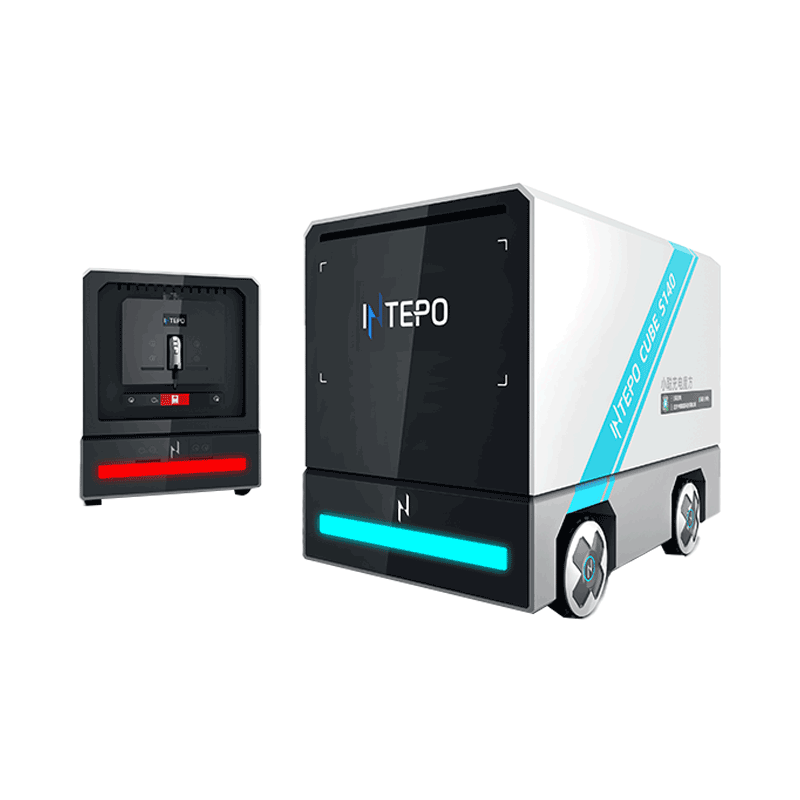

INTEPO Mobile Storage-Charging Robot S140

The S140 Charging Robot is an advanced energy management solution designed for both commercial and residential use. It offers efficient electric vehicle (EV) charging, leveraging AloT technology for seamless integration of large-capacity energy storage, emergency power supply, and peak-valley arbitrage. This cutting-edge system provides eco-friendly, flexible charging solutions, ensuring optimal energy efficiency, cost savings, and sustainable power usage for EV owners.

Facebook Twitter Pinterest LinkedIn 分享







  • S140 Mobile Storage-Charging Robot Features
  • #
    High Safety
    Automotive-grade systems, including BMS and intelligent cooling, meet EV safety standards and include an automatic fire extinguishing device.
  • #
    High Practicality
    Flexible steering and braking systems support DC fast charging and energy storage, with a 140 kWh battery and 60 kW output for both grid-connected and off-grid use.
  • #
    Smart Operation
    Cloud-based data management provides operational insights and efficient energy dispatch, with real-time visualization for monitoring and maintenance.
  • #
    Enhanced User Experience
    Customizable design, easy maintenance with expandable doors, and a high-resolution touchscreen enhance usability. Status lights ensure safe operation.
  • #
    Cost Efficiency
    Rapid deployment with no infrastructure needed, advertising potential on an LCD screen, and an IoT-based management system improve profitability.











  • Specifications



Basic Specifications System Software Platform INTEPO Mobile Energy Storage-Charging Integrated Management Platform
Vehicle Mobility Remote Control
Camera 1
Display Screen 24-inch LCD Screen (Front), 7-inch Toch Screen (Rear)
Communication 4G / 5G / Wi-Fi
Ingress Protection Rating IP54
Noise ≤ 65 dB (25°C)
Ambient Temperature -20°C - 45°C
Dimensions (L x W x H) 2150*1250*1600mm
Weight 2,120 kg
Energy Storage Unit Battery Capacity 140 kWh
Max Output Power 60 kW
Output Voltage Range 200 - 750 VDC
Output Current Range 0 -150 A
Efficiency >95%
Recharge Voltage Range 480 - 700 VDC

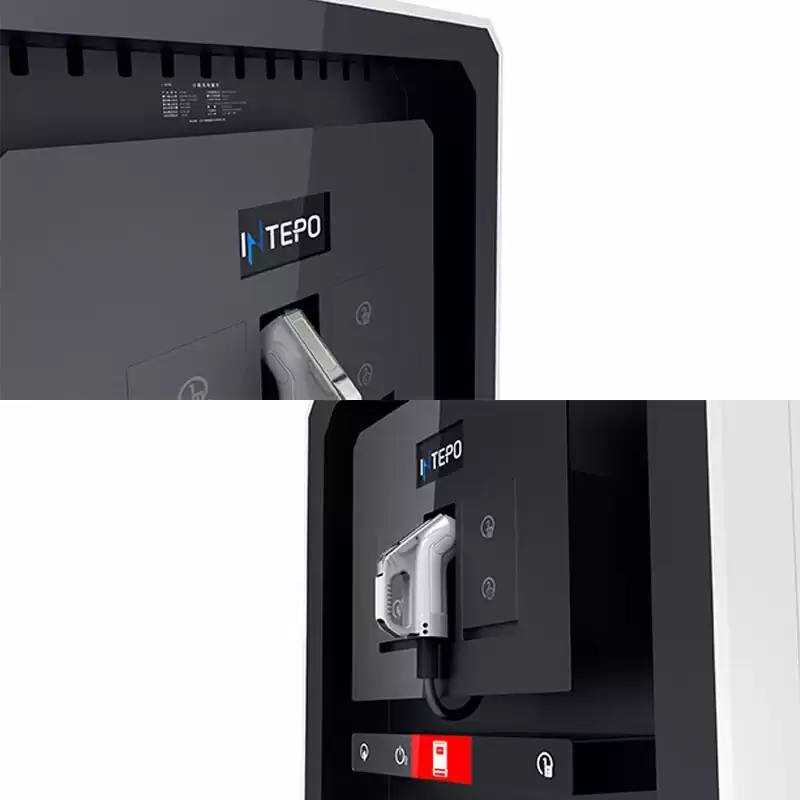

Charging Output Interface GB/T standard
Recharge Input Interface GB/T standard
Charging Cable Length 7m (support customized design)
Safety Standards Storage-Charging Sys Standards GB/T18487.1, GB/T18487.2, GB/T27930, GB/T34657.1, GB/T34658
Battery Safety Standards GB/T38031, GB/T36276, UL1973, UN38.3
Charging Cable Standards GB/T20234.1, GB/T20234.3
Recharge Interface Standards GB/T20234.1, GB/T20234.3
Vehicle Chassis Drive Type Rear-Wheel Drive
Braking System Four-Wheel Hydraulic Braking, Parking System
Steering Type Front-wheel Ackerman Steering System
Speed 0 - 5 km/h
Obstacle Climbing Ability 10°
Trench Crossing Ability ≤ 100 mm (trench width)
Water Wading Depth ≤ 100 mm (water depth)
Minimum Turning Radius 3.5 m















  • Application Scenarios
  • #

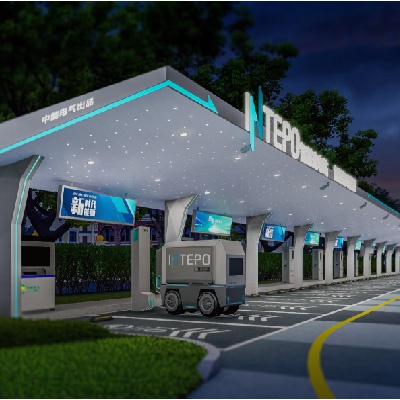

    PV-Storage-Charging Station
    A PV-Storage-Charging station integrating mobile robots and fixed piles to boost renewable energy use, enable fast charging, and offer flexibility with the 'charger finds EV' feature.
  • #
    Public Parking Lots
    Flexible product combinations and deployment options effectively increase parking space utilization and enable efficient charging during brief stops for electric vehicle users.
  • #
    Highway Service Areas
    The S140 operates as an EPS and aids peak-load shifting during regular hours. During holidays and peak times, its quick deployment improves charging efficiency and reduces fixed station costs and infrastructure investments.
  • #
    Residential Communities
    The fixed and mobile multi-combination chargingmode addresses issues of limited parking space and challenging power capacity expansion. It offers safe and convenient charging services for EV users within the community.
