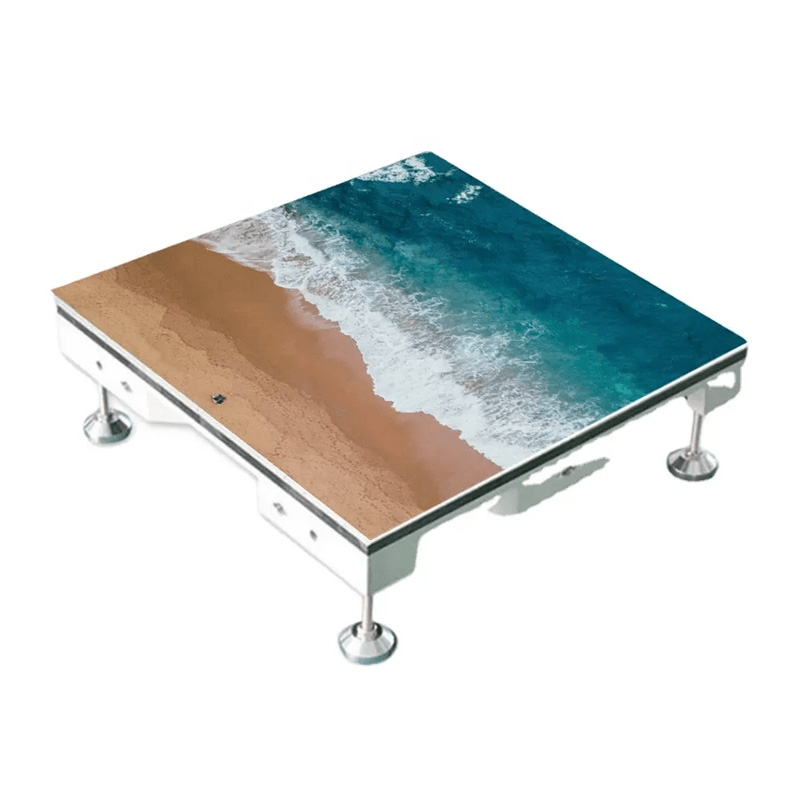

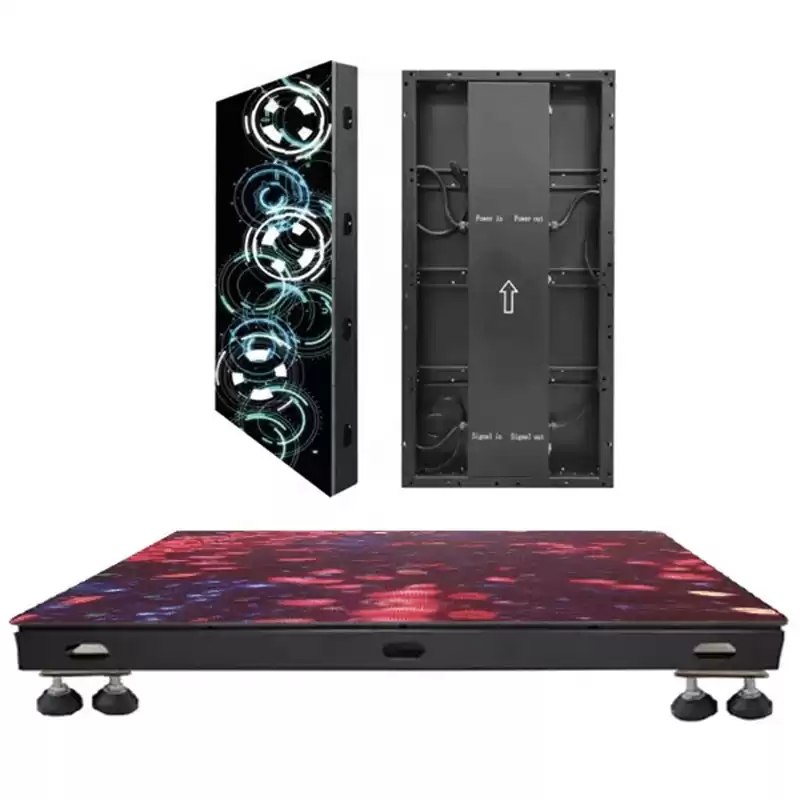

Interactive Dance Led Video Floor Screen

◆ Uniform color, high contrast, brightness can be adjusted, clear natural

◆ Low power, low calorie, energy saving

◆ Ultra-wide angle of view, expand audience

◆ Patented mask design plus unique ink treatment, presenting industry-leading super high contrast

◆ Signal, power supply is stable, safe and reliable

◆ Box multiple waterproof design, single box detection factory, protection rating IP66

◆ Classic module design, superior product performance, stable

◆ The cabinet does not need to add any peripheral protection equipment, such as tempered glass, acrylic, PC board, etc., directly stepping on!

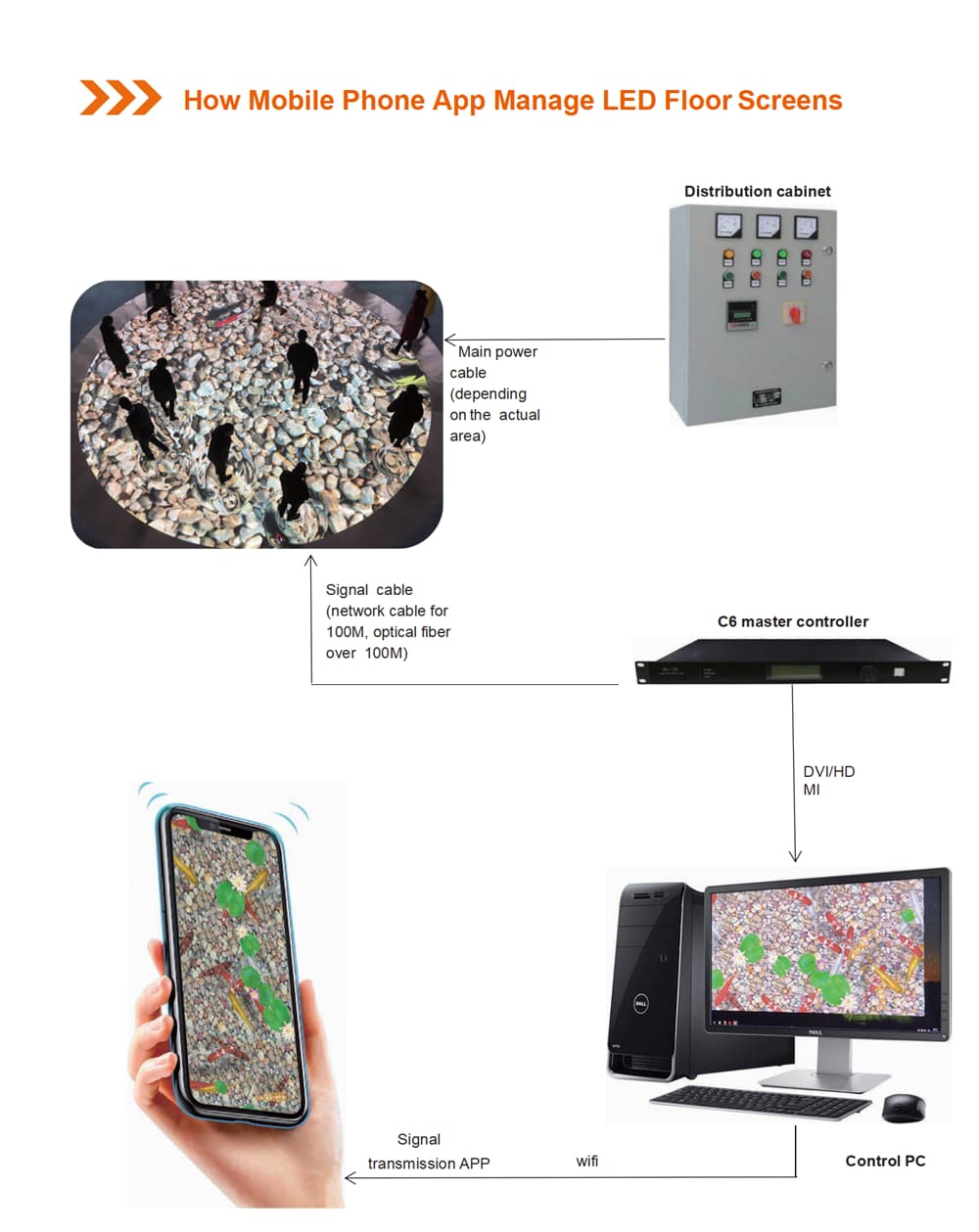

By using mobile phone to manage and control LED floor screen to change different anima-tions. Moreover, the LED floor screen inserts advertisements when playing animations, which can creat greater business value for customers.



5G interactive LED Floor Screen


What is a Floor LED Display?



A floor LED display is a personalized LED screen specially designed for floor display. Compared with the traditional LED display,
the floor LED display adopts a special design in terms of load-bearing, protection performance, and heat dissipation performance.
Its purpose is to make the floor tile screen adaptable to high-intensity stepping and long-term stable operation.



By using mobile phone to manage and control LED floor screen to change different anima-tions. Moreover, the LED floor screen inserts

advertisements when playing animations, which can creat greater business value for customers.





The Advantage of the Outdoor Dance Floor LED Screen

1.Fully waterproof (can be washed directly with water), strong shock resistance, good slip resistance (the actor can jump on it at will, will not slip),

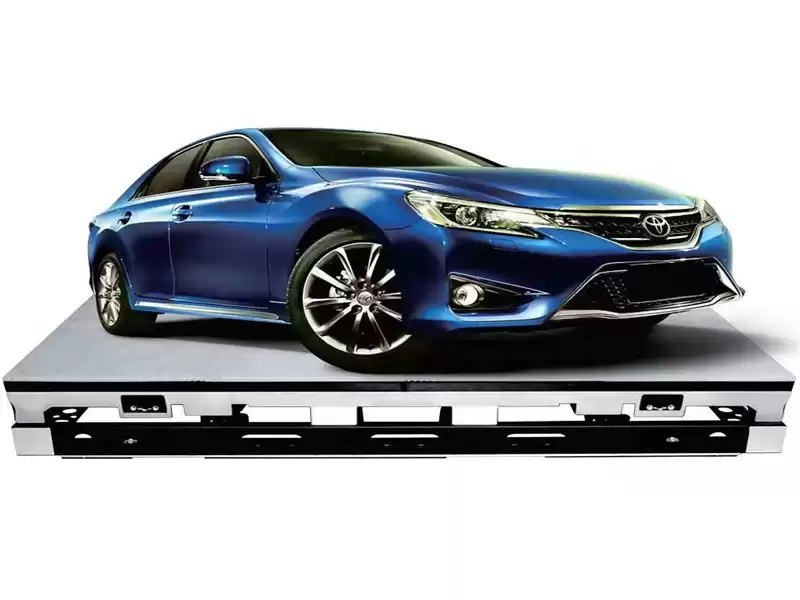

the bearing capacity is large (the car can be directly crushed, the load point is 2 tons), A single box can fine-tune the height difference between the cabinets,

the mask is PC+ composite material, has anti-UV function, can be exposed to the sun (the screen surface will not yellow), appearance beautiful, high definition,

high brightness, good heat dissipation, Easy to install, soft and clear color.



2.One-screen multi-purpose: It can be used as color brick when tiling; it can be used as stage main screen or color screen when stacking or lifting.



3.This product can be upgraded to a sensor screen through sensor or infrared technology to interact with the audience.


Specifications:

Pixel Pitch
2.5mm
2.976mm
3.91mm
6.25mm
Led Module Size
250 x 250mm
250 x 250mm
250 x 250mm
250x250mm

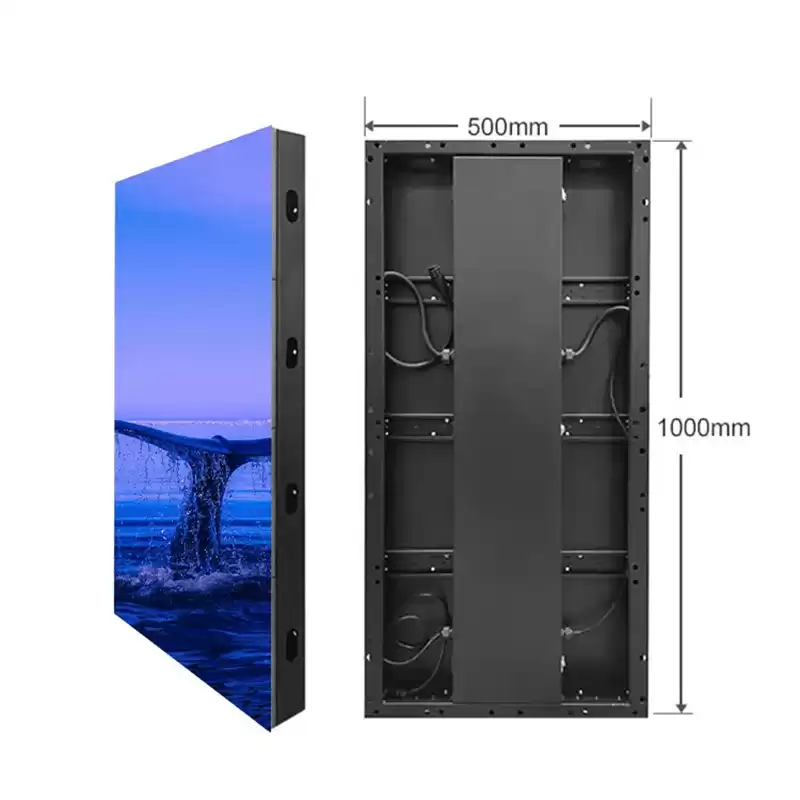

Led Panel Size
500 x 500mm / 500x1000mm
500 x 500mm / 500x1000mm
500 x 500mm / 500x1000mm
500 x 500mm / 500x1000mm
Led Panel Weight
7.3KG/15kg
7.3KG/15kg
7.3KG/15kg
7.3KG/15kg
Refresh Rate
3840Hz
3840Hz
3840Hz
3840Hz
Drive Method
1/25 Scan
1/28 Scan
1/32 Scan
1/20 Scan
Brightness
1500nits
1500nits
1500nits
1500nits
Power Supply
Chuanglian/ G-energy/ MeanWell
Chuanglian/ G-energy/ MeanWell
Chuanglian/ G-energy/ MeanWell
Chuanglian/ G-energy/ MeanWell
Receiving Card
Novastar / Linsn / Colorlight / Huidu
Novastar / Linsn / Colorlight / Huidu
Novastar / Linsn / Colorlight / Huidu
Novastar / Linsn / Colorlight / Huidu
Max Power Consumption
800W/㎡
800W/㎡
800W/㎡
800W/㎡
Working Temperature
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
Best Viewing Distance
2.5-150m
3-150m
4-150m
6-150m
Best Viewing Angle
H: 160°; V:160°
H: 160°; V:160°
H: 160°; V:160°
H: 160°; V:160°
Life Span
100,000 hours
100,000 hours
100,000 hours
100,000 hours
Working System
Windows
Windows
Windows
Windows



Applications

  • #

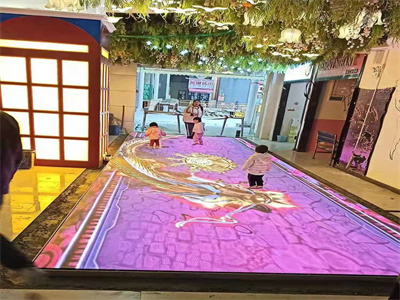

    Bar
    Recently, Interactive LED floor screen has become the main-  stream media of commercial advertisements in various industries. Our technicians can provide comprehensive services for  LED floor screen installation and debugging at any place of site  according to the design of different shapes under different  conditions.
  • #

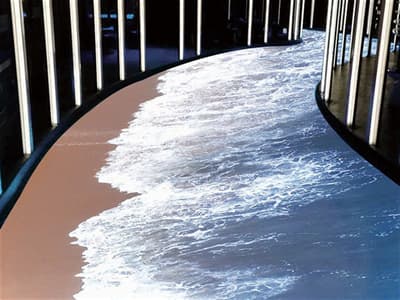

    Exhibition Hall
    With the rapid development of modern city, all kinds of  businesses are increasingly favored by more investors, not only in  large cities but also in small&medium-size cities where commer-  cial development and construction are gradually improved,
  • #

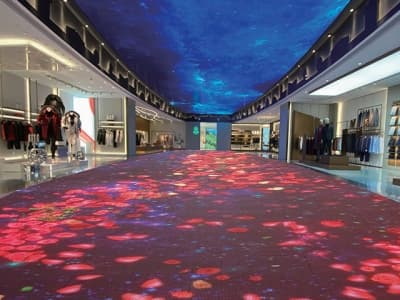

    Shopping Mall
    Mykas displays can realize the interactive insertion of the  advertisement while playing normal interactive videos.
