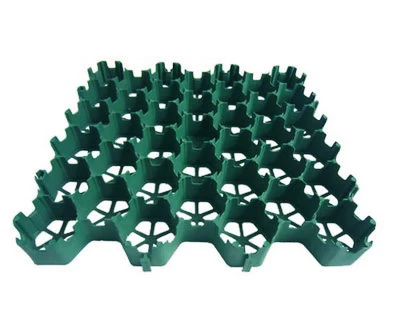

About Plastic Grass Grids
Plastic Grass Grid is one of the the most commonly used type of grid system today. Plastic Grass Grid is made from 100% recycled materials to help increase our environment's safety. They are mainly used for not only paver applications but also used to protect driveways and prevent erosion. Plastic Grass Grid can be customized in size requirements to suit the needs of your application. At the same time, they are also very flexible and allow underlying soil to breathe.
Plastic Grass Grid is best solution for grid system, the plastic system is lightweight and easy to install. And the grids can be sit directly on top of the system to provide structure and support. This system is also allows grass to growth through the grids.
Interlocking Plastic Gravel Paving Grids Product Details:
| Item No.
|
MZ-438
|
MZ-450
|
MW-438
|
MW-450
|
| Size
|
465x535x38mm
|
465x535x50mm
|
465x535x38mm
|
465x535x50mm
|
| Picture
|
|
|
|
|
| Apply Place
|
pedestrian
areas;
on verges;
footpaths;
|
access
roads;
emergency access lanes;
car parks;
vehicle hardstandings;
|
Gravel
Road(light vehicle);
pedestrian areas;
on verges;
|
Gravel
Road;
access roads;
emergency access lanes;
car parks;
vehicle hardstandings;
|
| Pressure Strength
|
1176KN/sqm(120ton/sqm)
|
1764KN/sqm(180ton/sqm)
|
1584KN/sqm(160ton/sqm)
|
1964KN/sqm(200ton/sqm)
|
| Weight
|
3.65kg/sqm
|
4.55kg/sqm
|
4.05kg/sqm
|
5.5kg/sqm
|
| Material
|
HDPE(high-density polyethylene)
|
HDPE(high-density polyethylene)
|
HDPE(high-density polyethylene)
|
HDPE(high-density polyethylene)
|
| Durability
|
durability of at least 8 years in neutral
ground of 4 < pH < 9
|
durability of at least 8 years in neutral
ground of 4 < pH < 9
|
durability of at least 8 years in neutral
ground of 4 < pH < 9
|
durability of at least 8 years in neutral ground
of 4 < pH < 9
|
| Working Temterature
|
Apply in temperature of -40℃ to
90℃
|
Apply in temperature of -40℃ to
90℃
|
Apply in temperature of -40℃ to
90℃
|
Apply in temperature of -40℃ to
90℃
|
| Anti HCL
|
According to GB4218-1984, 30%x24h, no
visible change
|
According to GB4218-1984, 30%x24h, no
visible change
|
According to GB4218-1984, 30%x24h, no
visible change
|
According to GB4218-1984, 30%x24h, no
visible change
|
| Anti NaOH
|
According to GB4218-1984, 40%x24h, no
visible change
|
According to GB4218-1984, 40%x24h, no
visible change
|
According to GB4218-1984, 40%x24h, no
visible change
|
According to GB4218-1984, 40%x24h, no
visible change
|
| Thermal Aging
|
According to GB/T 7141-1999, 70ICx24h, no
visible change
|
According to GB/T 7141-1999, 70ICx24h, no
visible change
|
According to GB/T 7141-1999, 70ICx24h, no
visible change
|
According to GB/T 7141-1999, 70ICx24h, no
visible change
|
| Anti UV
|
According to GB/T 18830, UPE>30 T(UVA)AV<5%,
qualified
|
According to GB/T 18830, UPE>30 T(UVA)AV<5%,
qualified
|
According to GB/T 18830, UPE>30 T(UVA)AV<5%,
qualified
|
According to GB/T 18830, UPE>30 T(UVA)AV<5%,
qualified
|
| Package
|
Bundle, 8pcs=2sqm=1bundle
|
Bundle, 8pcs=2sqm=1bundle
|
Bundle, 8pcs=2sqm=1bundle
|
Bundle, 8pcs=2sqm=1bundle
|
| Loading Capacity
|
940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container
|
700sqm=1x20ft container
1420sqm=1x40ft container
1628sqm=1x40HC container
|
940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container
|
700sqm=1x20ft container
1420sqm=1x40ft container
1628sqm=1x40HC container
|
Feature and Benefits:
1). Manufactured from 100% recycled plastics, eco-friendly grass grids
2). Fast and easy to install, maintenance with low cost
3). Perfect greening, provides more than 95% grass area
4). Permeability drainage performance, high water culvert
5). Allows grass grid to grow with easy and binds firmly
6). Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure
7). High compressive strength and durable, the plastic grass grids is permanent and long lasting
8). Grass grids has an open cell structure allowing unrestricted healthy grass root growth
9). Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
Gravel Paving Grids Instruction:
Leiyuan Plastic Paving Grids: High Strength, Long Life Service !
