Interlocking Soil Stabilizers Grid Floors Horse Riding Grid

 Horse Riding Grid Recruit Global Distributors NOW!

Horse Paddock Grid is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Ground stabilization horsting footing grid from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It has high own load-bearing capacity and the intelligent load distribution, except that, it has feature of excellent durability,drainage, traction and carrying capacity. It is incredibly tough and durable, and it needs minimal maintenance. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.



Horse paddock grids systems prevent the intermingling of the surface with the subsoil. Roughly 2/3 the price of other commercial equestrian footing products. Retire for life from your paddock improvement career. Fix it once with paddock grids, and forget it. paddock grids provides usable outdoor or indoor footing 365 days a year come rain or shine.



Interlocking Soil Stabilizers Grid Floors Horse Riding Grid

Using paddock grids instead of the "twelve inches of gravel" method permanently solves your muddy paddock problems. walkways prevent you from providing turnouts for your - or your clients' - horses? Constant rainfall, clay soil, heavy traffic - it doesn't matter! paddock grids provides usable paddocks year-round. Other ground treatments, such as hogfuel, require annual removal and reapplication. Horse paddock grids is now suggested by the Conservation Office.

Leiyuan is offering plastic ground reinforcement horse footing grid system for customers from all over the world. We produce quality gravel and grass grids, they are suitable for driveways, paddock etc.

Contact us today for professional consultation and installation Guide!!



WHY WE ARE SPECIAL AND BETTER?

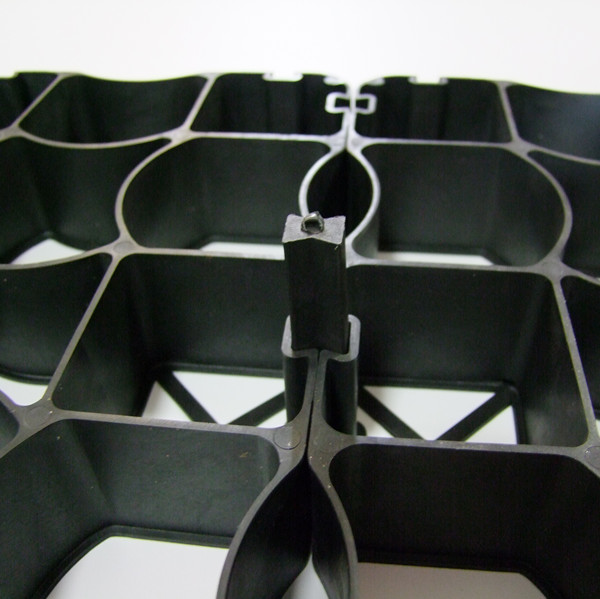

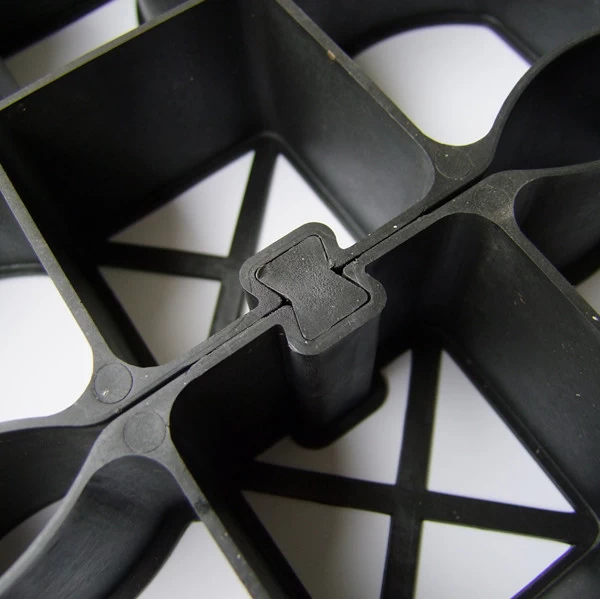

• After studied the European Standard design, we made a revision on interlocking part, which is able to interlock tightly and ensure the interlocking parts no broken during horses running.

• 9 individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1 m² in one go.

LY950 TECHNICAL DATA

MATERIAL	HDPE(100% Recycled High Density Polyethylene)
COLOR	Black; Dark Green
SIZE	336*336*50mm
CELL WALL THICKESS	2mm
WEIGHT	0.65kg/pc; 5.85kg/m2
OPEN CELL PERCENTAGE	92% top; 75% base
ANTI HCL	According to GB4218-1984, 30% x 24h, no visible change
ANTI NAOH	According to GB4218-1984, 30% x 24h, no visible change
THERMAL AGING	According to GB/T 7141-1999, 70IC x24h, no visible change
UV RESISTANCE	According to GB/T18830, UPE＞30T(UVA)AV＜5%, Qualified
TOXICITY	Non Toxic
DURABILITY	At least 10 years in neutral ground of 4＜pH＜9
PACKING	Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m2 in one go.
PACKING	570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC

COLORS



APPLICATION

• Indoor and outdoor riding arenas

• Paddocks and open stables

• Horse walkers

• Lunging arena

• Equestrian sports area

• Tethering and mounting areas

• Feeding spots

• Tolt tracks, Racetracts

• Gravel road

• Round pens

• Washing areas.

FEATURE

ADVANTAGES

No mud

Equal load on all joints

The tread layer remains separate from the substructure

Minimal maintenance

High degree of elasticity

Load capacity of up to 250tons/m2

Outstanding drainage

More than 200 elastic elements per m2

Quick and easy to install

Environmentally friendly

Minimal hoof impact marks

Patented safety locking system

Permanent drainage

Robust surface with good grip

All-weather areas, the ideal surface all year round

Open stables keep free from mud and puddles.



ACCESSORIES

We supply a firm interlocking connected accessories and fix edging system that offers a guide to ensure continuous levels across surfaces as well as the ability to cut patterns and curves to surfaces.

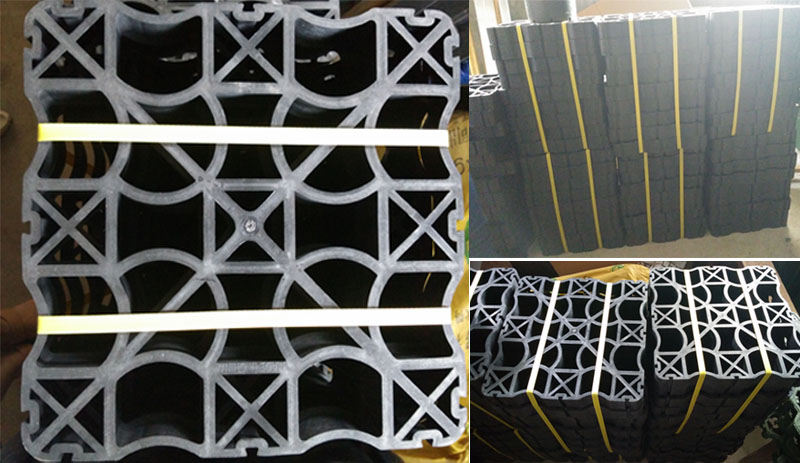

PACKING & LOADING
