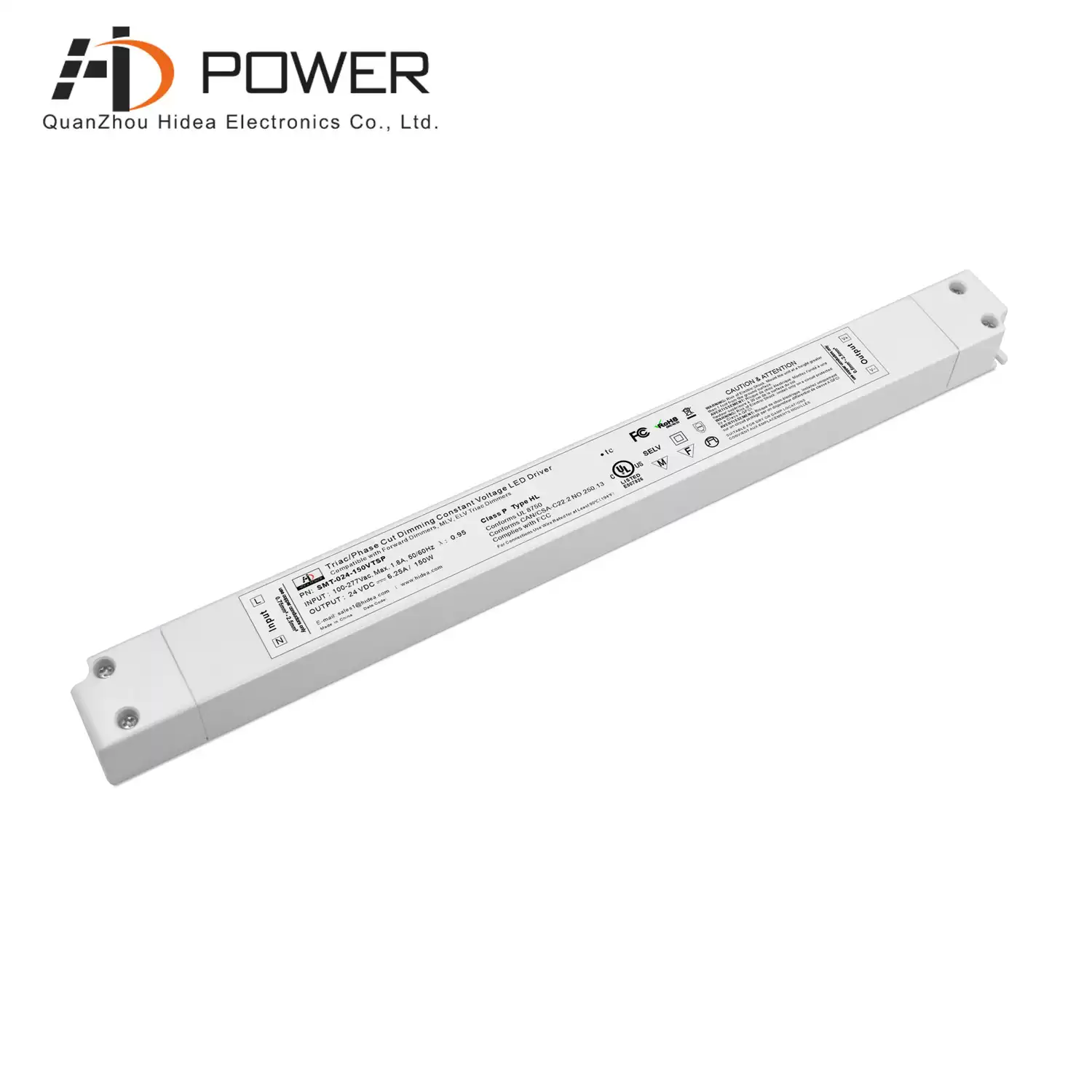

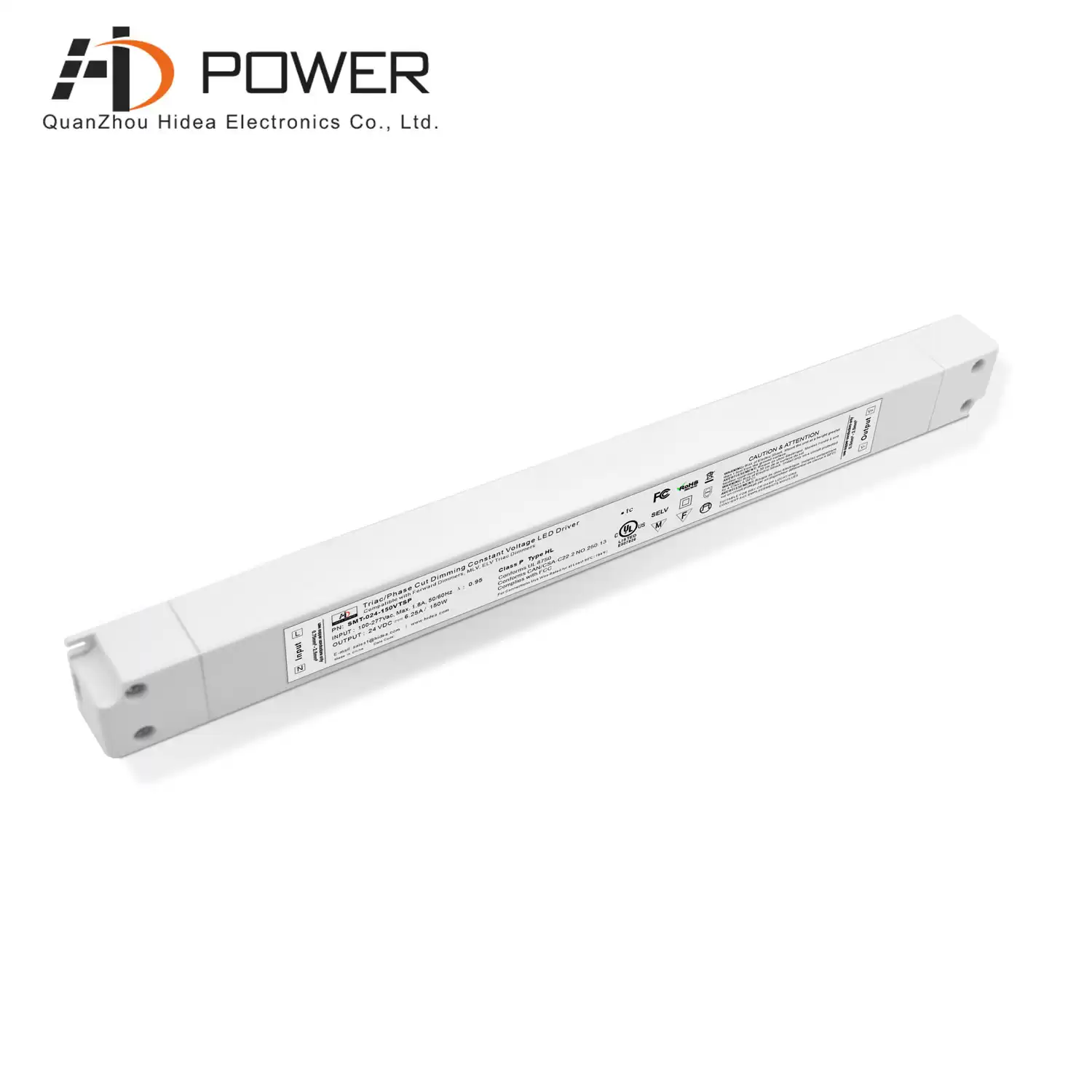

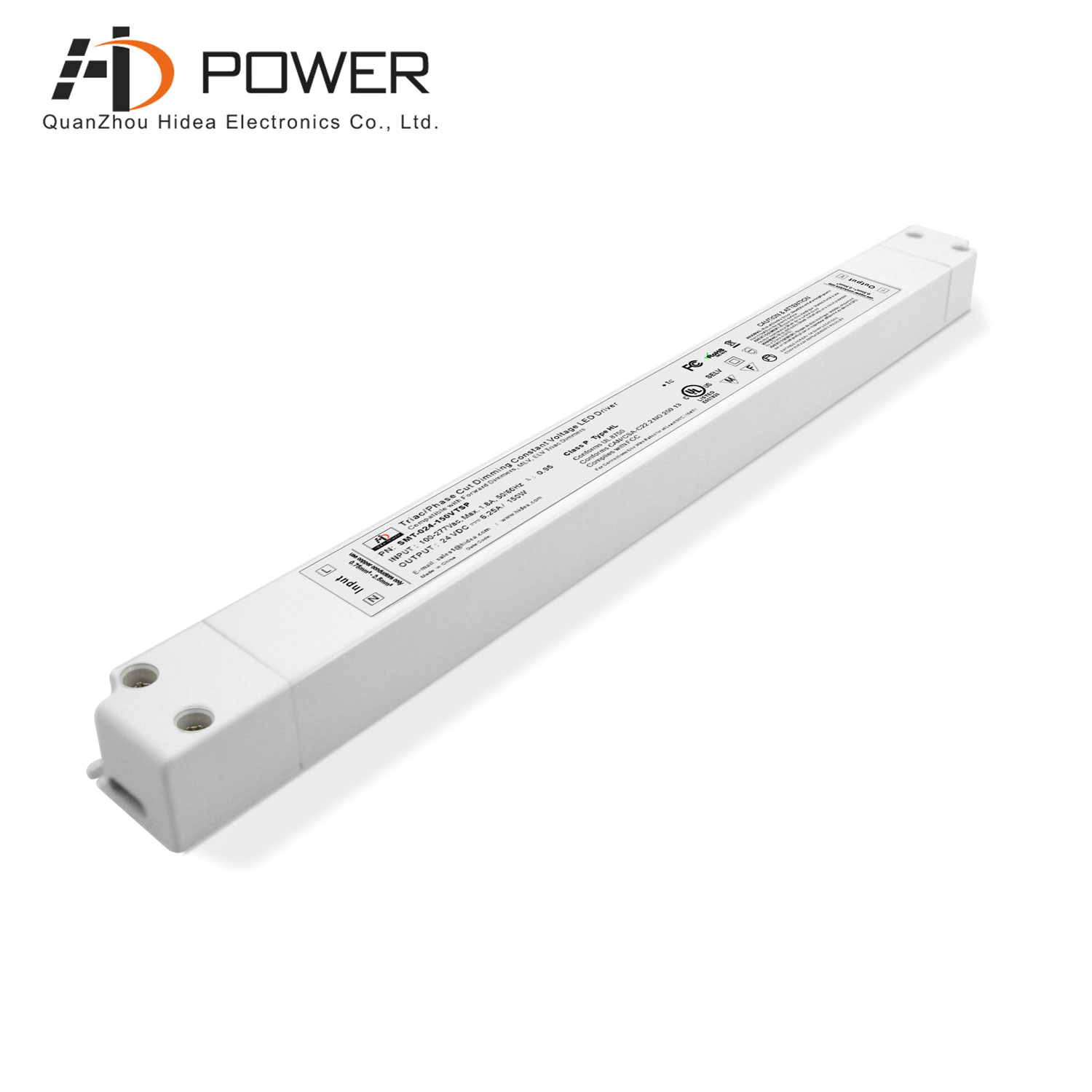

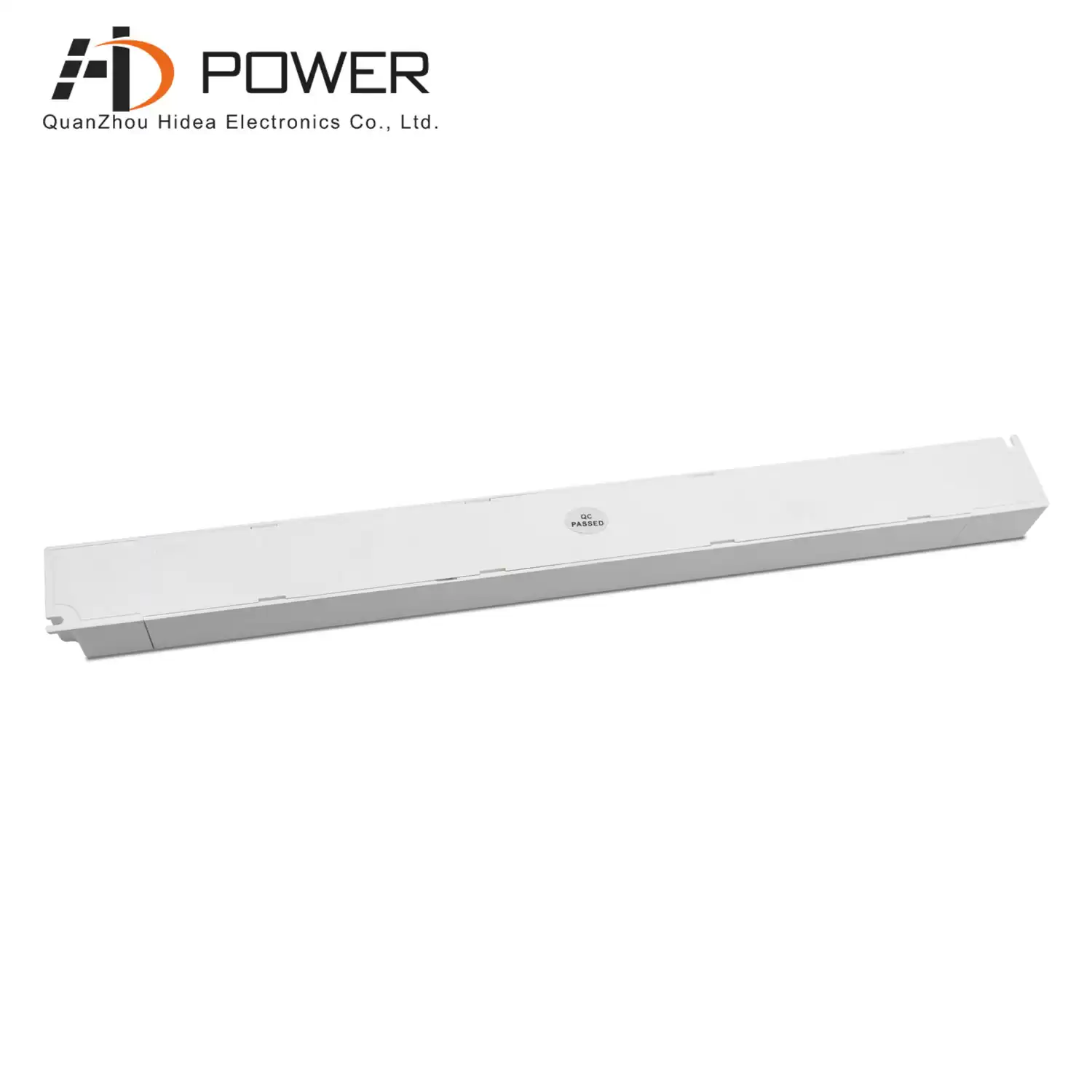

intertek 277V Triac dimming led lighting strip power supply for led strip light Slim size led driver 24v 150w

Slim siez Triac dimming constant voltage led driver 24v 150w Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

  • Dimming ModeTriac Dimming
  • Working ModeConstnat Voltage LED Driver
  • Input Voltage100-277Vac
  • Output Power(Watt)150W
  • Output Voltage12/24Vdc
  • Shape & SizeSlim Size
  • Output Current
  • Size330*30*22MM
  • Weight500g
  • CertificationUL/CUL
  • Warranty7 Years
Facebook Twitter Pinterest LinkedIn 分享

UL 277Vac Triac dimming 24Vdc led power supply 150W Strong compatibility, flicker-free dimming 7 years warranty


  Specification

Model SMT-012-150VTSP SMT-024-150VTSP SMT-048-150VTSP
Output DC Voltage 12VDC 24VDC 48VDC
Voltage Accuracy ±5%
Rated current 12.5A 6.25A 3.125A
Rated power 150W
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277 VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.99/110V ;  PF≧0.98/277V
Full Load Efficiency >89% >90% >91%
AC Current(Typ.) 1.90A/100VAC  /  0.82A/277VAC
Inrush Current(Typ.) 59.2A/212us@50%Ipeak
Leakage current <0.50mA/110VAC; ﹤0.13mA/277VAC
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading ≤120% Hiccup mode, recovers automatically after fault condition is removed.
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z  axes
Safety&EMC Safety standards UL8750
Withstand voltage I/P-O/P: 3.75KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight 0.65Kg
Size 368*30*22.5mm (L*W*H)
packing 50PCS/CTN
Notes 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
2.  Tolerance:includes set us tolerance,line regulation and load regulation .

led driver 12V
 dimmable led driver
 constant voltage led driver
SMARTS led power supply


  Related Products

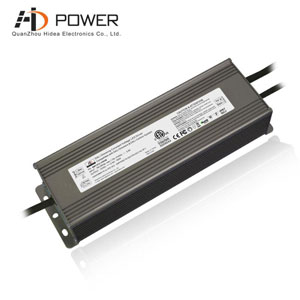

led driver 24v 150wwaterproof DALI Dimmable constant voltage led driver 24v 150w Dimming range 1-100%, no noise...
