Invensys Triconex 3503E TMR Digital Input Module

Each TMR digital input (DI) module has three isolated input channels which independently process all data input to the module.$1,300.00.please contact us and we will get back to you within 24 hours. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.





TMR Digital Input Modules



On TMR Digital Input Modules, all critical signal paths are 100 percent triplicated to guarantee safety and maximum availability. Each channel conditions signals independently and provides isolation between the field and the Tricon controller.



3503E has a self-test feature which verifies the ability of the Tricon controller to detect transitions from a normally energized circuit to the Off state. Because most safety systems use a de-energize-to-trip setting, the ability to detect the Off state is an important feature. To test for stuck-On inputs, a switch within the input circuitry is closed to allow a zero input (Off) to be read by the optical isolation circuitry. The last data reading is frozen in the I/O Processor while the test is running.

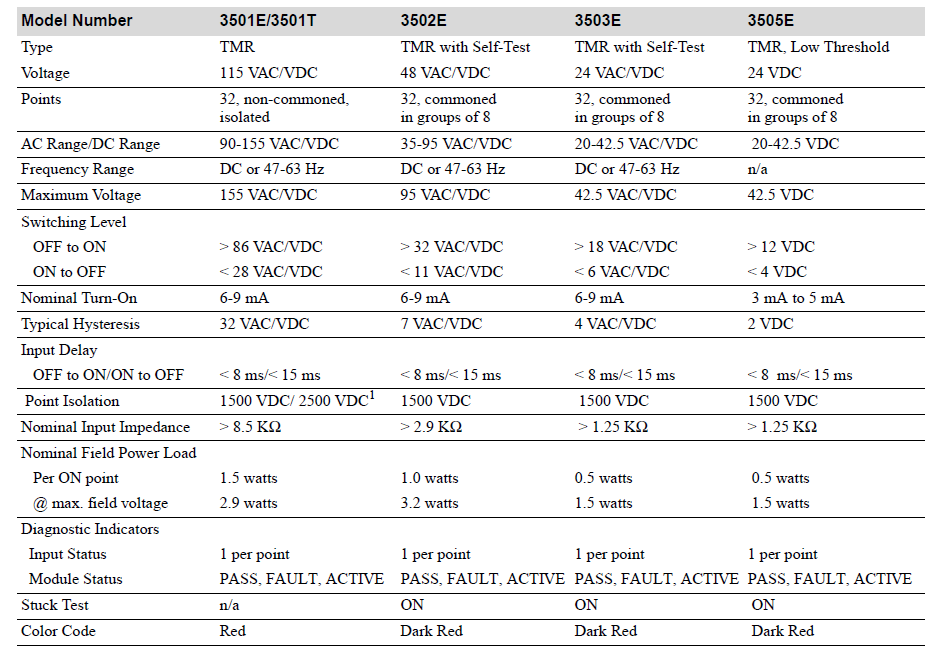

3503E Digital Input Specifications

Feature Specification
Color code Dark red
Number of input points 32, commoned in groups of 8
Input frequency range DC or 47-63 Hz
Recommended input range 20–42.5 VDC
Maximum voltage 42.5 VAC/VDC
Switching level: Off to On 15 VAC/VDC typical, 18 VAC/VDC worst-case
Switching level: On to Off 8 VAC/VDC typical, 6 VAC/VDC worst-case
Typical hysteresis 4 VAC/VDC
Nominal turn-on 6 mA to 9 mA
Input impedance > 1.25 kΩ nominal
Input delay: Off to On < 8 ms
Input delay: On to Off < 15 ms
Point isolation, opto-isolated 1000 VAC minimum, 1500 VDC minimum
Status indicator: On or Off State 1 per point
Status indicator: Module status Pass, Fault, Active
Logic power < 10 watts

Nominal field power load



0.5 watts per On point^1

1.5 watts @ maximum field voltage

Leakage current to chassis @ 60 Hz 0.25 mA maximum per On point

Input diagnostic fault coverage^2:

Maximum input toggle rate

Minimum input toggle rate, On state

Minimum input toggle rate, Off state



Every 100 ms

Not required

Every 3 months (manually toggled by the user)

Diagnostic glitch duration^3

Output voltage

Output impedance

20 ms typical

< 1/2 VIN

< 1.87 kΩ

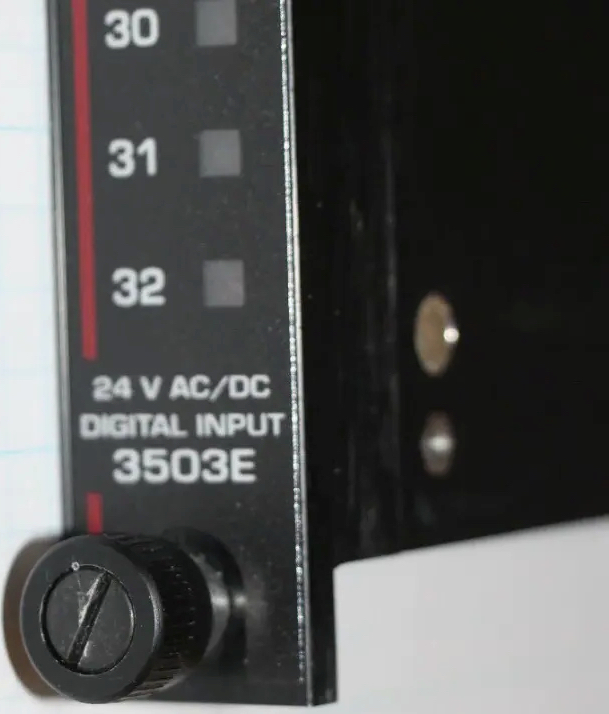

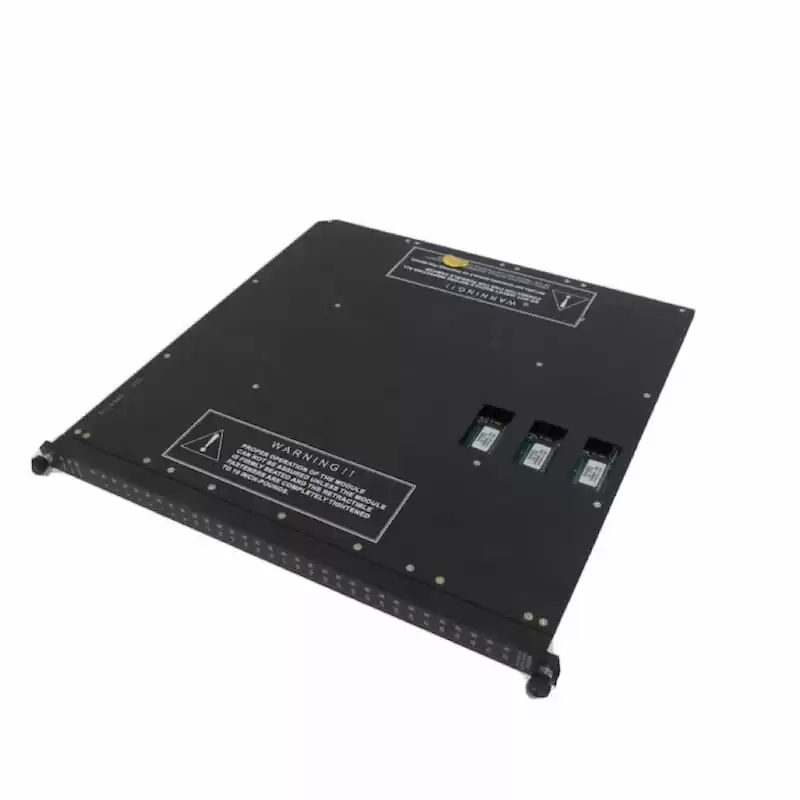

Invensys Triconex 3503E

Invensys Triconex 3503E



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
