Invensys Triconex 3721 TMR Analog Input Module

Triconex 3721 Analog Input Module, TMR Type, 0 to 5 or -5 to +5 VDC Differential, DC Coupled, 32-Point Triconex Systerm. $6,300.00. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.

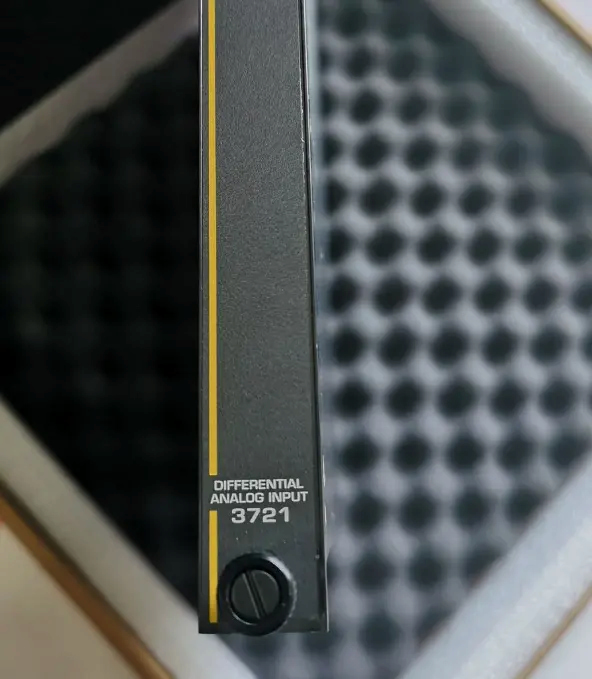

Triconex 3721 Analog Input Module



The 3700A, 3703E, and 3704E, 3720, and 3721 Analog Input Modules provide a six percent overrange measurement capability. The 3703E provides open-input detection, which can be configured as upscale or downscale in TriStation 1131. If an open input (< 0 VDC) goes out of range downscale, the Main Processors receive the integer value –32,767. If an open input (> 5VDC or 10 VDC) goes out of range upscale, the Main Processors receive the integer value +32,767.



The 3720 and 3721 can be configured in TriStation 1131 for either Standard (12 bit) resolution or High (14 bit) resolution. In High resolution, the 3721 can be configured in TriStation 1131 for Unipolar (0 to 5 VDC) or Bipolar (-5 to +5 VDC) inputs.



Each Analog Input Module sustains complete, ongoing diagnostics for each channel. Failure of any diagnostic on any channel activates the Fault indicator for the module, which in turn activates the chassis alarm signal. The Fault indicator points to a channel fault, not a module failure. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with some multiple faults.



Analog Input Modules include the hot-spare feature which allows online replacement of a faulty module. Like all I/O modules, Analog Input Modules require a separate field termination assembly with a cable interface to the Tricon controller backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.



Triconex 3721 Analog Input Module

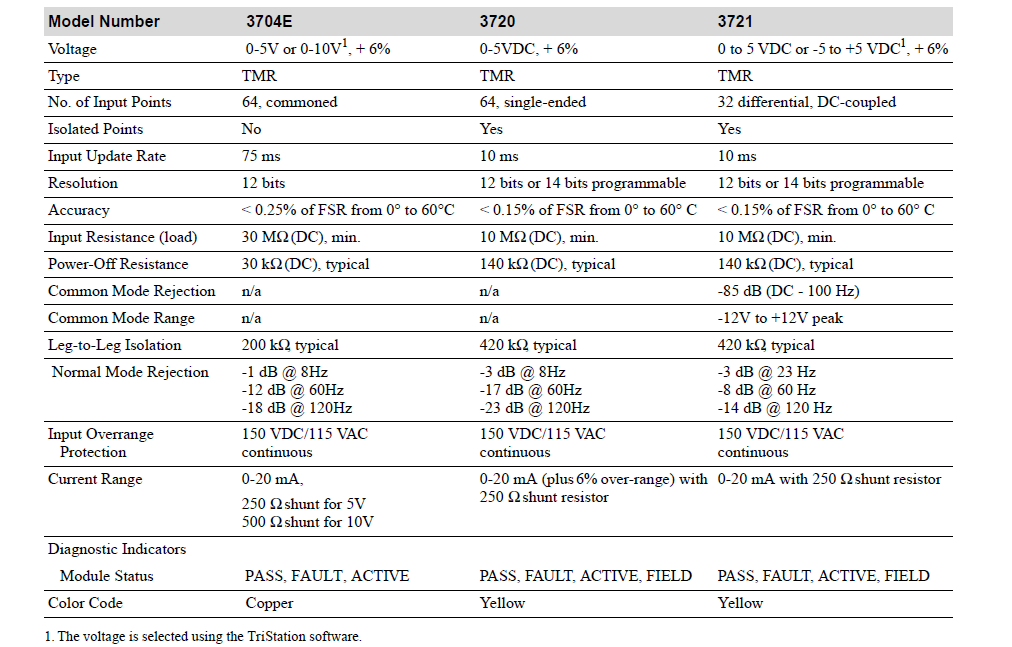

3721 Analog Input Specifications

Feature Specification
Color code Yellow
Number of input signals 32 differential, DC-coupled
Input update rate 10 ms
Resolution 12 bits or 14 bits programmable
Accuracy < 0.15% of FSR from 0° to 60° C
Input resistance (load) 10 MΩ (DC), minimum
Input resistance at power off 140 kΩ (DC), typical
Common mode rejection (typical) -85 dB (DC - 100 Hz)
Common mode voltage range -12V to +12V peak
Channel-to-channel isolation 420 kΩ, typical

Normal mode rejection





-3 dB @ 23 Hz

-8 dB @ 60 Hz

-14 dB @ 120 Hz

Input voltage range

0 to 5 or –5 to 5 VDC

Input over-range measurement

+6%, -5.3 to +5.3 VDC

Logic power

< 15 watts

Input over-range protection

150 VDC continuous, 115 VAC continuous

Input current range 0 to 20 mA with 250 Ω shunt resistor
Field to system isolation 800 VDC minimum
Module status indicators Pass, Fault, Active, Field

Input diagnostic fault coverage1

Minimum input change

Input change sample period

Minimum period of mis-compares



2% of full scale

20 ms

25 samples

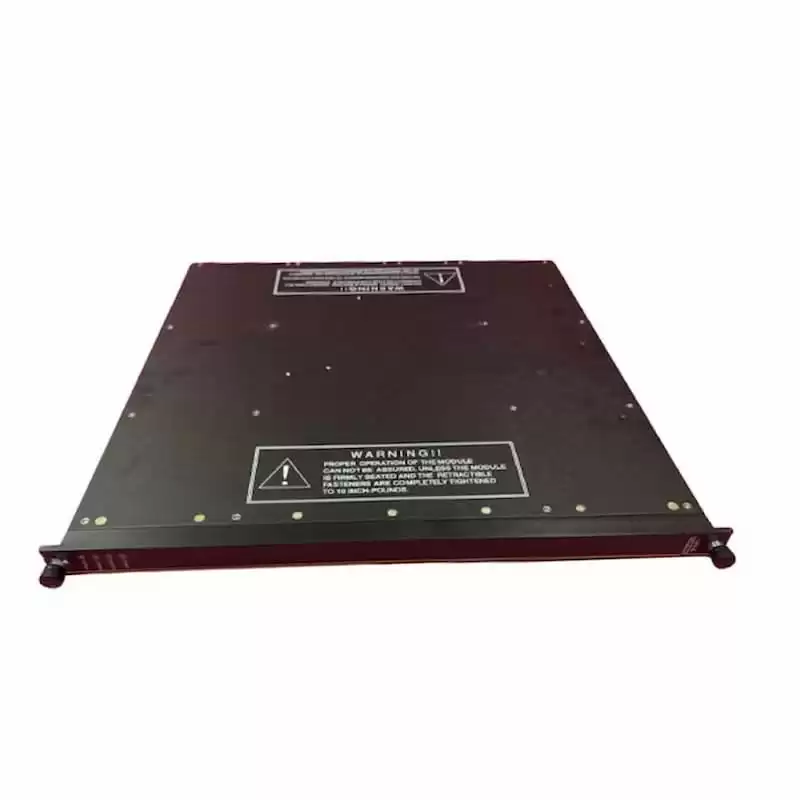

Triconex 3721
