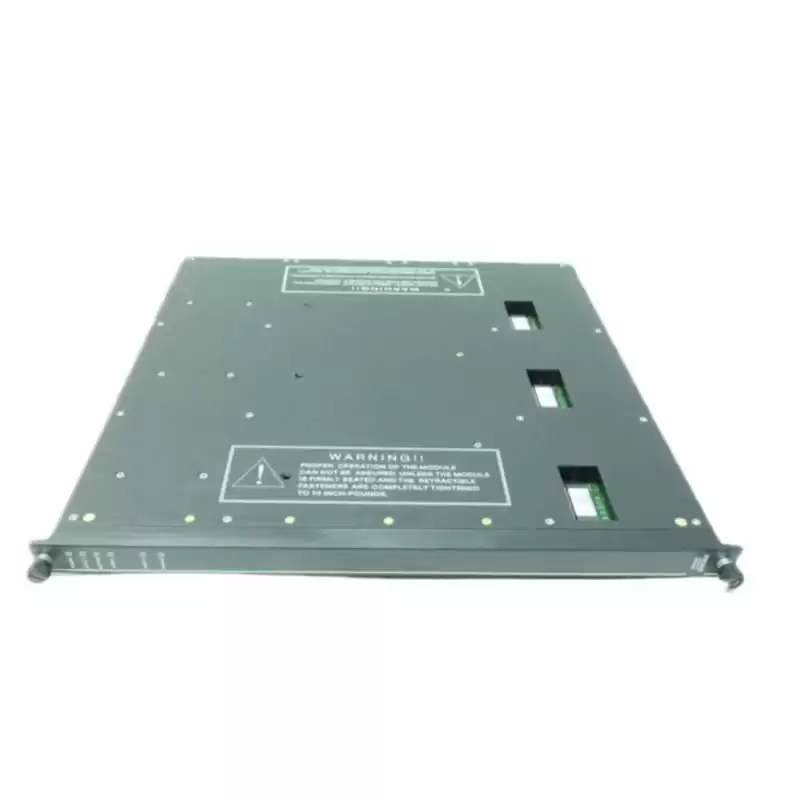

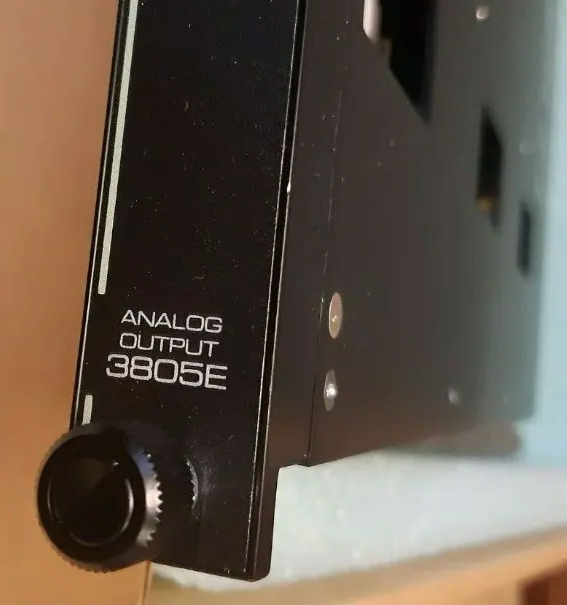

Invensys Triconex 3805E Analog Output Module

Triconex 3805E Enhanced Analog Output PLC Module 3805E. Model Number 3805E/3805H. Type TMR, AO. Output current range 4-20 mA output (+6% overrange).$4,500.00.please contact us and we will get back to you within 24 hours.



Invensys Triconex 3805E



Analog Output Modules receive output signals from the Main Processors on each of three channels. Each set of data is voted, and a healthy channel is selected to drive the outputs. The module monitors its own current outputs (as input voltages) and maintains an internal voltage reference that provides self-calibration and module health information.



Each channel on the analog output module has two independent current loopback circuits per point that are readable by the other channels. The information from these circuits is used as part of the hardware voting process. The first circuit verifies the accuracy and presence of the analog signal for each point, independent of the load presence or channel selection. The second circuit verifies the actual current flow for each point from the selected channel. If a current flow is detected from any point on a non-selected channel, that channel is immediately shutdown. The Load alarm status indicator is annunciated if the module cannot drive current from any point—for example, open load.



Analog Output Modules provide for the connection of redundant field loop power sources with individual indicators on the module called Pwr1 and Pwr2. Field loop power supplies for analog outputs must be provided externally. Connection of the field loop power supplies is made on the termination panel. A Status indicator activates if an open loop is detected on one or more output points. The Pwr1 and Pwr2 indicators are On if loop power is present.



Each module sustains complete and ongoing diagnostics for each channel. Failure of any diagnostic test on any channel activates the module Fault status indicator and the chassis alarm signal. The Fault status indicator points to a channel fault, not a module failure. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with multiple faults.



Analog Output Modules include the hot-spare feature which allows online replacement of a faulty module. Like all I/O modules, Analog Output Modules require a separate field termination assembly with a cable interface to the Tricon controller backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.



Invensys Triconex 3805E

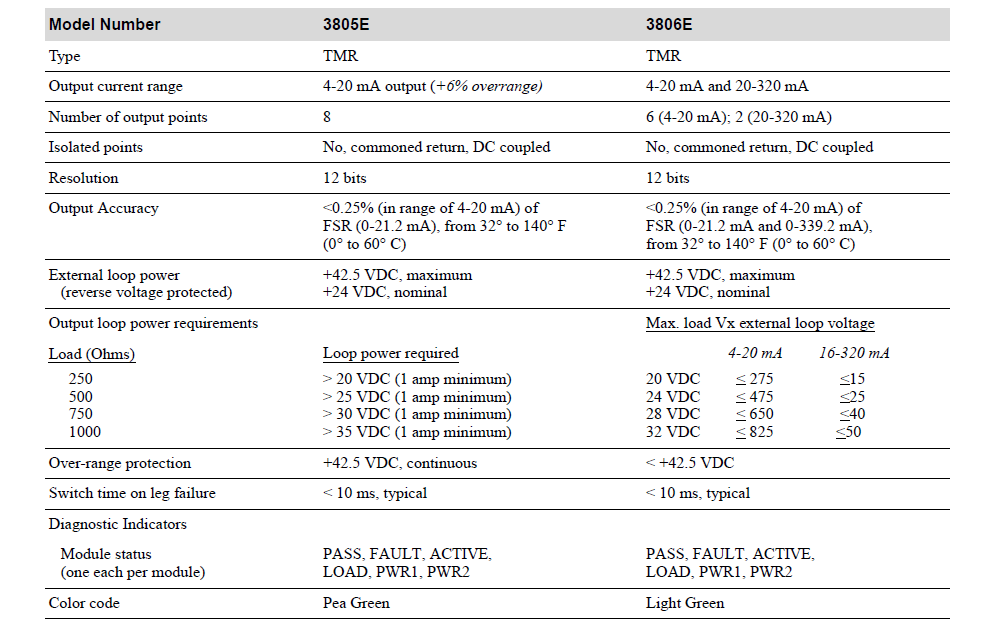

3805E Analog Output Specifications

Feature Specification
Color code Pea green
Number of output points 8, output, commoned return, DC-coupled
Resolution 12 bits
Output current range 4–20 mA (+6% over-range)
Output over-range capability 2–21.2 mA
Output accuracy

< 0.25% (in range of 4–20 mA) of

FSR (0–21.2 mA), from 0° to 60° C

External loop power (reverse voltage protected)



 +42.5 VDC maximum

+24 VDC nominal

Output loop power requirement: load Required
Output loop power requirement: 250 Ω load > 20V (1 A minimum)
Output loop power requirement: 500 Ω load > 25V (1 A minimum)
Output loop power requirement: 750 Ω load > 30V (1 A minimum)
Output loop power requirement: 1000 Ωload > 35V (1 A minimum)
Output over-range protection +42.5 VDC continuous, 0 VDC continuous
Switch time on channel failure 10 ms (typical), 20 ms (maximum)
Status indicator: Module status Pass, Fault, Active, Load
Status indicator: Loop power status1 Pwr1, Pwr2

Output diagnostic fault coverage:

Minimum input change

Output change sample period

Minimum period of mis-compares



Not applicable

Not applicable

Not applicable

Logic power < 15 watts
