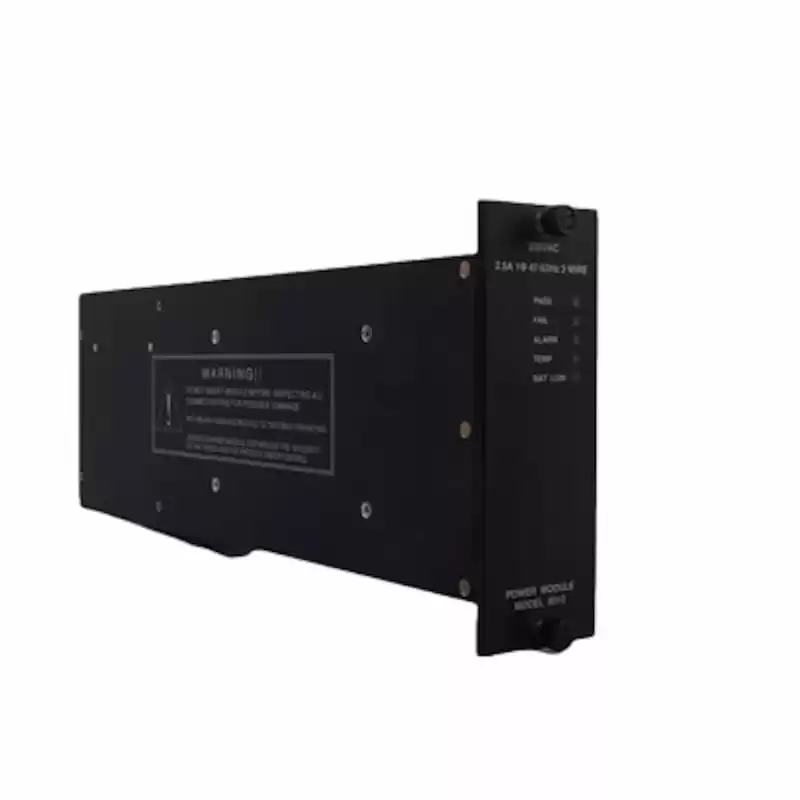

Invensys Triconex 8312 Power Supply Module

Each Tricon chassis is equipped with two Power Modules—either one is fully capable of running the Tricon at full load and rated temperature. Each Power Module can be replaced online.$1,400.00.Excellent quality, favorable price, welcome to inquire!





Invensys Triconex 8312 Power Modules



Each Tricon Chassis is equipped with two Power Modules—either one is fully capable of running the controller at full l oad and rated temperature. Power Modules convert line power to DC power appropriate for all Tricon modules. Any combination of Power Module models can be used in Tricon systems.



The Power Modules, located on the lower left side of the chassis, convert line power to DC power appropriate for all Tricon controller modules. Two terminal strips on the backplane are used to select controller grounding options, and for incoming power and alarm connections.



Each Power Module provides an in-line, slow-blow fuse for each external power source, mounted inside the module. The module can be replaced without disconnecting any wiring by removing the module from the chassis. The fuse on the Model 8311 24 VDC Power Module is not removable. If this fuse fails, you must return the module to Triconex for fuse replacement.



Each Tricon controller Power Module is a field-replaceable unit that uses high-efficiency DC-DC converters. All models of Power Modules are protected against reverse connection of the DC inputs.



Invensys Triconex 8312

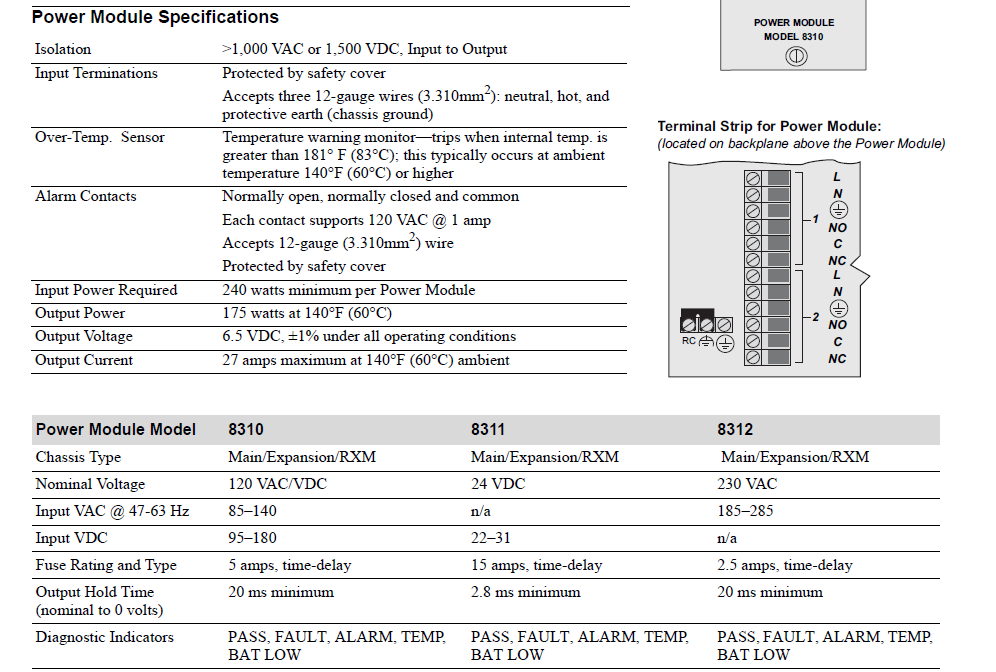

8312 Power Module Specifications

Feature Description
Isolation 1000 VAC or 1500 VDC, Input to Output
Nominal input voltage 230 VAC (–15% to +10%)
Extended input voltage range 185 to 285 VAC
Low line on/off hysteresis 15 VAC
Input power required 240 W minimum per power source
Input frequency 47 to 63 Hz
Power factor 0.70 typical
Crest factor 2.5 typical
Input current 24 Vdc
Steady-state 0.4 amps, typical; 1.2 amps, maximum
In-rush (1/2 AC cycle) 18 amps maximum @ 230 VAC
Input fuse rating and type 2.5 amps, time-delay
Output voltage 6.5 VDC, ±1% under all operating conditions
Output current 27 amps minimum at140° F (60° C) ambient, which refers to the air temperature measured at the bottom of the chassis.
Output power 175 watts at 140° F (60° C) ambient
Output hold time @ 0 volts input 20 ms minimum; 80 ms typical
Output over-voltage protection 125%, typical, recycle power to restart
Output over-current limit 140%, typical, auto restart
Over-temperature warning sensor Temperature monitor trips when the internal power module temperature is greater than 181° F (83° C). Typically occurs at an ambient temperature of 140° F (60° C) or higher.
