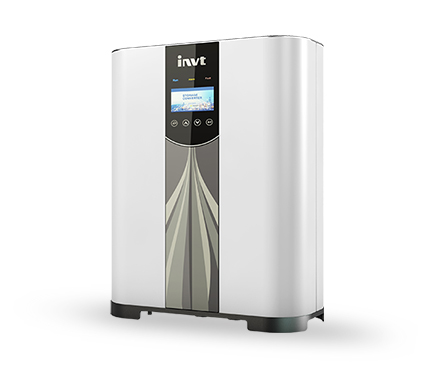

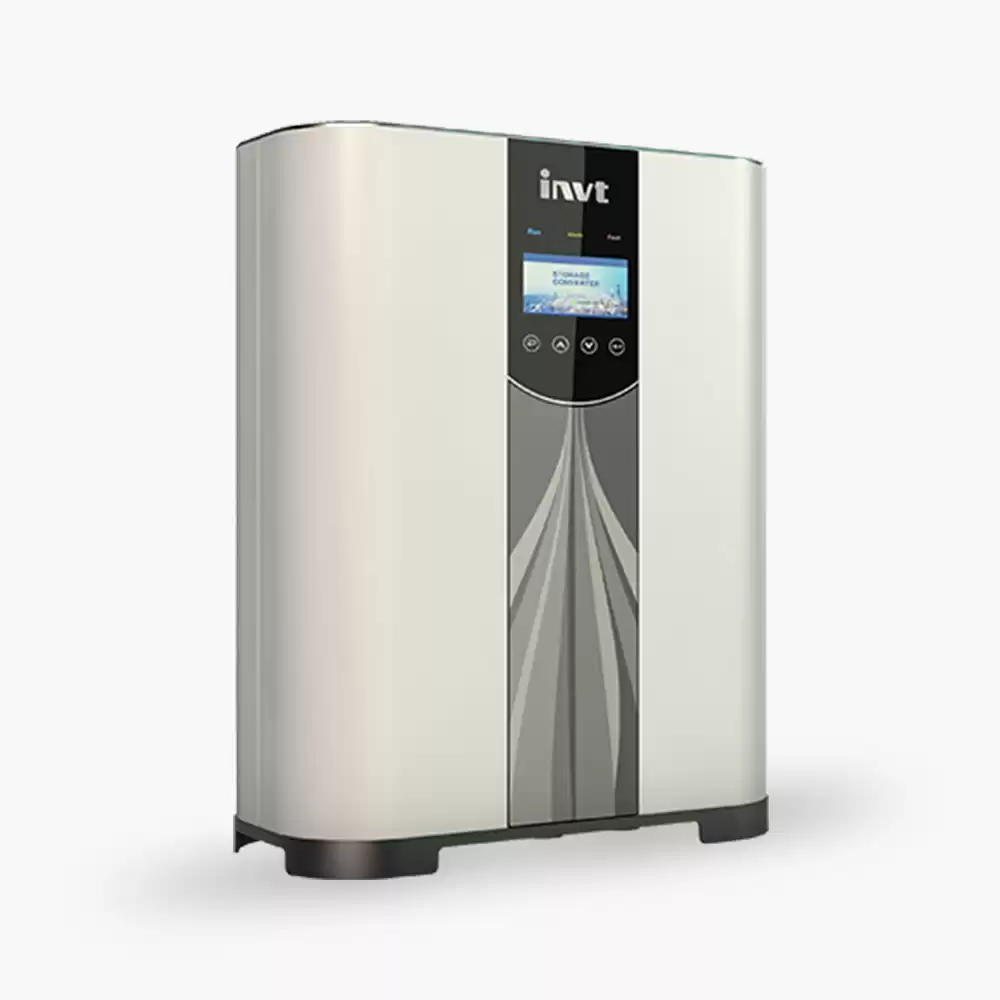

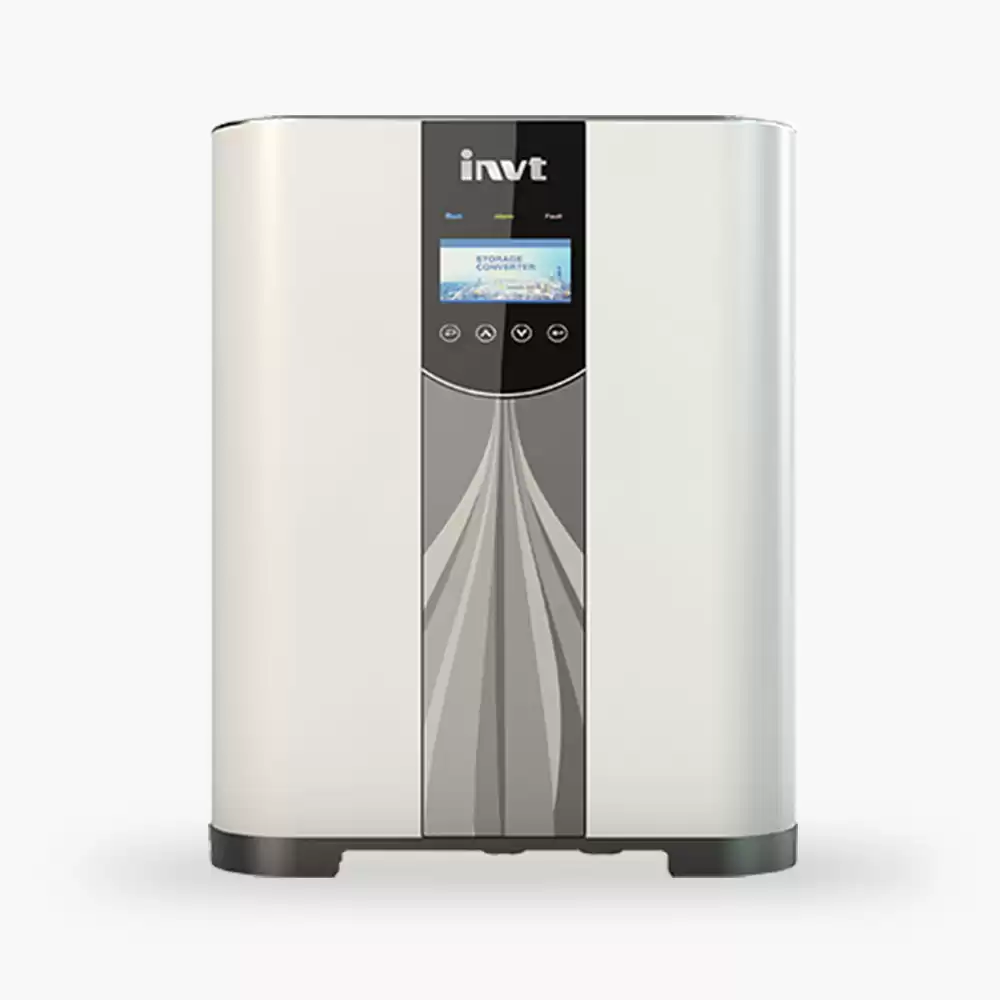

Invt Hybrid Solar Inverter For Residential Solar System

INVT iMars BD series energy storage products are divided into energy storage inverter (3K/5K),this series of hybrid inverters can be widely used in various places such as household energy storage, industrial and commercial energy storage, and small micro network system.


  • WARRANTY3 years
  • WATERPROOFIP20
  • OPERATING TEMPERATURE -10℃~+40℃
  • MPPT VOLTAGE RANGE120~450V
  • AC VOLTAGE & FREQUENCY220/230/240V, 50/60HZ
  • RATED POWER3KW&5KW
  • MODELBD series




Hybrid Inverter

The iMars BD series system is a new   generation of photovoltaic energy storage   products based on the idea of intelligent   and maintenance-free, which integrates   many functions such as charging, energy   storage, and photovoltaic inverter, BMS   battery management system and so on. It   can automatically identify the off-grid/grid  connection mode and connect to the   smart grid to achieve peak load and valley demand.

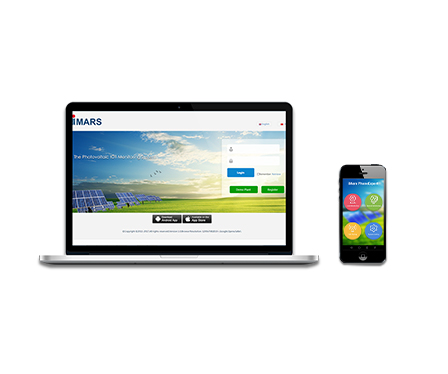

Monitoring System

Invt WIFI200/GPRS200 is an external wireless / cable communication module connected to the photovoltaic inverter through the RS485 interface, which is used to monitor the running state and historical data of the inverter. It is easy for users to view data in terminal display devices or monitoring interfaces (iMars PhoneExpert of smartphone or iMars InfoExpert of Internet monitoring platform). Whether it's a rooftop power generation system for family users or an outdoor power station, you can monitor it in real time.







Invt hybrid inverter meet certifications:

IEC 62109-1:2010, IEC 62109-2:2011, EN61000-6-2:2005, EN 61000-6-3:2007/A1:2011


Product Features

Efficient
▪ Support on-grid charge/discharge and off-grid mode
▪ 10ms seamless switching
Smart
▪ Friendly HMI, large LCD display
▪ Optional diesel engine communication interface
▪ Integrated global monitor management, APP with one-button registration
▪ Intelligent charging and discharging to extend battery life
Reliable
▪ Integrated professional BMS
▪ Compatible with lead-acid and lithium battery
Simple
▪ Small size, light weight, convenient for installation


Product Tags Invt Hybrid Solar Inverter          Hybrid Solar Inverter 3KW          Hybrid Solar Inverter 5KW          Hybrid Inverter 3KW          hybrid inverter 5kw
