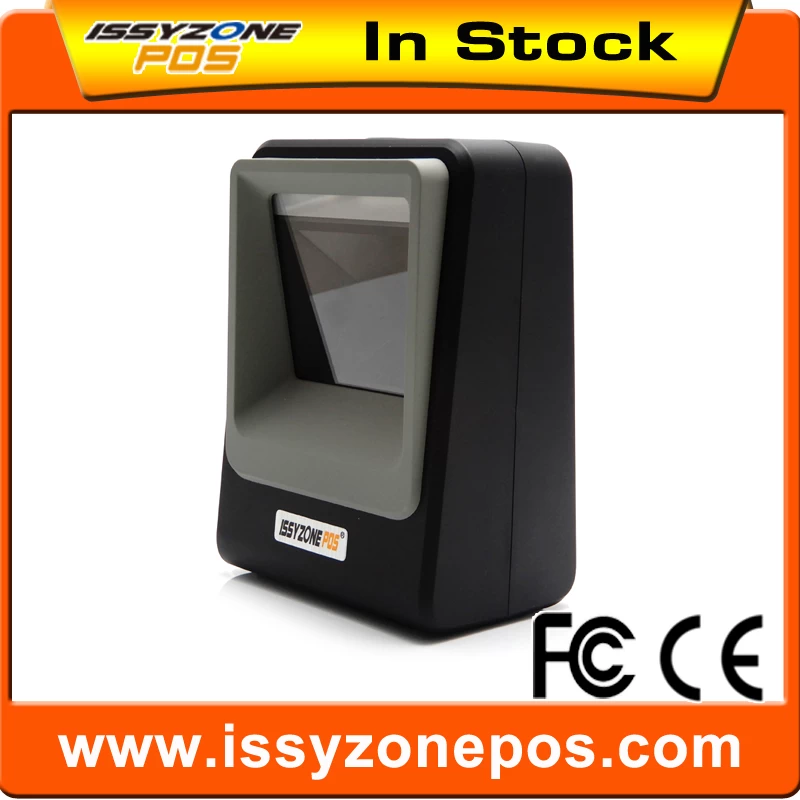

IOBC022 20 Lines Omnidirectional Barcode Reader Barcode Scanner

Features:

1. Object auto sense
2. Multiple language barcode message transfer
3. Super large reading window
4. Build in RS232 and USB interface
5. 5 working modes(normal mode, mobile phone screen mode and fast moving mode)

Physical Characteristics

Product model

IOBC022

Dimensions:

105mm x 146mm x 70mm

Weight:

200g

Voltage:

5

Current:

DC 400mA (Operate)

Cable length:

1.5m

Performance Characteristics

Light Source:

Illumination: 6500K LED

Field of View:

5° (H) x 35° (V)

Roll / Pitch / Yaw:

60°, ±65°, ±60°

Print Contrast:

5% minimum reflective difference

Interfaces Supported:

USB, RS232

1-D:

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,

Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc.

Minimum Resolution

5 mil Code39

User Environment

Operating Temperature:

0°C to 50°C

Storage Temperature:

-40°C to 70°C

Humidity:

0% to 95%

Shock Specifications:

Designed to withstand 1.5m(5’) drops

Ambient Light Immunity:

100.000 Lux.

Decode Ranges

5MIL

0mm-30mm

3MIL

0mm-150mm

Performance may be impacted by bar code quality and environmental condio ns
