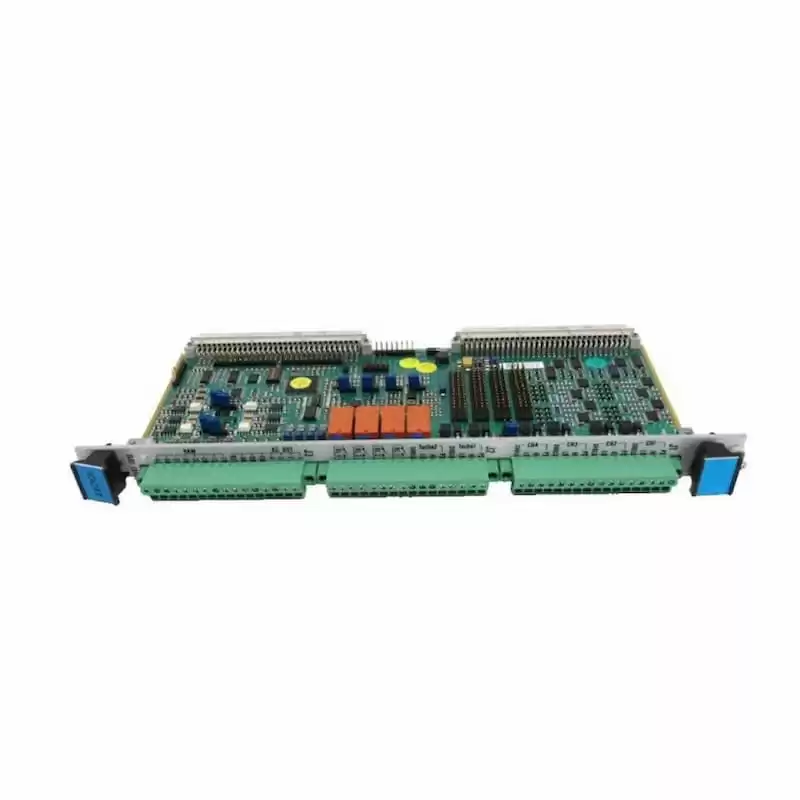

IOC4T 200-560-000-013 Input/Output Card
The IOC4T input /output card acts as a signal interface for the MPC4 machinery protection card, It is installed in the rear of a rack and connects directly to the rack backplane via two connectors. Each IOC4T card is associated with a corresponding MPC4 card and is mounted directly behind it in the system rack (ABE04x orABE056). The IOC4T operates in slave mode and communicates with the MPC4, through connector P2, using an Industry Pack (IP) interface.
The front panel of the IOC4T contains terminal strip connectors for wiring to the transmission cables coming from measurement chains (sensors and /or signal conditioners). The screw-terminal connectors are also used to input all signals from and output all signals to any external control system.
When used as a card pair with an MPC4 machinery protection card, the IOC4T is highly suitable for machinery monitoring and protection in a wide range of industrial applications.
KEY FEATURES AND BENEFITS
• Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card
• Screw-terminal connectors (48 terminals) for all input/output connections
• Contains 4 relays which can be attributed to alarm signals, under software control
• 32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards
• Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels
• EMI protection for all inputs and outputs
• Live insertion and removal of cards (hot-swappable)
• Available in “standard” and “separate circuits”versions
Technical Specifications
| Part Number |
200-560-000-013 |
| Ordering Information |
IOC4T |
| Product Catalog |
Vibration Monitoring |
| Description |
Input/Output Card |
| Voltage |
+5 VDC and ±12 VDC |
| Power |
1.5 W |
| Dimension |
262 mm × 20 mm × 125 mm |
| Weight |
0.25 kg |
