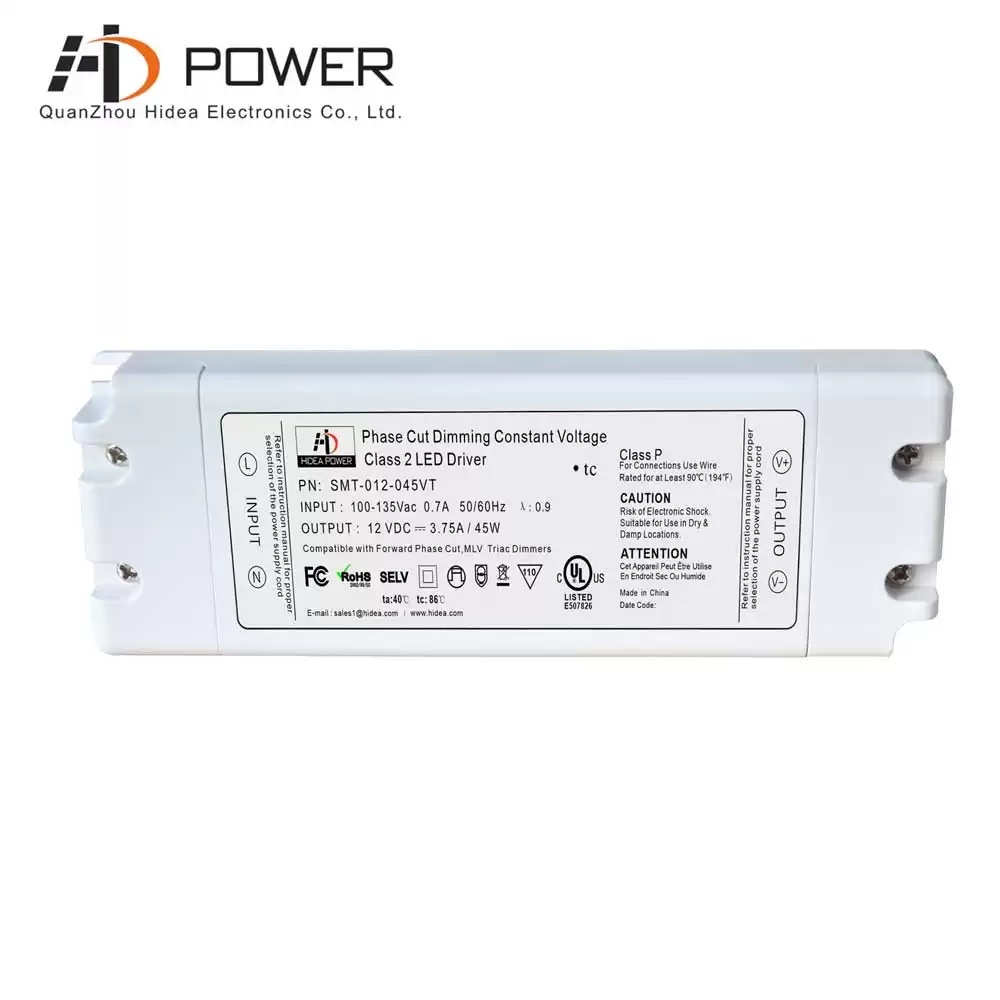

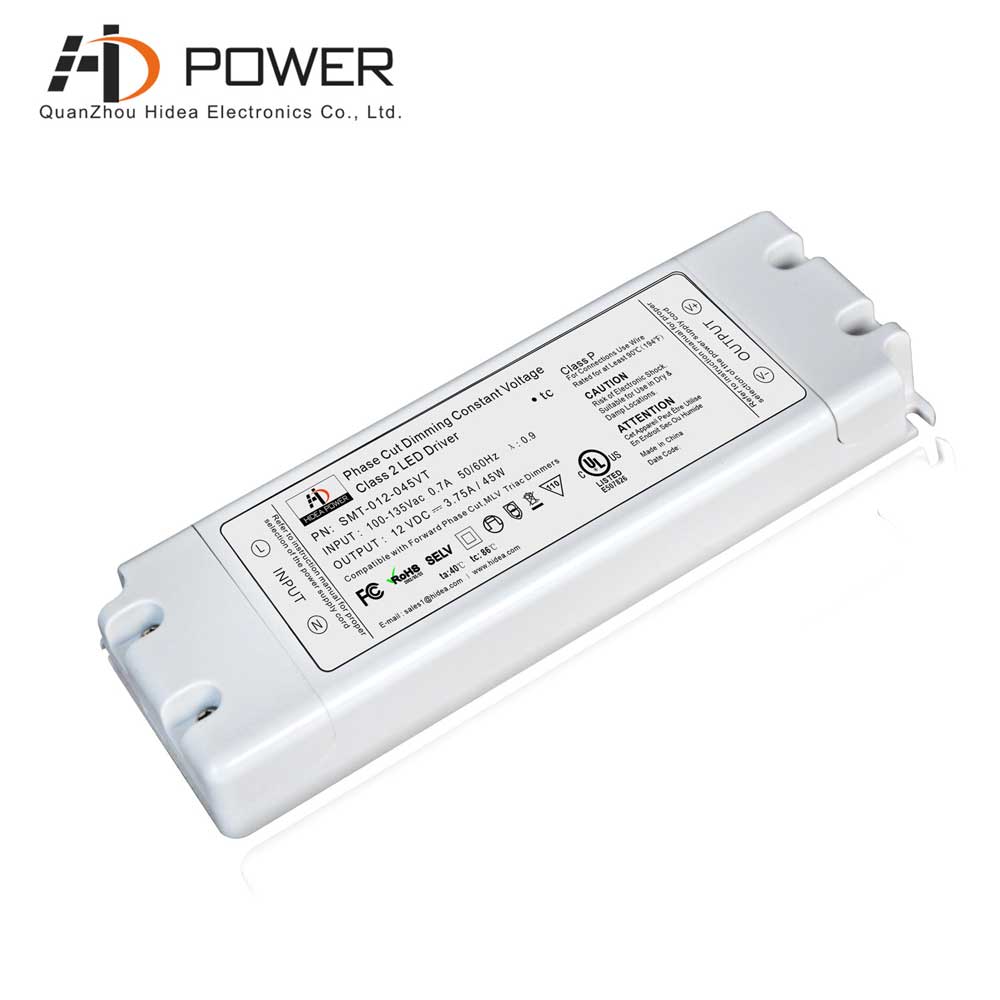

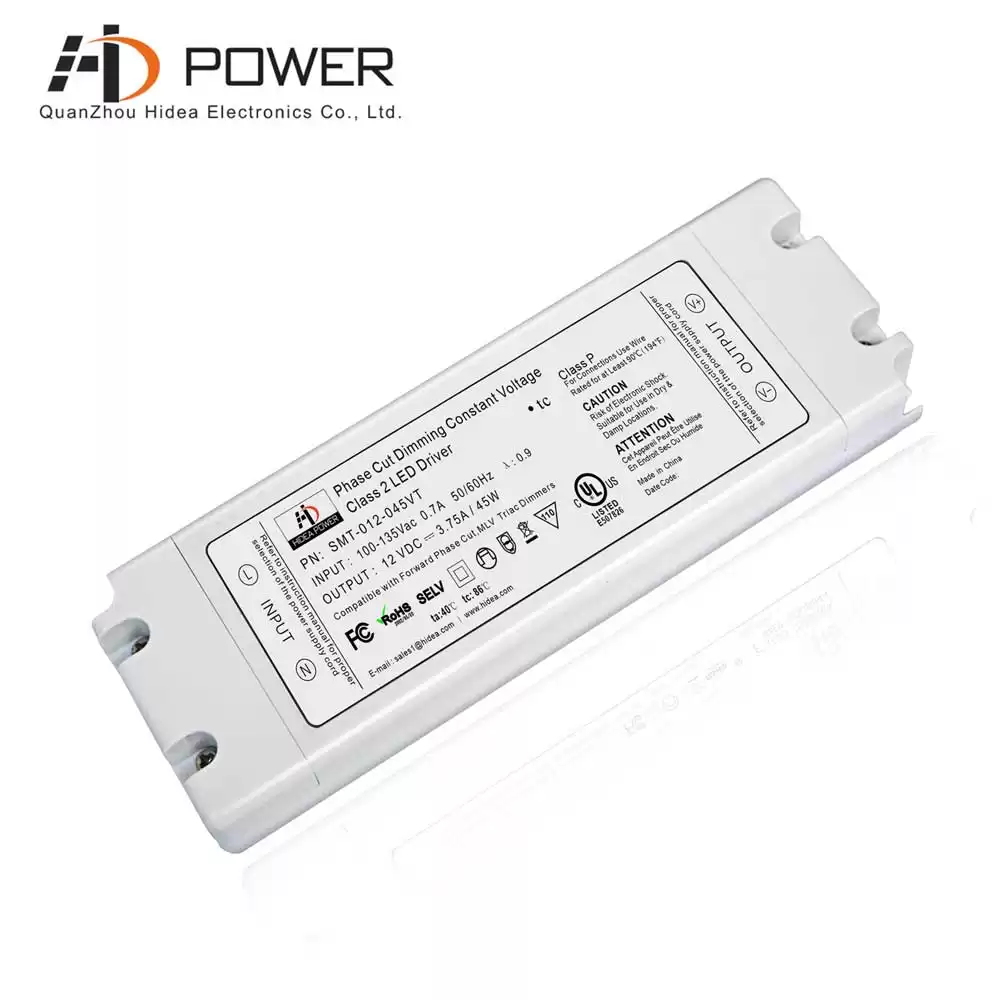

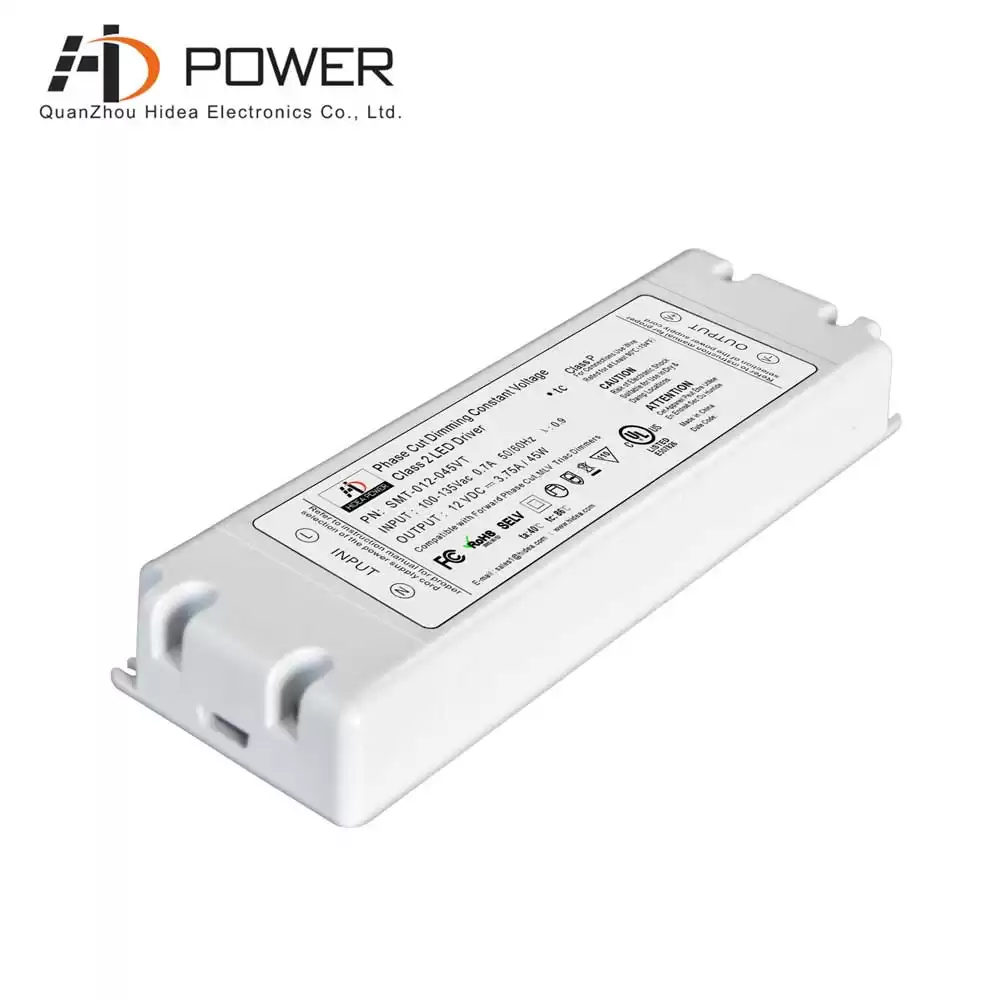

IP20 45w 12vdc Dimmable Led Driver SAA Constant Voltage Led Strip Lights

SAA approved 30w triac dimmable led strip light driver has 12v/24v dc output voltage. Working humidity is 20～90%RH,non-condensing and storage TEM., humidity is -40～+80℃, 10～95%RH,with CREE LED bulbs can save power to the greatest extent.

Size180*60*34MM
Shape & SizeStandard Size
Output Voltage12/24Vdc
Output Power(Watt)45W
Input Voltage170-265Vac
Input Voltage100-130Vac
Working ModeConstnat Voltage LED Driver
Dimming ModeTriac Dimming
Weight320g
CertificationUL SAA
Warranty5 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

SAA approved 45w constant voltage led strip light driver that has 12v/24v dc output voltage. It is affordable and easy to instal and has a five-year warranty,Longer warranty period than Tauras 45W led power supply.

Specification

Model		SMT-012-045VT	SMT-024-045VT
Output	DC Voltage	12V	24V
	Voltage Tolerance	±0.5V
	Rated current	3.75A	1.87A
	Rated power	45W
Input	Voltage Range	90~135VAC/170-265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥ 0.95 (Full loading)
	Efficiency(Typ.)	82%	84%
	AC Current(Typ.)	0.61A	0.6A
	Leakage current	﹤0.70mA/120VAC
Protection	Short Circuit	Hiccup mode, recover automatically after fault condition is removed
	Over Current	≤1.2*I out
	Over Loading	≤120%
	Over temperature	100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH, non-condensing
	Storage TEMP. Humidity	-40~+80℃,10~95%RH
	TEMP .coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
	Safety standards	UL8750+UL1310 Class 2 unit
Safety& EMC	Withstand voltage	I/P-O/P:1500VAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	FCC Part 15 B
Others	Net. Weight	0.55Kg
	Size	1806035mm(LWH)
	packing	350195180mm 20PCS/CTN
Notes	1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
	2. To extend the driver's using life ,please reduce the loading at lower input voltage.
	3.Loading should be 60-100%.

Compatible Light Type

This 45w triac dimmable LED driver can apply not only in North American martket, but also in EU and AU market. It can work well with K-LUMINA LED pack light.

Related Products

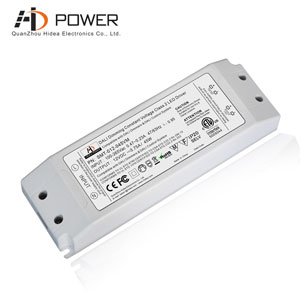

12vac 45w dali dimmable led drivers has 5 years warranty.

Mode：SMT-012-045VM

Dimming Mode : DALI Dimming

Output Power : 45W

intput voltage：100~265V AC

Size：180*60*34MM （L*W*H）
