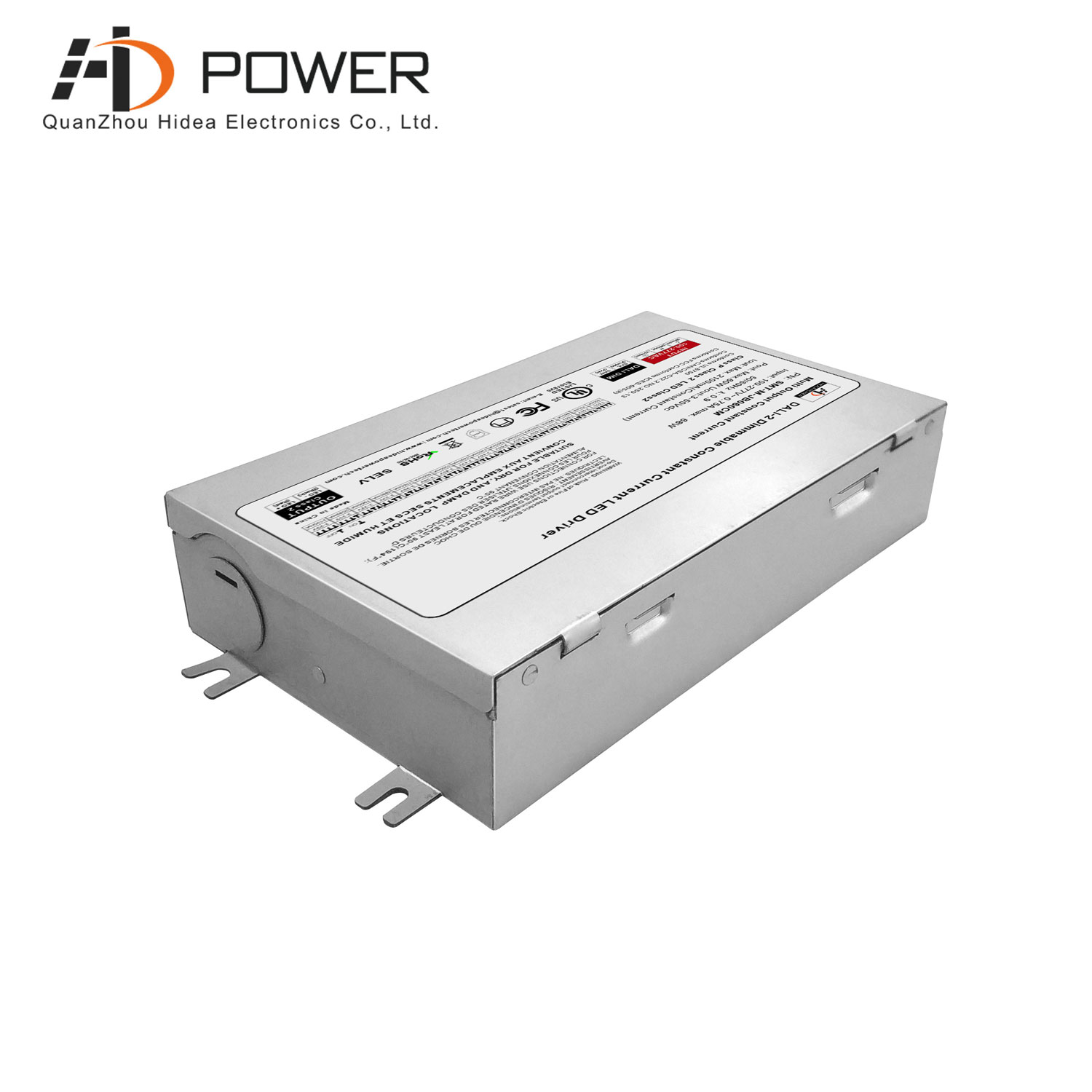

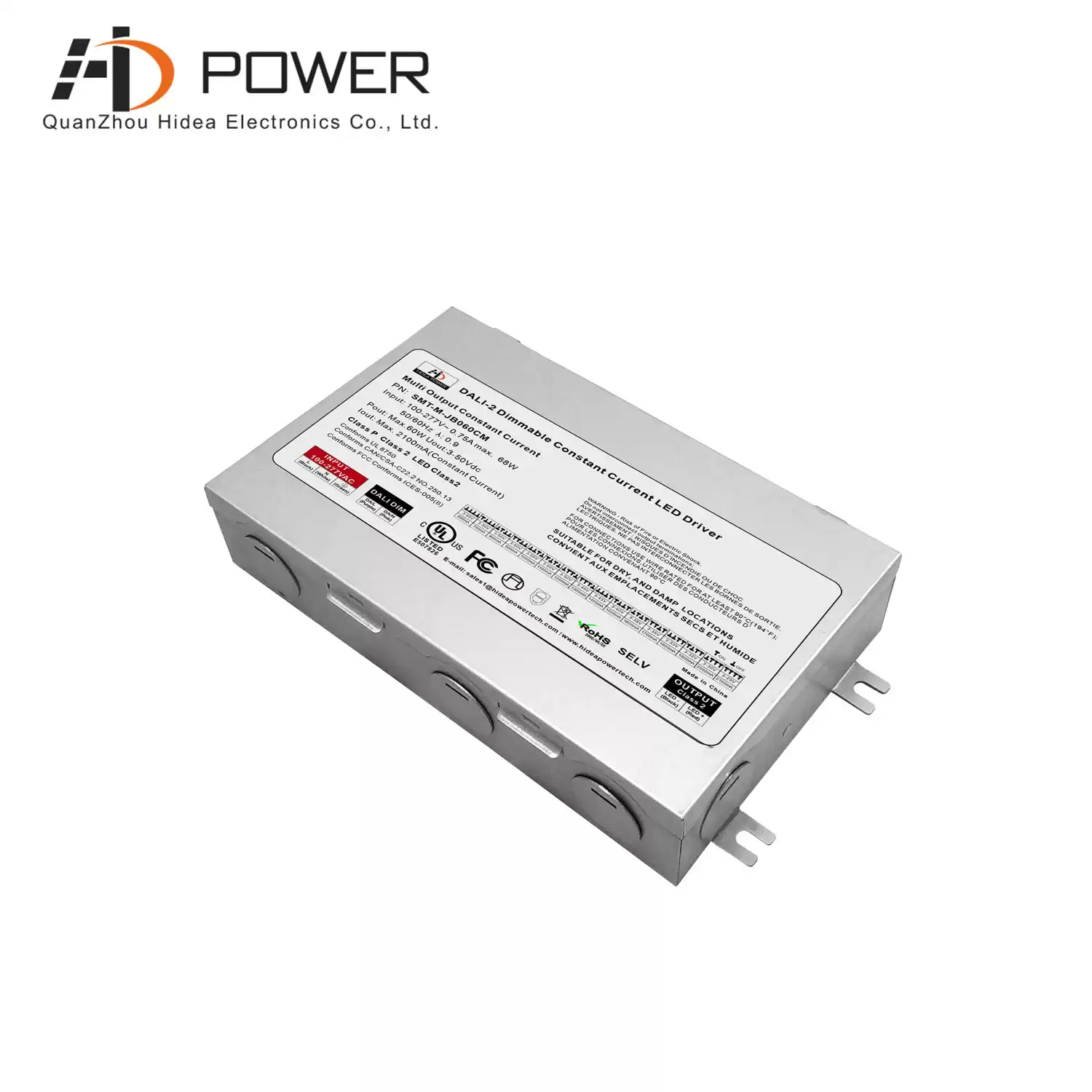

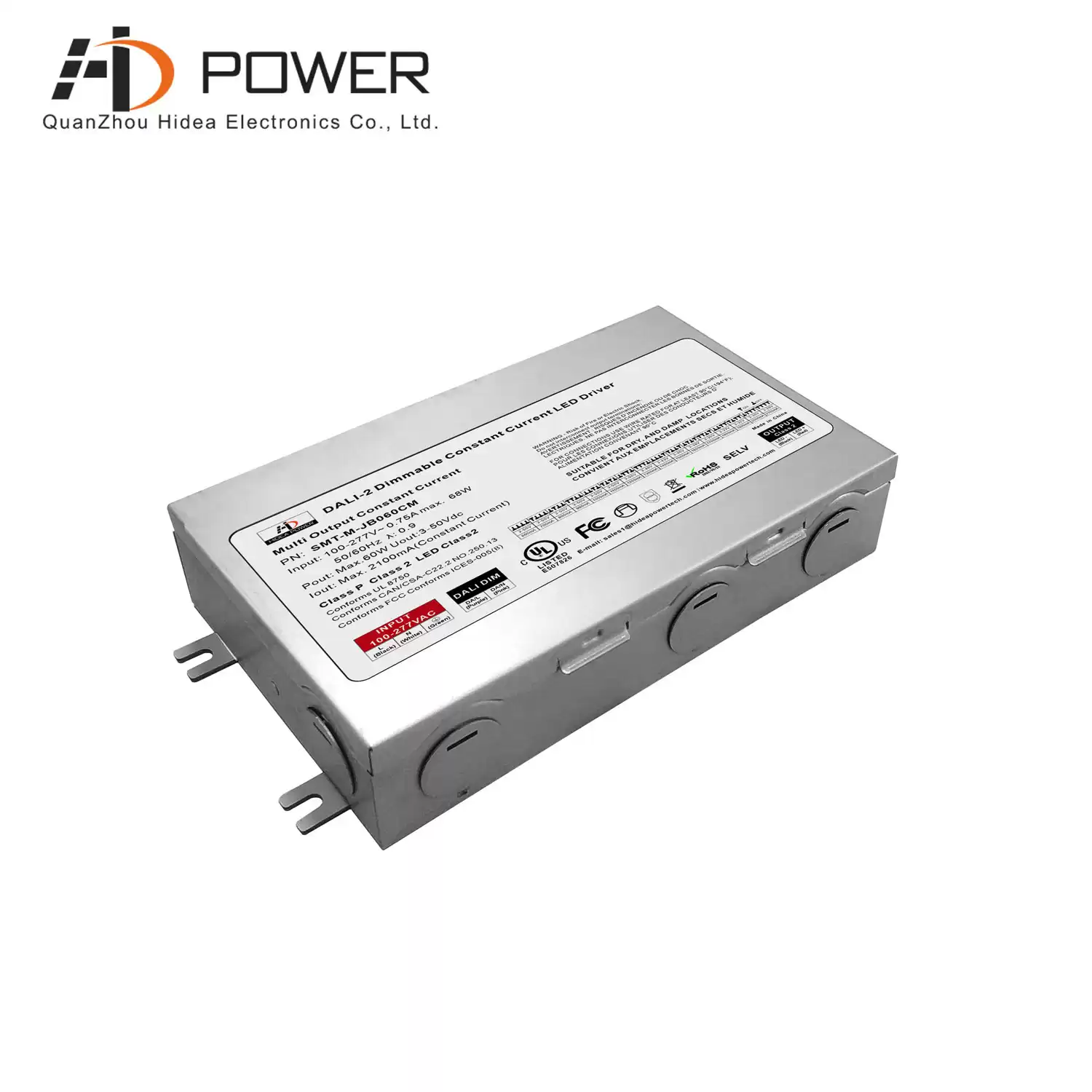

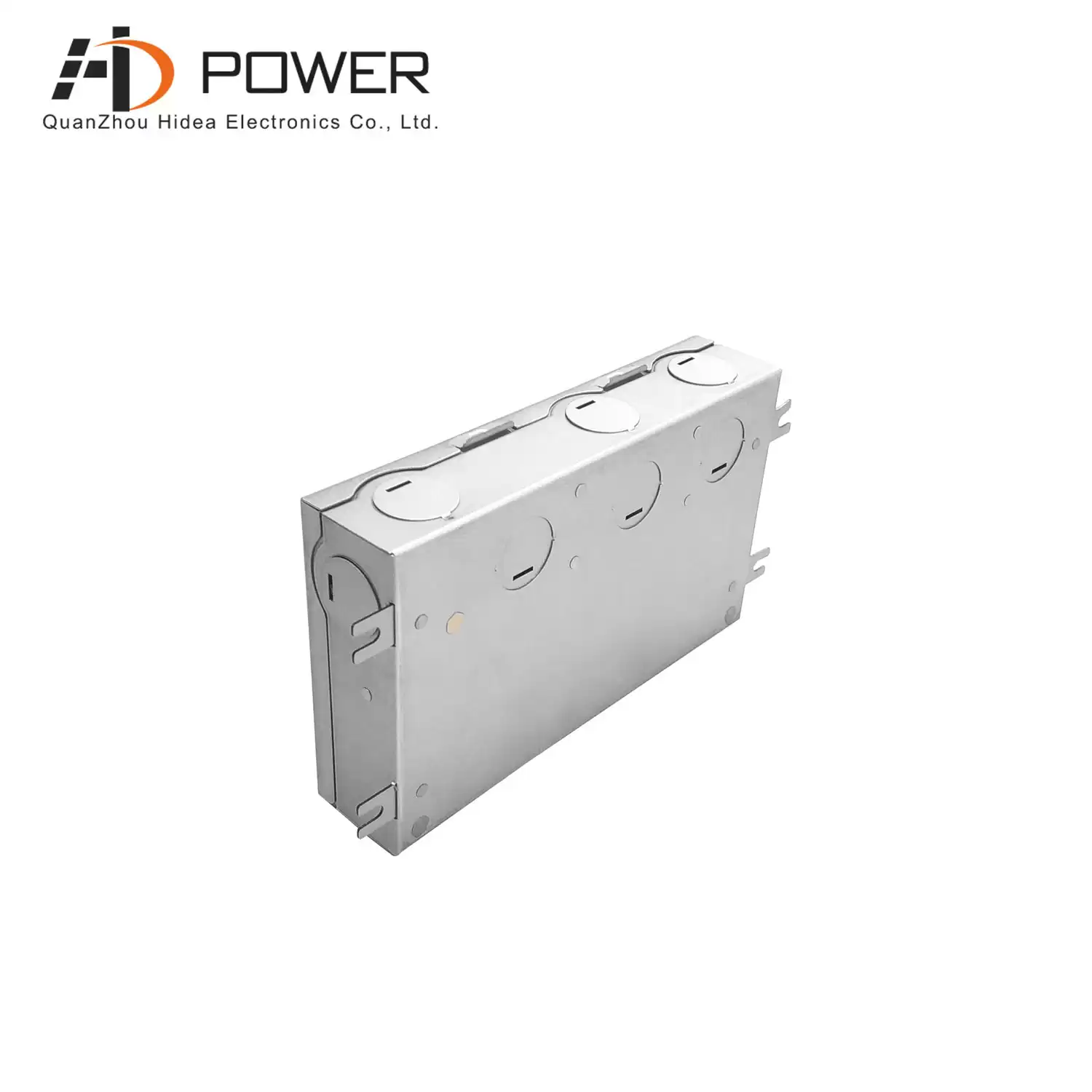

ip20 600ma-2100ma dali-2 & push dimmable constant current led driver

Multi-Output Current Selectable 60W dali-2 dimmable led power supply, with overload, short-circuit, over-temperature protection design, 7-year warranty, safe and guaranteed, can be perfectly compatible with signify's 60W LED modules, to achieve smooth and flicker-free dimming

Size190*104*36mm
Output Current600mA-2100mA
Shape & SizeMini Size
Output Power(Watt)60W
Input Voltage100-277Vac
Working ModeMulti-Output Current Driver
Dimming ModeDALI Dimming
Weight0.4KG
CertificationUL/cUL
Warranty7 years warranty

Facebook Twitter Pinterest LinkedIn 分享

Description

ip20 600ma-2100ma dali-2 & push dimmable constant current led driver

The working mode of 60W dali-2 dimmable led driver is constant current, integrated with the junction box, easy and quick to install, the aluminum shell design can well protect the life of the power supply, good heat dissipation, with a 7-year warranty

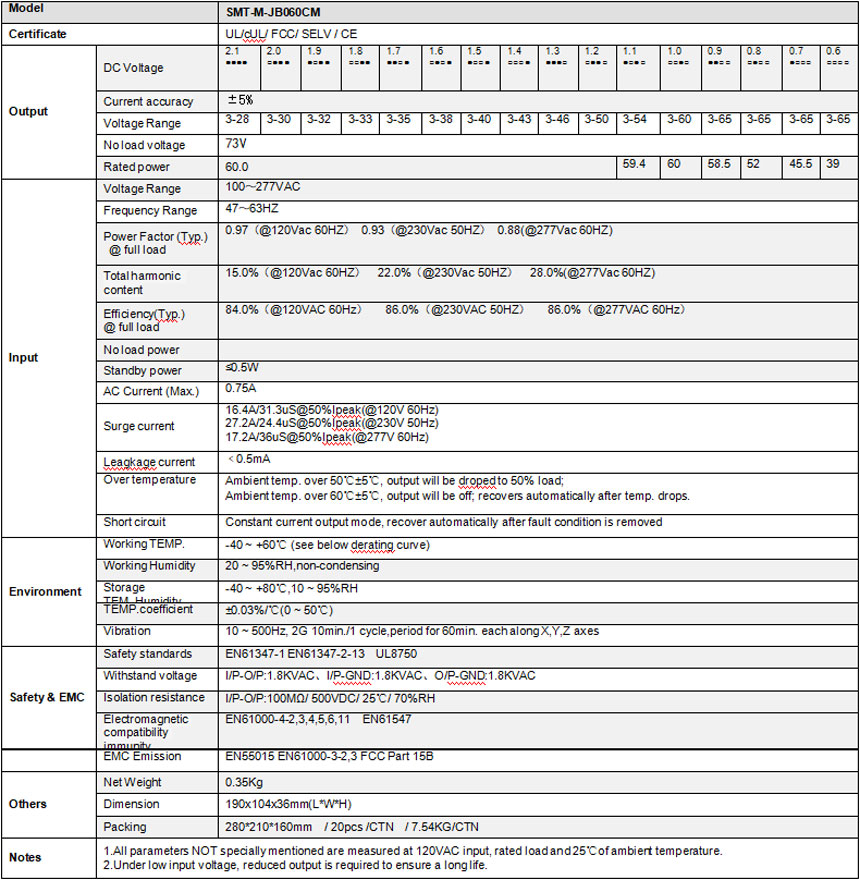

Specification

Related Products

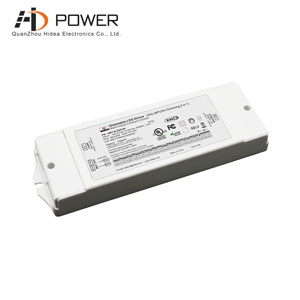

dali-2 & push 60W dimmable led driver plastic shell design waterproof grade ip20, suitable for indoor lighting projects in dry places, 7 years warranty

Mode：SMT-M-060CM

Dimming Mode : DALI-2 & PUSH dimming

Output Power : 60W

Output current：600ma-2100ma

Size：172*54*20mm （ L*W*H）
