ip20 75w 24v triac dimmable constant voltage dimmable led driver 12v transformer
200VAC-240VAC 75W triac dimmable led driver working mode is constant pressure, waterproof level IP20 plastic shell, work efficiency of 85%
Specification
|
model
|
SMT-012-075VTHWH
|
SMT-024-075VTHWH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
6.25A
|
3.125A
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated power
|
75W
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
85%
|
85%
|
|
AC Current (Max.)
|
0.55A
|
0.55A
|
|
Leakage current
|
<0.50mA
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≦120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over Current
|
≦ 1.2 *Iout
|
|
Over Temperature
|
100℃± 10℃ shut down o/p voltage ,re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40-+70℃
|
|
Working Humidity
|
20-90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10-95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes.
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧60%loading)
|
|
Others
|
Net.Weight
|
0.45KG
|
|
Size
|
180*60*35mm (L*W*H)
|
|
packing
|
355*2150*215mm , outside carton 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
|
|
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment.
|
|
4. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
|
5. Loading range from 10% to 100%
|

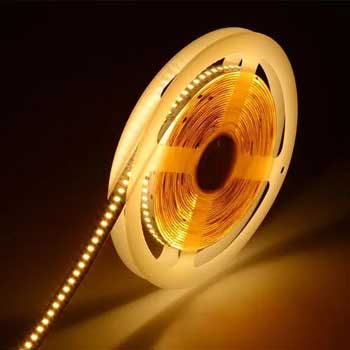

Compatible Light Type
12v/24v 75W triac dimmable led driver constant voltage work mode can reach 85%. Through SAA and CE certifications that meet the security lighting rules of Europe and Australia, it has seven -year warranty
Related Products
|

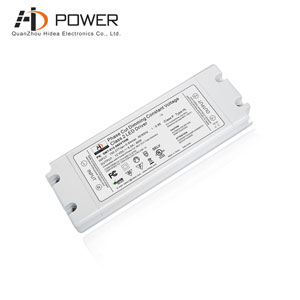

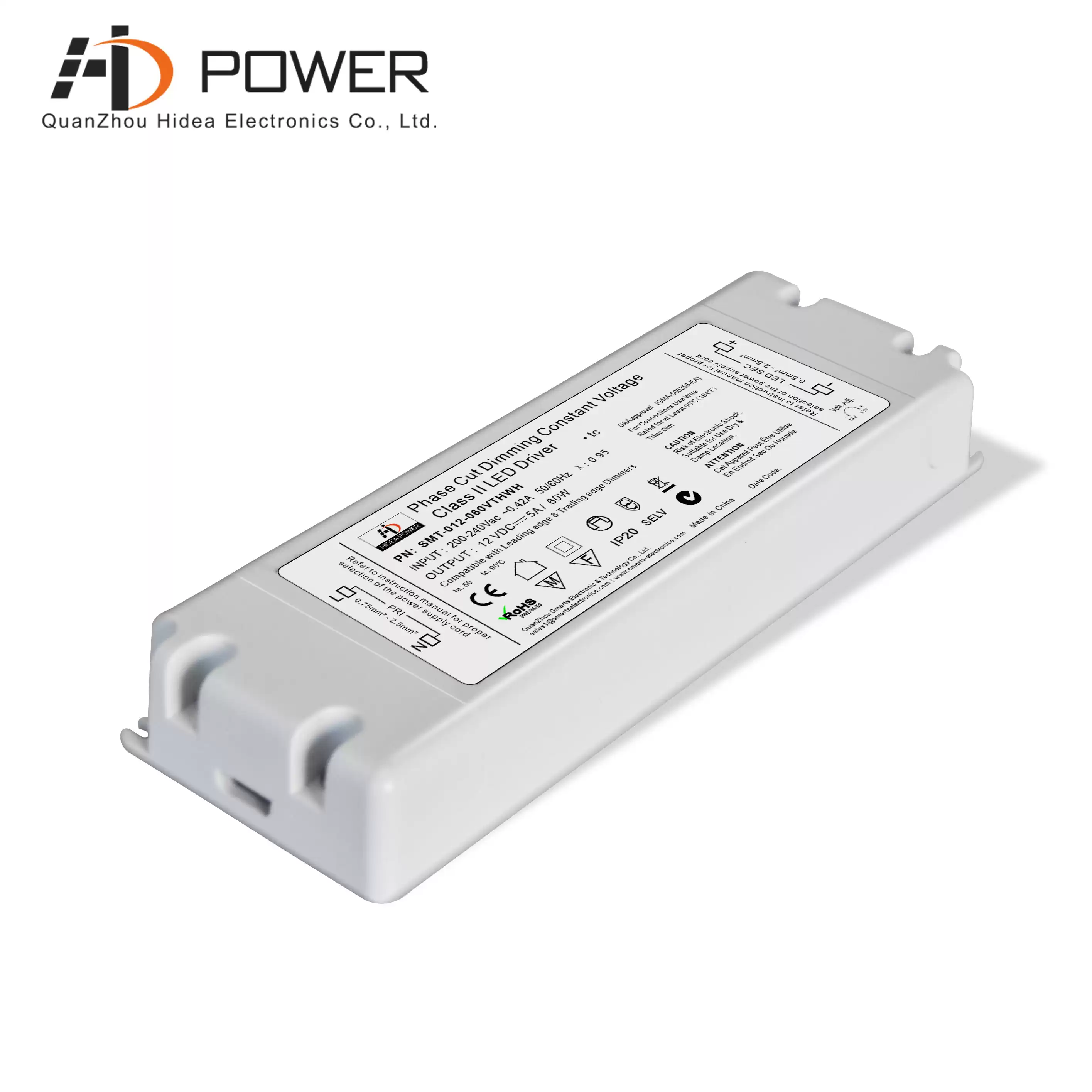

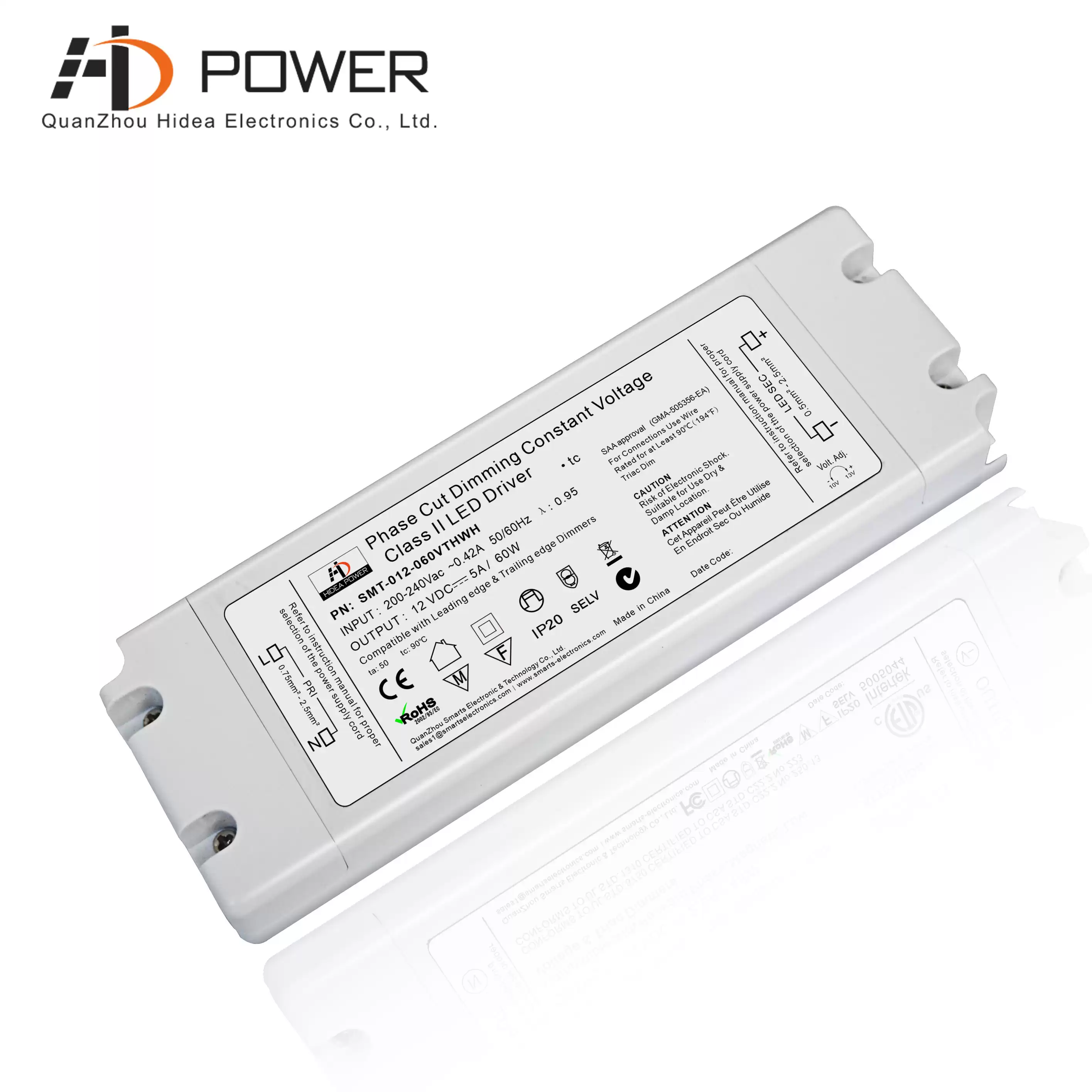

UL authentication constant voltage 60W traic dimming led driver Waterproof IP20, Small Easy Installation
