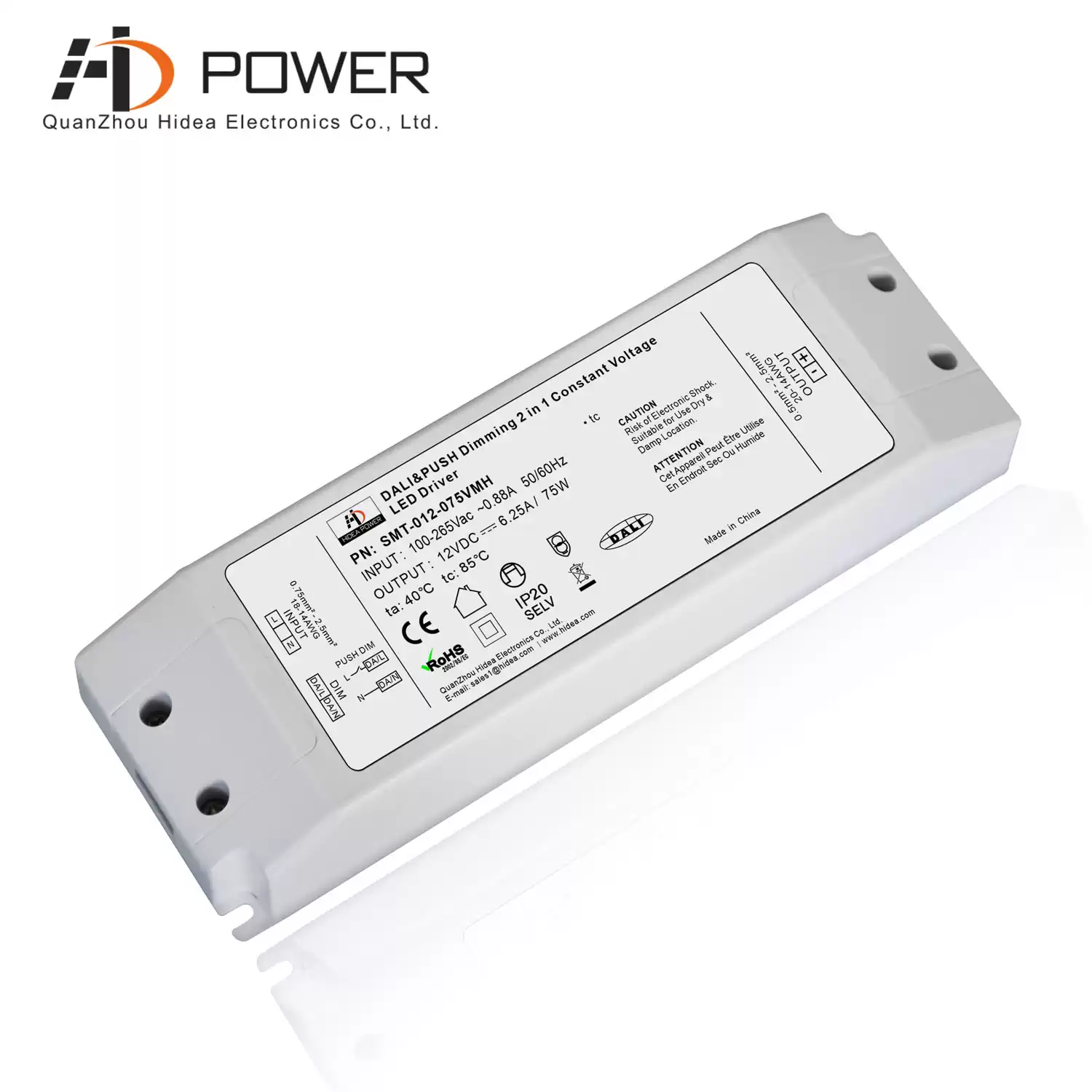

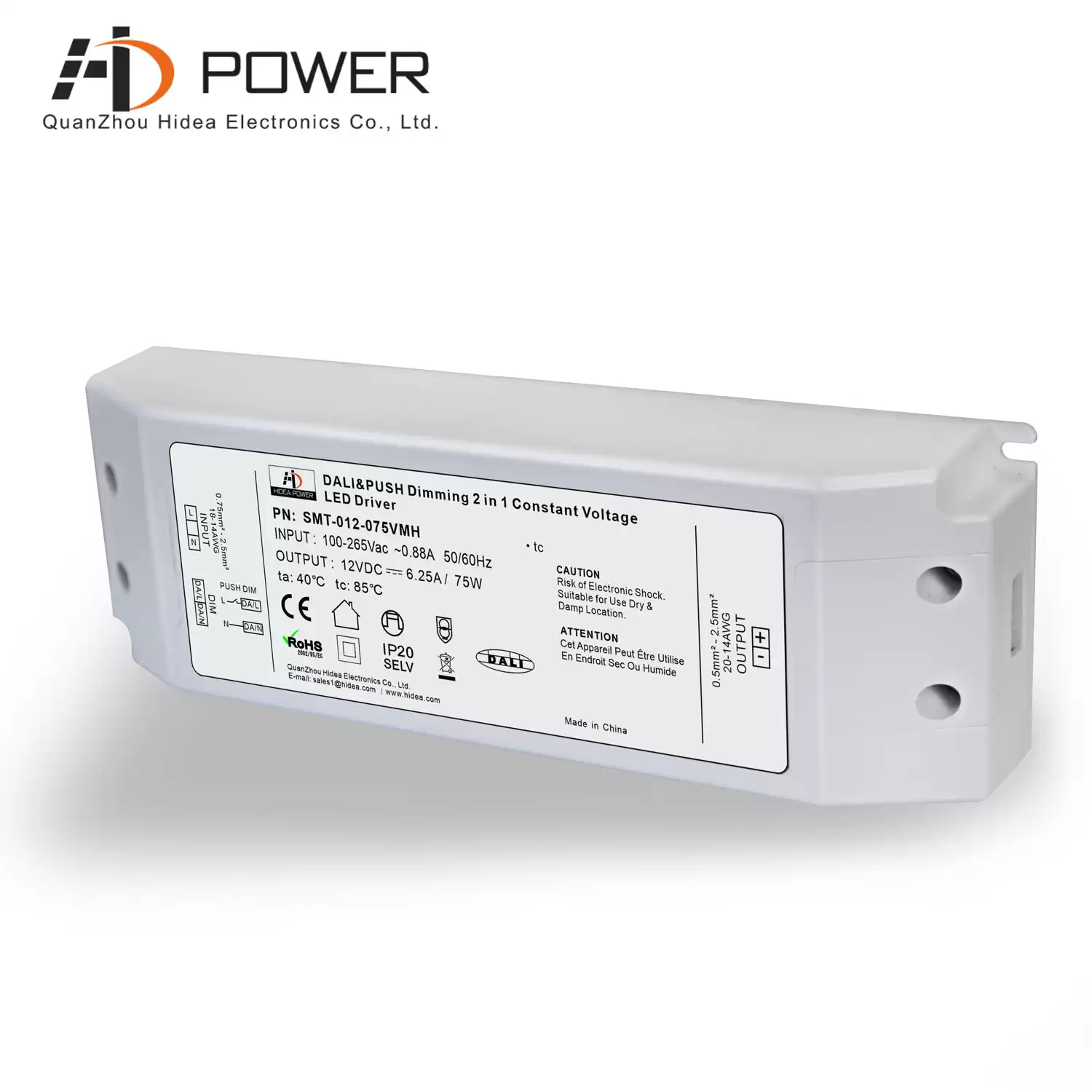

ip67 constant voltage dali dimmable led strip light driver power supply 24v 75w
This dali dimmable constant voltage led driver has built-in active PFC function. It is compact and easy to install. It has a dali dimming interface, complies with the dali dimming protocol IEC62386, and has a 5-year warranty.
Specification
|
Model
|
SMT-012-075VMH
|
SMT-024-075VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
6.25A
|
3.12A
|
|
Rated power
|
75W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.99 / 120VAC PF≥0.95/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
86%
|
86%
|
|
AC Current(Max.)
|
0.88A
|
0.88A
|
|
Inrush Current (Typ.)
|
13.6A/120VAC 56A/230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 ,EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547
|
|
Others
|
Weight
|
0.5Kg
|
|
Dimension
|
180*60*35mm(L*W*H)
|
|
packing
|
355*215*215mm/20pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

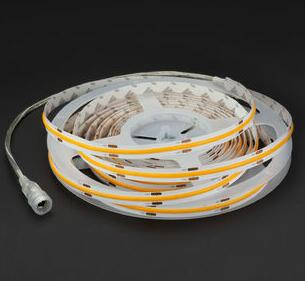

Compatible Light Type
The Lepro Strip Light is quick and simple to use and is perfect for cove lighting in the living room or hallway, or kitchen for the perfect ambient light, and with cut points every 4” the LED Strip is perfect for adding light to small cabinets with led tape light dimmable driver.
Related Products
|

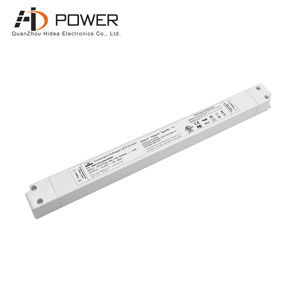

 100-277vac slim size 60W constant voltage led power supply, waterproof grade ip20, suitable for indoor lighting project installation and use, 7-year warranty
