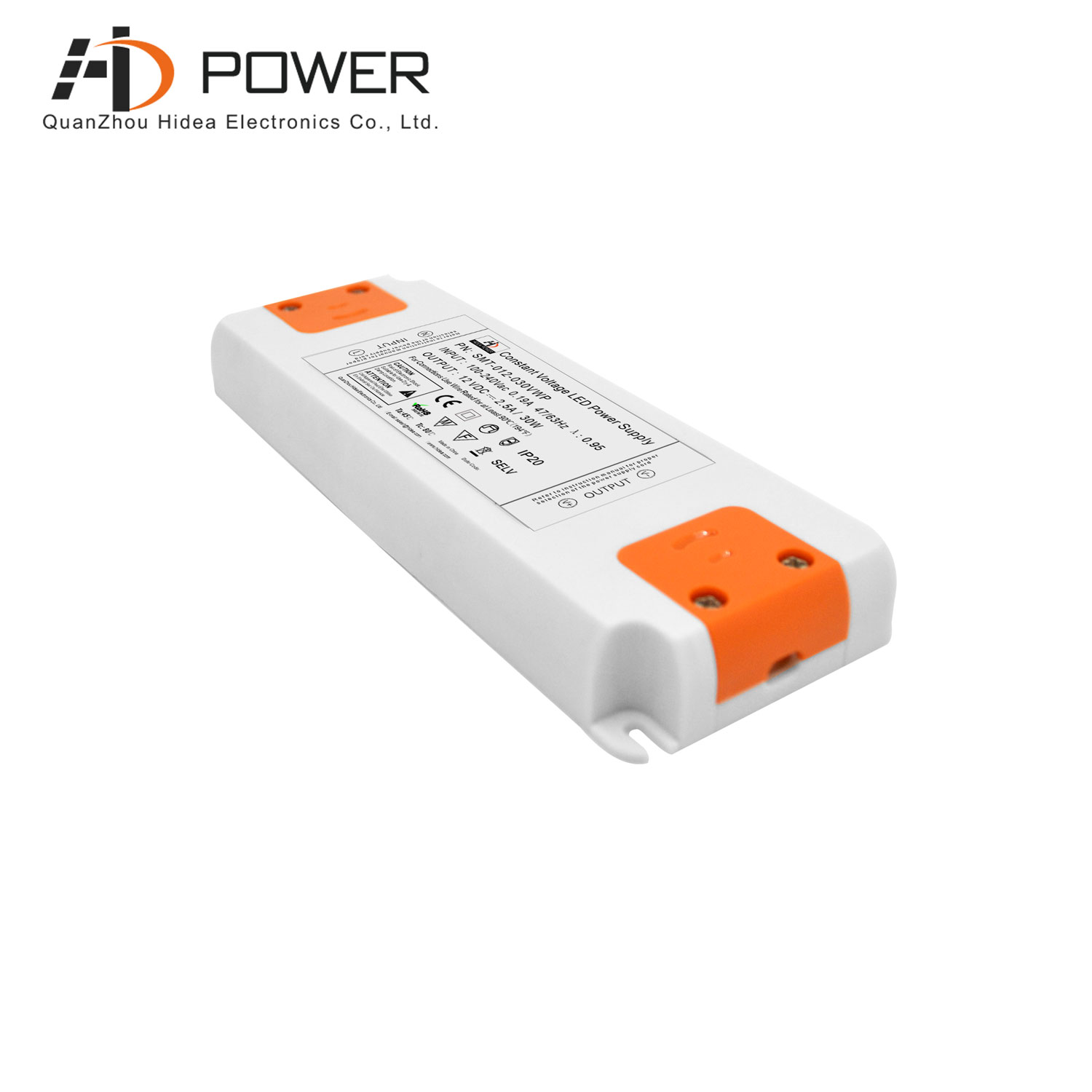

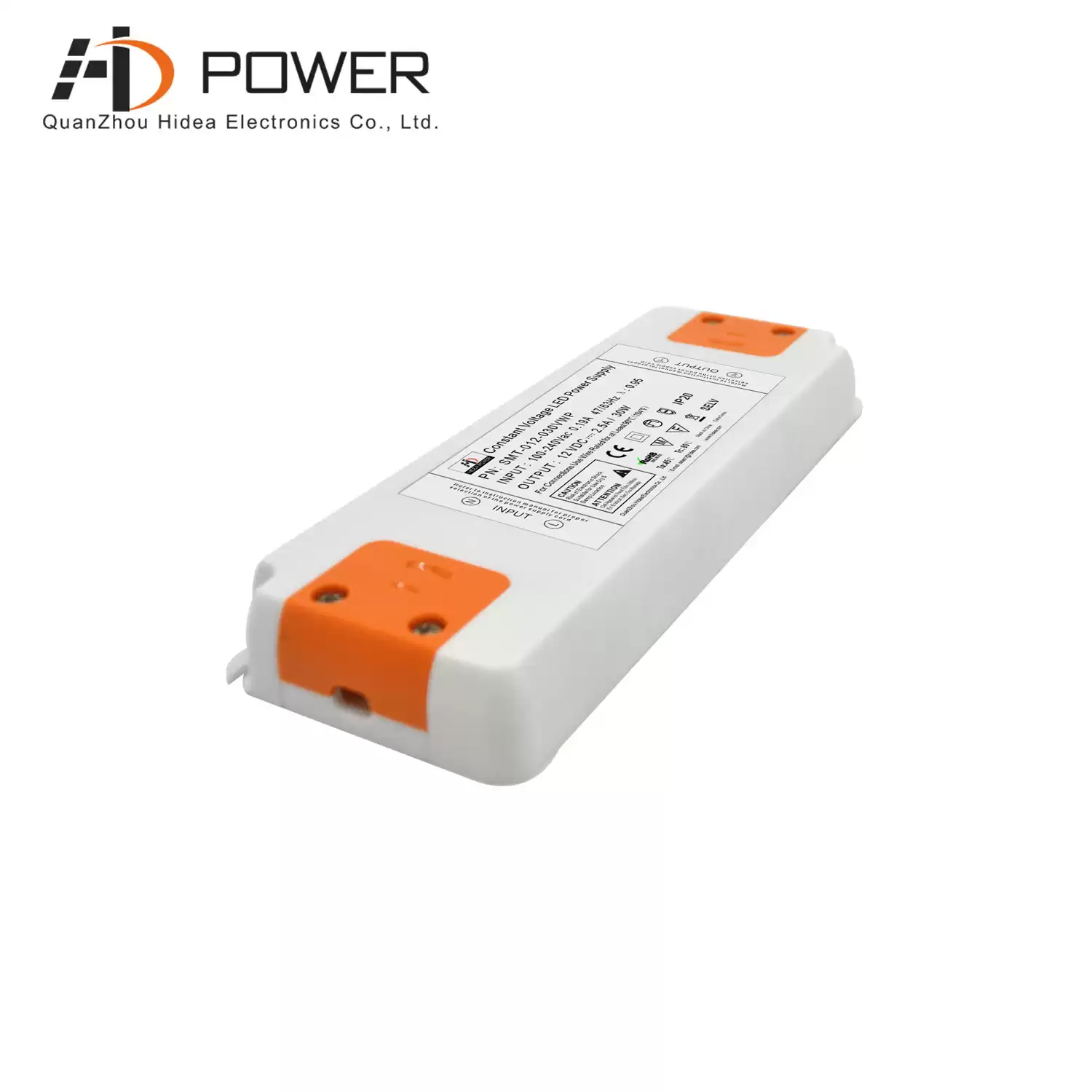

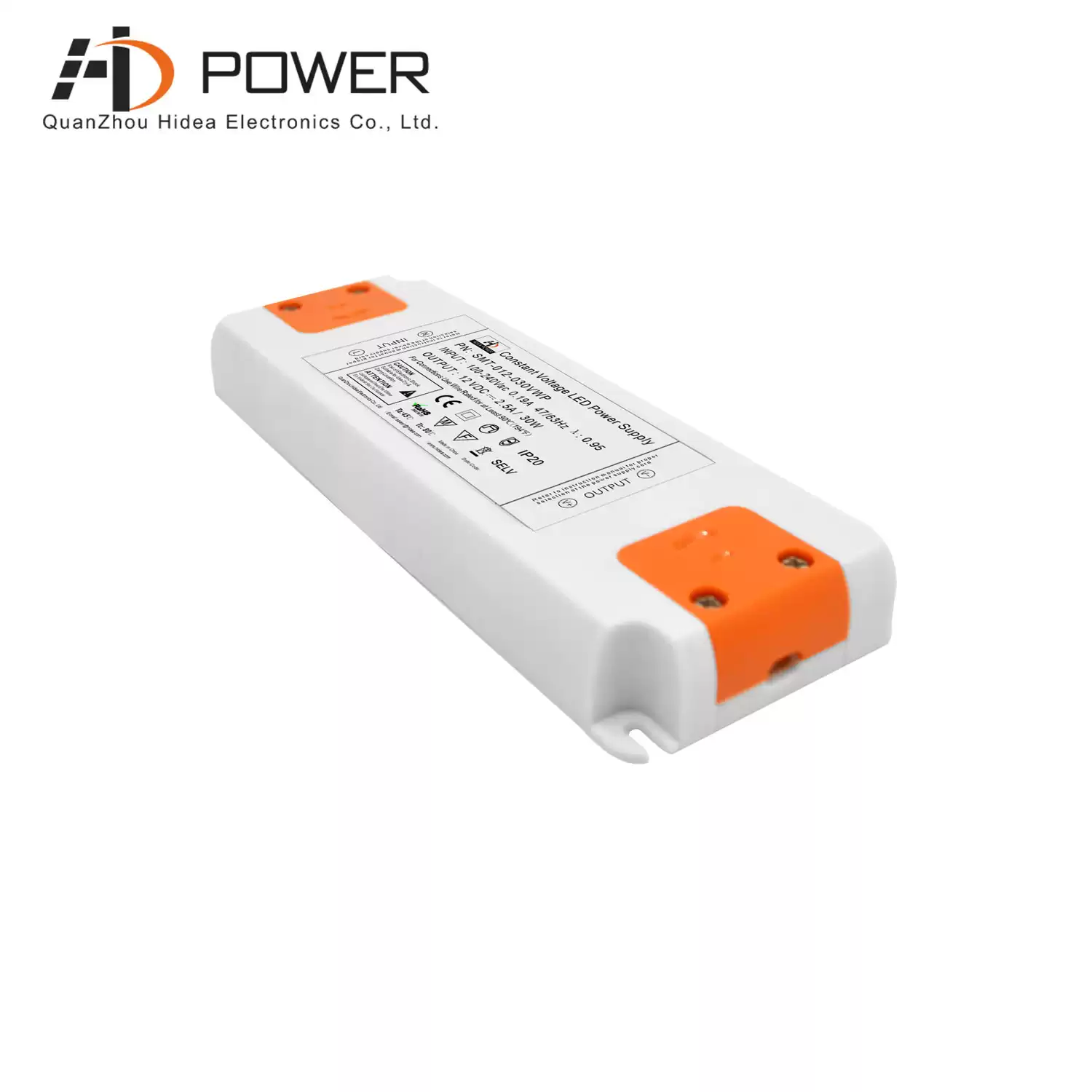

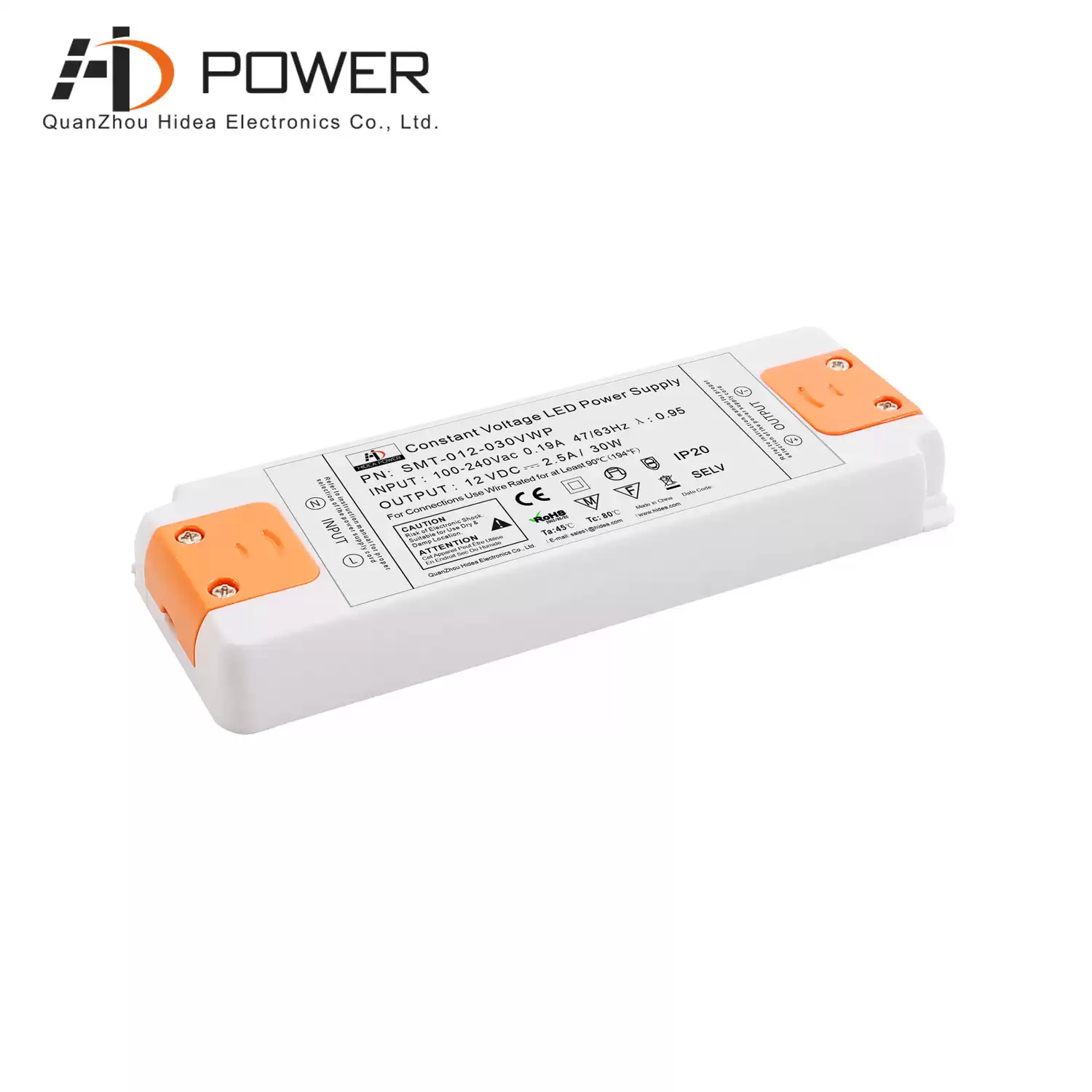

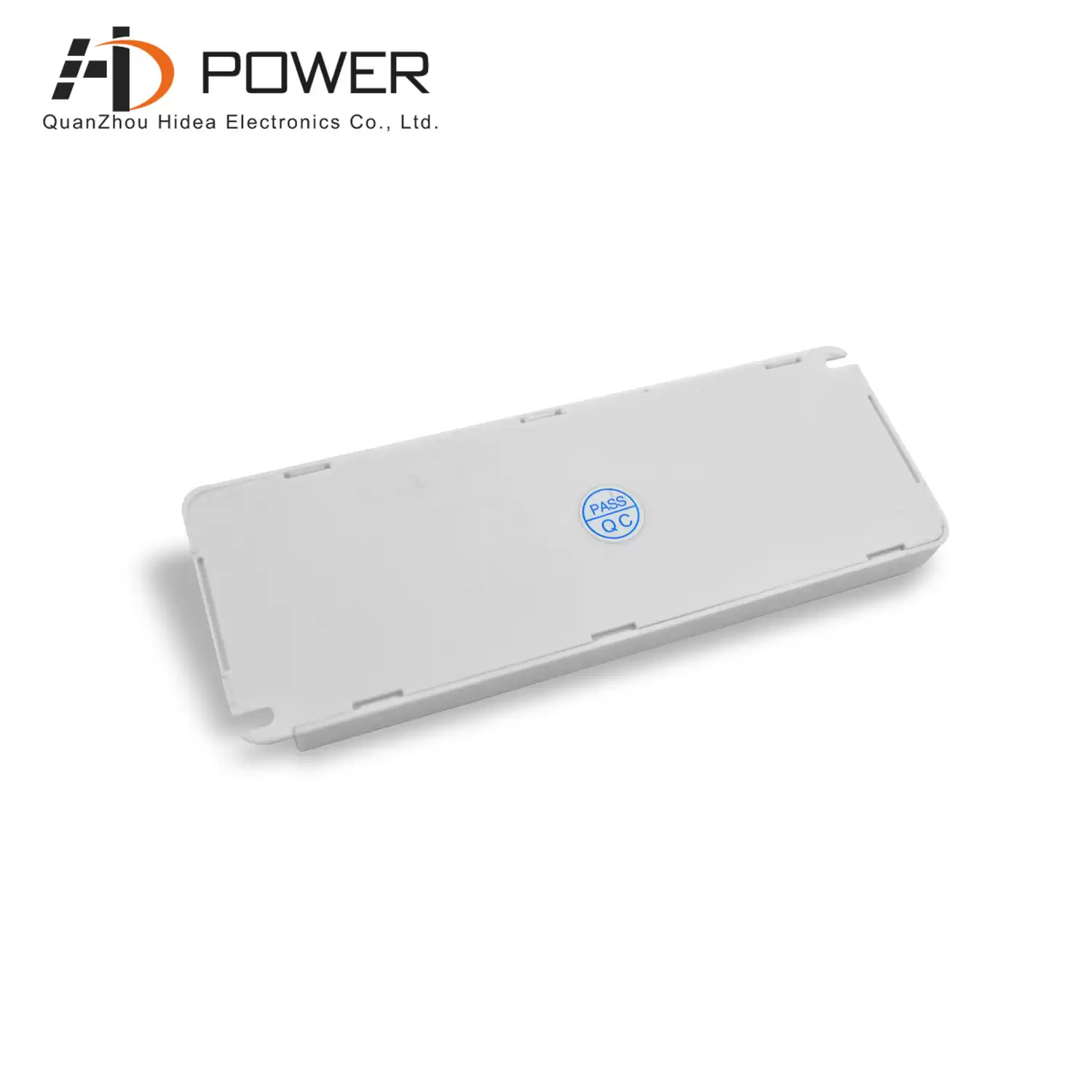

IP20 constant voltage led driver 12v 30w
This allows you the flexibility to install led driver selv ip20 with the lamp almost anywhere around your home for with GS Solar LED Light Bulb GS-94B-FPW.
Specification
|
MODEL
|
SMT-012-030VWP
|
SMT-024-030VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.5Amp
|
1.25Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
30Watt
|
30Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGETOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWERFACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥84%
|
|
AC CURRENT(Typ.)
|
0.31A/110VAC, 0.17A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on toremoved
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGETEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

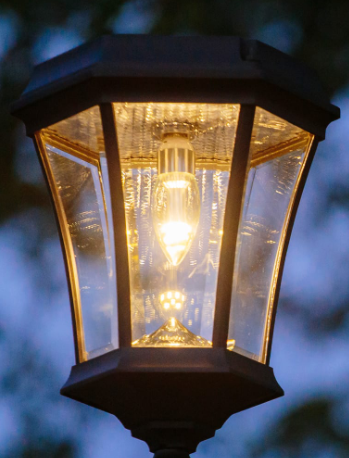

Compatible Light Type
The solar outdoor light assembles easily with led driver 12v 30w and does not require wiring as it is powered by the sun. Available in a Black and White finish.
Related Products
|
 The led driver 12v 30w is 100-277vac PWM dimmable led driver, it makes your LED lighting more smooth dimming during the dimming function is working.
Mode：SMT-012-030VTSP
Dimming Mode : Triac Dimming
Output Power : 30W
intput voltage：110-277V AC
Size：260*30*18.5MM （L*W*H）
|
