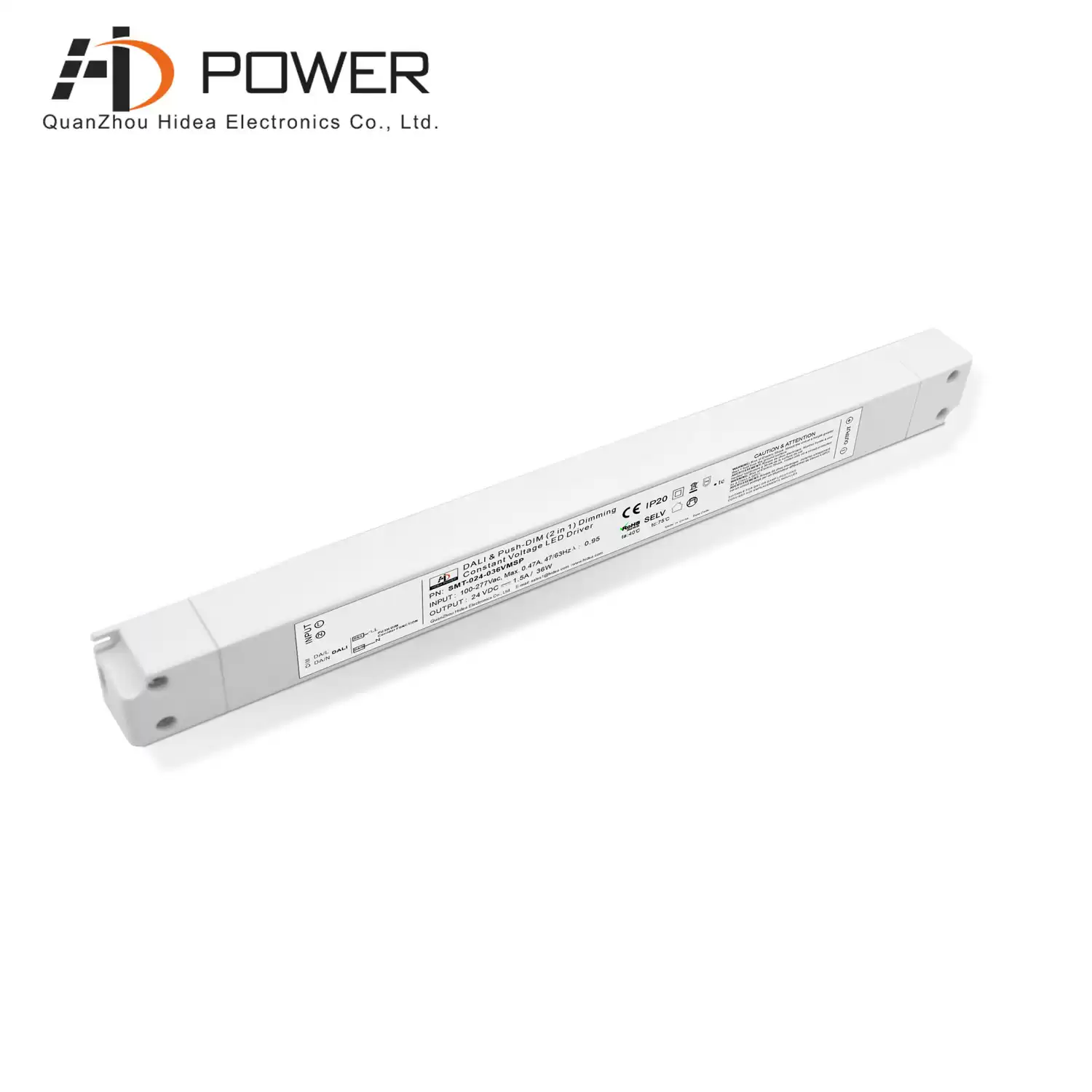

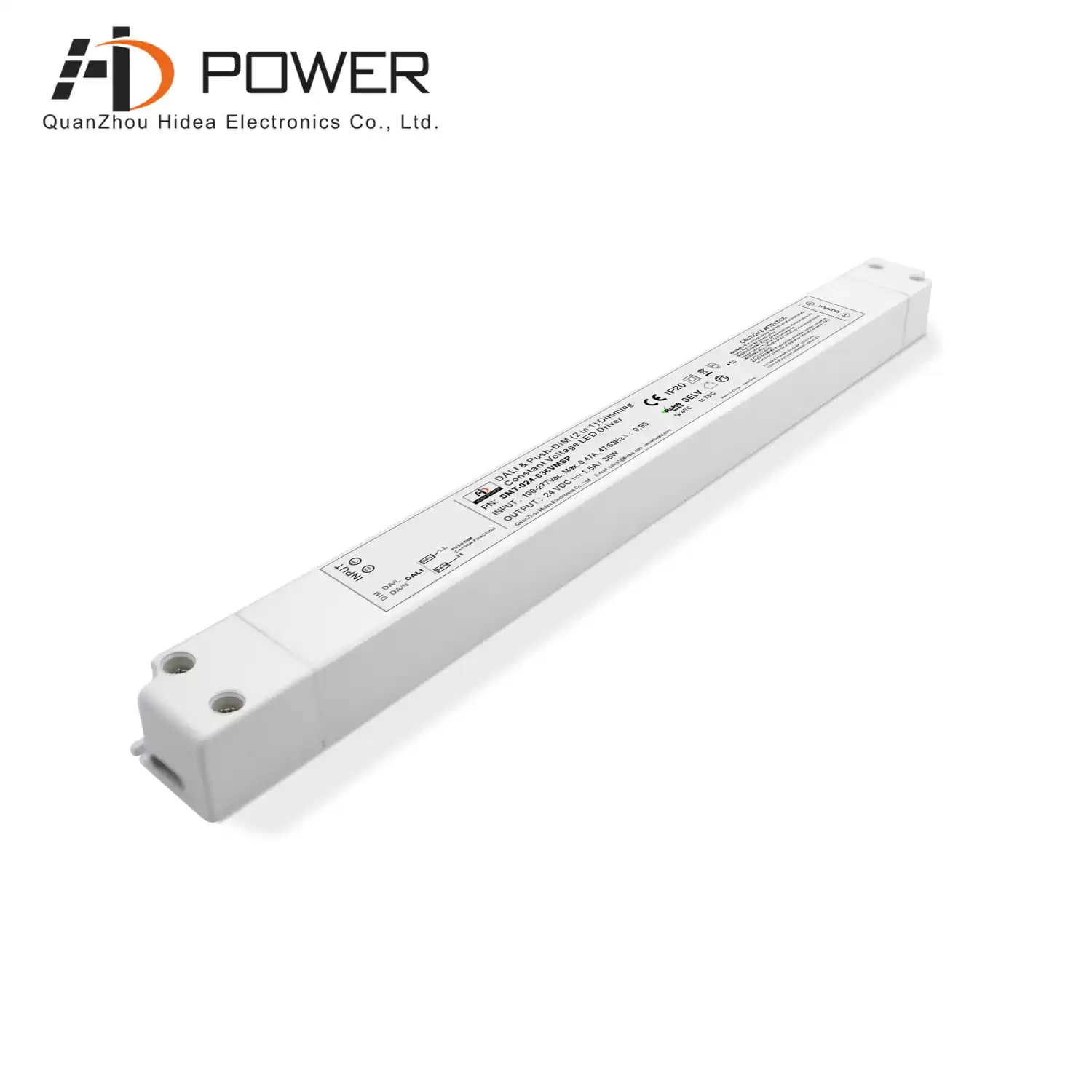

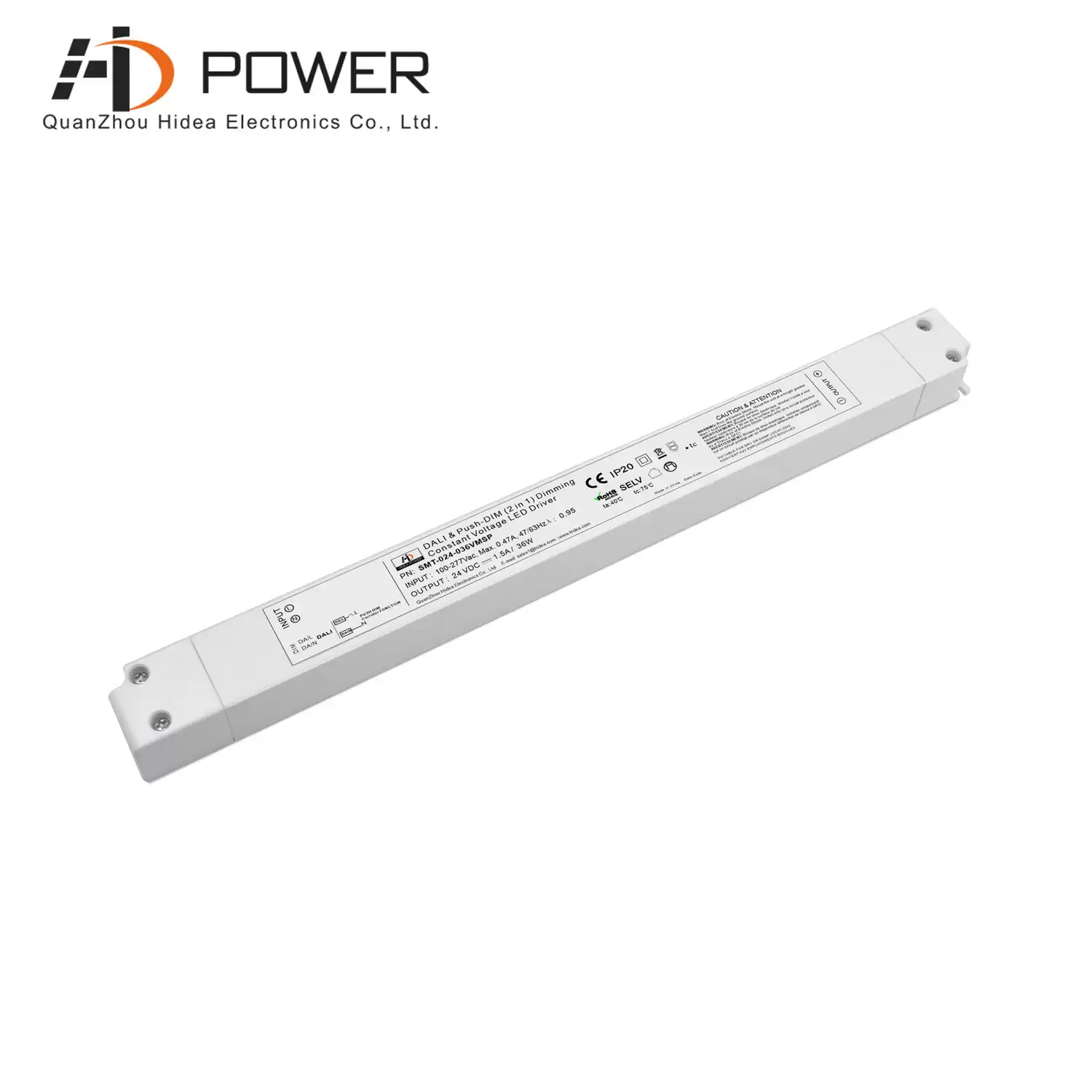

IP20 dali push dimmable 36 watt LED driver 24v led power supply for led lights

dali push dimmable 12V 24V led driver 36 watt Constant voltage slim size design, compatible with most dimmers


  • Dimming ModeDALI Dimming
  • Working ModeConstnat Voltage LED Driver
  • Input Voltage100-277Vac
  • Output Power(Watt)36W
  • Output Voltage12/24Vdc
  • Shape & SizeSlim Size
  • Output Current
  • Size260*30*18.5MM
  • Weight200g
  • CertificationCE
  • Warranty7 Years

IP20 dali push dimmable 36 watt LED driver 24v led power supply for led lights

ip20 plastic case dimming constant voltage led driver 36 watt is built with high-quality components allows for flexible lighting control and customization


  Specification

model SMT-012-036VMSP SMT-024-036VMSP
Output DC Voltage 12VDC 24VDC
Voltage Tolerance ±0.5V ±0.5V
Rated current 3.0Amp 1.5Amp
Rated power 36W 36W
Voltage Regulation ±0.5%
Load Regulation ±2%
Input Voltage Range 100-277VAC
Frequency Range 47~63HZ
Power Factor(Typ.)@ full load 0.98@120VAC 0.98@120VAC
Efficiency(Typ.)@full load(Typ.) >82% >82%
AC Current(Max.) 0.45A@100VAC
THD(Typ. ) @ full load 10%@120VAC 10%@120VAC
Inrush Current(Typ.) 4.64A (twidth=460us) @120VAC ;  33.2A (twidth=116us) @230VAC ;12.4A (twidth=430us) @277VAC ;
Leakage current <0.5mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% Hiccup mode ,recovers automatically after fault condition is removed
Protection Class II
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)
Withstand voltage I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)
Isolation resistance I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,11,  EN61547, light industry
Others Net Weight 0.20Kg
Dimension 260*30*18.5mm(L*W*H)
packing 330*275*130mm/50PCS/CTN    G.W.:11KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

led driver 12V
dimmable led driver

SMARTS led power supply



  Related Products

36 watt led driver

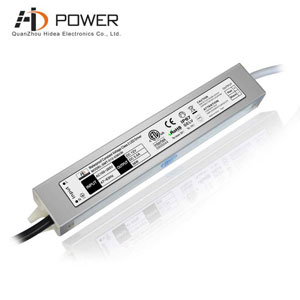

Waterproof 12v 24v LED strip driver 36w 3 years warranty Can work stably in humid environments
