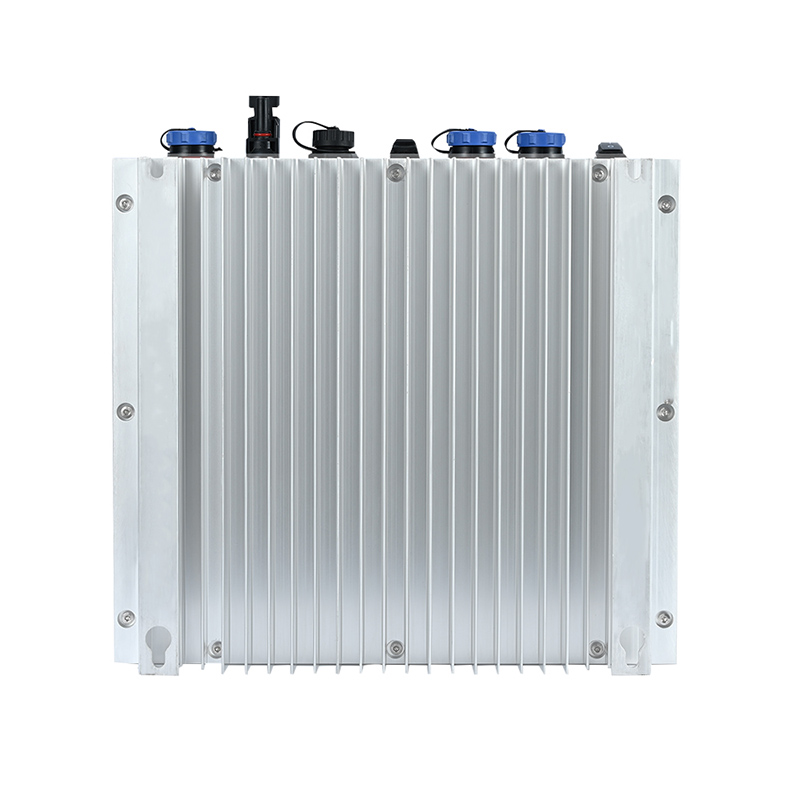

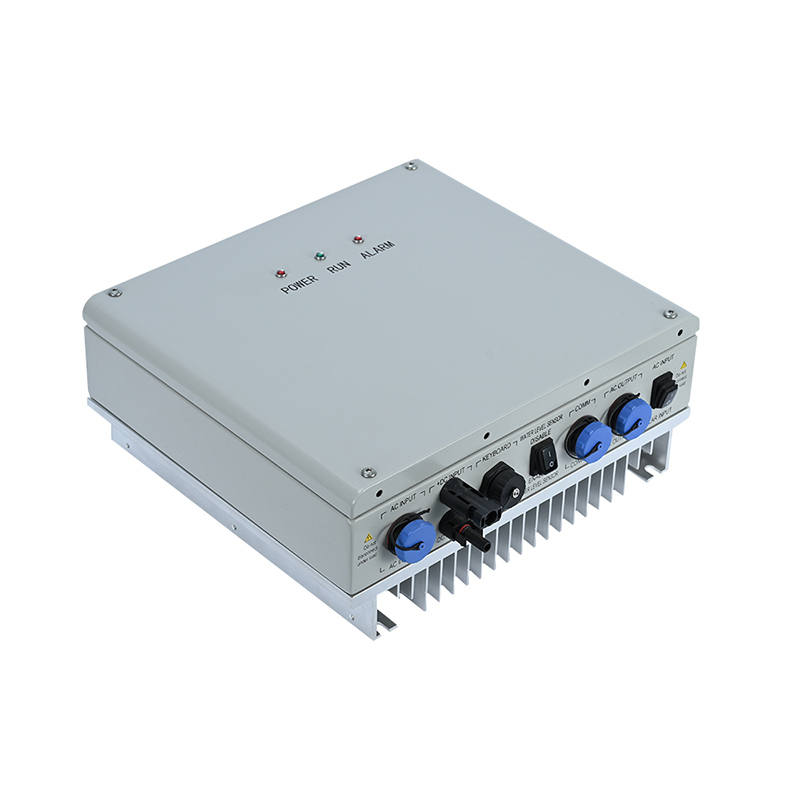

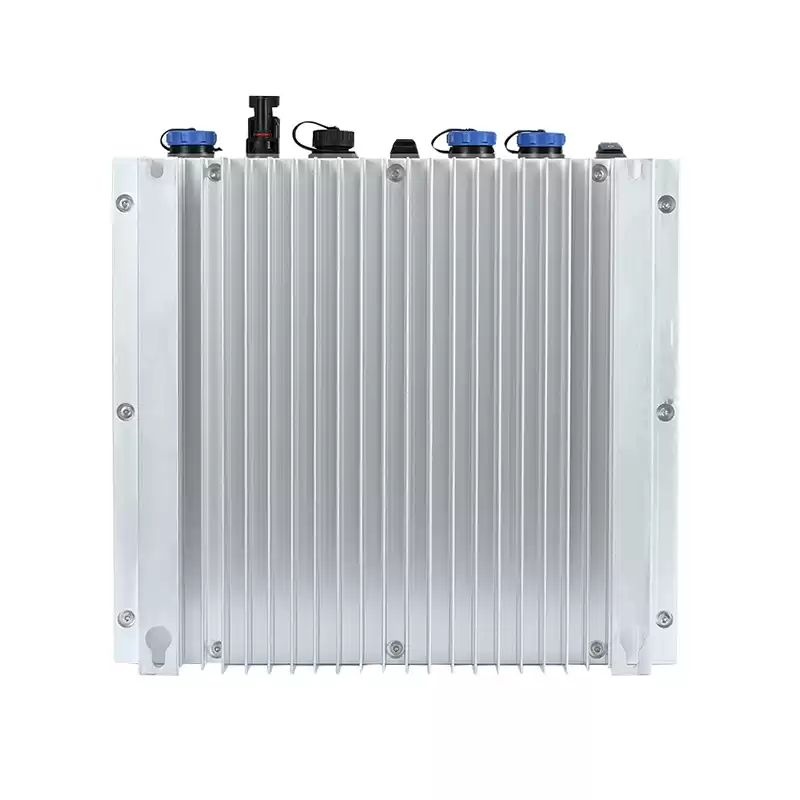

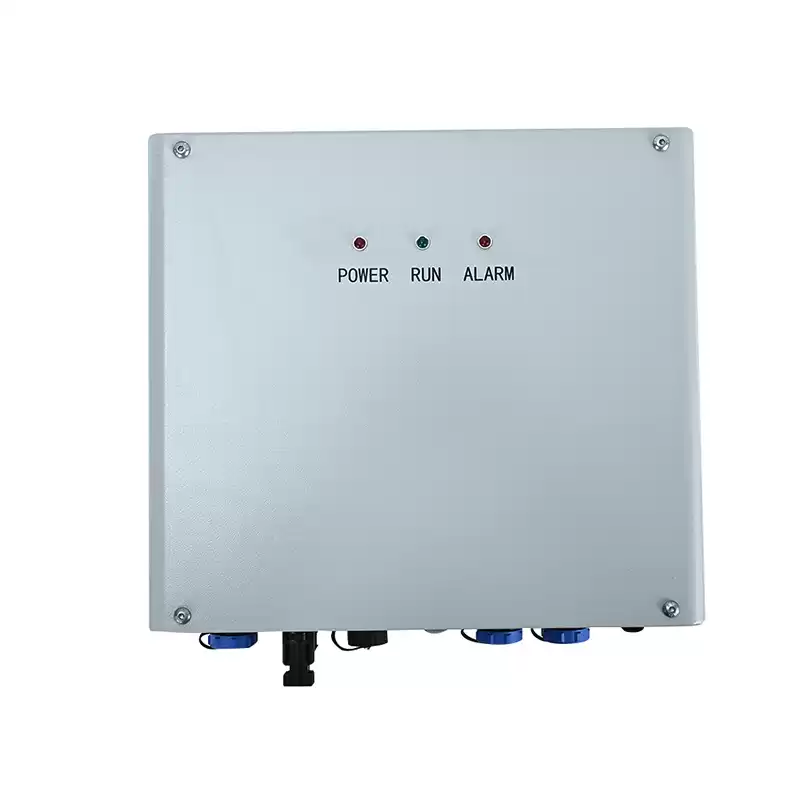

IP54 MPPT VFD Solar Water Pump Inverter
CT112A Solar Water Pump Inverter Power Level
|
CT112A-2S/2T-XXX
|
0.7
|
1.5
|
2.2
|
|
Rated output power(kW）
|
0.7
|
1.5
|
2.2
|
|
Max. DC input current（A）
|
9
|
12
|
12
|
|
Rated AC input current—AC type（A）
|
9.3
|
15.7
|
24
|
|
Rated output current（A）
|
4.5
|
10
|
14
|
Note:Output current is defined as rated value at single 220V output voltage,and output current at three phase output is counted additionally according to the power.
CT112A Solar Water Pump Inverter Specification
|
Mode
|
CT112A-2S-0.7
CT112A-2T-0.7
|
CT112A-2S-1.5
CT112A-2T-1.5
|
CT112A-2S-2.2
CT112A-2T-2.2
|
|
DC INPUT
|
|
Max. DC current(V)
|
450
|
|
Starting voltage(V)
|
80
|
100
|
|
Min. Operation voltage(V)
|
60
|
80
|
|
Recommended MPPT voltage(V)
|
80~400
|
100~400
|
|
Input channel
|
One channel:MC4
|
|
Max. DC input current(A)
|
9
|
12
|
|
Bypass AC input (model supports mains input)
|
|
Input voltage(Vac)
|
220/230/240(1PH)（-15%~+10%）
|
|
Input frequency（Hz）
|
47~63
|
|
AC input terminal
|
1P2L
|
|
AC output
|
|
Rated（W）
|
750
|
1500
|
2200
|
|
Rated current（A）
|
5.1（1PH）
4.2（3PH）
|
10.2（1PH）
7.5（3PH）
|
14（1PH）
10（3PH）
|
|
Output voltage(Vac)
|
0~input voltage
|
|
Output wiring mode
|
1P2L/2P3L/3P3L
|
|
Output frequency（Hz）
|
1~400
|
|
Control performance
|
|
Control mode
|
V/F
|
|
Motor type
|
Asynchronous motor
|
|
Other parameters
|
|
Dimension（L*W*H）（mm）
|
314*280*128
|
|
Protection level
|
IP54
|
|
Cooling mode
|
Natural cooling
|
|
HMI
|
External LED keypad
|
|
Communication terminal
|
|
External communication
|
RS485/3 digital inputs
|
|
Operation environment
|
|
Ambient temperature
|
-25℃~60℃（derate when the temperature is above 45℃）
|
|
Operation altitude
|
3000 m（derate when the altitude is above 2000m）
|
|
Warranty
|
18 months
|
Dimensions of CT112A Solar Water Pump Inverter
|
Mode
|
Height
H1
(mm)
|
Width W1
(mm)
|
Depth D
(mm)
|
Height H2
(mm)
|
Width W2
(mm)
|
Installation hole
|
|
CT112A-2S/2T-0.7
|
280
|
314
|
128.2
|
264
|
256
|
M6
|
|
CT112A-2S/2T-1.5
|
|
CT112A-2S/2T-2.2
|
