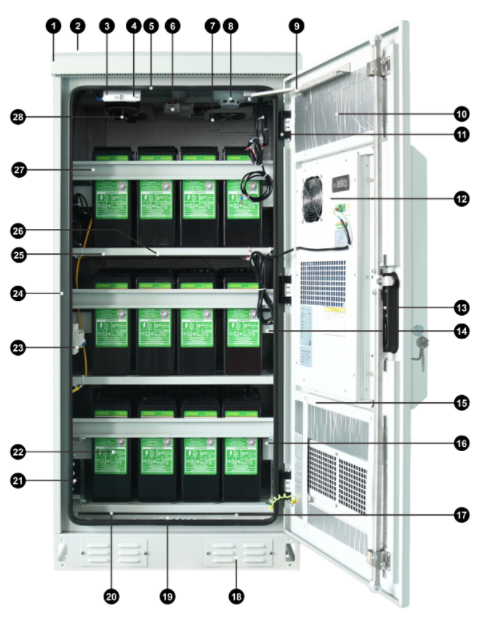

1/24. Protection class
IP 55, Thickening spray,Outdoor special powder spray, thick high temperature resistant paint, corrosion resistance (spray color optional)
|
|
3. Door open alarm
Door alarm dry node (optional) is effffective against vandalism and anti-theft
|
|
|
|
4. Maintenance light
Door light (optional) is convenient for maintenance
|
|
|
5. Card type waterproof strip
Outdoor professional, flflame retardant, anti-aging, corrosion resistance
|
6. Temperature and humidity
Temperature and humidity sensor modbus RTU protocol,standard RS485 communication interface
|
|
|
10. Thermal insulation cotton
20mm ultra-high thick PEF cotton insulation material
|
7. Fan
Fan opening temperature can be adjusted (optional): high effiffifficiency and energy saving, effffectively protect the service life of the battery
|
|
|
11. Hinge
Vandal-resistant (hidden) hinges
|
8. Smoke
Smoke alarm dry node (optional) smoke alarm - fifire alarm to prevent accidents
|
|
|
14/16. Battery guard
Protect the battery, shock resistance.
|
9. Open the door
Door opening with 120° locking system. Stainless steel fifixing: Anti-recoil cabinet door
|
|
|
15. Door/Top/Side
Welded annular stiffffener to enhance structural strength
|
|

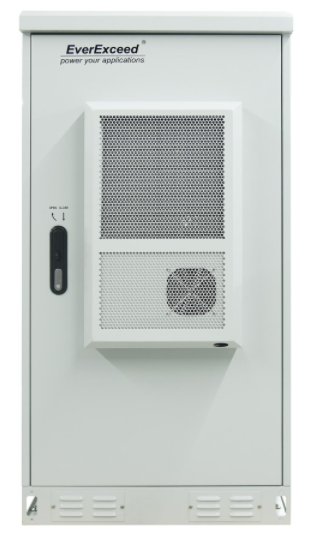

12. Air conditioner
Rated cooling power: 300W-1500W Rated voltage: 220 / 110 / 48VAC, ultra-high energy efficiency ratio > 3.0 Turn on temperature adjustable with display (heatingfunction optional)
|
|
|
17. Flooding
The flflooding system (optional) sends an alarm
signal after water enters the cabinet
|
13. Anti-theft lock
Three-point locking stainless steel lock lever, ergonomic handle, excellent water resistance, external safety lock cylinder with dust cover and stainless steel stopper for additional redundant locks,
|
|
|
18. Bottom channel, with cover plate
The base has a closed design to prevent mice fromrunning into the cabinet
|
19. Ground bar
Safely ground the cabinet and avoid contacts
|
|
|
20. Output protection coil
Conventional output protection coil (Gland head, waterproof connector optional)
|
21. Output busbar
Add insulating cover for output busbar
|
|
|

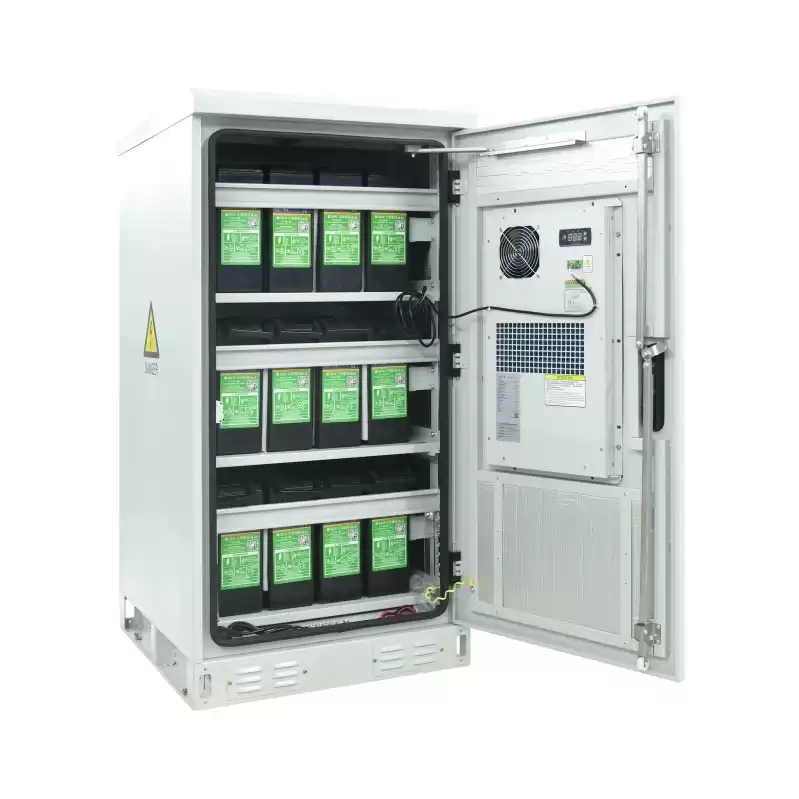

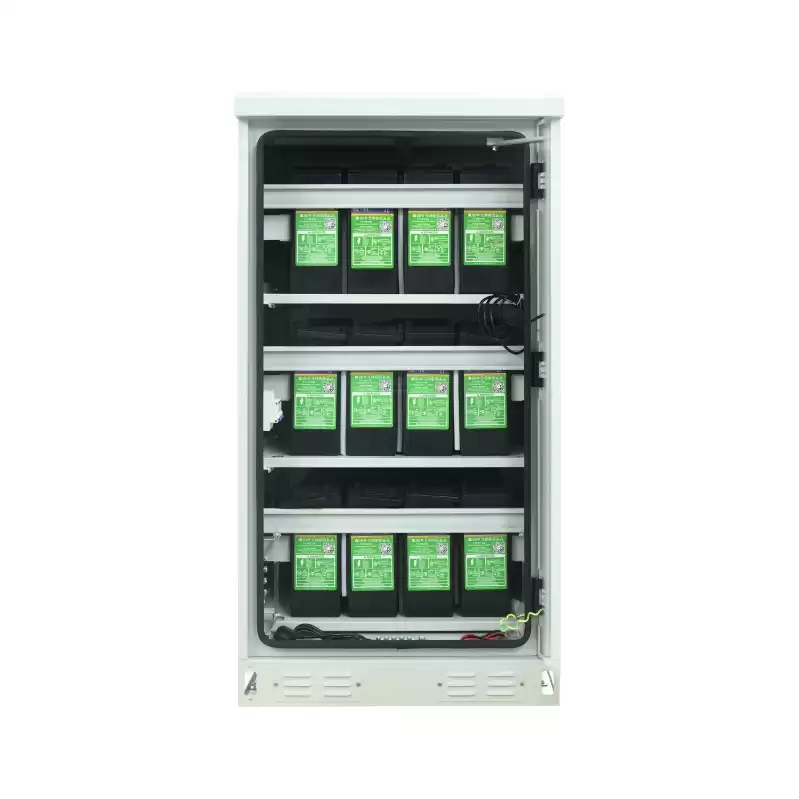

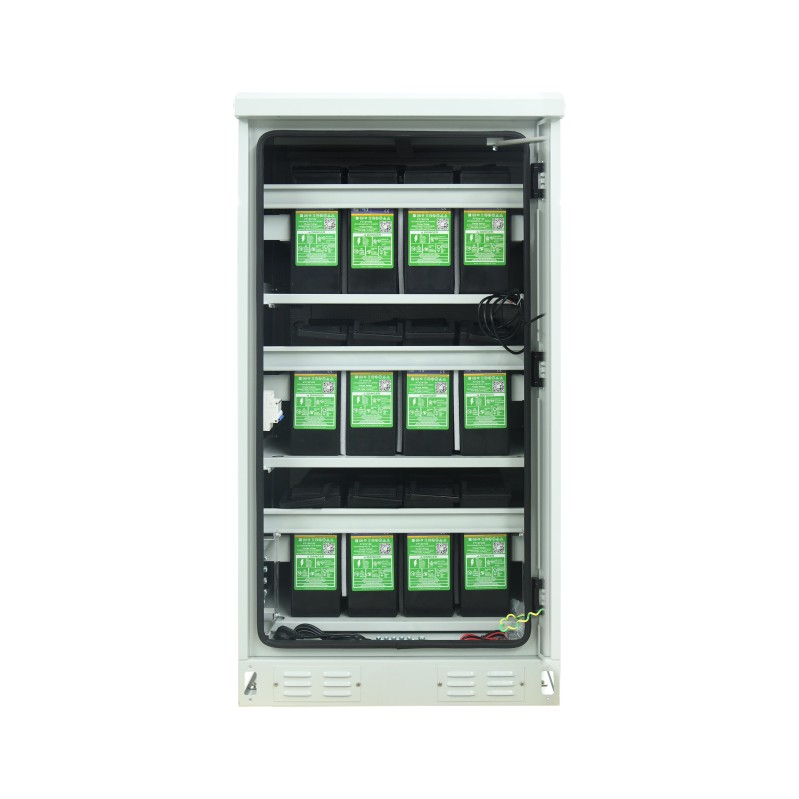

22. Battery
Front terminal battery / Lithium battery / High temperature battery
|
23. DC circuit breaker
Confifigure circuit breakers based on the number of battery packs
|
|
|
25. Floor beam
2.0mm
|
27. Fire extinguisher
Aerosol fifire extinguisher (optional) has great fifire- extinguishing power. The combination of high-effiffifficiency gas-generating agent and fifire-extinguishing particle generator uses the heat, and power of the gas generated by the agent to decompose the fifire-extinguishing particle generator to release high-effiffifficiency fifire-extinguishing particles
|
|
|
26. laminate
With lamination, increase the battery force area
|
|
|
