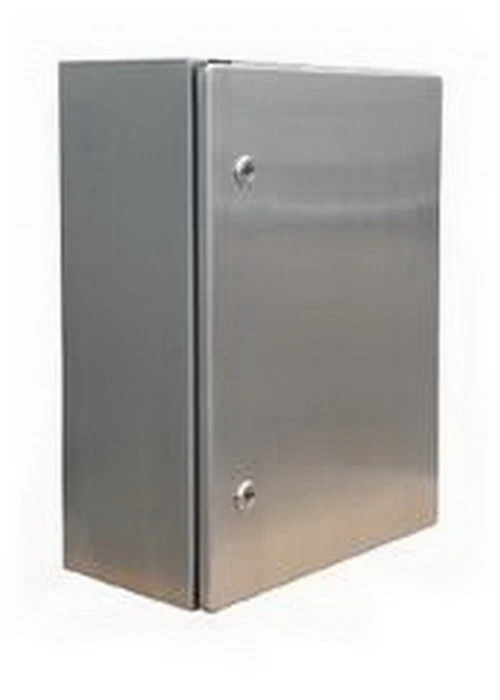

IP65 NEMA Stainless Steel Enclosures
Features:
* Material: stainless steel 304,316,201
* Thickness: 1.2mm,1.5mm,2.00mm
* Dimension:300mm x 300mm x 150mm
* Door: single door
* Spare parts: back mounting plate, two locks, hinge
* Surface treatment: Polishing, brushing
* Installation: indoor floor
* Function: electric control enclosure, NEMA type, RITTAL type
* Certificate: CE,IP65
*Working environment: air port, building, hotel, shopping centre, housing estate, school,
Factory, port, highway.
Specifications:
|
Part Number
|
Enclosure Dimensions
|
Mounting plate dimensions
|
|
0016-ECPB-TCH
|
200 ×300 ×150
|
150 × 250
|
|
0017-ECPB-TCH
|
300 ×300 ×150
|
250 × 250
|
|
0018-ECPB-TCH
|
300 ×400 ×150
|
250 × 350
|
|
0008-ECPB-TCH
|
300 ×400 ×200
|
250 × 350
|
|
0009-ECPB-TCH
|
400 ×400 ×200
|
350 × 350
|
|
0010-ECPB-TCH
|
400 ×500 ×200
|
350 × 450
|
|
0011-ECPB-TCH
|
400 ×600 ×200
|
350 × 550
|
|
0012-ECPB-TCH
|
600 ×600 ×200
|
550 × 550
|
|
0013-ECPB-TCH
|
600 ×800 ×200
|
550 × 750
|
|
0014-ECPB-TCH
|
500 ×700 ×250
|
450 × 650
|
|
0015-ECPB-TCH
|
600 ×600 ×300
|
550 × 550
|
