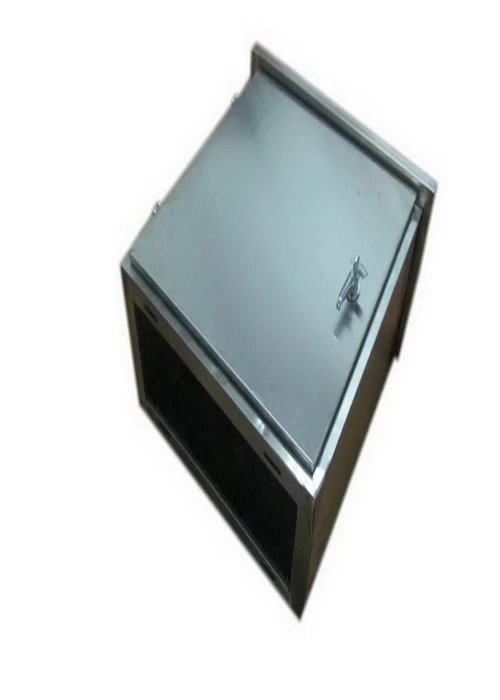

Features：
* Material: stainless steel 304,316,201
* Thickness: 1.2mm,1.5mm,2.00mm
* Dimension:600mm x 600mm x 300mm
* Door: single door
* Spare parts: back mounting plate, lock, hinge
* Surface treatment: Polishing, brushing
* Installation: indoor floor
* Function: electric control enclosure
* Certificate: CE,IP65
*Working environment: air port, building, hotel, shopping centre, housing estate, school,
Factory, port, highway.
Model and meaning of normal work condition and installation condition 1, temperature: ambient air temperature does not exceed +40. C, the lower limit of the surrounding air temperature is -5. C;
2: the highest temperature, humidity is +40. C, air relative humidity of not more than 50%; can allow a higher relative humidity in low temperature, such as +20. C 90%;
3, altitude: the location of the installation elevation not exceeding 2000m;
4, installation categories: class ii;
5, the pollution level; the 3 level;
6, the protection grade; IP30, IP44, IP55, IP65.
Specifications:
|
Part Number
|
Enclosure Dimensions
|
Mounting plate dimensions
|
|
0012-ECPB-TCH
|
600 ×600 ×200
|
550 × 550
|
|
0013-ECPB-TCH
|
600 ×800 ×200
|
550 × 750
|
|
0014-ECPB-TCH
|
500 ×700 ×250
|
450 × 650
|
|
0015-ECPB-TCH
|
600 ×600 ×300
|
550 × 550
|
