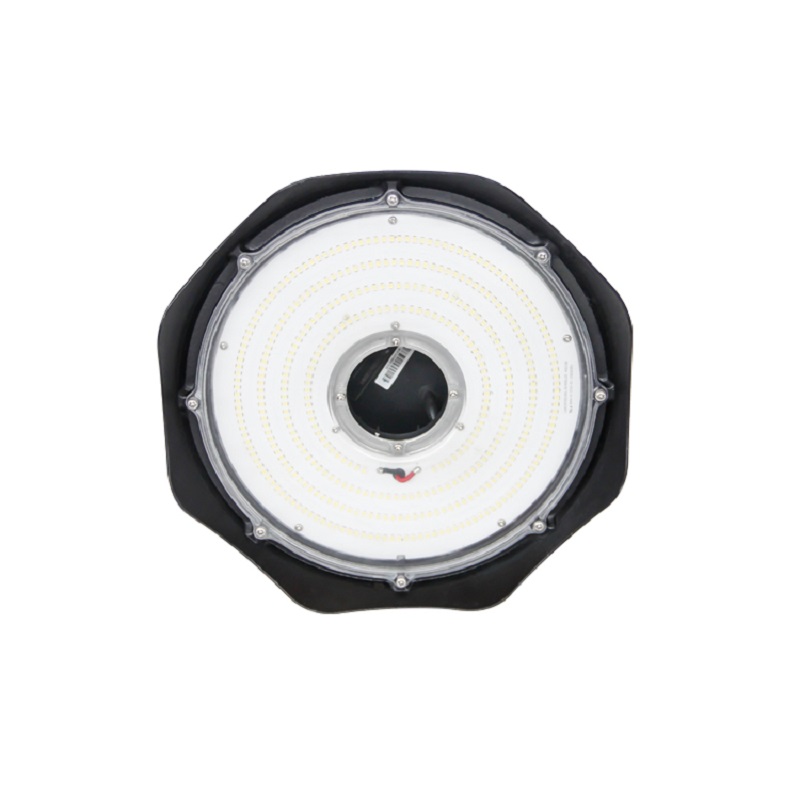

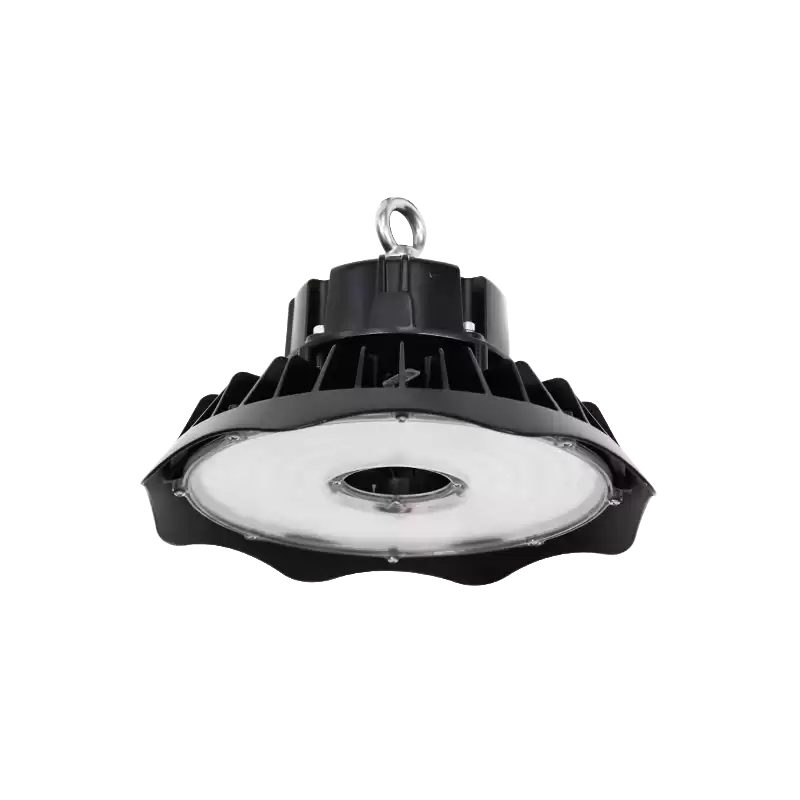

IP65 Waterproof 150LPW Dimmable LED UFO High Bay

The 700A Series LED High Bay fixtures are HID lamp, pure aluminum heat sink, offering microwave sensors. For warehouses, factories, gas stations, and other places that may need lighting.



IP65 Waterproof 150LPW 1-10V Dimable LED UFO High Bay


The 700A Series LED High Bay fixtures are ideal for replacing legacy HID high bay lights, offering high performance and long life. These are very suitable for warehouses and manufacturing facilities in various climates, as well as industrial buildings with demanding temperature requirements. Morstar offers microwave sensors specifically designed for use with our UFO LED high bay lights. Provide the Bluetooth controller based on Tuya technology, which can be used in conjunction with MORSTAR wireless lighting control system to control fixtures.


FEATURES:

• Fins design, advective holes and grooves in each fin, good for heat dissipation
• Professional light distribution technique, high light reflectivity reflectors

• The wide input voltage range AC100-277V(1-10V dimming)

• Sosen driver, 2835 Samsung LED as light source

• 110 beam angle available


SPECIFICATION

HHB401A-100W

HHB402A-150W

HHB403A-200W

HHB404A-240W

Power Consumption

100W

150W

200W

240W

Equivalent Wattage

250W HID

400W HID

400W MH

500W MH

Lumens Delivered

13,000 lm

19,500 lm

26,000 lm

31,200 lm

Efficacy

130 lm/W

CRI

80

Color Temperature

4000K /5000K / 5700K

Input Voltage

100-277V, 277-480V


CONSTRUCTION:

• The lens pass rate is over 90%

• Light weight and small size

• Radiator adopts ADC12 aluminum integrated die-casting


RECOMMENDED USE:

• Warehouses, Factory

• Exhibition Room, Gas Station

• Supermarket


WARRANTY:

10-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 158°F.


APPLICATION:

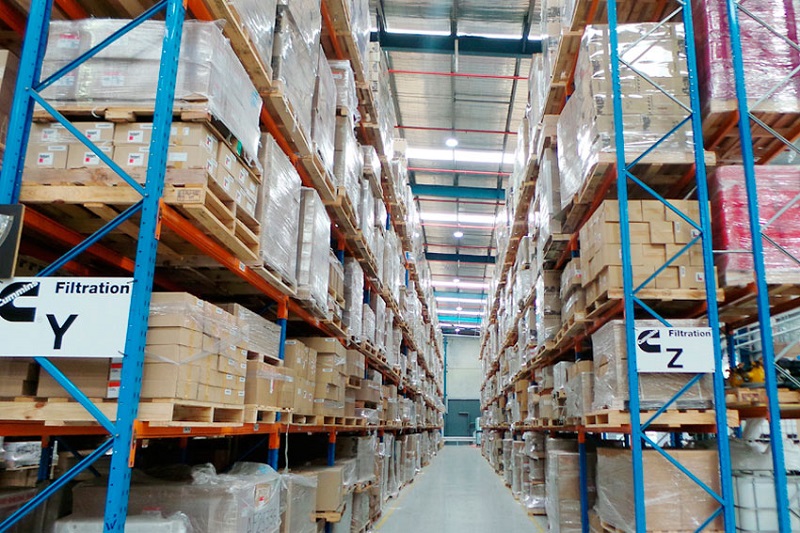

Warehouses LED Linear High Bay
