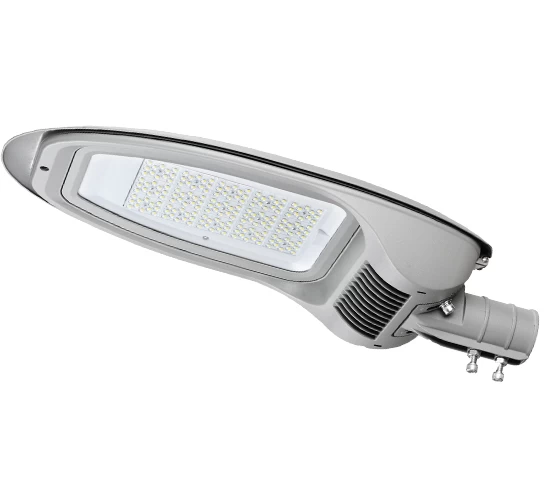

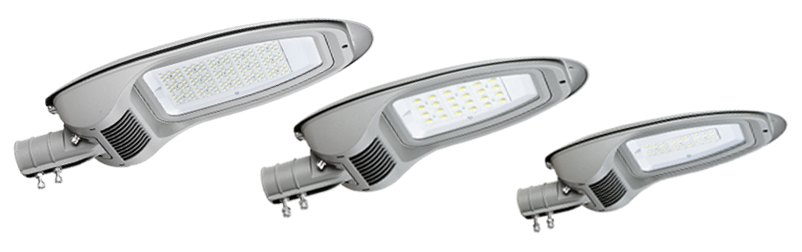

IP65 Waterproof CE Approved Dimmable LED Street Light
30W/45W/60W/80W/100W/120W for options
FEATURES:
-
Sleek Low Profile Die Cast Aluminum Housing
-
Type II, III, IV, & VS Optics Available
-
Optional dimming function: 0-10V, PWM, Resistor, Timing
-
IP65 Rated
-
5 Years Warranty
APPLICATIONS:
-
Parking Lots
-
Roadways
-
Car Dealerships
-
Shopping Centers
DATASHHET:
|
Model
|
Wattage
|
Optic
|
Led Qty
|
Lumens
|
Base
|
Product Size
|
Package
|
Life time
|
|
GD-6025-30W
|
30w
|
TYPE
II TYPE III TYPE IV TYPE V
|
24
|
110lm/w
|
D50mm
|
570*250*113mm
|
600*280*140mm
|
50000hrs
|
|
18
|
120lm/w
|
|
72
|
130lm/w
|
|
GD-6025-40W
|
40W
|
24
|
110lm/w
|
D50mm
|
570*250*113mm
|
600*280*140mm
|
50000hrs
|
|
18
|
120lm/w
|
|
72
|
130lm/w
|
|
GD-6025-50W
|
50W
|
24
|
110lm/w
|
D50mm
|
570*250*113mm
|
600*280*140mm
|
50000hrs
|
|
18
|
120lm/w
|
|
72
|
130lm/w
|
|
GD-6025-100W
|
100W
|
TYPE
II TYPE III TYPE IV TYPE V
|
60
|
110lm/w
|
D60mm
|
780*340*146mm
|
810*370*176mm
|
50000hrs
|
|
48
|
120lm/w
|
|
180
|
130lm/w
|
|
GD-6025-120W
|
120W
|
60
|
110lm/w
|
D60mm
|
780*340*146mm
|
810*370*176mm
|
50000hrs
|
|
48
|
120lm/w
|
|
180
|
130lm/w
|

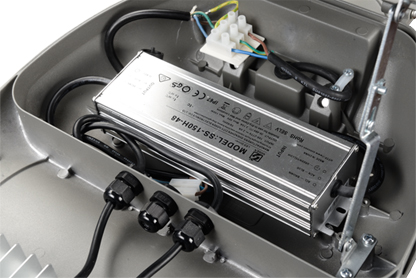

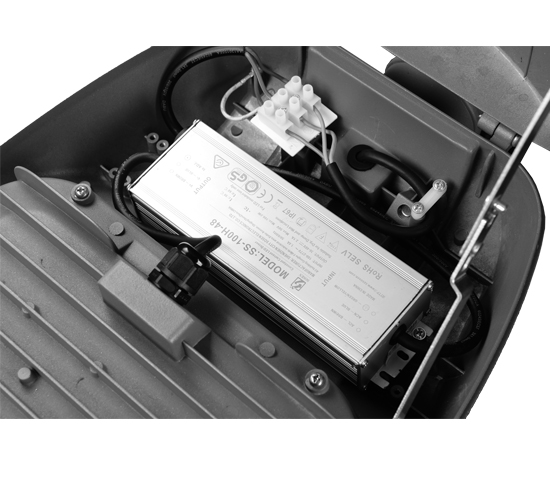

Driver:
Driver brand: MEANWELL, INVENTRONICS, SOSEN ETC
-
Efficiency up to 90%
-
Optional dimming function: 0-10V, PWM,
Resistor, Timing
-
IP67 rated; Suitable for Dry, Damp and Wet
Locations
-
Protections: SCP, OVP
-
Metal case with full potted for hazardous
scenarios
-
Surge Protection: L/N-PE: 6kV, L-N 4kV
-
5 years warranty

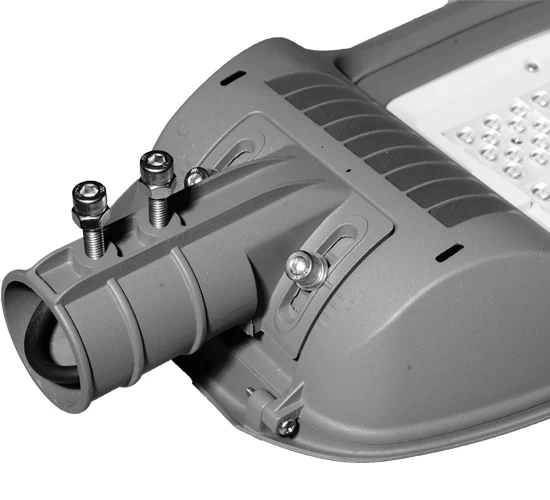

Base options: D50mm or D60mm

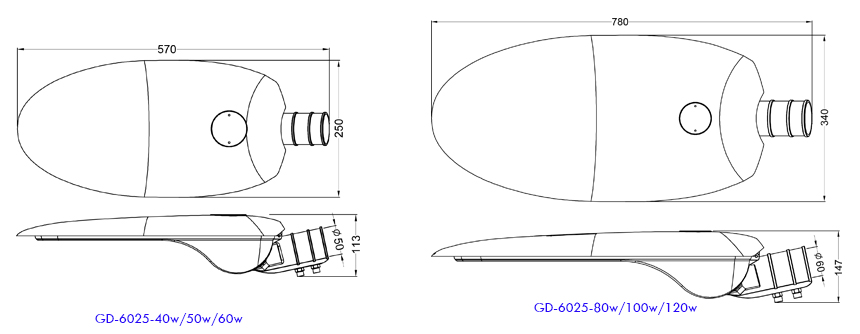

PRODUCT SIZE:

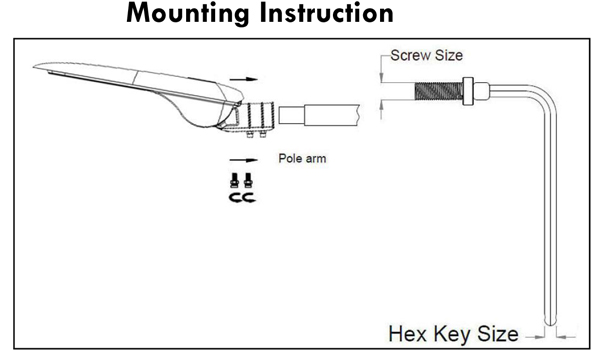

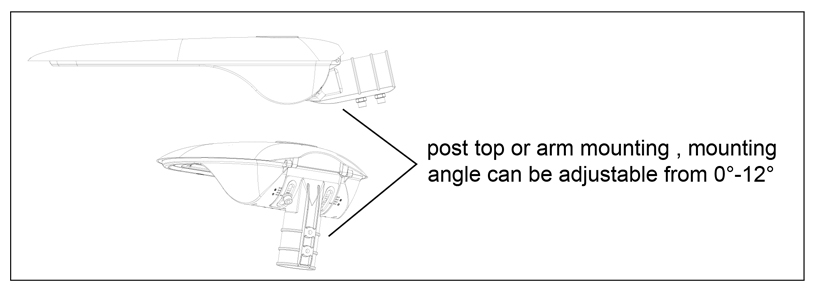

MOUNTING INSTRUCTIONS:
