IP65 Waterproof Hitag 2 Hitag S Reusable RFID Laundry Tag
|
Product Description
|
The PPS Laundry Tag is designed for harsh environment. To achieve good performance in the extreme environment such as high temperature, wafer, oil, chemic solutions etc. The rfid laundry tag basically meets all requirements in terms of heat, pressure and chemical resistance as needed in applications of RFID tracking of garments in the textile rental and laundry industries.
Different dimensions option allow for optimum ratio of size/reading performance requested by the application.
|
|

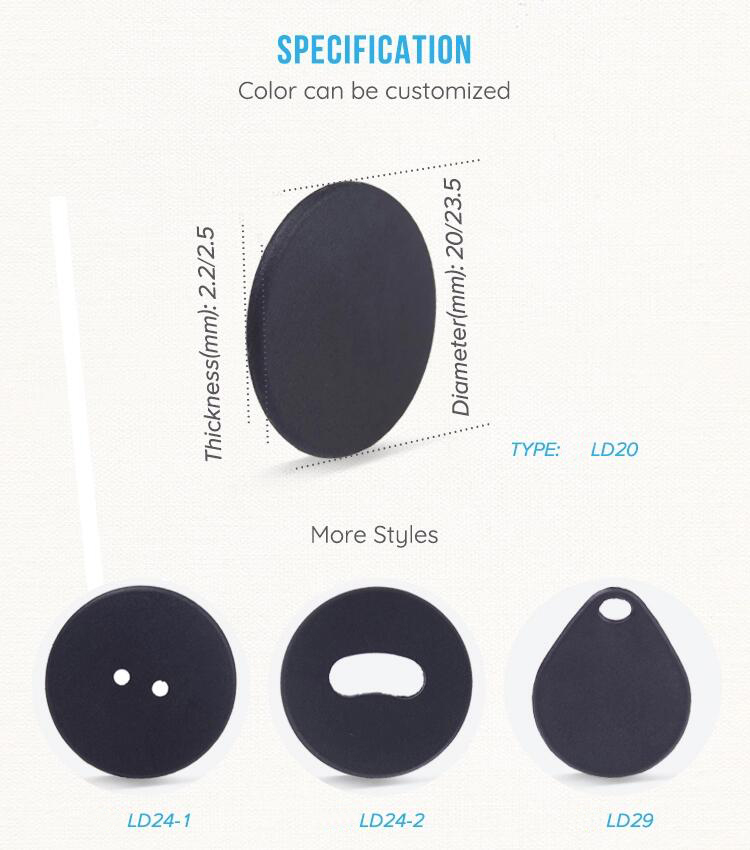

Physical
|
Name
|
LD20
|
LD23.5
|
LD24-1
|
LD24-2
|
LD29
|
|

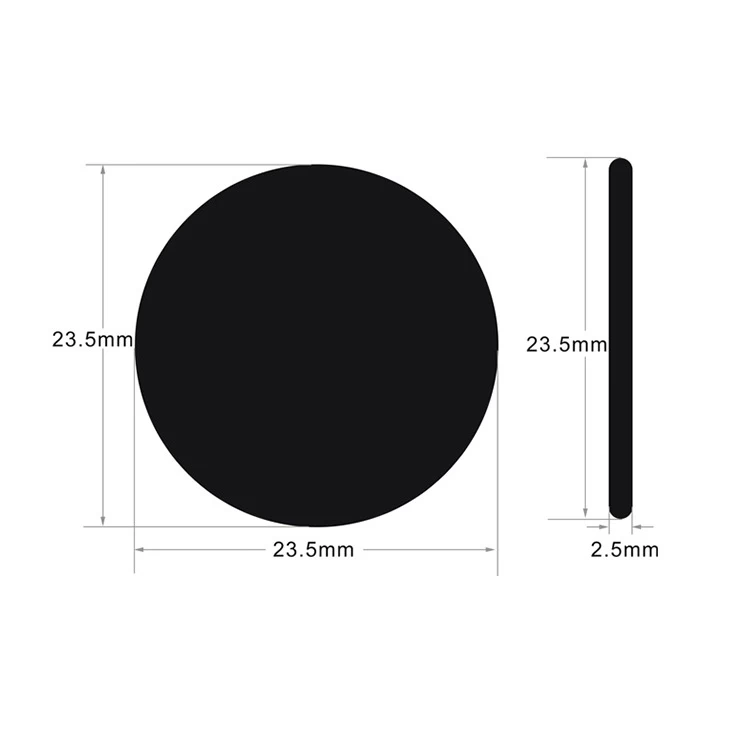

Diameter(mm)
|
20
|
23.5
|
24
|
24
|
24*29
|
|
Thickness(mm)
|
2.2
|
2.5
|
2.5
|
2.5
|
2.1
|
|
Weight(g)
|
1.1
|
1.5
|
1.5
|
1.5
|
1.6
|
|
Reading
|
5-300cm depends on the reader
|
|
Material
|
PPS
|
|
Character
|
Flexible, Easy-to-Wear, Easytouse, Waterproof, Dampproof, Anti-Vibration, and High Temperature Resistance.
|
|
Color
|
Default black; If other colors, MOQ is 3000pcs
|
|
Attachment
|
Sewn in/on, Heat Sealed
|
|
Protection
|
IP65 (condition: water pressure 45bar, 10h)
|
|
Operating Temperature
|
-30°C to +200°C
|
|
Peak Temperature
|
160°C 3h, 220°C 30min
|
|
Application
|
Widely used in laundries, car engine repair logo, chemicals, and even a long soak in water and other harsh conditions, etc.
- Laundry Application
- Property Tracking
- Item Identification
- Process Flow Improvement
|
|
Mechanical Stability
|
Axial compression strength: 1000N
Radial compression strength: 500N
|
|
Chemical Resistance
|
Typical chemicals used in laundry and dry-cleaning processes
|
|
Optional Technics
|
|
Custom Logo
|
Silk-Screen Printing / Laser Engrave
|
|
ID Number Printing
|
Jet Dot Printing, Laser Engrave
|
We can support more:
- Ability to Design different RFID antenna, in different RF protocol, and frequency.
- Research and design different encapsulation for special environments.
- Data encoding and encryption options.
- Transponder design base on correspond with customer reader.
- Individual process.
- OEM/ODM Options:
We can open a new mould for you, with your logo engraved on the current tag. Or produce new tag completely with your design, more details please contact the sales.
