Specifications
IP65 Wall Mounted Enclosure,Painted in RAL7032/7035,IP65,Door&Body:1.2,M.P:1.5mm,till size 800mm,Door&Body:1.5mm M.P:2.0mm

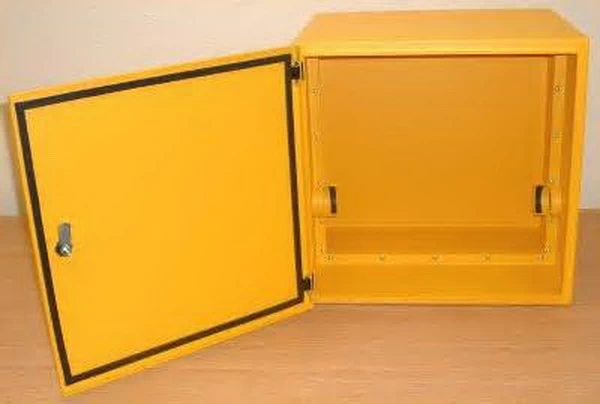

Wall Mounting Enclosure(distribution box)
Enclosure& door: sheet steel 1.2mm till size JX6-820 then 1.5mm
-Mounting plate: sheet steel 1.5mm till size JX6-820 then 2.0mm
Surface Finish
-Enclosure & door: thermosetting epoxy polyester powder coating in textured RAL7032/RAL7035
-Mounting plate: zinc coated or RAL2000 in textured
Protection degree
-IP65 NEMA 4 for single door boxes
Supply includes
-Mounting plate
-gland plate and sealing gasket
-locking system
-screws for earthing
-fixing material
