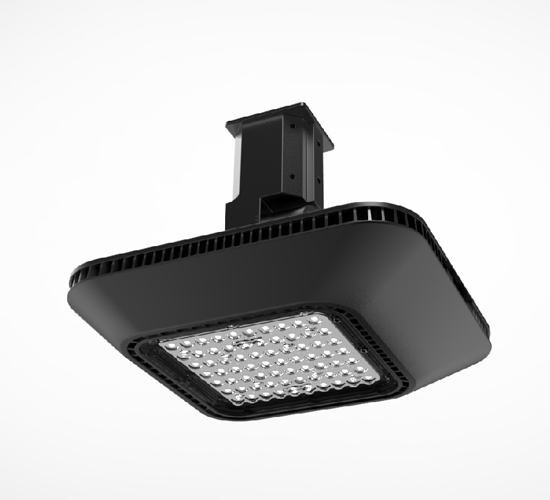

IP66 Led Garden Path Light 20W 30W 50W 100W
Feature:
-
Die-casting one forming radiator, hollow cooling structure, good heat dissipation.
-
Beautiful appearance, light beads with 140LM / W SOUL CSP lamp beads, the whole light efficiency 100LM / W.
-
Optional lens: TYPE IV
-
Using high-performance Meanwell power supply, warranty for 5 years. IP65。
Application:
Mainly used for outdoor flood lighting, factories, sports venues, industrial lighting, architectural lighting and other places.
Datasheet:
|
Model
|
Color
temperature
|
Color
rendering index
|
Luminous
flux
|
Power
|
Product Size / mm
|
Light
angle
|
net
weight
|
|
GD-TP260-W020-P-Y1-Zn
|
2700-7000K
|
≥70
|
≥1800 Lm
|
20W
|
240*286.6*340.7
|
90*140
|
3.6KG
|
|
GD-TP260-W035-P-Y1-Zn
|
2700-7000K
|
≥70
|
≥3150 Lm
|
35 W
|
240*286.6*340.7
|
90*140
|
3.6KG
|
|
GD-TP325-W50-P-Y2-Zn
|
2700-7000K
|
≥70
|
≥4500 Lm
|
50W
|
300*351.8*436.5
|
90*140
|
5.8KG
|
|
GD-TP325-W50-P-Y1-Zn
|
2700-7000K
|
≥70
|
≥4500Lm
|
100 W
|
300*351.8*436.5
|
90*140
|
5.8KG
|
|
GD-TP325-W50-P-Y3-Zn
|
2700-7000K
|
≥70
|
≥4500 Lm
|
50W
|
520.8*300*90
|
90*140
|
5.8KG
|
|
GD-TP325-W100-P-Y1-Zn
|
2700-7000K
|
≥70
|
≥9700 Lm
|
100 W
|
520.8*300*90
|
90*140
|
5.8KG
|
|
GD-TP325-W100-P-Y2-Zn
|
2700-7000K
|
≥70
|
≥9700 Lm
|
100W
|
542*300*90
|
90*140
|
5.8KG
|
|
GD-TP325-W100-P-Y3-Zn
|
2700-7000K
|
≥70
|
≥9700 Lm
|
100 W
|
542*300*90
|
90*140
|
5.8KG
|
|
These products have same electrical constructions in each type luminaire , differences among them are size,number of led ,led
drever and input
ratings.
|
|
“X” can
be “P” or
“NP”, “P” represents
with Photoelectric
Switch,”NP” represents without
Photoelectric Switch. Y represents LED driver , “n” can be
“1”,”2”,”3”, “1” represents SOSEN driver empioyed,”2” represents MEANWELL “HLG” driver
employed , “3” represents
differents MEANWELL “HVG” driver employed .
|
|
Zn represents
different support bracket .
“n” can be
“1”,”2”,”3”,, Z1 stands for

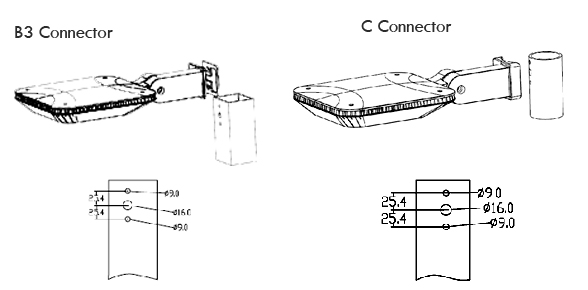

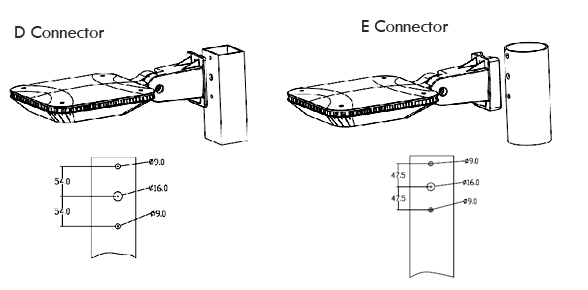

regular vertical installation,Z2=AA3//A2A3/B3/C3/D3/E3/F3, Z3=AA4/A2A4 .
|
|
2700-7000K ,Color
temperature optional,,AC 90V~305V,Power Efficiency>95%, Storage
temperature: –40 ~ 85°C
|

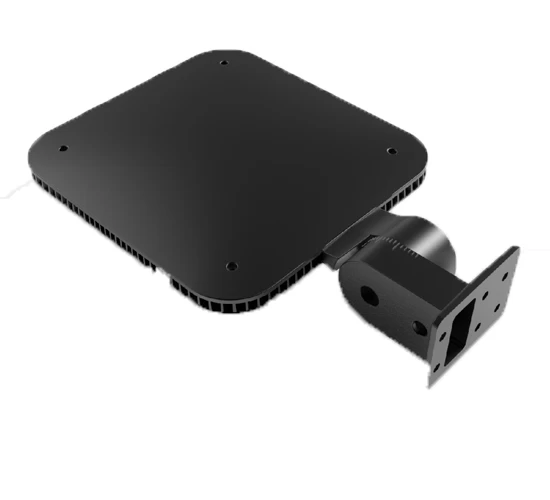

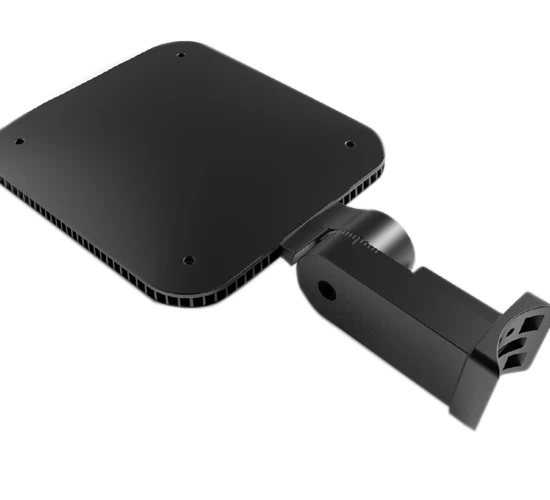

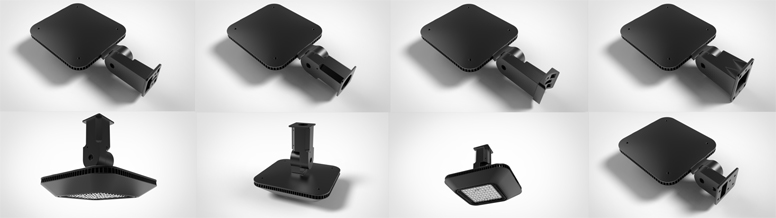

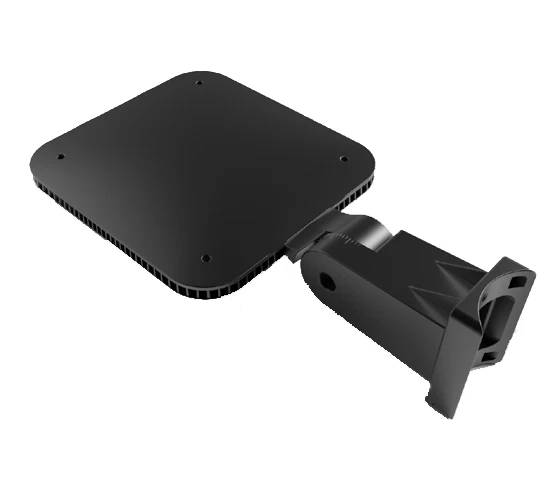

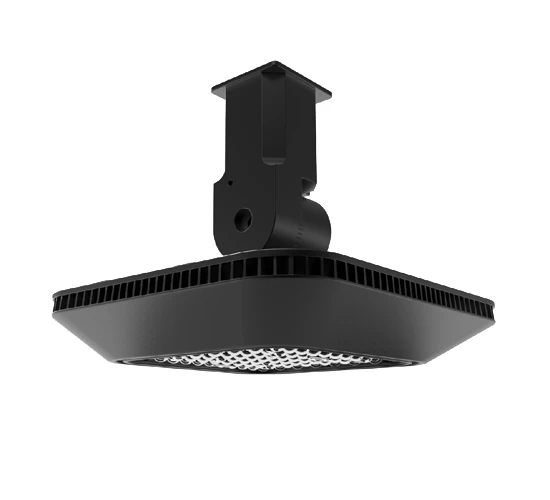

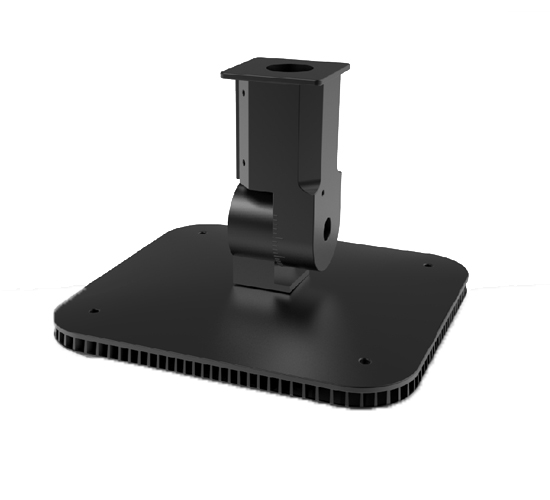

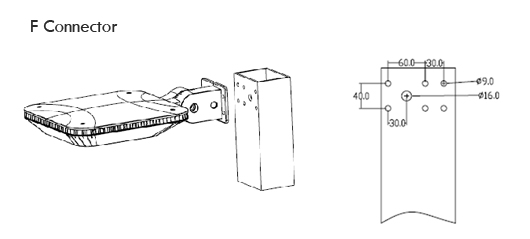

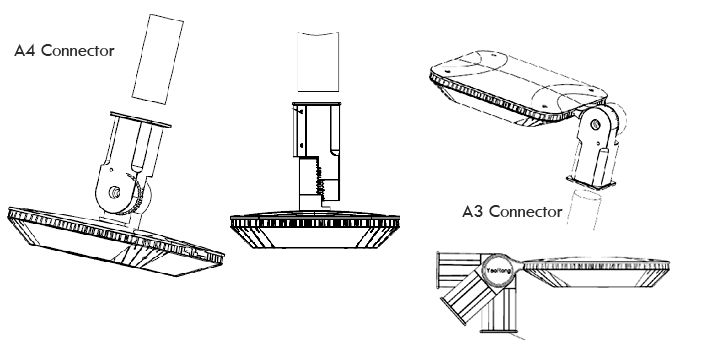

Base options:
Installation:
Installation Precautions:
-
Before installation, please cut off the power and ensure that the installation site can withstand the weight of the lamp.
-
In order to prevent the lamp from falling off, make sure that the installation is correct.
-
Please do not cover any material on the lamp For safety, please take a good connection.
-
The lamp from the purchase date, the warranty for five years.
-
However, the breakdown, modification, or improper construction of this product is not covered by this warranty.
