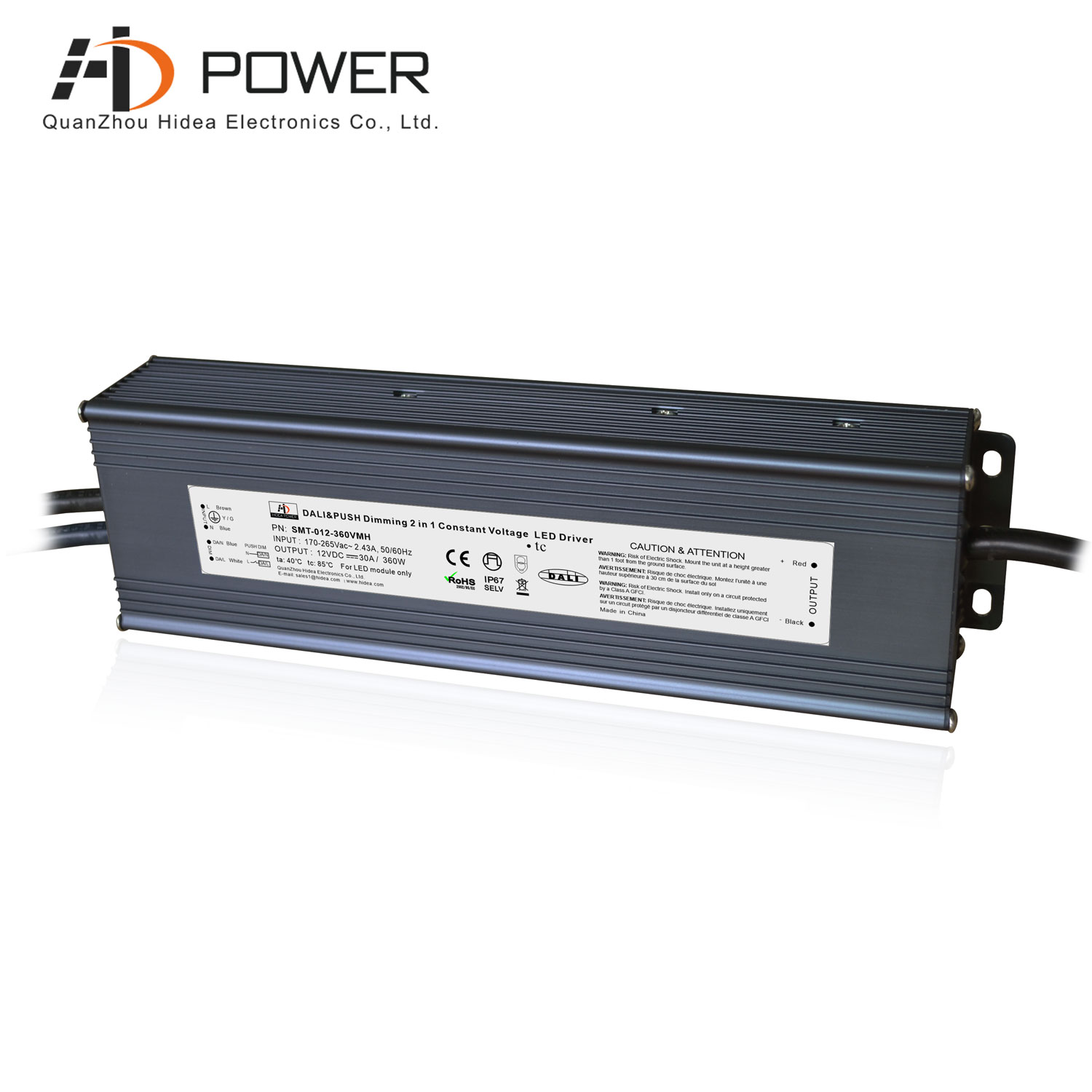

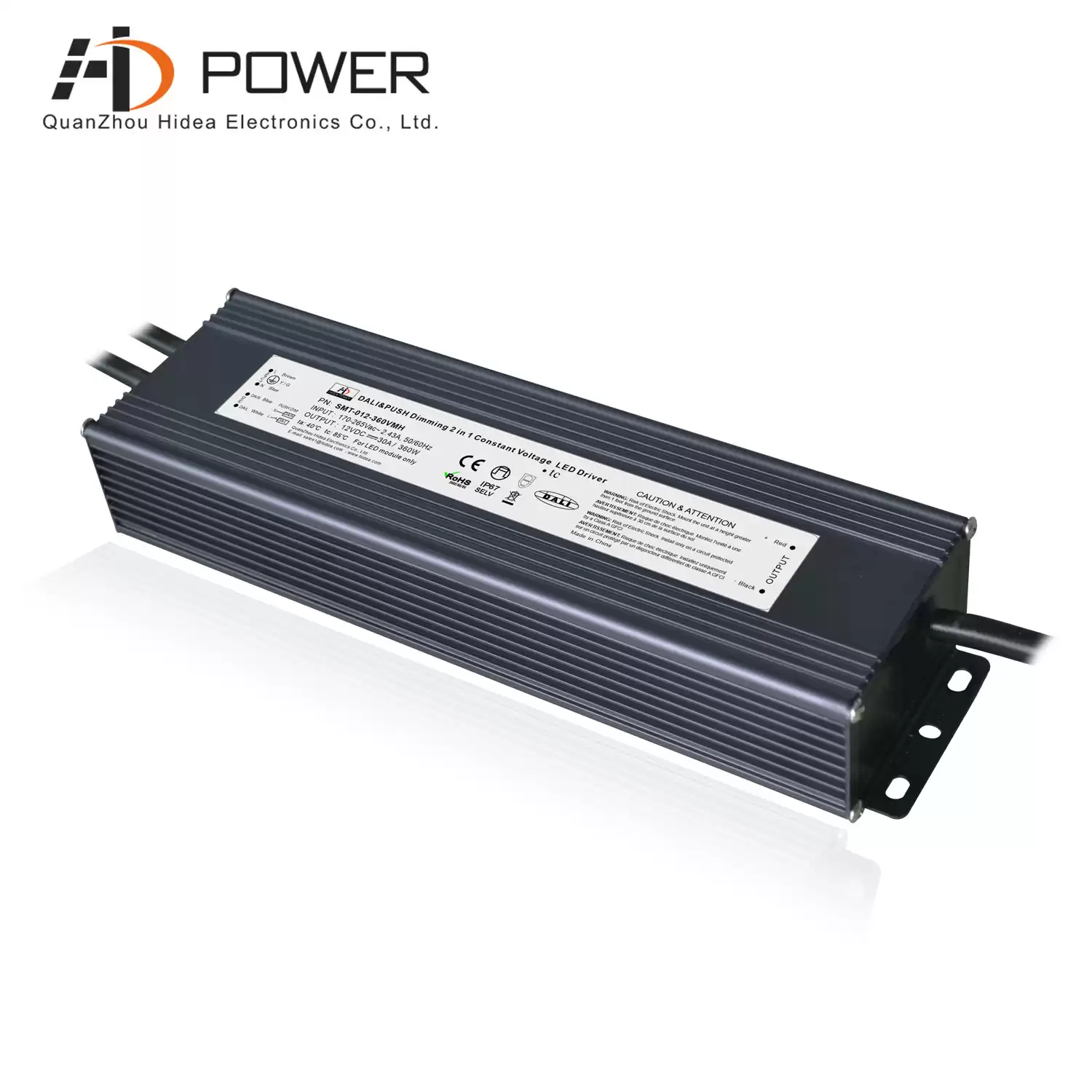

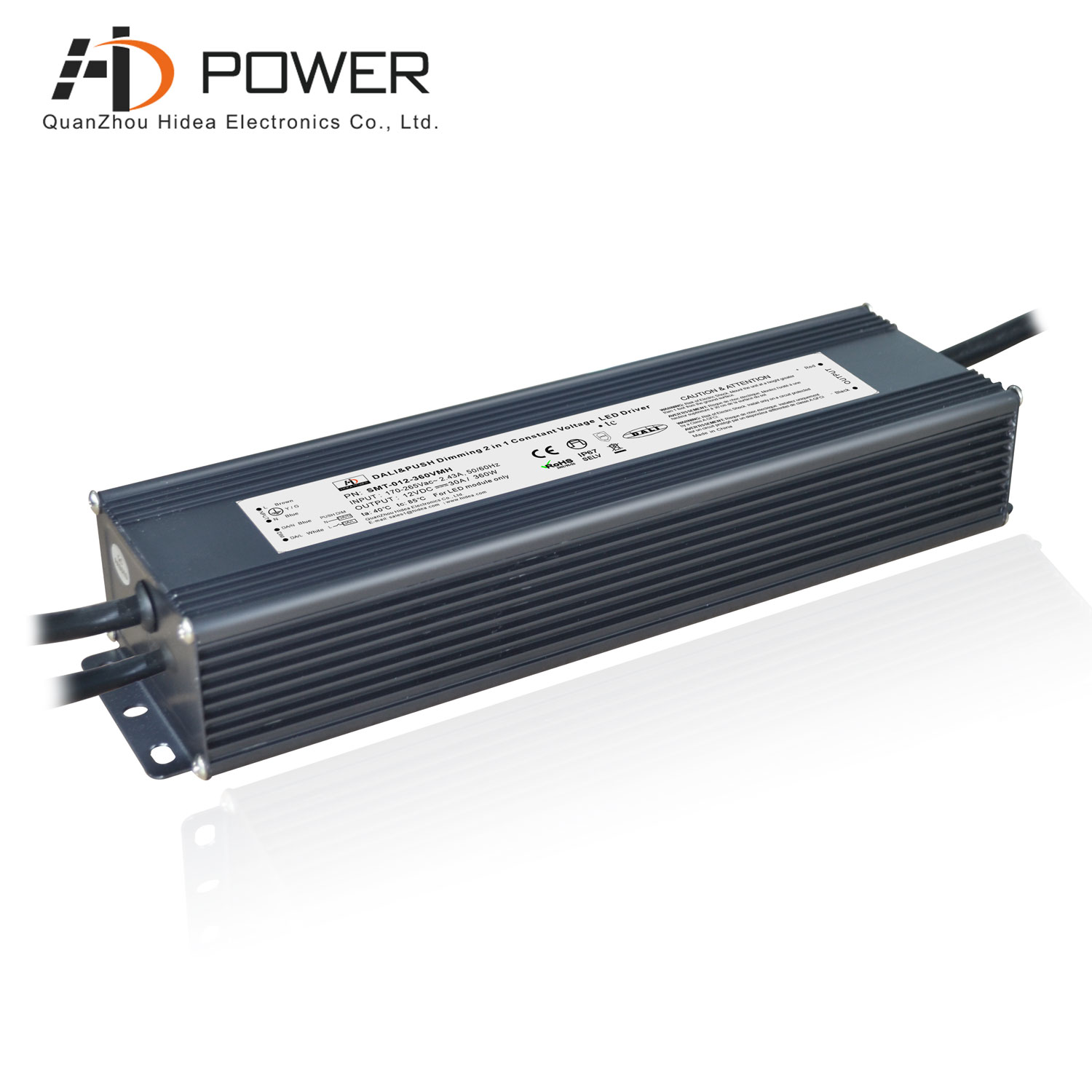

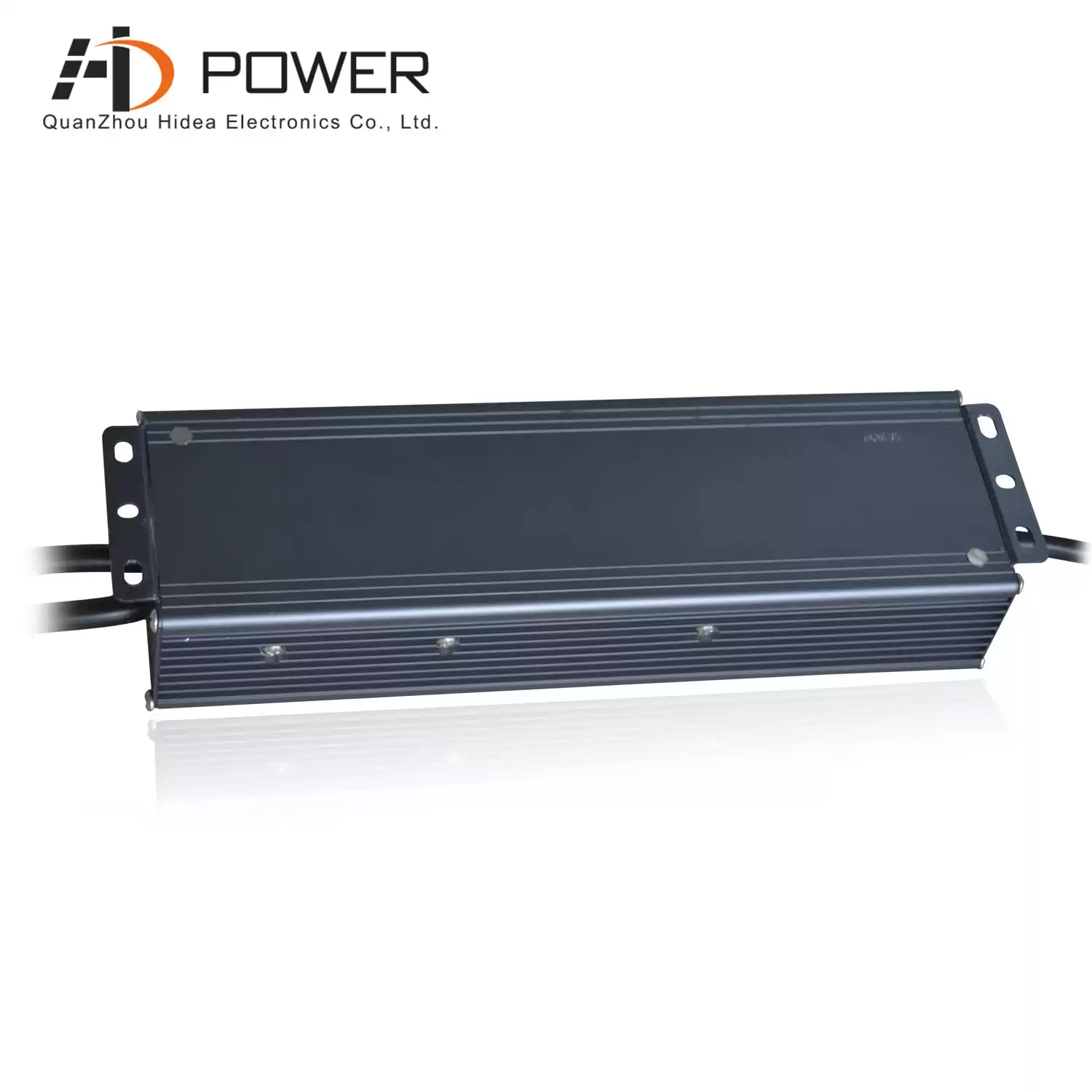

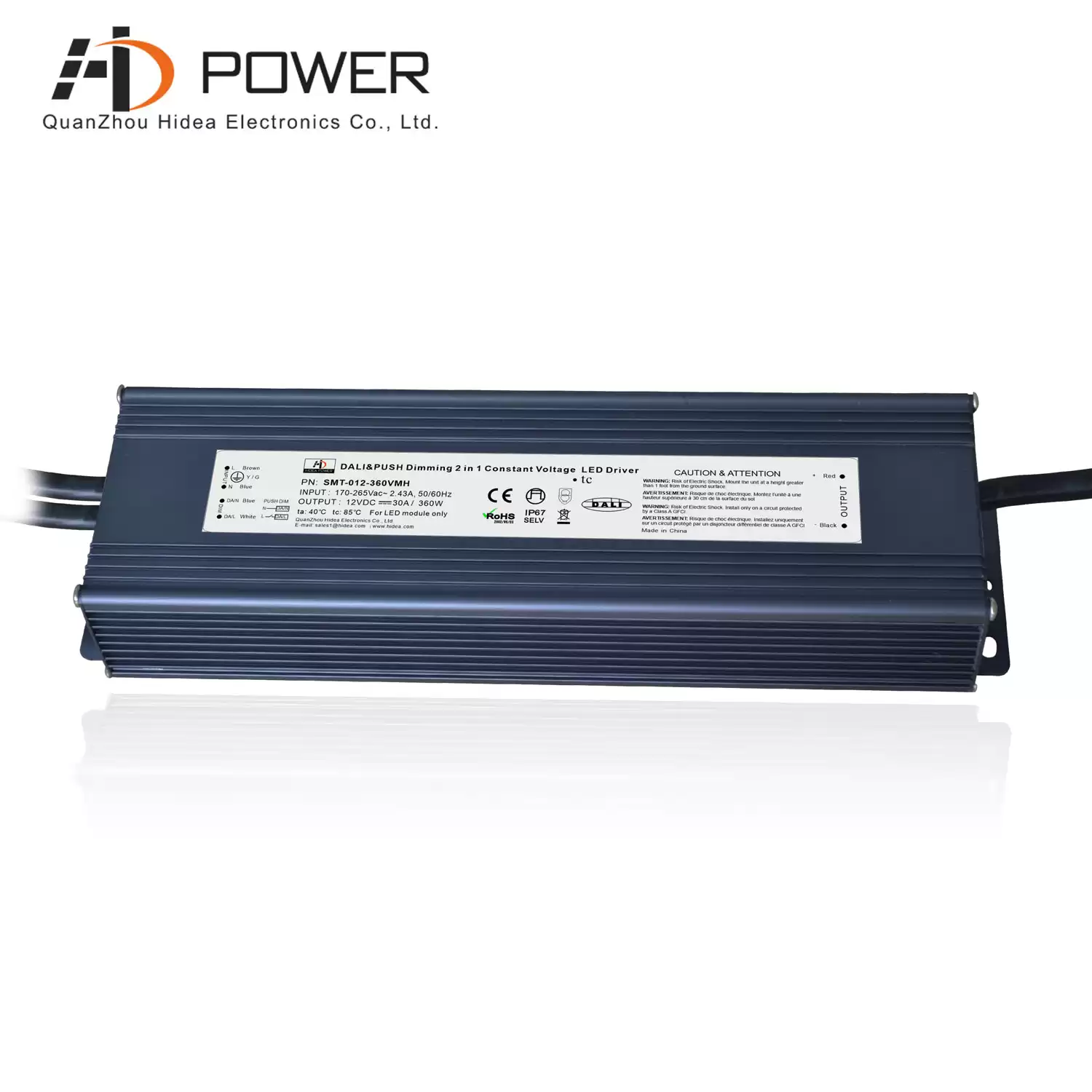

ip67 waterproof 24v 360W high power constant voltage dimmable led driver power supply manufacturers
100-265vac input voltage 360W DALI dimmable led power supply 24v constant voltage working mode, working efficiency up to 90%, using free air convection cooling, ip67 waterproof level, suitable for outdoor lighting projects
Specification
|
Model
|
SMT-012-360VMH
|
SMT-024-360VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
30A
|
15A
|
|
Rated power
|
360W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.98 /230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<15%
|
|
Efficiency (Typ.)@ full load
|
89%
|
90%
|
|
AC Current(Max.)
|
2.43A
|
2.4A
|
|
Inrush Current (Typ.)
|
65A( twidth =360uS) at 230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection Class
|
Ⅰ
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Others
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 ,EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547:2009
|
|
Weight
|
1.2Kg
|
|
Dimension
|
245*70*43mm(L*W*H)
|
|
packing
|
320*270*170mm/10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
SMT-012-360VMH is 12v dimmable led driver 360w, 100-265vac input, compatible with Lighting Technology Contril led tubes waterproof which need DC 12V. it is CE,ROHS certified, 5 years warrranty.
Related Products
|

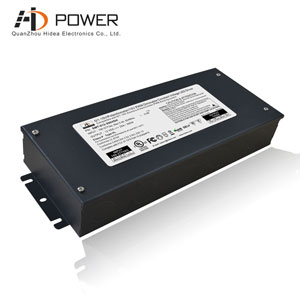

300W 0 10V dimmable led driver, constant voltage working mode, working efficiency up to 86%, integrated power supply and junction box design, UL certification, mainly sold to North America, 7-year warranty
