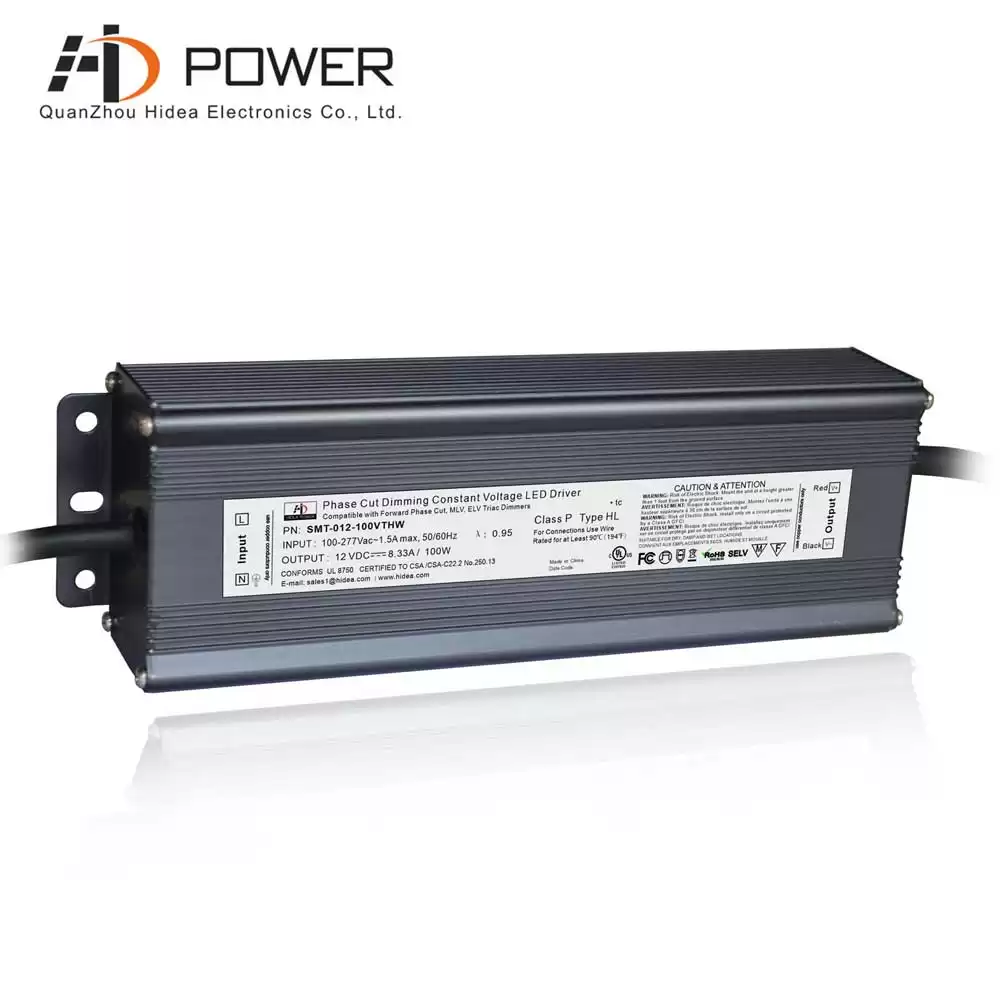

ip67 waterproof 24V triac dimmable 96W led driver power supply for led strip
The class 2 triac dimmable led driver 24v 96W has a built-in PFC function, PF>0.99, the dimming range is between 0~100%, it has strong compatibility, and can be well connected with CreeLighting's 100W LED floodlight to achieve smooth Flicker-free dimming
- Dimming ModeTriac Dimming
- Working ModeConstnat Voltage LED Driver
- Input Voltage100-277Vac
- Output Power(Watt)96W
- Output Voltage12/24Vdc
- Shape & SizeStandard Size
- Output Current
- Size230*70*46MM
- Weight1.1Kg
- CertificationUL
- Warranty7 Years
ip67 waterproof 24V triac dimmable 96W led driver power supply for led strip
96W constant voltage triac dimmable led driver, working efficiency up to >83%, dimming range is 0-100%, aluminum case, good heat dissipation, Work with leading edge and trailing edge TRIAC dimmers, 7 years warranty
Specification
| Model | SMT-012-100VTHW | SMT-024-096VTHW | |
| Output | DC Voltage | 12V | 24V |
| Rated current | 8.33A | 4.0A | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Rated power | 100W | 96W | |
| Input | Voltage Range | 100~277V AC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | 0.99@120VAC 0.96@277VAC | 0.98@120VAC 0.96@277VAC | |
| Full Load Efficiency(Typ.) | >80% | >83% | |
| AC Current(Typ.) | 1.5A/110VAC | ||
| Inrush Current (Typ.) | 20A, 50%, 1.6ms | ||
| Leakage current | ﹤0.5mA/110V | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over temperature | ≤120% constant current limiting, auto-recovery | ||
| Over Loading | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 | |
| Withstand voltage | I/P-O/P:1.88KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Net Weight | 1.1Kg | |
| Size | 230*70*46mm(L*W*H) | ||
| packing | Packing : 10PCS/ctn Carton: 385*335*200mm | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
 |
 |
 |
 |
||

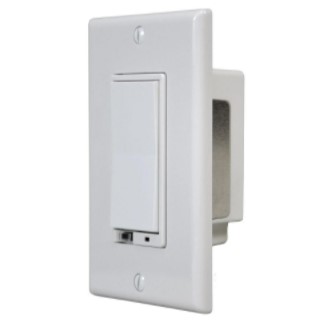

Compatible Dimmer Type
24v 96W TRIAC dimmable led driver has good compatibility, and can be well compatible with most leading edge and trailing edge dimmers on the market, such as Lutron 100W LED driver dimmer
Related Products
|

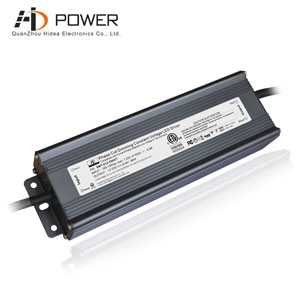

Mode：SMT-012-100VT
