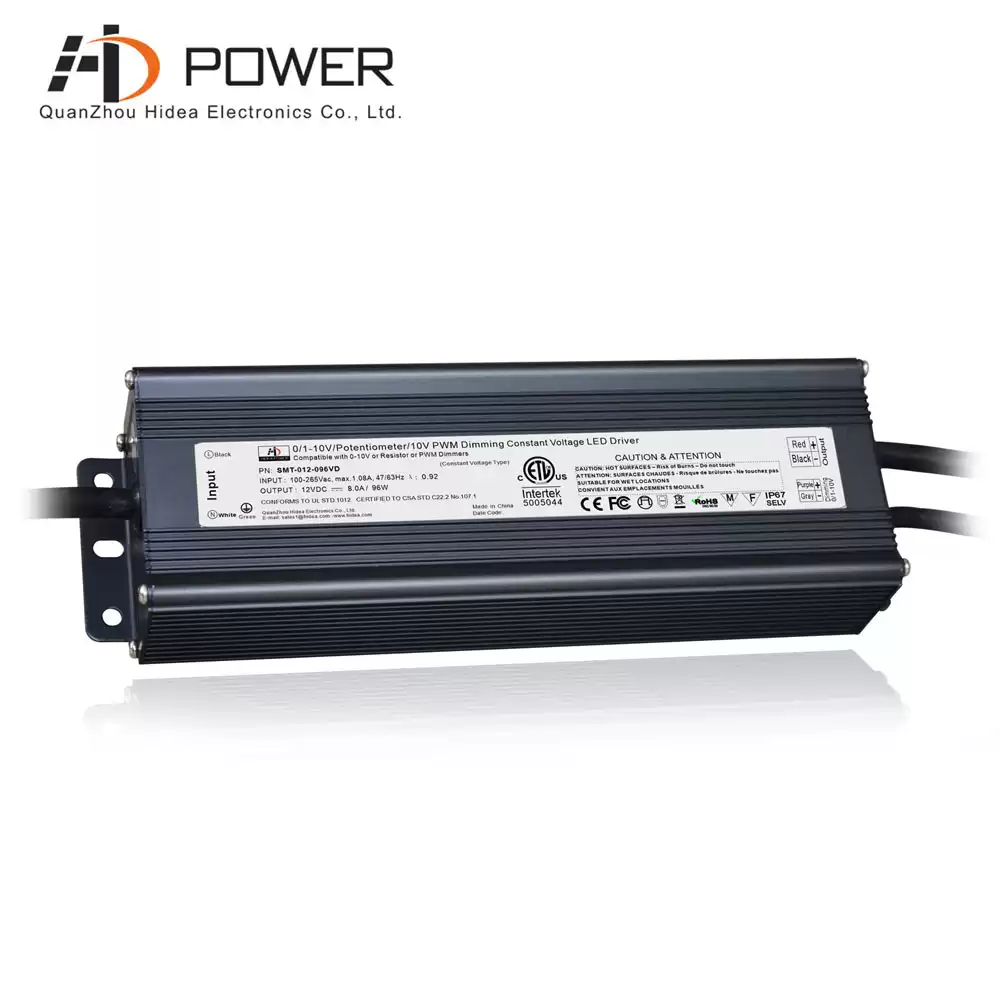

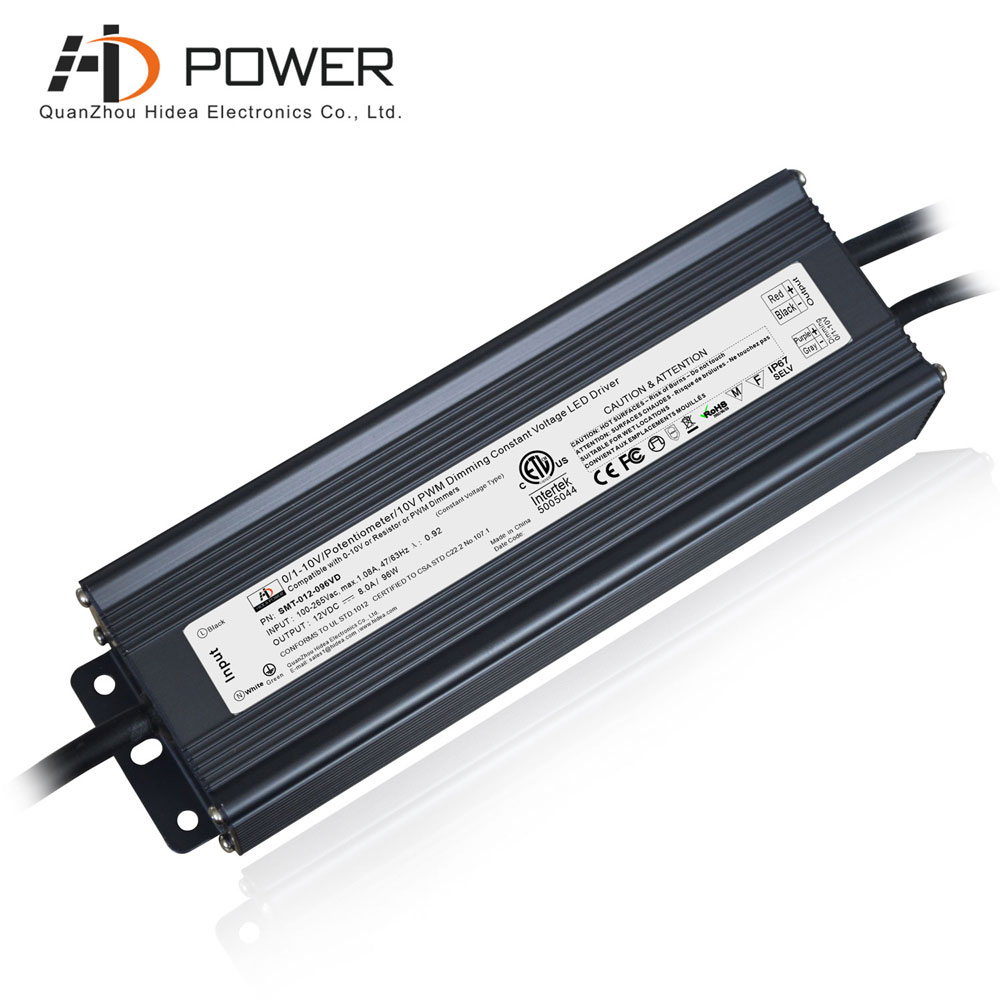

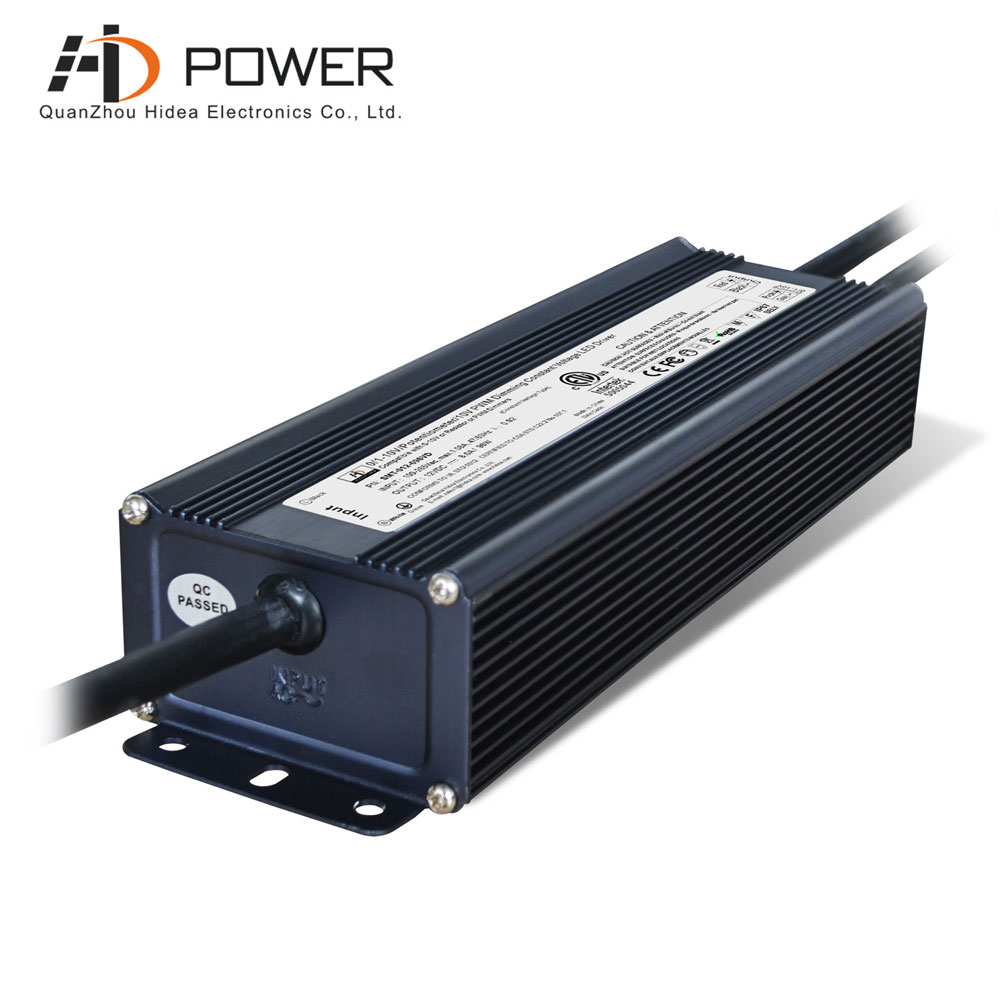

ip67 waterproof 96W 24V 0 10v dimmable constant voltage LED driver power supply
96W waterproof ip67 0 10v dimmable led driver, constant voltage working mode, built-in active PFC function, PF>0.9, working efficiency up to 88%, can be well connected with most 0 10v dimmers on the market, achieving smooth and seamless operation flash dimming
Specification
|
Model
|
SMT-012-096VD
|
SMT-024-096VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0-8.0A
|
0-4.0A
|
|
Rated power
|
96W
|
96W
|
|
Ripple&noise Max.
|
200mVp-p
|
250mVp-p
|
|
Input
|
Voltage Range
|
100~130VAC, 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
>0.90
|
>0.90
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
1.010A/120VAC 0.713A/170VAC 0.550A/220VAC 0.457A/265VAC
|
|
Leakage current
|
﹤0.25mA/110V,220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-2-13.IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)
|
|
Others
|
Weight
|
1.32Kg
|
|
Size
|
230*70*47mm(L*W*H)
|
|
packing
|
329*279*176mm/10pcs
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

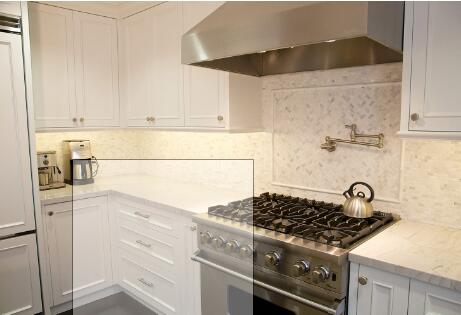

Superbright LED White flexible strip lights produce an energy-efficient, appealing, and long-lasting solution for under-cabinet lighting, task lighting, accent lighting, and more, and compatible with
12 volt dimmable led driver.
Related Products
|

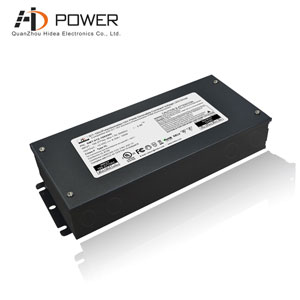

100W 0-10V dimmable led driver is integrated with the junction box. It is easy and quick to install. It can effectively protect the power supply and work stably. It has a metal shell design, good heat dissipation, and has a 7-year warranty.
