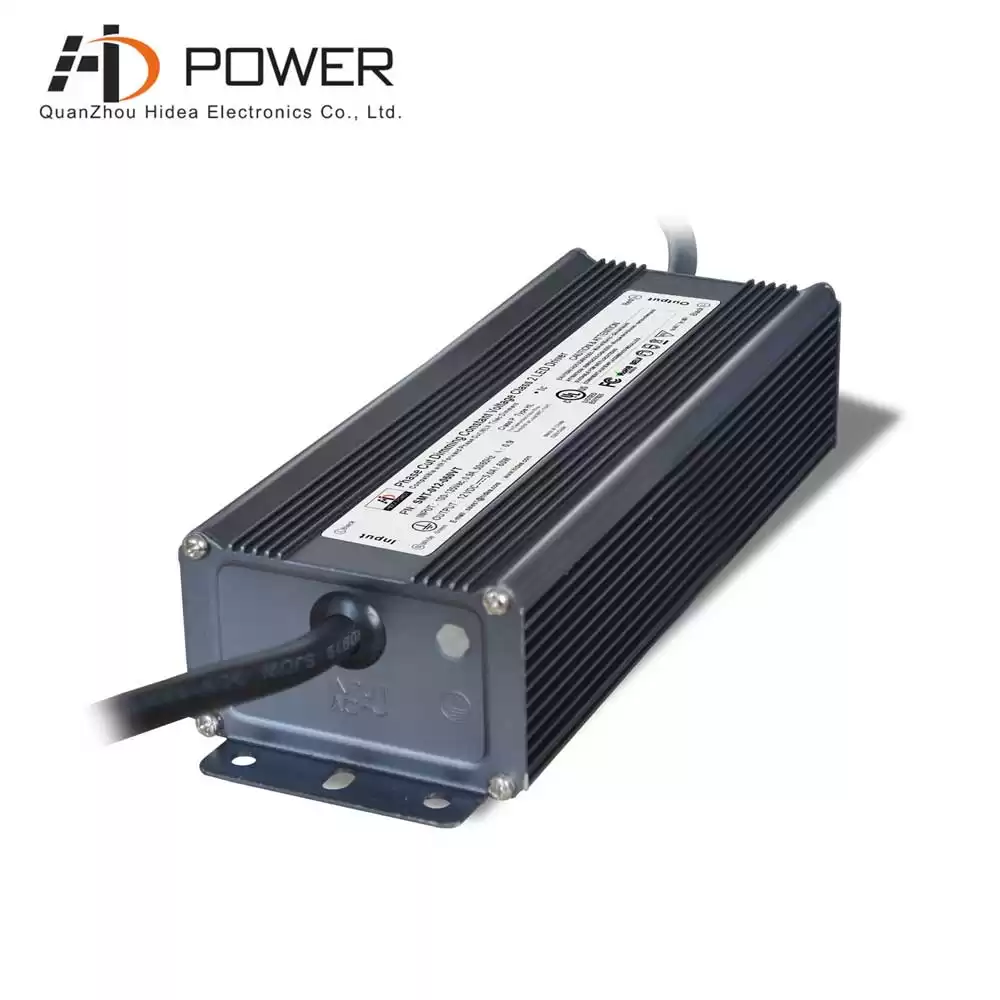

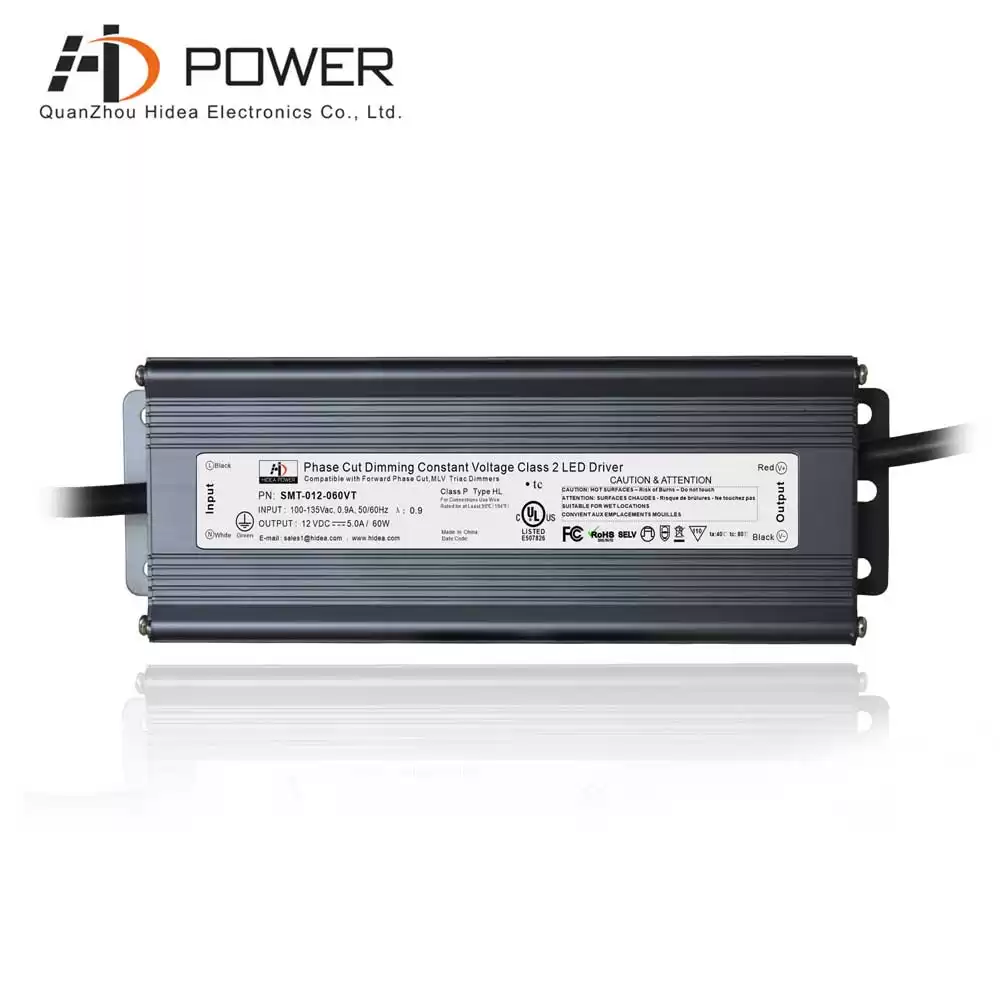

Phase cut dimming 12v 5a 60w triac dimmable driver are UL ROHS FCC Certification, constant voltage working mode, aluminum cover, Compatible with Forward phase, Reverse phase, Triac, ELV Dimmers. Suitable for green LED Lighting Neon LED and moving sign applications.
Specification
|
Model
|
SMT-012-060VT
|
SMT-024-060VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
5A
|
2.5A
|
|
Rated power
|
60W
|
|
Input
|
Voltage Range
|
90-135VAC/170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥ 0.95 (Full loading)
|
|
Efficiency(Typ.)
|
82%
|
85%
|
|
AC Current(Max.)
|
0.77A
|
0.76A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.95 Kg
|
1.55Kg (with junction box)
|
|
Size
|
200*70*46mm(L*W*H)
|
350*77*57mm(L*W*H) (with junction box)
|
|
packing
|
329*279*176mm 10PCS
|
350*85*65mm 10PCS
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type
This triac dimmable 12v 60w led drivers with 5 years warranty got UL SAA CE ROSH appeoval, it is hot sell products in the US, EU, AU martket. It can match well with ONFORU Pack light.
Related Products
|
 12v 60w traic dim led drivers with input current ranging from 100 to 277 VAC and will output 60 watt 12 Volt DC current at 5.0 amps
Mode：SMT-012-060VTH
Dimming Mode : Triac Dimming
Output Power : 60W
intput voltage：100~277V AC
Size：188*90*26MM （L*W*H）
|
