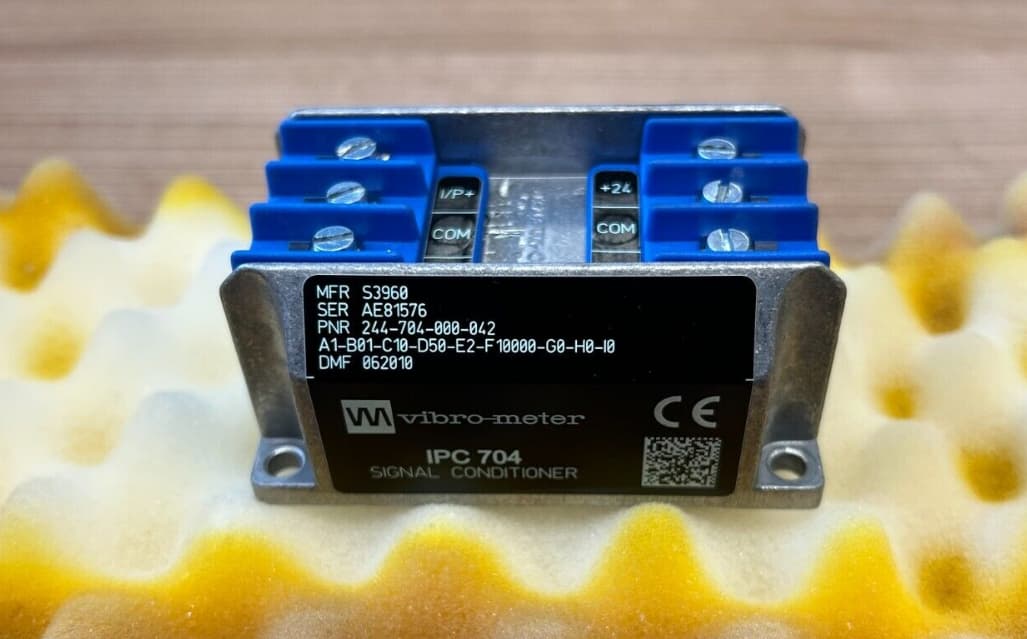

IPC704 244-704-000-042
The IPC704 signal conditioner converts the charge based signal from a piezoelectric-based transducer into a current or a voltage signal. This current or voltage signal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable.
The current modulation technique allows transmission over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.

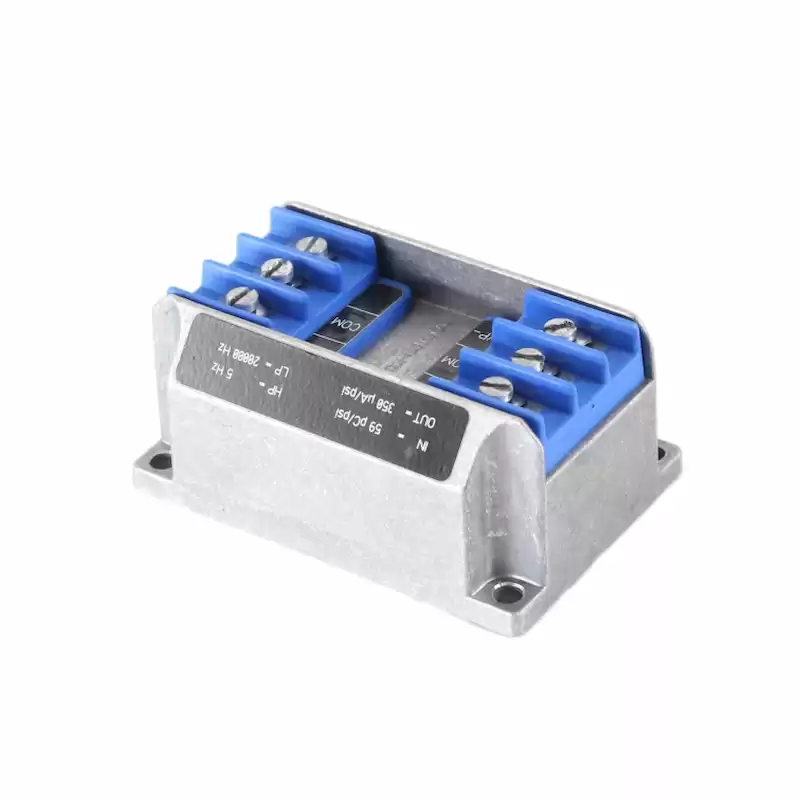

The electronic circuitry of the IPC704 signal conditioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect the input and output against radio frequency interference and other electromagnetic influences
KEY FEATURES AND BENEFITS
· For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors
· Configurable high-pass and low-pass filters
· Frequency range: 0.5 Hz to 20 kHz
· Optional integrator to produce a velocity output
· Optional 2-wire current or 3-wire voltage transmission
· Certified for use in potentially explosive atmospheres
· A range of installation options are available
Technical Specifications
| Manufacturer |
VM |
| Part Number |
244-704-000-042 |
| Ordering Information |
244-704-000-042 |
| Product Catalog |
IPC704 |
| Description |
Signal conditioner |
| Voltage |
18 to 30 VDC |
| Current |
25 mA |
| Dimensions |
79.4 mm x 54 mm x 36.5 mm |
| Weight |
170 g |
