Configuration
|
Main specifications
|
|
OS
|
Android 6.0
|
|
CPU
|
MTK MT6580 Quad core Cortex-A7 1.3GHz
|
|
RAM
|
1GB DDR3
|
|
Flash
|
8GB Nand Flash
|
|
LCD Screen
|
5.5" HD Screen, Highest Resolution 1280 x 720
|
|
Touch Screen
|
G+F Capacitive Multi-Touch
|
|
Camera
|
500W Fixed Focus
|
|
Speaker
|
1W Single Channel
|
|
Microphone
|
MIC Input
|
|

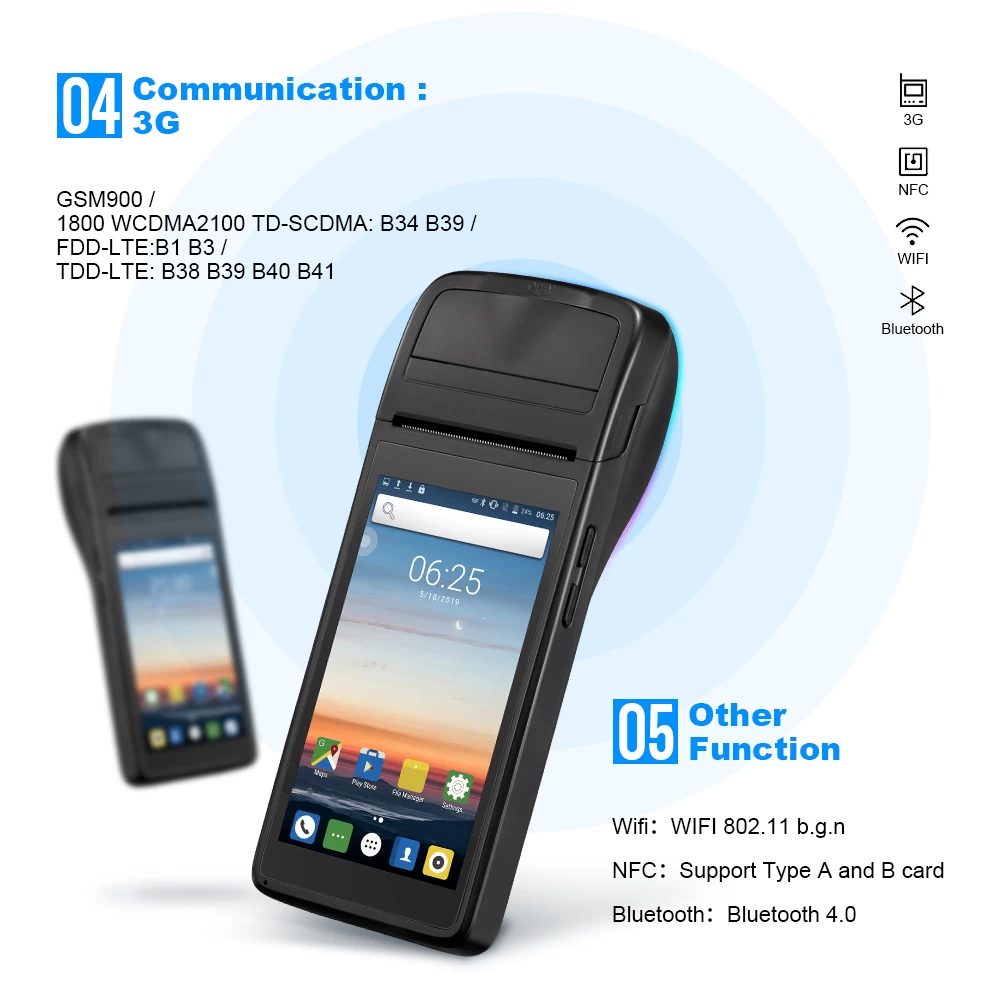

3G
|
3G:
GSM/GPRS/WCDMA
WCDMA : WCDMA B1(2100MHz), B5(850MHZ)
GSM SIM : 850/900/1800/1900MHZ
|
|
4G（Optional）
|
B1 3 5 7 8 20 38 39 40 41
|
|
WIFI
|
WIFI 802.11 b.g.n
|
|
NFC
|
Support Type A and B card
|
|
Bluetooth
|
Bluetooth 4.0
|
|
Button
|
1x Power Button, 1x Scan Button
|
|
Interface
|
1x Micro USB Debug Port, 1x SIM Card Slot, 1x Audio Jack
|
|
Battery
|
7.4V / 5200mAh
|
|

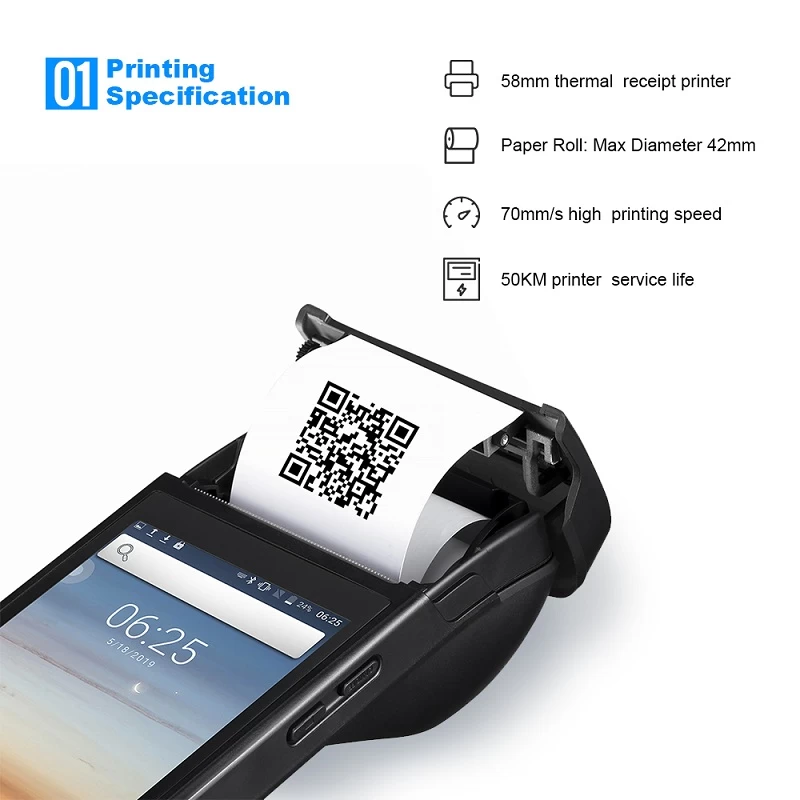

Printing
|
Line thermal printing
|
|
Printing Paper Width
|
58mm
|
|
Printing Speed
|
70mm/S
|
|
Printer Service Life
|
50km
|
|
Roll Diameter
|
Max Diameter 42mm
|
|
Dimension
|
Terminal: 215*90*55 mm,
|
|
Charging Base: 125*100*50 mm
|
|
Thimble Type
|
Input: 100-240V/ 1.5A 50/60Hz
|
|
Charging Base
|
Output：12V 1A
|
|
Optional 1D CCD Barcode Scanner Performance
|
|
Light Source
|
Visible red light, 625±10nm
|
|
Reading precision
|
≥3mil/0.076mm(PCS90%,Code 39)
|
|
Decoding speed
|
300 times/s
|
|
Depth of field
|
30mm-700mm
|
|
Scan Mode
|
Manual ,Continuous, Auto Sense, Fashing
|
|
Scan angle
|
Test Conditions：CODE39,10mil/0.25mm,PCS90%
Pitch:±60° Roll: ±30° Skew: ±60°
|
|
Print Contrast Signal
|
≥20%
|
|
Ambient Light
|
Dark environment, indoor natural light
|
|
Symbologies
|
UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， GS1-128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），Plessey，MSI Plessey，RSS，China Post，etc.
|
