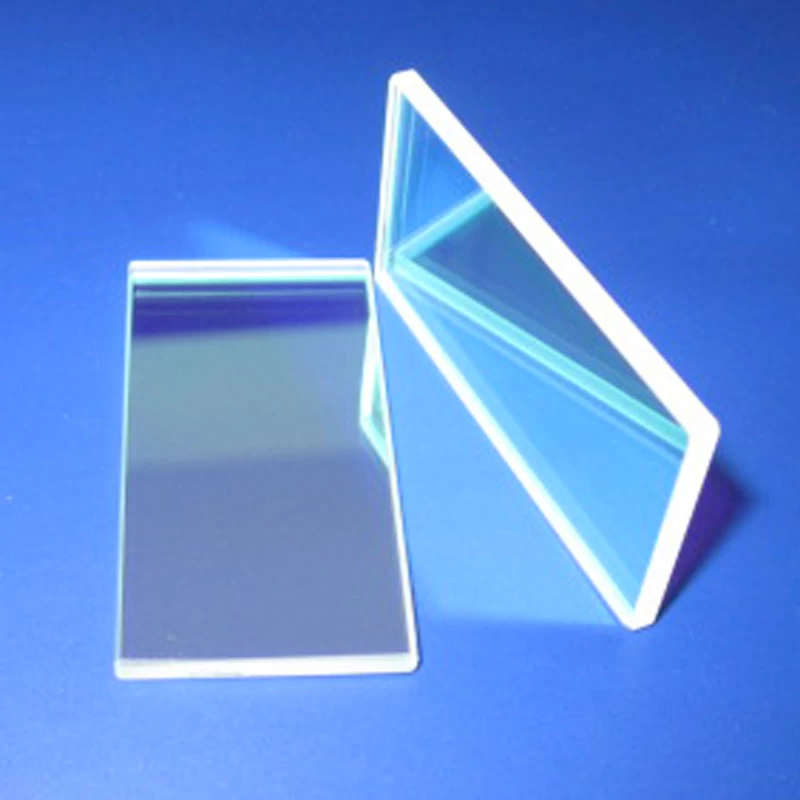

IPL Filters for Intense Pulsed Light Machine
IPL filter is the key optical element for IPL (intense Pulsed Light) machine, which filters the UV wave and reserve the useful wave from 400nm to 1200nm for cosmetic laser like:
1. Photrevujenation
2. Hair removal
3. Vascular
4. Acne treatment.
The available wavelength are 550, 560, 570, 590, 615, 645, 695, 755,780 nm.

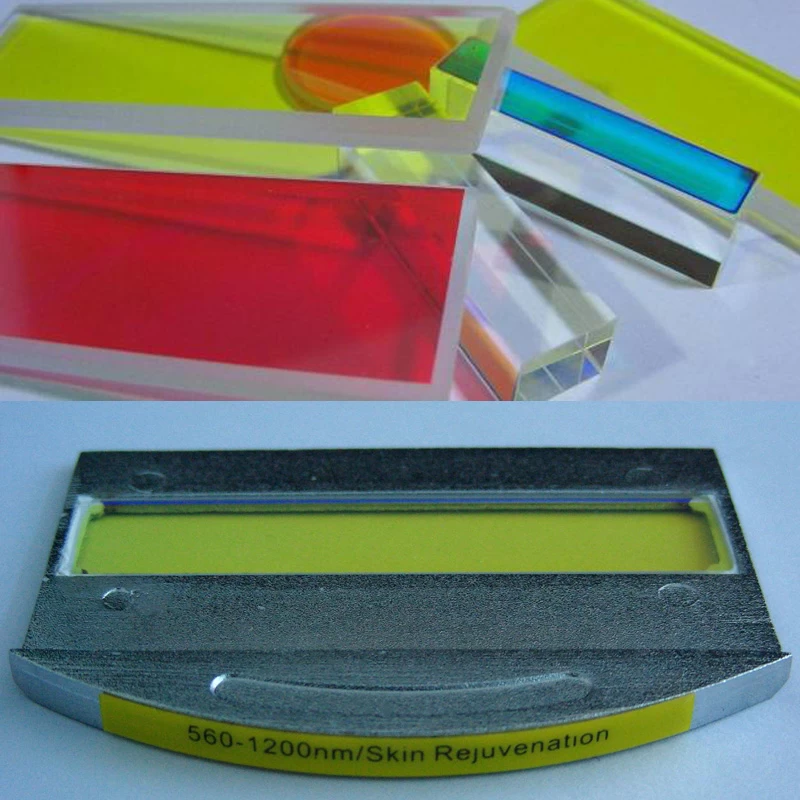

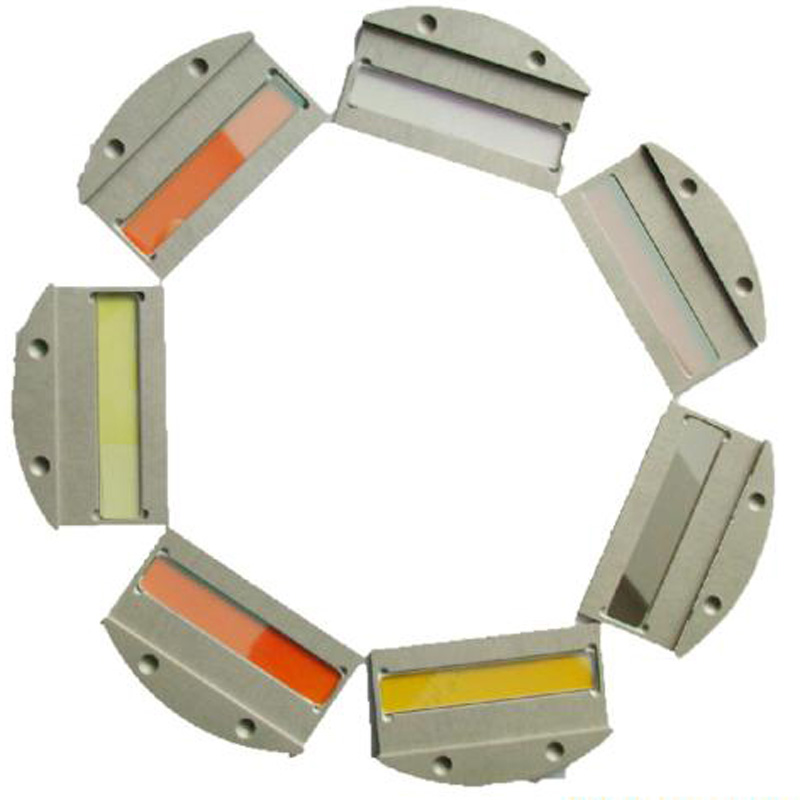

IPL Filters include IPL Internal Filters and IPL External Filters.
WTS could make customzied IPL Filters according to different requirement.
Specification:
|
Material:
|
N-BK7 Grade A optical glass, Fused silica, Sapphire crystal
|
|
Dimension Tolerance:
|
+/-0.1mm
|
|
Thickness Tolerance:
|
+/-0.2mm
|
|
Surface Quality:
|
60/40
|
|
Clear Aperture:
|
>90%
|
|
Parallelism:
|
<3 arc min
|
|
Wavefront Distortion(per inch)
|
λ/2
|
|
Bevel(face width x45°):
|
0.2~0.5mm
|
|
Available wavelength:
|
515~1200, 530~1200, 550~1200, 560~1200,
|
|
|
570~1200, 590~1200, 615~1200, 645~1200,
|
|
|
695~1200, 755~1200, 780~1200 nm
|
