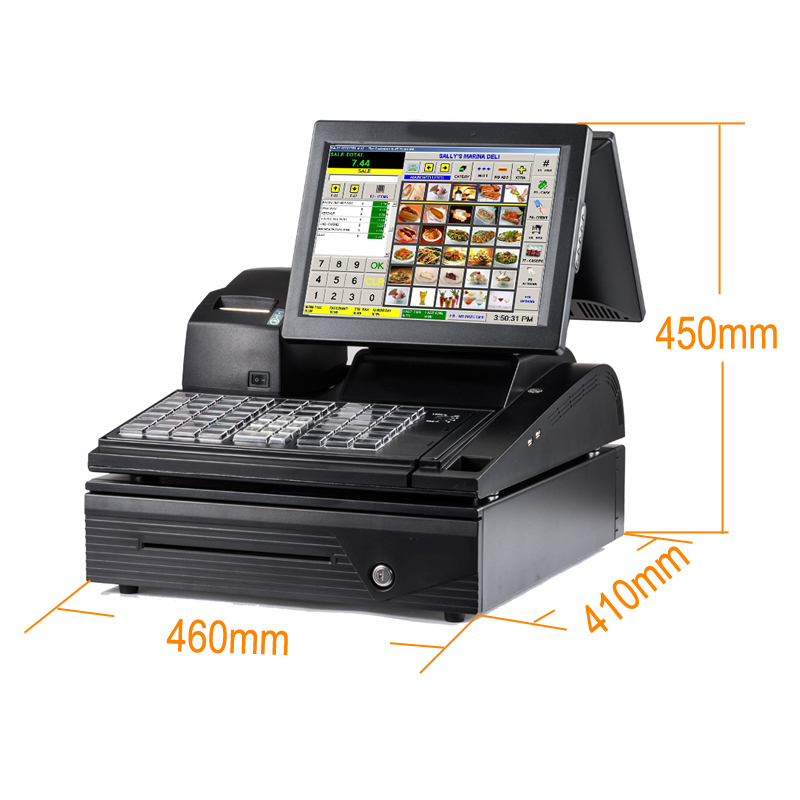

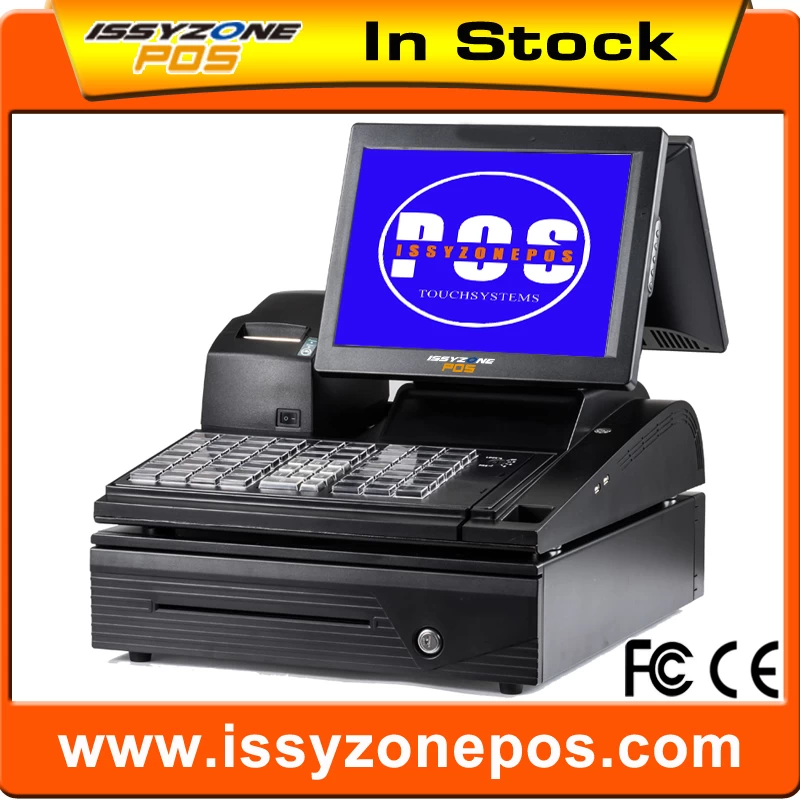

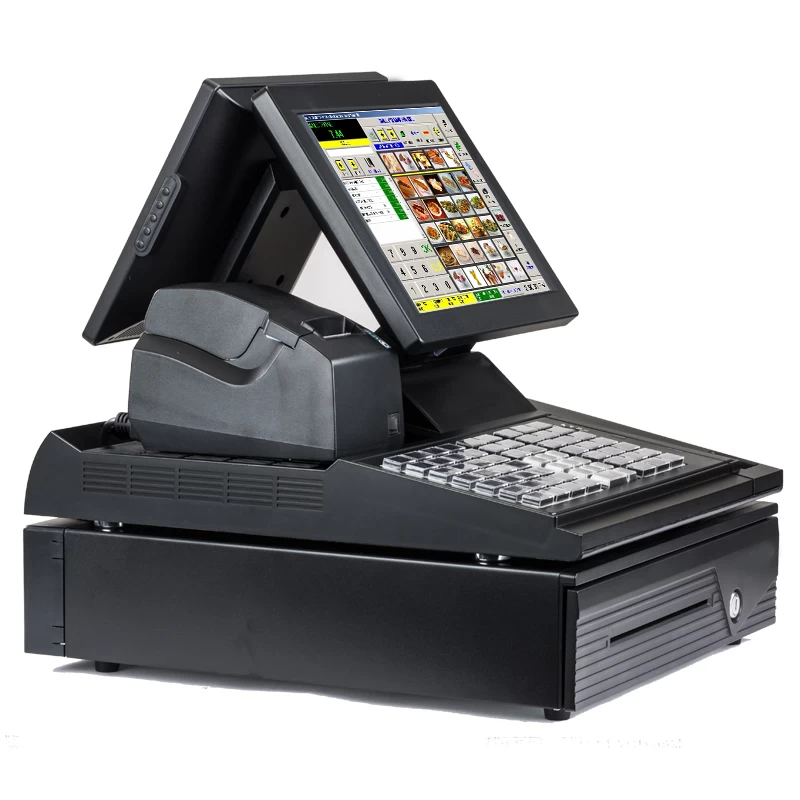

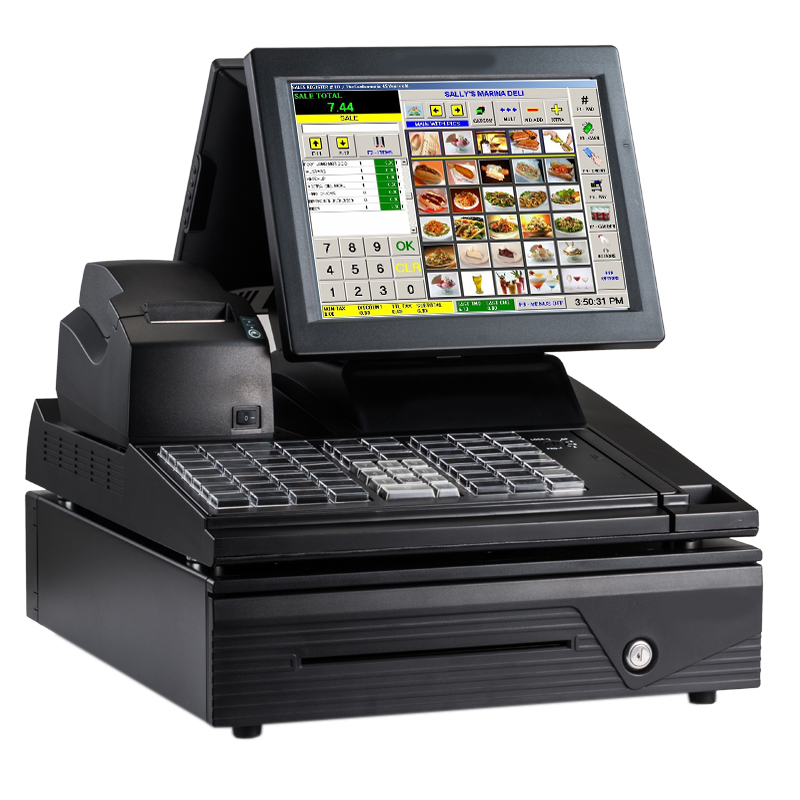

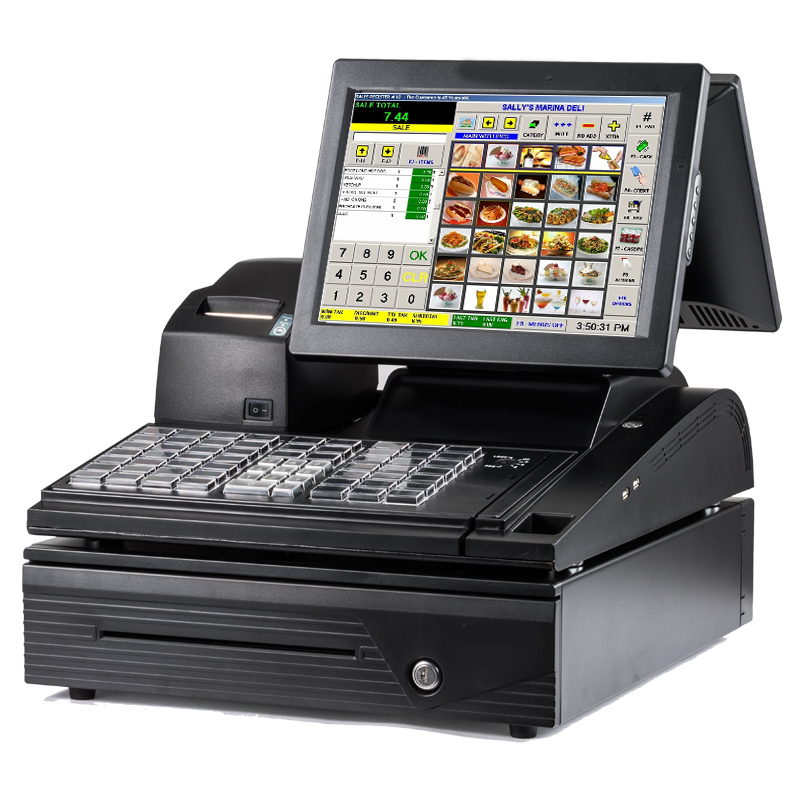

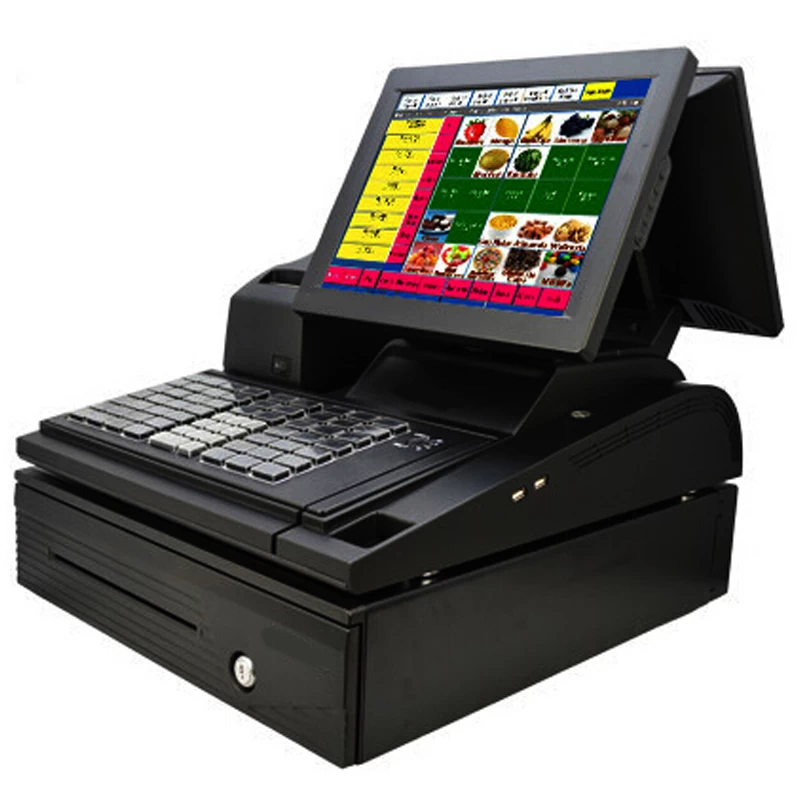

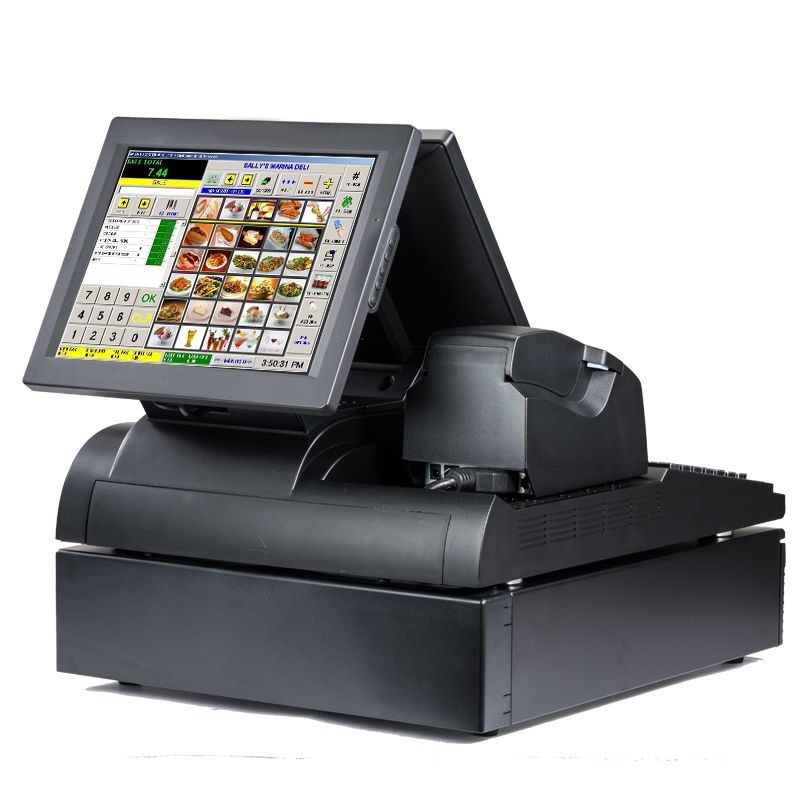

IPOS08 High Configuration Good Price Pos System Pos Machine All In Once Touch Pos

CPU

On board INTEL® 1037U 1.8GHz Dual Cores CPU

2 Phase CPU Power Support

Chipset

INTEL® NM70 Mobile Chipset

I.O Chipset

ITE IT8785E

SSD

32 G or 64G

LCD

15" TFT LED

VGA

INTEL® HD Graphics’ 4000

Memory

1*SO-DIMM slot

Support DDR3 1333/1066/800

Max. capacity of system memory up to 8GB

Expansion Slots

1 * MiniPCI-E connector

1* PCIex1 slot

Storage

1 * Serial ATA3 6Gb/s connector

1* Serial ATA2 3Gb/s connector

1 * M-SATA Connector

Audio

ALC887 Audio CODEC

HD Audio CODEC

Ethernet LAN

Realtek® RTL8111F Chip

PCI Express Gigabit LAN

LVDS

Onboard 24-bit Dual channel

USB

6* USB 2.0/1.1(4distribute in back panel, 2 distribute in mid-board)

Special Features

Support CPU Smart Fan

Support Watch dog Technology

Support GPIO Technology

Support VGA header

Support Power On board

Support Slim Fan design

Support Slim hard drive design

Thunder Protection Function

All Solid Capacitor design

All Power Pack MOSFET design

Outer I/O Interface

RJ-45 LAN Port x 1; PS/2 Keyboard Port x 1

VGA Port x 1; USB2.0 x 4

Serial Port x 1; Parallel Port x 1

DC Power Port x 1

BIOS

AMI 32MB DIP Flash ROM

Form Factor

Thin mini ITX Form Factor(170mm X 170mm)

Optional

Card Reader in 3 Tracks , VFD customer display , 12 " or 15 "Advertising moniter

Video Memory

Max Support 224MB Dynamic Video Memory

Brightness

250cd/m2

Resolution

1024x768(max)

Touch Screen

Top quality five line resistance touch screen

Customer Display

12" LED monitor

Printer

58mm thermal printer or 80mm thermal printer

Keyboard

66 keys programmable keyboard with 3 tracks magnetic card reader

Cash drawer

Three positional cash drawer

Option

Fingerprint reader or WIFI support

Visible Angle

Horizontal: 140, Vertical: 130

Operation Temperature

0°C to 40°C

Storage Temperature

-20°C to 40°C

Power

DC 12V Outer Adapter Input
