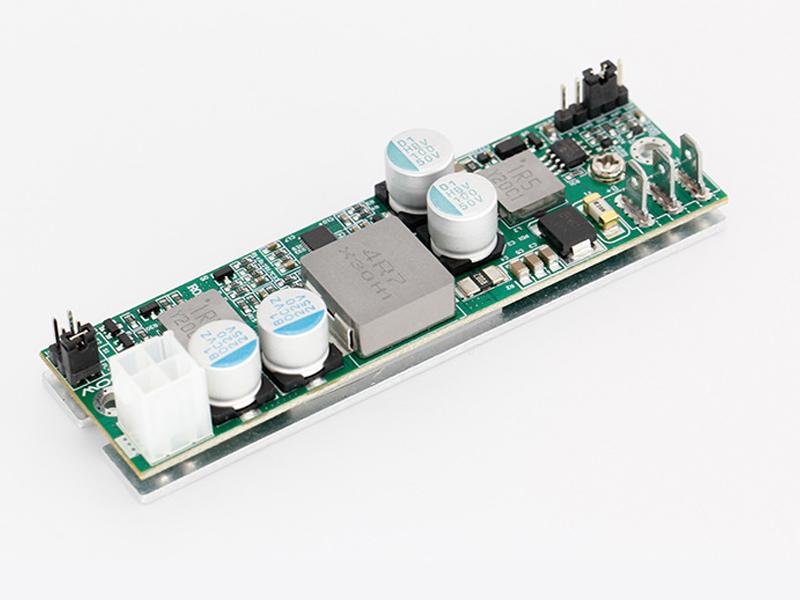

IPS-120W Industrial Power Supply DC-DC / IPC Power Supply
Product Introduction
DC to DC industrial power supply,DC9V~36V input,DC12V/10A 120W output.
Product Specifications
1．Input Requirements
|
Parameter
|
Minimum
|
Nominal
|
Maximum
|
Unit
|
|
Vin
|
9
|
|
36
|
VDC
|
|
Iin
|
14
|
|
3.5
|
A
|
|
Ripple & Noise
|
80
|
|
300
|
mVp-p
|
2. Maximum Power Characteristics
|
Model
|
Output Rail
|
Current (Max)
|
Current Peak (<60 seconds)
|
Regulation
|
|
IPS-120W-12
|
12V
|
10A
|
12A
|
2%
|
|
IPS-120W-19
|
19V
|
6A
|
9A
|
2%
|
|
IPS120W-24
|
24V
|
5A
|
7.5A
|
2%
|
Total power = 120 Watts
3. Output Voltage Regulation
|
Output
|
Range
|
Minimum
|
Nominal
|
Maximum
|
Unit
|
|
+12V
|
±5%
|
11.4
|
12
|
12.6
|
Volts
|
|
+19V
|
±5%
|
18.05
|
19
|
19.95
|
Volts
|
|
+24V
|
±5%
|
22.8
|
24
|
25.2
|
Volts
|
4. Output Ripple and Noise
|
Output
|
Maximum Ripple & Noise ( mVp-p )
|
|
+12V
|
120
|
|
+19V
|
200
|
|
+24V
|
200
|
5. Connection diagram
Power Input Connectors
J2ACC Ignition (switched battery, positive. Can test by connecting it to Battery +)
Input- orBattery-
Input+ orBattery+

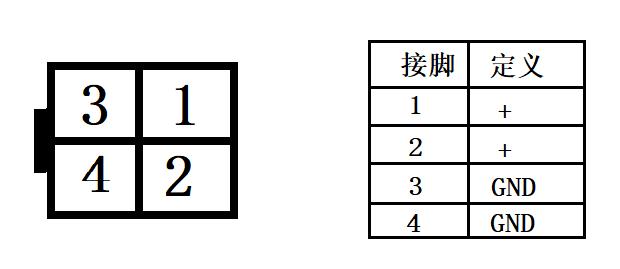

Power Output Connectors
CN1
Controls and Settings
J3 any S1 and S2To motherboard ON/OFF switch orTo external ON/OFF switch
PL+ connect tomotherboardPOWER LED+, PL- connect tomotherboardPOWER LED-
SWModes Settings
J1 A,B Mode Settings
Mode “A” is regular power supply mode
Mode “B” 10s ACC ON,PSU ON,20sACC off,PSU off,90s Power off
6. Parameter
|
Minimum Input Operating. voltage
|
9V
|
|
Maximum input Operating voltage
|
36V
|
|
Max Output Power
|
120 Watts
|
|
Operating temperature
|
-10 to +50* degrees Celsius
|
|
Storage temperature
|
-20 to +60 degrees Celsius
|
|
MTBF
|
100,000 hrs @25C,10,000 hrs @50C
|
|
Efficiency (Input12V)
|
>96%, all rails combined, 50% load.
|
|
PCB size
|
100x30mm
|

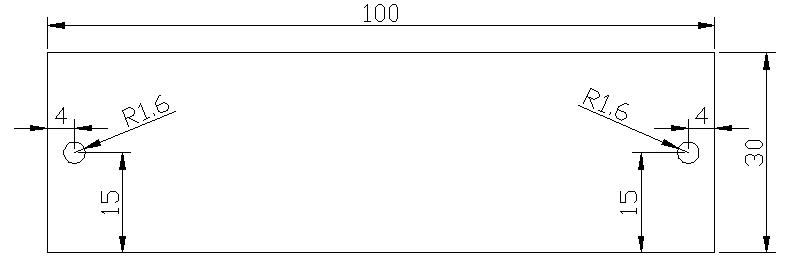

7. Dimensional drawings
