| Manufacture |
Vibration |
| Model |
IQS 450 |
| Product ID |
IQS450 204-450-000-001 |
| Catalog |
Vibration Monitoring |
| Description |

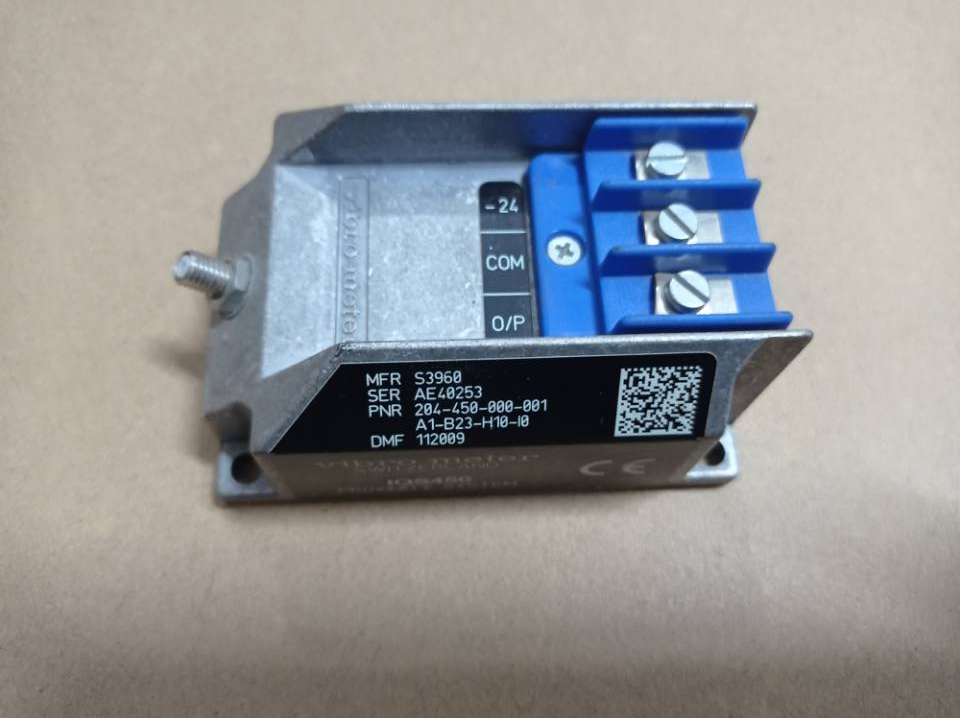

signal conditioner IQS450 204-450-000-001-A1-B21-H05-I0 |
| Country of Origin |
Swizerland |
| Dimension |
79.4mm*54mm*36.5mm |
| Weight |
140g |

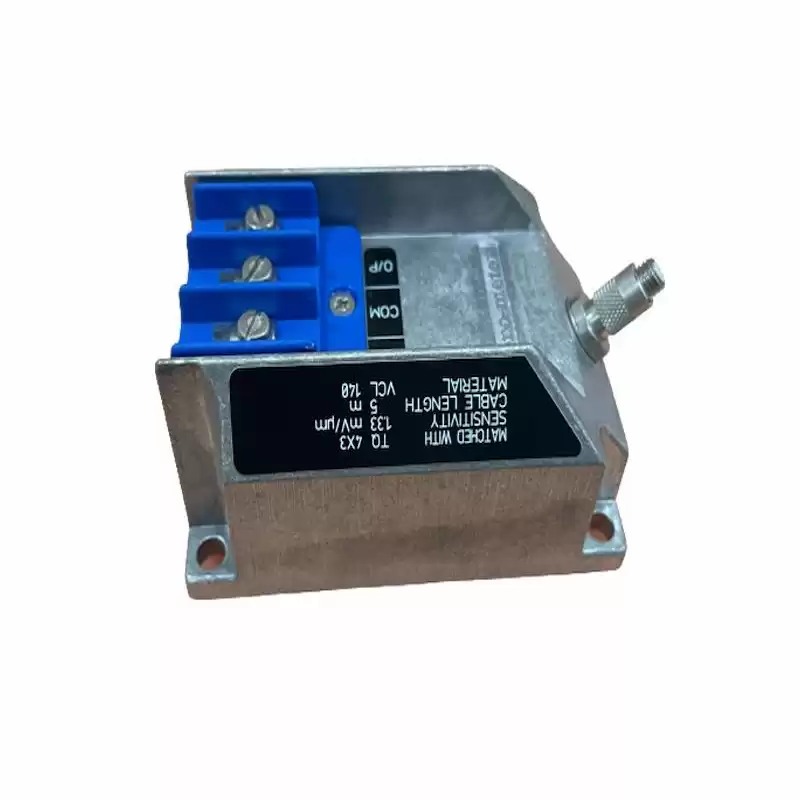

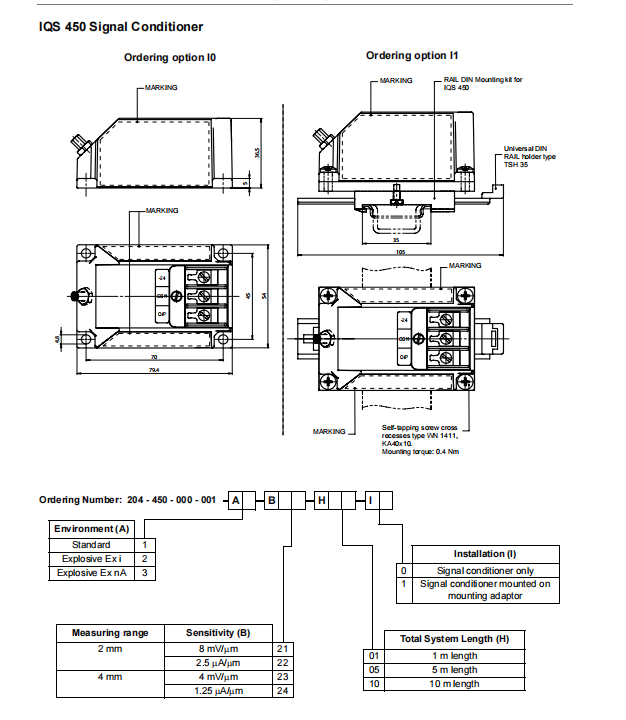

IQS 450 Signal Conditioner
OUTPUT CHARACTERISTICS
Voltage output, 3-wire configuration
• Voltage at min. GAP : -1.6 V
• Voltage at max. GAP : -17.6 V
• Dynamic range : 16 V
• Output impedance : 500 Ω
• Short-circuit current : 45 mA
Current output, 2-wire configuration
• Current at min. GAP : 15.5 mA
• Current at max. GAP : 20.5 mA
• Dynamic range : 5 mA
Output capacitance : 1 nF
Output inductance : 100 μH
SUPPLY
Voltage output, 3-wire configuration
• Voltage : -20 V to -32 V *
• Current : 13 ± 1 mA (25 mA max.)
Current output, 2-wire configuration
• Voltage : -20 V to -32 V *
• Current : 15.5 to 20.5 mA
Supply input capacitance : 1 nF
Supply input inductance : 100 μH
-
Quality
100% brand new and original
All the goods will be tested before shipment.
-
Warranty
Topteng offers a 12-month warranty from the date of delivery
In the event of non-conforming product (if damaged or incorrect product is received),
Any nonconformity must be reported within 7 days of receipt of goods.
-
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.
We can shipping all over the world via DHL,UPS,Fedex and EMS
-
